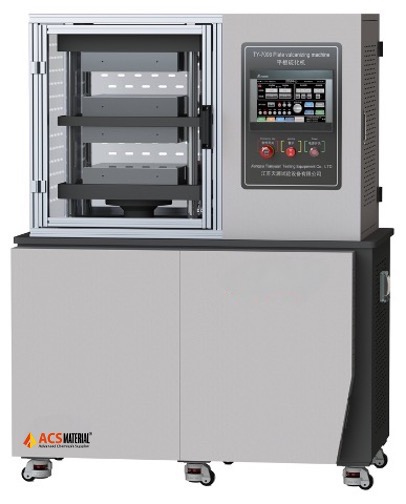

Polytevo Series Plate Vulcanizing Press Machine
Product Detail
Polytevo Series Plate Vulcanizing Press Machine (ACS-7006A-30 and ACS-7006A-50) is a PLC-controlled vulcanizing platen press for the compression molding of test specimens, with capacities of 30 T and 50 T, a temperature range of RT to 300°C and a double working space with an upper heating space and a lower water-cooling space.
The ACS-7006A-30 and ACS-7006A-50 form the material in a mold between the heating plates under controlled pressure and temperature. A color touch-screen PLC program-control system with a user-friendly human-machine interface lets the pressure, temperature, time and frequency of the curing process be set; once the parameters are configured, the complete molding process is carried out fully automatically.
Why choose the ACS-7006A-30 and ACS-7006A-50
Specifications General — ACS-7006A-30 / ACS-7006A-50
Swipe horizontally to view all columns.
| Parameter | Specification |
|---|---|
| Brand | Polytevo Series by ACS Material |
| Models | ACS-7006A-30 / ACS-7006A-50 |
| SKU # | ERP7VPP3 (ACS-7006A-30) / ERP7VPP5 (ACS-7006A-50) |
| Product Type | Vulcanizing platen press machine |
| Temperature | RT to 300°C |
| Temperature accuracy | ±2°C |
| Pressure accuracy | ±10% |
| Control method | PLC control; temperature and time can be set on the touch panel |
| Pressure regulation | Pressure meter control |
| Working space | Double space: upper space heating, lower space cooling |
| Exhaust (degassing) cycles | 0–99 times |
| Opening distance | 75 mm upper space, 75 mm lower space |
| Plate material | Alloy steel (fine grinding, hard chrome plated) |
| Heat shield | Heat insulation board, temperature resistance 500°C |
| Maximum piston stroke | 150 mm |
| Hydraulic system | Closed-loop hydraulic control system |
| Safety | Acrylic transparent visible safety cover; machine stops once the safety door is opened |
| Power supply | AC 380 V ±10% |
Model comparison ACS-7006A-30 vs ACS-7006A-50
Swipe horizontally to view all columns.
| Parameter | ACS-7006A-30 | ACS-7006A-50 |
|---|---|---|
| SKU # | ERP7VPP3 | ERP7VPP5 |
| Capacity | 30 T | 50 T |
| Pressure range | 5–16.6 MPa | 5–17 MPa |
| Plate size | 300 × 300 mm | 400 × 400 mm |
| Piston diameter | Ø150 mm | Ø200 mm |
| Dimensions (L × W × H) | 1180 × 585 × 1550 mm | 1230 × 685 × 1620 mm |
| Power | 12 kW | 17 kW |
| Weight | About 850 kg | About 1400 kg |
Main components Press plates and electrical panel
Swipe horizontally to view all columns.
| Component | Description |
|---|---|
| Press plates | Fine-ground, hard-chrome-plated alloy steel plates. |
| Electrical panel | PLC, SSR and wiring. |
The supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| Mainframe | 1 set |
| Platen | 4 pcs |
| SSR | 1 set |
| Thermostat | 1 set |
| PLC system | 1 set |
| Touch screen | 1 set |
| Hydraulic power unit | 1 set |
| Safety door | 1 set |
External utilities, where required, are supplied by the user. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What is the difference between the ACS-7006A-30 and the ACS-7006A-50?
Capacity (30 T vs 50 T), pressure range (5–16.6 MPa vs 5–17 MPa), plate size (300 × 300 mm vs 400 × 400 mm), piston diameter (Ø150 mm vs Ø200 mm), power (12 kW vs 17 kW) and weight (about 850 kg vs about 1400 kg). Temperature range, accuracy and control are the same.
What temperature range and accuracy are published?
RT to 300°C with a temperature accuracy of ±2°C; the pressure accuracy is ±10%.
How is the machine controlled?
By a PLC with a color touch screen; temperature and time are set on the touch panel and pressure is regulated by a pressure meter.
How is the working space arranged?
A double working space: the upper space is heated and the lower space is cooled, with an opening distance of 75 mm in each.
What must the user prepare?
AC 380 V ±10% power; the hydraulic oil specification is confirmed on the quotation.
