  • How Ultrafast Joule Heating is Advancing Science

    Jun 05, 2023 | ACS MATERIAL LLC

    Pass a strong electric current through a material and it heats itself from the inside — almost instantly, and to temperatures that would take a conventional furnace hours to reach. This is the idea behind ultrafast Joule heating: a family of resistive-heating methods that can drive a sample to several thousand degrees and back in a matter of seconds. Over the past decade the approach has moved from a laboratory curiosity to a practical tool for sintering ceramics, screening new compositions, and processing materials that are difficult to make any other way.

    Short answer: Joule (resistive) heating turns electrical power directly into heat inside a conductive sample or heating element, following P = I²R. Because the heat is generated within the material rather than conducted in from hot walls, ultrafast Joule heating reaches extreme temperatures — and cools again — far faster than a furnace, with heating and cooling rates of thousands of degrees per minute. That speed does more than save time: the very short time spent at high temperature suppresses grain growth, limits the loss of volatile elements, and can trap useful metastable and compositionally complex phases that slow processing would destroy.

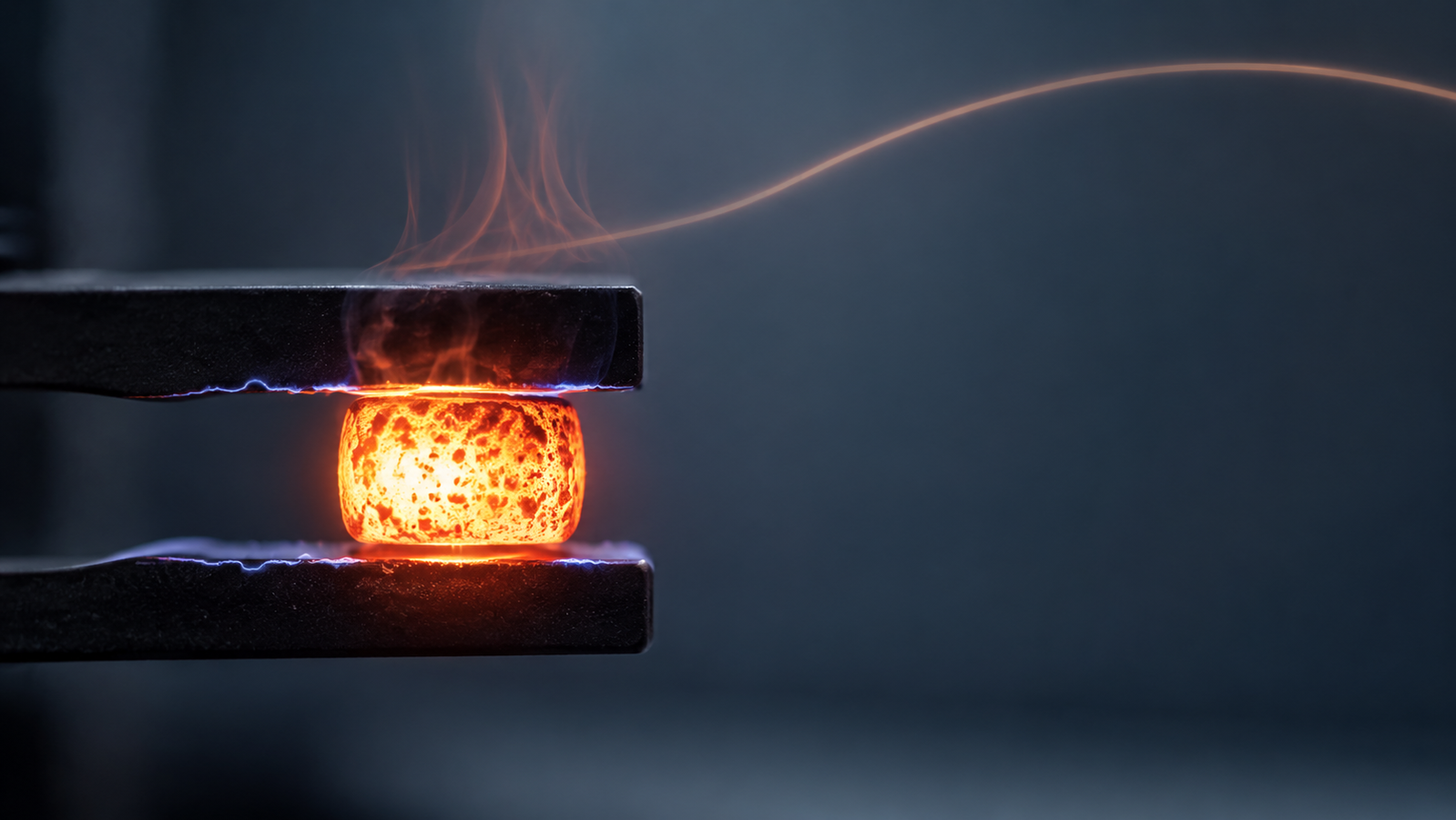

    A pressed ceramic pellet glowing white-hot between two dark graphite electrodes as resistive (Joule) heating drives it to incandescence, with a faint temperature-versus-time curve in the background
    Resistive (Joule) heating brings a pressed ceramic sample to incandescence in seconds by generating heat inside the material itself — reaching temperatures a conventional furnace would take hours to approach. Representative image.

    The physics: how resistive (Joule) heating works

    Every conductor dissipates electrical energy as heat when current flows through it. The power released per unit volume is proportional to the current density times the electric field, which for a simple resistor reduces to the familiar P = I²R. In ultrafast Joule heating, the sample — or a conductive element in intimate contact with it — plays the role of that resistor. In one widely used approach, a pressed pellet of ceramic powder is placed between two carbon strips that are heated by the Joule effect to roughly 3,000 °C, so that the ceramic is brought up to temperature by radiation and conduction in seconds.1 In flash sintering, the ceramic itself becomes electrically conductive once it is hot enough to carry current, and intense, localized heating — attributed substantially to Joule heating at the grain boundaries, alongside defect generation and field-assisted transport — drives rapid densification.2

    The reason this is so fast comes down to where the heat appears. A furnace has to raise the temperature of its walls, its atmosphere, and its fixtures, and then wait for that heat to soak into the workpiece; the entire thermal mass of the system must change temperature before the sample does. Joule heating instead deposits energy directly where it is needed, so only the sample and its immediate surroundings ever get hot. Nothing else has to be warmed up or cooled down.

    Peak temperature is then set by a simple balance. As the sample heats, it radiates energy away at a rate that climbs with the fourth power of absolute temperature (the Stefan–Boltzmann law). The temperature stops rising when the electrical power going in equals the radiative and conductive losses coming out. Because those losses grow as T⁴, pushing the peak higher requires disproportionately more power — and when the current is switched off, the same steep radiative loss cools the sample almost as quickly as it heated. The tool below lets you feel this trade-off directly.

    Notice that doubling the input power does not double the peak temperature: the fourth-power radiative loss flattens the curve into a plateau, and the whole heat-and-quench cycle is over in seconds. That combination of a fast ramp, a self-limiting plateau, and an equally fast quench is the signature of resistive heating, and it is what the rest of this article builds on.

    Why speed matters: residence time and microstructure

    High temperature is necessary for most materials processing, but time at high temperature has costs. Grains coarsen as a material is held hot, following growth kinetics in which the grain size D increases with time roughly as D² − D₀² = k(T)·t, with the rate constant k rising steeply with temperature. The way grain boundaries migrate and the resulting grain-size distributions have been studied since the classic analyses of Burke and Turnbull3 and Hillert,4 and the geometry of boundary motion is captured by relations such as the one introduced by Mullins.5 The practical message is simple: the longer a material sits hot, the coarser it becomes.

    This is a problem when fine grains are desirable, because in ordinary sintering the same driving forces that remove pores also grow grains. A well-known workaround, two-step sintering, densifies a body quickly and then holds it at a lower temperature, exploiting the difference in kinetics between grain-boundary diffusion and grain-boundary migration to reach full density with almost no final-stage grain growth.6 Ultrafast heating takes the idea to its limit: the sample spends so little time at peak temperature that coarsening barely begins.1 The simulator below shows how the final grain size depends on both temperature and time at temperature.

    The short residence time pays off in two more ways. It limits the evaporation of volatile constituents — a chronic difficulty when sintering lithium-, sodium-, or bismuth-bearing ceramics, where slow firing quietly changes the composition.1 And a fast quench can freeze in metastable or compositionally complex phases that a leisurely cool-down would allow to segregate or decompose. Speed, in other words, is not just about throughput; it is a lever on the microstructure and even the phase content of the final material.

    Rapid sintering of advanced ceramics

    Sintering is the process by which the pores between packed particles are eliminated by atomic diffusion driven by capillary forces; the classic diffusion models developed by Coble still frame how we understand it.7 Done conventionally, it can require many hours at high temperature, which is slow for manufacturing and painfully slow for research, where one might want to test dozens of compositions.

    A whole family of methods uses electricity to speed this up, and most of them heat from within. Flash sintering densifies certain ceramics in seconds once an applied electric field triggers a conductive, self-heating state; first demonstrated on nanograin zirconia,2 it has since been shown for cubic yttria-stabilized zirconia intended for fuel cells,8 for alumina,9 and for spinel electrode materials,10 and has been reviewed in depth.11,12,13,14,15 Spark plasma sintering, also called field-assisted sintering technology (SPS/FAST), passes a pulsed current through a conductive die to consolidate powders quickly under pressure;16,17,18 the approach grew out of a long history of electric-current sintering patents19 and has been analyzed carefully for its scaling behavior and mechanisms.20,21 Microwave sintering couples energy into a material volumetrically through dielectric loss, once again heating it from the inside rather than from hot surroundings.22,23

    Ultrafast high-temperature sintering (UHS) sits at the extreme end of this spectrum. By resistively heating carbon strips or felt, it reaches heating and cooling rates on the order of 1,000–10,000 °C per minute and temperatures approaching 3,000 °C, densifying a wide range of ceramics in seconds to minutes while limiting the loss of volatile elements.1 The table below places these methods side by side.

    MethodTypical heating ratePeak temperatureHow heat is delivered
    Conventional furnaceA few °C per minuteUp to ~1,700 °C (typical)Radiation and convection from hot walls; whole chamber heated7
    Microwave sinteringTens to hundreds of °C per minuteMaterial-dependentVolumetric dielectric heating from within22
    Spark plasma sintering (SPS/FAST)Hundreds of °C per minute~2,000 °C or morePulsed current through a conductive die, under pressure17
    Flash sinteringEffectively seconds to full densityModest furnace temperature plus local self-heatingLocalized Joule heating once the ceramic becomes conductive2
    Ultrafast Joule heating (UHS)~1,000–10,000 °C per minuteUp to ~3,000 °CResistive (Joule) heating of carbon strips or felt1

    Increasingly, these rapid methods are available as turnkey laboratory equipment rather than one-off rigs, which is what makes them practical for routine research and small-scale production. ACS Material's HelioVolt® Joule heating system is one example built directly on the resistive-heating principles described here.

    High-entropy and compositionally complex ceramics

    One class of materials shows off the advantages of fast heating especially well. High-entropy ceramics pack five or more different cations onto a single crystallographic site, using configurational entropy to stabilize a single disordered phase. Entropy stabilization was first demonstrated in a mixture of oxides in 2015,24 and the field has since grown to include high-entropy oxides, borides, carbides, and nitrides with an unusual blend of properties.25

    These phases are often single-phase only at high temperature, and the same sluggish diffusion that makes them attractive also makes them hard to homogenize and easy to leave partially reacted. Slow cooling can let them segregate back into separate phases. Ultrafast heating is a natural fit: it reaches the single-phase temperature, homogenizes the cations, and then quenches quickly enough to keep them mixed and the grains fine.1,25 That makes rapid resistive heating a practical way to explore the enormous compositional space these materials open up.

    A wider role in high-temperature processing

    Ultrafast heating is not, in fact, new to industry. Semiconductor manufacturing has relied on rapid thermal annealing for decades: a single silicon wafer is heated with intense lamps to high temperature for only seconds, long enough to activate implanted dopants and repair damage but short enough to keep those dopants from diffusing, and then cooled quickly.26 The governing principle is analogous rather than identical — rapid thermal annealing heats the wafer with intense radiation rather than by electrical resistance — but the philosophy is the same: heat the workpiece, not the chamber, minimize the thermal mass that has to change temperature, and keep the time at temperature short.

    Beyond sintering and annealing, researchers continue to explore ultrafast resistive heating across a widening range of high-temperature processes, wherever a brief, precisely controlled excursion to extreme temperature is an advantage over a long soak. The common thread is always the same pair of levers this article has emphasized: reach a high peak temperature, but spend as little time there as the chemistry allows.

    Advantages and current limitations

    The appeal of ultrafast Joule heating is a combination of speed, efficiency, and control. Because a full cycle takes seconds, many compositions can be screened in the time a single conventional firing would take,1 and because energy is delivered only where it is needed, the electric-field methods can use a small fraction of the energy of conventional firing.11 The short residence time gives finer grains and better-preserved phases, and the hardware itself is compact.

    None of this makes the approach universal, and it is worth being clear about the limits. Heating a sample by passing current directly through it requires that the sample be adequately conductive and of a workable geometry; heater-based schemes that use a carbon strip or felt relax that requirement but introduce their own needs around electrical contact and atmosphere. Measuring temperature accurately on second and sub-second timescales is genuinely hard. Steep thermal gradients can crack a sample or leave a density gradient behind,20 and turning a promising laboratory result into a reproducible, larger, uniformly heated process remains an active engineering challenge.17,20 As with any thermal method, uniformity and atmosphere control matter as much as the peak number.

    From method to equipment

    Much of the current interest traces back to energy storage. Solid-state batteries need dense ceramic electrolytes — garnet-type Li₇La₃Zr₂O₁₂ (LLZO) is a leading example27 — that must be sintered without boiling off their lithium, which is exactly the volatile-loss problem that fast heating is good at avoiding.1 Garnet electrolytes28,29 are central to the effort to make lithium-metal batteries that are safer and store more energy than today's cells.30,31

    For anyone putting the method to work, a practical ultrafast Joule heating system is defined by a few things: its temperature range and how fast it can ramp and quench, how well it controls atmosphere, and how precisely it lets you program and measure the thermal cycle. ACS Material builds equipment around exactly these resistive-heating principles — the HelioVolt® Joule heating systems span laboratory synthesis and rapid sintering from small samples to larger, amplified formats. Whichever scale you work at, the physics in the simulators above is the physics on the bench.
