HelioVolt™ Joule Heating System, Model B / B Plus
HelioVolt™ Joule Heating System Model B / B Plus
Product Detail
Key Features
- Highest Temperature: 3,600 °C
- Customizable system
- Real-time Monitoring (temperature, voltage, and current)
- Cost-effectiveness, time efficiency, and reliability
- Emergency Stop safety measure
Product Overview

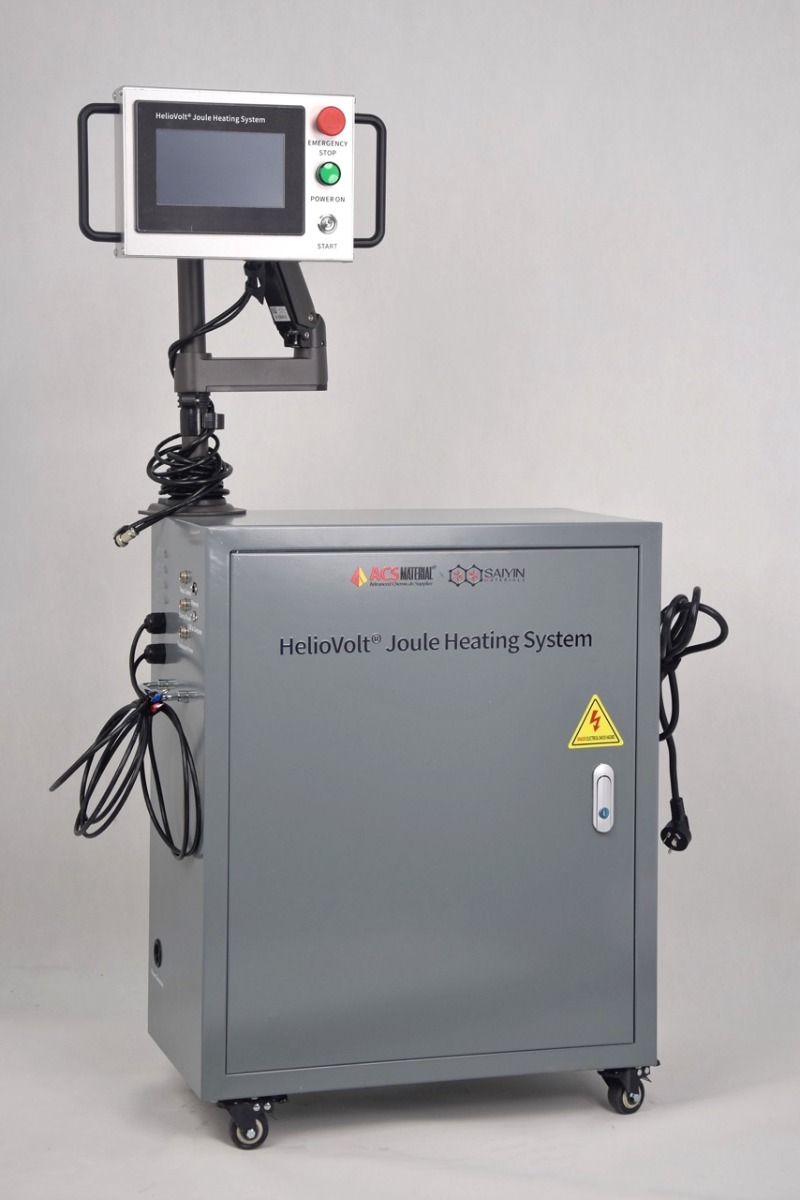

Fig. 1 - Image of the HelioVolt™ Joule Heating System Model B/B Plus
Product Specifications
|
HelioVolt™ Joule Heating System |
||
|
Model |
HVJH-2026B Plus |
HVJH-2026B |
|
AC Voltage |
110-220V (Customizable) |
|
|
AC Power |
3500W |
|
|
DC Power |
3000W(36V x 83A) |
|
|
Temperature (Temperature Probe Measuring Range) |
400~3600 °C |
|
|
Maximum Temperature |
2800 °C |
|
|
Fastest Heating Rate |
~103°C/S |
|
|
Fastest Cooling Rate |
~103°C/S |
|
|
Discharge Duration |
1ms ~ 4hrs |
0.1s ~ 4hrs |
|
Sampling Frequency |
1/100/1000Hz |
|
|
Sample Volume |
Powder~ 0.5-2.0ml (0.1-2.0g) (Specific Gravity =1) |
|
|
Min. Discharge Time |
1ms / 1ms |
100ms / 20ms |
|
Heating Type/Modes |
1) Pulse Heat; 2) Step Heat; 3) Linear Heat (Voltage, Current, and Temperature) |
|
|
Weight |
100kg |
50kg |
|
Overall Shipping Size |
600x300x900 |
|
|
Electrical Control Box Size |
600x300x600 |
|
|
Inside Vacuum Box Size |
300x300x150 |
|
|
Vacuum Pump |
1500W / 110-240V / 150L/min |
|
|
Acquisition Computer |
All-in-One Desktop |
|
|
Features |
Accurate control up to 2800°C, and hold for 4 minutes. Suitable for conductive or non-conductive powder & thin film. |
|
Software Interface
Fig. 2 - Image of the HelioVolt™ Joule Heating System Software Interface (Welcome)
Fig. 3 - Image of the HelioVolt™ Joule Heating System Software Interface (Pulse-Heat)
Fig. 4 - Image of the HelioVolt™ Joule Heating System Software Interface (Step-Heat)
Reactor Stands
1 - Tube Reactor Stand
2 - Flat Reactor Stand
Fig. 5 - Image of the HelioVolt™ Joule Heating System Tube Reactor Stand
Fig. 6 - Image of the HelioVolt™ Joule Heating System Flat Reactor Stand
Vacuum Box Comparison
|
#1 Acrylic Vacuum Chamber |
#2 Stainless Steel Vacuum Chamber (Small) |
#3 Stainless Steel Vacuum Chamber (Large) |
#4 Water-Cooled Stainless Steel Vacuum Chamber (Small) |
#5 Water-Cooled Stainless Steel Vacuum Chamber (Large) |
|
|
Temperature Duration |
≦2200℃ ≦4min 2200～2500℃ ≦2min 2800～3000℃ ≦10s （Optional Glass Protective Cover） |
≦1000℃ ≦60min 1000～2200℃ ≦10min 2200～2500℃ ≦4min 2500～2800℃ ≦1min |
≦2500℃ ≧60min 2500～2800℃ ≦30min |
||
- With inert gas, heat retention may last longer.
- Long-term high-temperature heating is not recommended for any vacuum box.
Consumables
Fig. 7 - Image of the HelioVolt™ Joule Heating System Consumables
1 - Graphite Paper
2 - Graphite Plug
3 - Quartz Tube
4 - Gas Collection Bag
5 - Stainless Steel Electrode Rod
6 - PTFE Collection Bottle
7- Temperature Probe Protective Screw
*More available upon request.
