Mini Injection Molder
Laboratory Mini Injection Molder
Product Detail
Product Overview

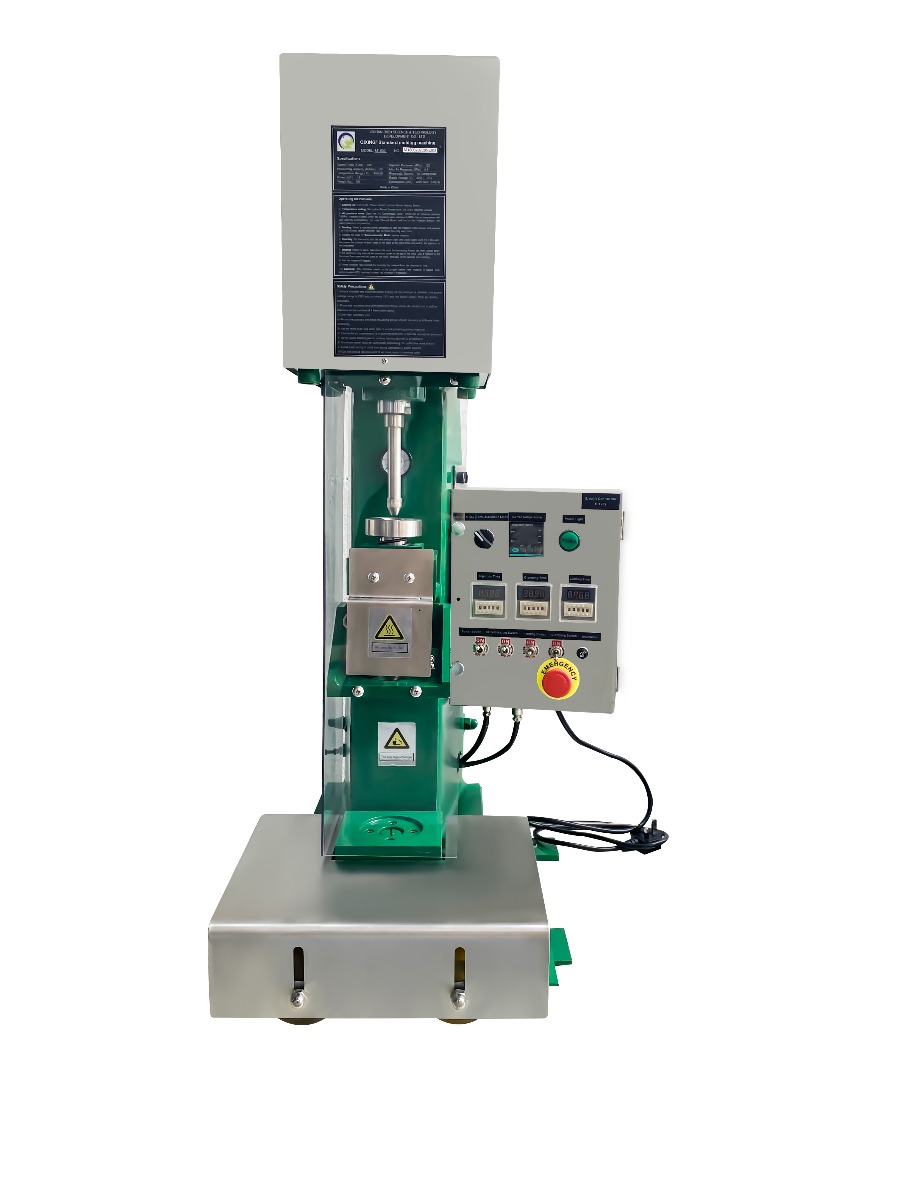

The Qixing Laboratory Mini Injection Molder is recommended for injection molding of various thermoplastic materials to prepare dumbbell bar, straight bar, knotted bar, vertical combustion bar, oxygen index bar, etc., all of which can be used for testing certain mechanical properties of various materials. This model is equipped with accurate temperature controllers and high-speed special electrical heaters. It is small, light, easy to move and with dense space utilization. The internal mixer is capable of handling up to 20 grams of material per feeding cycle. Easy to maintain as core components are designed with the “plug and play” principle. It can be used at a maximum temperature of 300°C and can be used for molding of ultra-high temperature materials. It’s easy to move, install, operate and maintain.
Product Features
- Light weighted (~85kg), fits in a fume hood
- Mini size, less space occupation
- Build-up machine and replaceable parts, easy to install and maintain
- Handles up to 20g of material per feed
- Freely replaceable molds; clamping force exceeds 80 tons
- Supports feeding particle diameter ≤16mm
- One machine for multiple purposes capable of making dumbbell samples, impact notch samples, etc., can save the punching machine, universal prototype machine.
Product Specifications
|
Product Name |
QixingTM Laboratory Mini Injection Molder |
|
SKU # |
EMIM0101 |
|
Model # |
M1400 |
|
Clamp Force (Ton) |
＞80 |
|
Injection Pressure (MPa) |
125 |
|
Plasticizing Capacity (g/time) |
20 |
|
Temperature Range (°C) |
40-300 |
|
Temperature Display Accuracy |
+/-1 % |
|
Power (KW) |
1 |
|
Voltage Supply (V) |
240 |
|
Pneumatic Source |
Air Compressor |
|
Unit Dimensions W x D x H (mm) |
400×500×1100(H) |
|
Maximum Air Pressure (MPa) |
0.8 |
|
Weight (kg) |
<100 |
|
Mold |
Dumbbell Mold |
*Molds can be customized according to requests.
The following molds can be customized.
|
Item |
Properties |
Standard |
Sample Size (L*W*T) mm |
|
1 |
Tensile |
ASTM D638 |
116*6*3.2 |
|
2 |
IZOD Notch |
ASTM D256 |
64*12.7*3.2 |
|
3 |
IZOD w/o Notch |
ASTM D4812 |
64*12.7*3.2 |
|
4 |
Flexural |
ASTM D790 |
127*12.7*3.2 |
|
5 |
HDT |
ASTM D648 |
127*12.7*3.2 |
|
6 |
Oxygen Index |
ASTM D2863 ISO 178 ISO 75 |
80*10*4 |
|
7 |
Flammability |
ASTM D635 |
125*12*3.2 |
|
8 |
Tensile |
ISO 527-1BA |
85*3*5 |
|
9 |
Flexural |
ISO 178 |
80*10*4 |
|
10 |
Tensile |
ISO527-1A |
150*10*4 |
|
11 |
IZOD Notch |
ISO 179-1 |
80*10*4 |
|
12 |
IZOD Notch |
ASTM D6110 |
127*12.7*3.2 |
Photo of Samples Prepared by QixingTM Laboratory Mini Injection Molder
Photo of Air Compressor
