Graphene and Water Treatment

Graphene — a single sheet of carbon atoms locked in a honeycomb lattice just one atom thick — has become one of the most actively studied materials for cleaning water. The reason is a striking experimental fact: a micrometer-thick film of graphene oxide can be completely impermeable to liquids, vapors, and gases, yet still allow water to pass through almost unimpeded.¹ Stack those oxidized sheets into a membrane and immerse it in water, and it behaves as a molecular sieve, blocking essentially every dissolved species with a hydrated radius larger than about 0.45 nm while letting smaller ions and water through thousands of times faster than ordinary diffusion would predict.² That combination of high water throughput and sharp size selectivity is exactly what water treatment has always wanted — and it is why graphene materials now appear across desalination, heavy-metal removal, dye and organic capture, capacitive deionization, and disinfection research.

Graphene and water treatment, in brief

“Graphene” in a water-treatment context almost always means one of two closely related materials. Graphene oxide (GO) is graphene decorated with oxygen-containing groups — hydroxyls, epoxides, and carboxylic acids — that make it disperse readily in water and stack into films with well-defined channels between the sheets. Reduced graphene oxide (rGO) and pristine graphene are more hydrophobic and conductive, which suits them to electrodes and adsorbents. From these building blocks, researchers make four kinds of water-treatment technology: membranes that physically sieve out contaminants, adsorbents that chemically capture pollutants, electrodes that remove charged ions, and antimicrobial coatings.

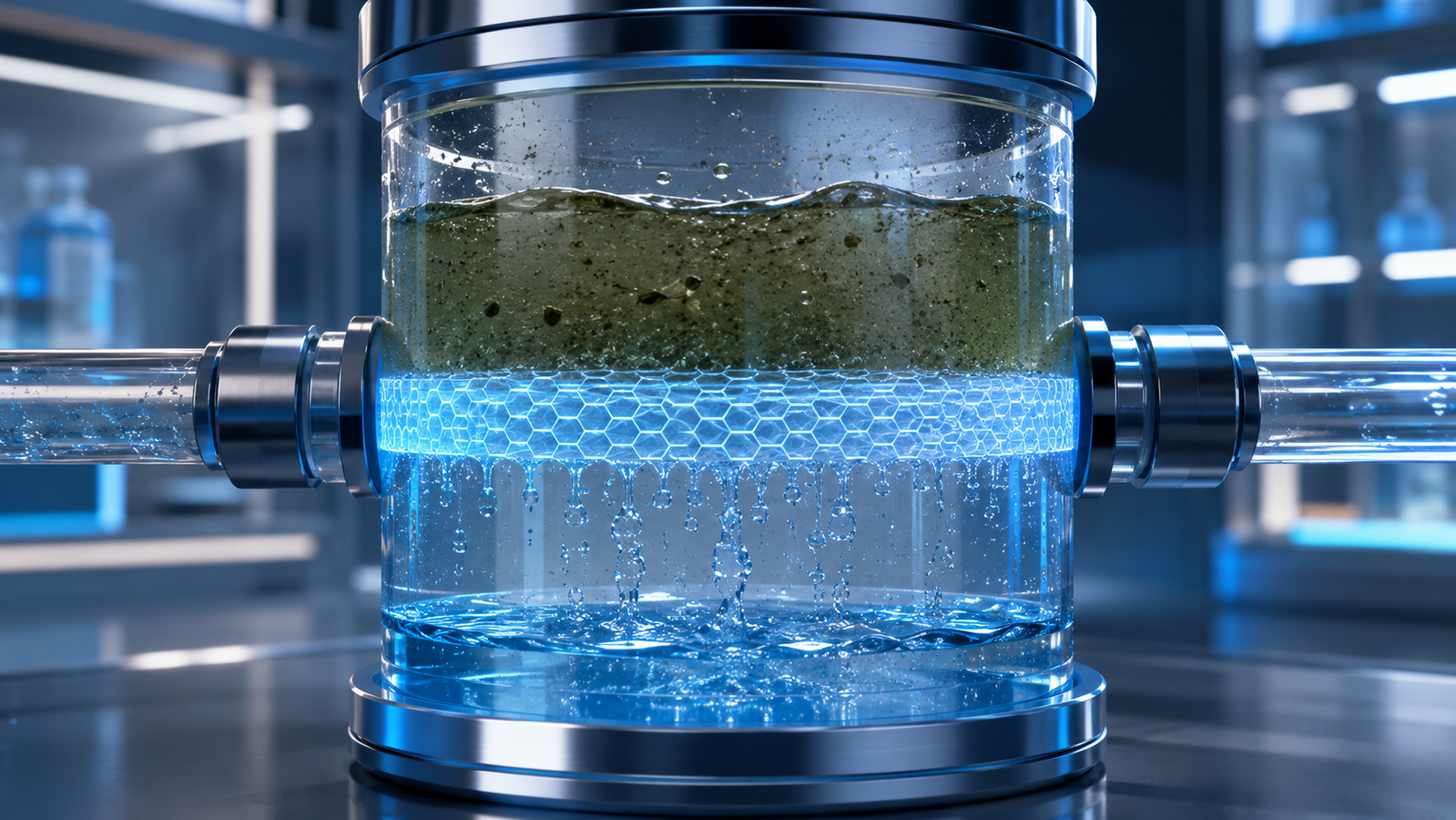

The single most cited demonstration is the graphene-oxide laminate membrane. Prepared by vacuum filtration of a GO suspension, it is vacuum-tight when dry but, once wet, opens up a network of nanocapillaries that admit water and block larger solutes by size.² That is the headline most people have heard — that a graphene filter can sieve salt and pollutants from water — and it is true, with important caveats we will get to. For the bigger picture of what graphene is and where it comes from, see our complete guide to graphene.

Why water treatment needs new materials

Roughly a quarter of humanity lacks reliably safe drinking water, and the gap is widening with population growth, industrial discharge, agricultural runoff, and a changing climate. Meeting demand will require purifying sources we currently treat as too difficult: brackish groundwater, seawater, and contaminated wastewater. A landmark review of the field laid out the core challenge — better disinfection, decontamination, reuse, and desalination all hinge on advances in the underlying materials.³

Desalination is the clearest example. Modern seawater plants rely on reverse osmosis (RO), in which high pressure forces water through a dense polymer membrane while salt is rejected. RO works, but it is energy-intensive and operates close to the thermodynamic minimum energy for separation, so there is little room left to improve by pushing harder.⁴ The way forward is materials that move water faster for the same pressure, or that separate by a different mechanism entirely. Every membrane also fights the same fundamental compromise: making it more permeable usually makes it less selective, and vice versa. Escaping that permeability–selectivity trade-off is precisely where atomically thin, precisely structured materials are expected to help.⁵

Why graphene works for water

Graphene’s usefulness in water all traces back to its structure. Isolated as a stable, free-standing crystal in 2004, it is a one-atom-thick sheet of carbon in a hexagonal mesh.⁶ Several features of that sheet matter for treating water:

• Atomic thinness means high flux. The rate at which water crosses a membrane scales inversely with the membrane’s thickness. A barrier that is essentially one atom thick is the thinnest a membrane can be, so for a given driving pressure it can pass water far faster than a conventional film.⁷
• Mechanical strength means durability. Defect-free monolayer graphene is among the strongest materials ever measured, which helps thin membranes and supports survive real operating pressures.⁸
• Intrinsic impermeability means precise gatekeeping. A perfect graphene sheet is impermeable even to helium; nothing crosses unless you deliberately create a pore or channel for it. That blank-slate quality is what lets researchers engineer exactly the openings they want.⁹
• Enormous surface area means strong adsorption and charge storage. Because every atom is a surface atom, graphene materials can reach specific surface areas of thousands of square meters per gram — ideal for binding pollutants or storing the ionic charge that drives capacitive deionization.¹⁰

Crucially, graphene’s surface chemistry is tunable. Oxidizing it produces graphene oxide with abundant oxygen groups that both attract metal ions and set the spacing between stacked sheets; reducing it back toward graphene restores conductivity. This control over thickness, porosity, charge, and chemistry is what makes one material family fit so many different treatment roles.

Membranes: sieving and desalination

Membranes are the most developed graphene water technology, and they come in two distinct flavors.

Nanoporous single-layer graphene. Here the idea is to drill nanometer-scale holes through one graphene sheet so that water slips through but hydrated salt ions cannot. Molecular-dynamics simulations first predicted that such a membrane could desalinate water two to three orders of magnitude faster than reverse osmosis at the same pressure, with salt rejection set by pore size.¹¹ Experiments then delivered: creating pores in monolayer graphene with an oxygen plasma produced membranes with salt rejection approaching 100% and rapid water transport.¹² By tuning how long the pores are etched, the same approach can switch a membrane from charge-selective (repelling ions electrostatically) to size-selective (excluding anything too big to fit), with the smallest pores measured around 0.4 nm across.¹³

Graphene-oxide laminate membranes. Rather than perforating one sheet, this approach stacks many GO sheets so that water travels through the two-dimensional channels between them. The width of those channels — the interlayer spacing, or d-spacing — determines what passes. Pure GO laminates swell in water to a spacing of roughly 13.5 Å, which is wider than the hydrated diameters of common salt ions, so unmodified GO membranes sieve out dyes and larger molecules well but struggle to fully reject small salts. The breakthrough was learning to control that spacing: physically confining the membrane to fix d between about 6.4 and 9.8 Å produced accurate, tunable ion sieving, with ion permeation that falls sharply as the channels narrow while water transport is far less affected under those test conditions.¹⁴ The interlayer spacing can even be set using the ions themselves — soaking a membrane in a particular cation salt locks in a spacing that then excludes larger ions.¹⁵

The flux advantage is real. Layer-by-layer assembled, cross-linked GO membranes have shown water permeance in the range of 80–276 liters per square meter per hour per megapascal — roughly four to ten times higher than most commercial nanofiltration membranes — while rejecting solutes by a mix of size exclusion and charge.¹⁶ In short, a graphene-oxide membrane lets only small, weakly hydrated species through, and does so with an accelerated transport rate.¹⁷

How the simulator works. The model is deliberately simple: the channel between graphene-oxide sheets admits a dissolved species only when that species’ hydrated size is smaller than the effective opening, and that opening shrinks as the interlayer spacing d narrows (here, opening ≈ d − 4.5 Å, anchored to the measured ~9 Å permeation cutoff of swollen graphene oxide at d ≈ 13.5 Å).¹⁴ Water is treated as always permeating, because the channels are hydrophilic and water transport is only weakly affected when they tighten. The takeaway is the central design lever of any graphene-oxide membrane: narrowing the spacing improves salt rejection, but it is a trade-off — squeeze too far and water flux falls, leave it too wide and small ions slip through.

It is worth being honest about scale. Most early results used membranes only millimeters across; demonstrating the same sieving across centimeter-scale, mostly defect-free graphene is much harder and is an active area of work, because a single large tear lets contaminants leak past.¹⁸ Composite membranes that combine GO with other materials are one practical route: GO composite membranes have rejected charged dye molecules at rates above 99.88% while remaining stable across a range of pH.¹⁹

Adsorption: heavy metals, dyes, and organics

Where membranes physically block contaminants, adsorbents chemically capture them — and graphene’s vast, group-rich surface makes it an excellent sponge. Adsorption is attractive because it can target pollutants present at low concentrations, often works without high pressure, and can sometimes be regenerated and reused.

Heavy metals. The oxygen groups on graphene oxide bind metal cations strongly. Few-layered GO nanosheets removed cadmium and cobalt from water with maximum capacities of about 106 and 68 milligrams per gram — higher than many conventional sorbents reported at the time — with uptake that rose with pH as the surface groups deprotonated.²⁰ This is the basis for graphene filters aimed at lead, cadmium, and mercury in drinking water.

Dyes and organics. Graphene oxide also captures organic pollutants. It removes the model dye methylene blue efficiently from solution, driven by electrostatic and π–π interactions with the carbon sheets.²¹ For hard-to-treat hydrophobic compounds, engineering the surface helps: activated, wrinkled few-layer graphene boosted the adsorption of an aromatic pollutant by up to about a hundredfold compared with flat graphene, by exposing more accessible binding sites.²² These mechanisms make graphene relevant to textile, pharmaceutical, and industrial wastewater that conventional treatment often misses.

Capacitive deionization

Capacitive deionization (CDI) removes salt electrically rather than by pushing water through a barrier. Brackish water flows between two porous electrodes held at a small voltage; positive ions migrate to the negative electrode and negative ions to the positive one, where they are stored in the electrical double layer. Cut the voltage and the ions release, regenerating the electrode. Because it operates at low voltage and recovers energy on discharge, CDI can be energy-efficient for lightly salted water — and its performance depends almost entirely on having electrodes with high surface area and good conductivity, a description that fits graphene precisely.

Chemically synthesized graphene-like electrodes proved effective for brackish-water desalination, with the conductivity and accessible surface area needed for efficient ion capture.²³ Subsequent work pushed the architecture further; cellulose-derived graphenic fibers, for example, were used as electrodes for capacitive desalination of brackish water.²⁵ A comprehensive review of the science and technology of CDI documents how porous carbon and graphene electrodes have matured toward a viable, energy-efficient option for brackish water and other low-salinity streams; seawater desalination by CDI remains more challenging and is still largely a research direction.²⁴

Disinfection and antibacterial action

Beyond removing chemicals and salts, graphene materials can inactivate microbes — useful both for disinfecting water and for keeping membranes from fouling with biofilm. A systematic comparison of graphite, graphite oxide, graphene oxide, and reduced graphene oxide against E. coli found graphene oxide the most effective, working through two routes: direct contact in which sharp sheet edges disrupt the cell membrane, and oxidative stress that damages cell components.²⁶ Vertically aligned GO and rGO “nanowalls” were similarly shown to be toxic to bacteria, with the sharper rGO edges causing more membrane damage.²⁷

The oxidative mechanism has been pinned down further: graphene nanosheets kill bacteria in part by triggering lipid peroxidation in the cell membrane.²⁸ And surface texture matters — deliberately wrinkling graphene oxide enhances its antibacterial activity by presenting more disruptive contact points.²⁹ Together these findings point toward graphene coatings that make water-treatment surfaces self-sanitizing and fouling-resistant.

Which graphene material for which job

Choosing the right form of graphene matters as much as the application itself. The starting point for most water work is graphene oxide, which is made by oxidizing graphite — a route established in 1958 and still the basis of modern synthesis.³⁰ From there:

• Graphene oxide (GO) is the workhorse for membranes and adsorbents. Its oxygen groups make it disperse in water, stack into tunable-spacing films, and bind metal ions. Choose GO when you need water dispersibility, sheet stacking, or chemical capture.
• Reduced graphene oxide (rGO) trades some oxygen groups for restored conductivity and hydrophobicity. It suits CDI electrodes, conductive composites, and adsorption of hydrophobic organics.
• Pristine and CVD graphene provide the most perfect, continuous sheets — the right choice for fundamental nanoporous-membrane studies where a single defect matters, though far harder to scale.
• Graphene nanoplatelets (GnP) offer high surface area at lower cost for bulk adsorbent or composite use, where atomic perfection is not required.
• Three-dimensional forms such as graphene aerogels and foams give a free-standing, high-porosity sorbent that is easy to recover from treated water.

Graphene vs. conventional methods

How do graphene-based approaches stack up against the technologies in use today? The table compares the dominant graphene route — the GO laminate membrane — with reverse osmosis, activated carbon, and conventional nanofiltration. The honest summary: graphene’s edge is permeability and tunability, while conventional methods win on maturity and proven field reliability.

The practical reading is that graphene is not yet a drop-in replacement for reverse osmosis at municipal scale, but it is already compelling where its strengths line up with the problem: high-flux nanofiltration, targeted removal of dyes, organics, or heavy metals, and energy-efficient treatment of brackish water by capacitive deionization.

Challenges and what is real today

Graphene water treatment is genuinely promising, but several hurdles separate laboratory results from municipal-scale deployment, and it is important to keep them in view.

• Scale-up and defects. A membrane that sieves beautifully at the millimeter scale must remain nearly defect-free over square meters to work in the field; producing and handling large-area, low-defect graphene reliably is still difficult.¹⁸
• Membrane stability. Graphene oxide swells in water, which both widens its channels and can compromise mechanical integrity, so membranes must be cross-linked or otherwise stabilized to hold their separation performance over time.¹⁴
• Fouling. Like every membrane, graphene films accumulate organic and biological matter that reduces flux — though graphene’s antibacterial surface chemistry may help mitigate biofouling.²⁶
• Cost and consistency. Pristine and CVD graphene remain expensive and hard to make uniformly; graphene oxide is far more affordable, which is one reason GO dominates near-term water research.⁵

None of these is a dead end — they are engineering problems under active attack — but they explain why most graphene water technologies are described as emerging rather than commercial.

Applications and outlook

Taken together, the research points to a near-term future in which graphene complements rather than replaces existing infrastructure. The most likely first wins are in high-value, targeted treatment: removing heavy metals and persistent organics from industrial and textile wastewater, polishing water in point-of-use filters, and improving the energy efficiency of brackish-water desalination through capacitive deionization. Graphene-oxide nanofiltration and composite membranes are the closest to practical use, while perfectly nanoporous single-sheet desalination membranes remain a longer-term goal as large-area fabrication matures.¹⁷

For researchers and product developers, the practical path is to match the form of graphene to the contaminant and the constraints — GO for membranes and metal capture, rGO and graphene for electrodes and hydrophobic organics, and three-dimensional forms where easy recovery matters. As fabrication, stabilization, and antifouling strategies continue to improve, graphene’s combination of thinness, strength, surface area, and tunable chemistry keeps it among the most compelling material platforms for the next generation of water treatment.

ACS Material products for water-treatment research

ACS Material supplies the graphene building blocks used across the approaches described above. The links below point to the most relevant product families for water research and development.

• Graphene Oxide — the core material for laminate membranes and heavy-metal and dye adsorption, supplied as water-dispersible sheets.
• Reduced Graphene Oxide (rGO) — conductive, more hydrophobic sheets for capacitive-deionization electrodes and organic-pollutant adsorption.
• Graphene Series — the full range of graphene powders and dispersions, including nanoplatelets for bulk adsorbent and composite work.
• Graphene-like Materials — related two-dimensional materials for comparative membrane and sorption studies.
• Molecular Sieves — complementary adsorbents for separation and purification experiments.

For application guidance or bulk and custom requirements, contact ACS Material.
