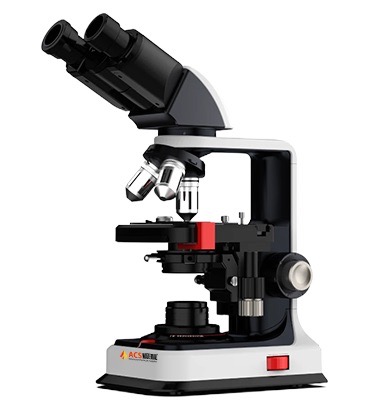

OptiPro™ TL24 Series Biological Microscope

Product Name

OptiPro™ TL24 Series Biological Microscope

Model

EOBTL24A

EOBTL24B

EOBTL24M

EOBTL24P

Specification Configuration

EOBTL24A

Binocular observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm

EOBTL24B

Trinocular observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm.

EOBTL24M

Trinocular viewing head, equipped with 5-million-pixel imaging system CMOS camera

EOBTL24P

Trinocular viewing head, equipped with 10.1-inch integrated flat panel display

Optical System

Equipped with an infinite plan optical system, featuring an anti-mold design and wide-angle eyepiece

Observation Head

·        360-degree rotating tube

·        Image center shift: ≤0.06mm

·        30° inclined binocular system

·        Magnification difference: ≤2.0%

·        Eyepiece end position difference: ≤0.1mm

·        Interpupillary distance: 55-75mm adjustable

·        Secured with hex or portable screws

·        Includes third-party connection port

Eyepiece Configuration

·        High-eye-point eyepieces WF10X/18mm

·        Magnification accuracy: ±2%

(Note: The eyepiece tube has a slot design to lock the eyepiece in place and prevent it from falling out. Adjustable diopters make binocular observation easier.)

Objective Lenses

·        Broadband-coated EF-N195 pure copper achromatic objectives

·        Magnification accuracy: ±5%

·        Magnifications: 4X, 10X, 40X (spring), 100X (spring, oil)

·        Parfocality error: ≤0.06mm (10-40X), ≤0.03mm (40-100X)

Stage

·        XY mechanical stage

·        Repeatability: ≤0.005 under 5N lateral force

·        Rectangular dimensions: 110×120mm

·        Travel range: 70×30mm

·        Minimum reading: 0.1mm

Focusing Mechanism

·        Coaxial coarse and fine adjustment

·        Manual position adjustment

·        Micro-focus mechanism on both sides

·        Coarse and fine knobs with overload protection

·        Focusing range: 25mm

·        Minimum increment: 0.002mm

Illumination

·        1W LED cold light source

·        Rechargeable via Type C

·        Adjustable brightness

·        Lifespan: >100,000 hours

(Note: The collector lens seat should not be easily removed to prevent misalignment of the optical path.)

Back Plate

Designed with a portable handle for easy relocation

Additional Features

Pre-configured for simple phase contrast, dark field, and polarized light observation

Camera Interface Configuration

Dedicated C-mount and digital camera-specific interface

Eyepiece

Wide-angle eyepiece WF10X, Field of view 18mm

Optional: WF16X, WF25X lenses

Converter

·        Metal four-hole inclined nosepiece

·        Positioning stability: ≤0.006mm

(Note: No need to raise or lower the stage when changing slides, preventing potential damage to the objectives during use.)

Objective Lenses

195mm Achromatic Objective Lenses, 4X,10X,40X,100X (oil)

Condenser

ABBE N.A.1.25 Condenser with Iris Diaphragm & Blue Filter

Stage

Double Layer Mechanical Stage, Size:110mm×120mm, Moving Range: 70mm×30mm

Focusing

Coarse and Fine Focusing, Minimum Focusing Range 0.02 mm

Light Source

1W LED with Rechargeable Battery, Type C USB cable

Accessories

Dust Bag, Type C Power Cord

Product Name

OptiPro™ TL24D Series Biological Microscope

Model

EOBTL24D

Display Screen

With a 7-inch LCD Display Screen

Optical System

Equipped with an infinite plan optical system, featuring an anti-mold design and wide-angle eyepiece

Observation Head

·        360-degree rotating tube

·        Image center shift: ≤0.06mm

·        30° inclined binocular system

·        Magnification difference: ≤2.0%

·        Eyepiece end position difference: ≤0.1mm

·        Interpupillary distance: 55-75mm adjustable

·        Secured with hex or portable screws

·        Includes third-party connection port

Eyepiece Configuration

·        High-eye-point eyepieces WF10X/18mm

·        Magnification accuracy: ±2%

(Note: The eyepiece tube has a slot design to lock the eyepiece in place and prevent it from falling out. Adjustable diopters make binocular observation easier.)

Objective Lenses

·        Broadband-coated EF-N195 pure copper achromatic objectives

·        Magnification accuracy: ±5%

·        Magnifications: 4X, 10X, 40X (spring), 100X (spring, oil)

·        Parfocality error: ≤0.06mm (10-40X), ≤0.03mm (40-100X)

Stage

·        XY mechanical stage

·        Repeatability: ≤0.005 under 5N lateral force

·        Rectangular dimensions: 110X120mm

·        Travel range: 70×30mm

·        Minimum reading: 0.1mm

·        Triangular Guide XY Compound Mechanical Stage

Focusing Mechanism

·        Coaxial coarse and fine adjustment

·        Manual position adjustment

·        Micro-focus mechanism on both sides

·        Coarse and fine knobs with overload protection

·        Focusing range: 25mm

·        Minimum increment: 0.002mm

Illumination

·        1W LED cold light source

·        Rechargeable via Type C

·        Adjustable brightness

·        Lifespan: >100,000 hours

(Note: The collector lens seat should not be easily removed to prevent misalignment of the optical path.)

Back Plate

Designed with a portable handle for easy relocation

Additional Features

Pre-configured for simple phase contrast, dark field, and polarized light observation

Camera Interface Configuration

Dedicated C-mount and digital camera-specific interface

Eyepiece

Wide-angle eyepiece WF10X, field of view 18mm, optional WF16X,WF25X

Converter

·        Metal four-hole inclined nosepiece

·        Positioning stability: ≤0.006mm

(Note: No need to raise or lower the stage when changing slides, preventing potential damage to the objectives during use.)

Objective Lenses

195mm achromatic objective lenses,4X,10X,40X,100X(oil)

Condenser

·        N.A. 1.25 Abbe condenser

·        Precision limit design with a rack and pinion structure for more accurate observation height

·        Made of metal, no plastic components

·        Height is adjustable

Stage

Double Layer Mechanical Stage, Size:110mm×120mm, Moving Range: 70mm×30mm

Focusing

Coarse and Fine Focusing, Minimum Focusing Range 0.02 mm

Light Source

1W LED with Rechargeable Battery, Type C USB cable

Accessories

Dust Bag, Type C Power Cord

Screen Parameters

Screen parameters

A 7-inch IPS LCD

Hardware Parameters

Target Surface Size

1 / 2.8 inch

Effective Pixels

1844H×1080V 2MP

Pixel Size

And 2.9 um × 2.9 um

Frame Rate

30FPS@1844×1080

Output Interface

Micro SD Card

Buttons

Photo / Video Recording, Power Switch, Menu

Power Supply

DC 5V 1A

Built-in Software Features

Camera Color Adjustment

Automatic Exposure, White Balance, Gain, Brightness, Sharpness, Contrast, Saturation, Grayscale, etc.

OSD Interface Interaction Method

Key Operation

Storage

Photo, Timed Photo, Video Recording, Micro SD Management

Measurement

Calibration, Linear Measurement

Other Functions

Horizontal / Vertical Mirroring, FOV Adjustment, Firmware Upgrade

Crosshair

4 Customized Color Groups, Line Width, Display Toggle

Specifications

Dimensions

340 × 230 × 110mm

Weight

0.6kg

Contents

DSP-070-SBC Screen, 1 set of DC 5V1A Power Supply

Optional Accessories

Micro SD Card, Card Reader
