PlasMil™ E-20L Plasma Vibratory Ball Mill
Product Detail
Product Overview

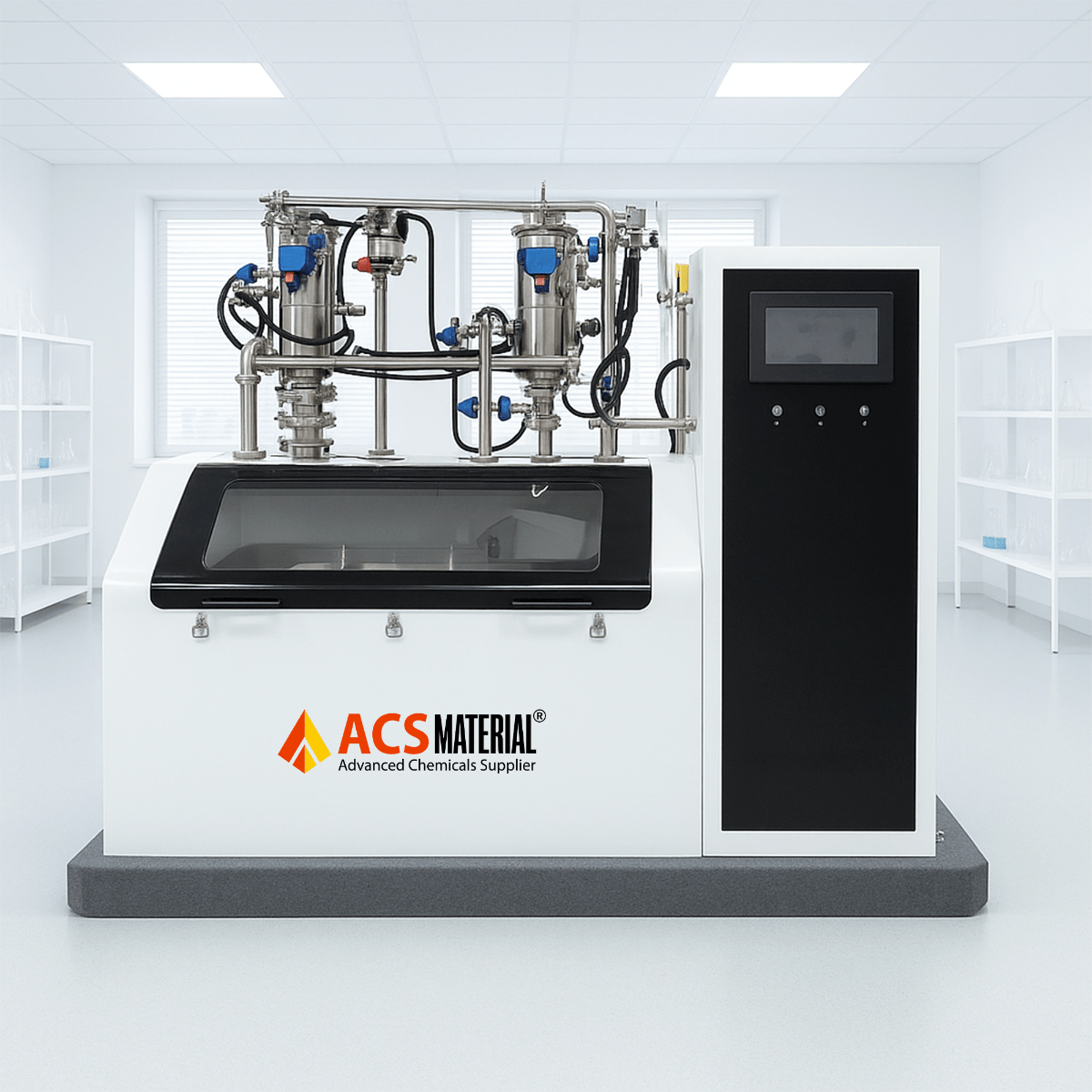

Photo of PlasMil™ E-20L Plsma Vibratory Ball Mill
Product Features
The PlasMil™ E-20L Plasma Vibratory Ball Mill introduces cold plasma generated by field discharge into a mechanically vibrated ball milling process. The high-energy non-equilibrium plasma formed inside the milling jar synergizes with mechanical ball milling. In this non-thermal plasma environment, material molecules are easily transformed into atomic and excited states, enabling recombination. This promotes powder refinement, alloying, activation, chemical reactions, and accelerates in-situ gas–solid reactions. As a result, milling efficiency is greatly improved, contamination is significantly reduced, and unique structures are formed, enhancing material properties.
This complete technical solution has been filed under PCT international patents in the United States, Japan, and European member states. The system has been delivered to over 80 universities, research institutes, and enterprises nationwide, including 8 academician-led teams and more than 100 scientific research groups.
Key Features
- Cold Plasma System
- Intelligent control and safety systems
- Comprehensive safety protection
- High-Energy Ball Milling System
- 20 L high-strength stainless steel milling jar with stainless steel or ZrO₂ ceramic media
- Transparent ceramic base and lid for process observation and demonstration
- Jar Atmosphere Control
- Supports multiple gases: Air, N₂, NH₃, O₂, SO₂, CO₂, Ar
- Gas flow and pressure monitoring and control
- Sealed jar with real-time pressure display
- Pressure Control & Power Distribution
- Stable pressure delivery to milling jar (50–300 Pa)
- Plasma system interlocked with pressure control
- Laboratory-compliant power distribution (380 V / 50 Hz)
- Powder Collection System
- Two-stage dust collection: coarse + fine powder
- Airtight powder collection and transfer jars for air-free handling
- Water-cooled collection jar for enhanced protection
Product Specifications
|
Product Name |
PlasMil™ E-20LPlasma Vibratory Ball Mill |
|
SKU |
EBP0E20L |
|
Dimensions |
2800 (L) × 900 (W) × 1550 (H) mm |
|
Weight |
1500 kg |
|
Input Voltage |
380 V |
|
Rated Power |
7.5 kW |
|
Discharge Current |
0-3 A |
|
Number of Jars |
1 |
|
Jar Volume |
20 L |
|
Maximum Acceleration |
10 g |
|
Operating Mode |
Vibratory ball milling |
|
Amplitude Range |
6-10 mm |
|
Single Batch Capacity |
1-5 kg |
|
Discharge Method |
Vacuum discharge |
|
Discharge Frequency |
10–20 kHz |
|
Motor Speed |
900–1500 rpm |
|
Feed Particle Size |
≤ 10 mm |
|
Noise Level |
< 80 dB |
|
Default Components |
Main ball mill unit x 1, Ball milling jar (20L, stainless steel) x1, Obervation plate for discharge jar (1.5L) x 1, Electrode rods (ceramic) x 3, User manual x 1, Certification of Conformity x 1, Tools x 1, Vacuum pump x1, Pneumatic powder conveying system x 1 |
|
Optional Components |
Mill balls |
Application
- Lithium battery materials
- Fuel cell catalysts
- Hard alloy powders
- Metal-based compounds
- Ceramic materials
