PlasmaNova™ Portable 5 kW Integrated Plasma Torch System
Product Detail
PlasmaNova™ is a portable, fully integrated 5 kW plasma torch system for plasma processing, materials melting, and welding. It generates a DC arc plasma with a flame core exceeding 6000 °C, runs on argon or air, and offers continuously adjustable output power from 3 to 5 kW. A built-in water-cooling system and compact, mobile design make it suitable for both handheld operation and integration with robotic-arm automation, with support for continuous 24-hour operation.
Key features
- Wide operating temperature range with high stability.
- Built-in water-cooling system for high cooling efficiency and extended electrode lifespan.
- Continuously adjustable power parameters for easy and precise control.
- Integrated, compact design — mobile, safe, and reliable.
- Handheld or automated — supports both handheld operation and integration with robotic-arm automatic control systems.
System overview
PlasmaNova™ integrates the plasma power supply, water-cooling, gas handling, and torch into a single mobile unit, so it can be rolled to a workstation and run without external cooling or bulky support equipment. The plasma torch itself is engineered for a stable, high-temperature DC arc, shown below in both design drawing and finished form.
Technical specifications
| Power supply | Three-phase four-wire, AC 380 V ±10%, 50 Hz (customizable) |
| Rated output power | 3–5 kW, continuously adjustable |
| Plasma discharge type | DC arc plasma |
| Working gas | Argon, air |
| Flame diameter | 0–30 mm |
| Flame temperature | Flame extension temperature approx. 1200 °C; core temperature exceeds 6000 °C |
| Flame length | 5–10 cm |
| Cooling method | Forced air cooling (with built-in water-cooling system) |
| Operation mode | Manual control; supports continuous 24-hour uninterrupted operation |
| Torch type | Handheld; supports robotic-arm operation |
| Operating ambient temperature | −10 °C to +40 °C |
Specifications are typical and may vary; contact ACS Material to confirm details for your application.

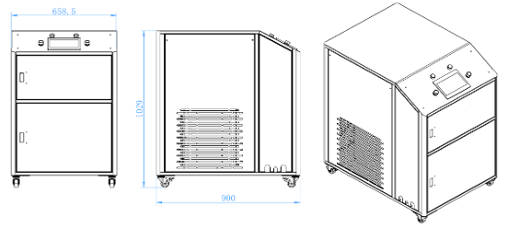

Mechanical dimensions
Dimensions are for reference only; actual specifications are subject to final delivery. Torch dimensional drawings are for reference only and actual dimensions may vary.
Applications
PlasmaNova™ is suited to plasma torch experiments, melting and welding of conventional and specialty materials, and related plasma processing applications:
- Plasma torch experiments — a compact, adjustable DC arc plasma source for laboratory and process research.
- Melting & welding — joining and melting of conventional and specialty materials with a high-temperature plasma flame.
- Plasma processing — surface treatment, spheroidization, and related high-temperature plasma applications.
Related equipment
- Low Temperature Plasma Jet Generator Series — jet-type atmospheric low-temperature plasma for surface cleaning, activation, and adhesion.
- Plasma Power Supply equipment — explore the full range of ACS Material plasma power supplies and generators.
- ACS Material equipment — browse all scientific instruments and processing equipment.
