ALab™ SP-V1000/SP-UV1000/SP-V1100/SP-UV1100 UV-Visible Spectrophotometer

In stock

SKU# ALSP1000

Qty

Product Detail

ALab™ SP-V1000/SP-UV1000/SP-V1100/SP-UV1100 UV-Visible Spectrophotometer — four single beam spectrophotometers with a dot matrix LCD, a wavelength range of up to 190–1100 nm (SP-UV1100) and a spectral bandwidth of 4.0nm (SP-V1000, SP-UV1000) or 2.0nm (SP-V1100, SP-UV1100).

ALab SP-V1000 / SP-UV1000 / SP-V1100 / SP-UV1100 single beam spectrophotometer with the sample-compartment lid open, a dot matrix LCD and keypad on the top panel and a lever at the front (one photo for all four models) — ALab™ SP-V1000/SP-UV1000/SP-V1100/SP-UV1100 UV-Visible Spectrophotometer — image shown for reference.

The SP-V1000, SP-UV1000, SP-V1100 and SP-UV1100 are single beam UV-visible spectrophotometers. The host can independently complete photometric measurement, quantitative test, kinetics measurement and other functions, up to 128 sets of standard curves and 4000 test data can be saved, and a computer software extends the application functions with wavelength scanning, time scanning (kinetics), multi-wavelength scanning and DNA/protein detection analysis. The SP-V1000 (325–1000nm) and SP-V1100 (320–1100nm) use a tungsten lamp; the SP-UV1000 (200–1000nm) and SP-UV1100 (190–1100nm) add a deuterium lamp. The 1000 models have a 4.0nm spectral bandwidth, the 1100 models 2.0nm. The photo shows one instrument of the series and is not specific to a model; the specification table below lists all four models.

Why choose the SP-V1000 / SP-V1100 series

DesignProfessional, concise, friendly appearance designed to conform to ergonomics, made with high-quality materials and fine craftsmanship for a good user experience.

Interactive InterfaceFriendly interactive interface, easy for users to operate and detect.

Data StorageUp to 128 sets of standard curves and 4000 test data can be saved.

Real-time SavingTest data is saved in real time to avoid data loss in case of sudden power failure.

Automatic CalibrationAutomatic wavelength calibration and dark current correction.

Light Source SwitchingThe instrument can automatically switch the light source and turn off the corresponding light source, so as to prolong the service life of the light source to the greatest extent.

Host FunctionsThe host can independently complete photometric measurement, quantitative test, kinetics measurement and other functions.

Special AccessoriesCan be used with automatic cell holder, film holder, tube rack, constant temperature cell holder, reflectivity accessory, variable optical path sample holder, variable angle solid sample holder and other special accessories.

Computer SoftwareThe computer software has a single interface with multiple functions, simple operation, rich and powerful functions and fast response. It monitors data changes in real time, and a shortcut toolbar makes the experimental process clear at a glance. More application functions can be added, such as wavelength scanning, time scanning (kinetics), multi-wavelength scanning, and DNA/protein detection analysis.

Models

4 single beam models

Widest range

190–1100 nm (SP-UV1100)

Bandwidth

4.0nm / 2.0nm

Close-up of the front panel of the spectrophotometer showing the LCD with a measurement reading and a keypad with PRINT, SET, ZERO and GOTO keys — Front panel close-up with LCD and keypad — image shown for reference.

Three example LCD screens: Photometry (546.0nm, 0.001A with a five-wavelength table), Quantitation (calibration line, r = 0.999) and Kinetics (546.0nm absorbance against time) — Example LCD screens: Photometry, Quantitation and Kinetics — images shown for reference.

Specifications General — SP-V1000, SP-UV1000, SP-V1100, SP-UV1100

Parameter	Specification
Brand	ALab™ by ACS Material
Model	SP-V1000, SP-UV1000, SP-V1100, SP-UV1100
SKU #	ALSP1000
Product Type	UV-visible spectrophotometer, single beam
Display	Dot Matrix LCD
Photometric range	-0.3–3.0 A, 0–200%T
Sample compartment	Manual 4-position 1cm holder (standard for single beam)
Output	USB Port & Parallel Port (Printer)
Dimension[L×W×H]	475×360×225mm

Specifications by model SP-V1000 · SP-UV1000 · SP-V1100 · SP-UV1100

Parameter	SP-V1000	SP-UV1000	SP-V1100	SP-UV1100
Optical System	Single Beam	Single Beam	Single Beam	Single Beam
Light Source	Tungsten Lamp (Japan HYBEC)	Tungsten Lamp (Japan HYBEC) \| Deuterium Lamp (Milaras)	Tungsten Lamp (Japan HYBEC)	Tungsten Lamp (Japan HYBEC) \| Deuterium Lamp (Milaras)
Spectral Bandwidth	4.0nm	4.0nm	2.0nm	2.0nm
Wavelength Range	325–1000nm	200–1000nm	320–1100nm	190–1100nm
Wavelength Accuracy	±2nm	±2nm	±0.5nm	±0.5nm
Wavelength Repeatability	≤1nm	≤1nm	≤0.3nm	≤0.3nm
Photometric Range	-0.3–3.0 A, 0–200%T	-0.3–3.0 A, 0–200%T	-0.3–3.0 A, 0–200%T	-0.3–3.0 A, 0–200%T
Photometric Accuracy	±0.003 A @ 0.5 A, ±0.006 A @ 1.0 A, ±0.5%T @ 100%T	±0.003 A @ 0.5 A, ±0.006 A @ 1.0 A, ±0.5%T @ 100%T	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T
Photometric Repeatability	≤0.0015 A @ 0.5 A, ≤0.003 A @ 1.0 A, ≤0.25%T @ 100%T	≤0.0015 A @ 0.5 A, ≤0.003 A @ 1.0 A, ≤0.25%T @ 100%T	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T
Stability	≤0.002 A/h @ 500 nm (after preheat 2 hours)	≤0.002 A/h @ 500 nm (after preheat 2 hours)	≤0.002 A/h @ 500 nm (after preheat 2 hours)	≤0.002 A/h @ 500 nm (after preheat 2 hours)
Stray Light	≤0.2%T @ 360nm	≤0.2%T @ 360nm	≤0.05%T @ 360nm	≤0.05%T @ 220 & 360nm
Sample Compartment	Manual 4-position 1cm holder (standard for single beam)	Manual 4-position 1cm holder (standard for single beam)	Manual 4-position 1cm holder (standard for single beam)	Manual 4-position 1cm holder (standard for single beam)
Display	Dot Matrix LCD	Dot Matrix LCD	Dot Matrix LCD	Dot Matrix LCD
Output	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)	USB Port & Parallel Port (Printer)
Power Requirements	110/220VAC, 50/60Hz, 80W	110/220VAC, 50/60Hz, 120W	110/220VAC, 50/60Hz, 80W	110/220VAC, 50/60Hz, 120W
Dimension[L×W×H]	475×360×225mm	475×360×225mm	475×360×225mm	475×360×225mm
Weight	11kg	14.6kg	11kg	14.6kg

Order codes one SKU per model

Model	SKU #
SP-V1000 · 325–1000nm · Tungsten Lamp	ALSPV000
SP-UV1000 · 200–1000nm · Tungsten + Deuterium Lamp	ALSPU000
SP-V1100 · 320–1100nm · Tungsten Lamp	ALSP0300
SP-UV1100 · 190–1100nm · Tungsten + Deuterium Lamp	ALSP0400

Parent SKU: ALSP1000. Select the model in the order menu.

Accessories item numbers as listed

Item no.	Image	Description

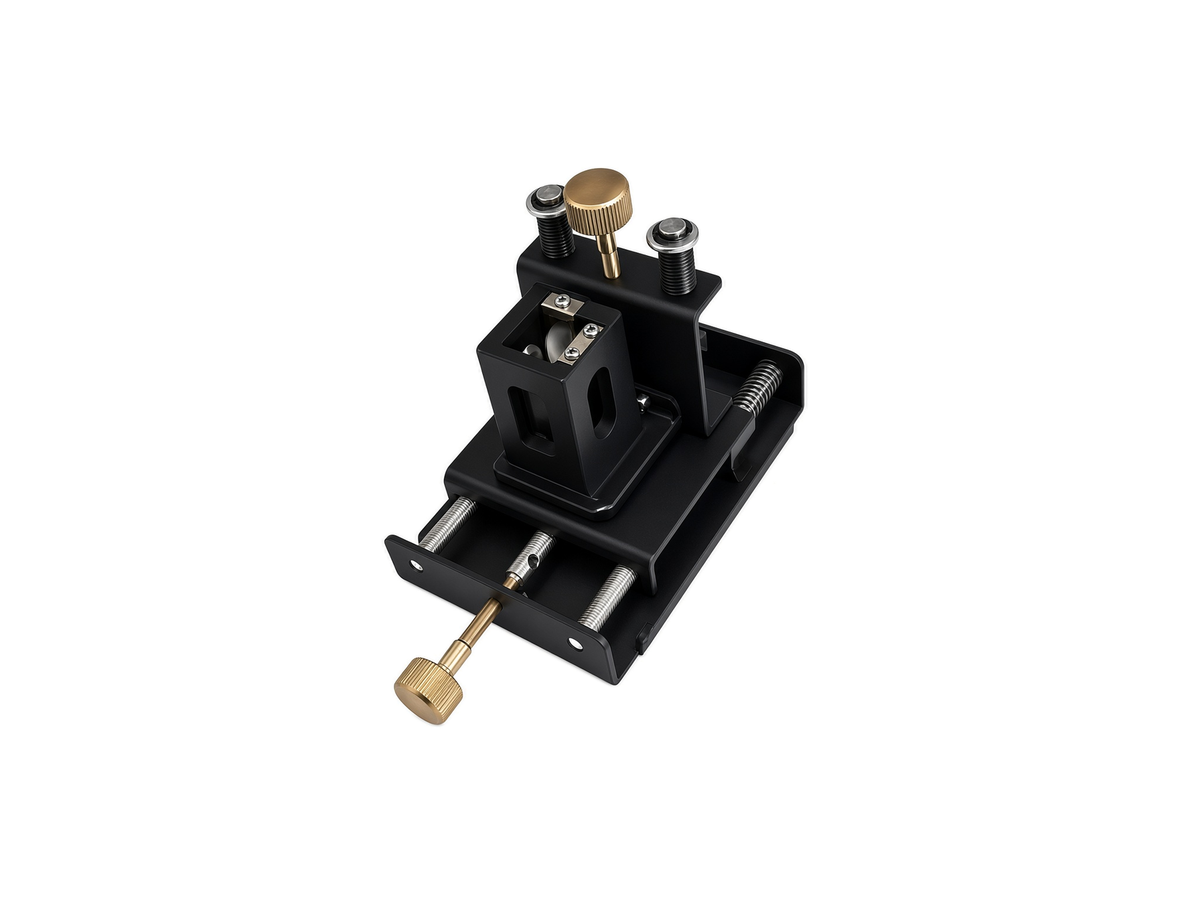

18204261		micro-volume cell holder

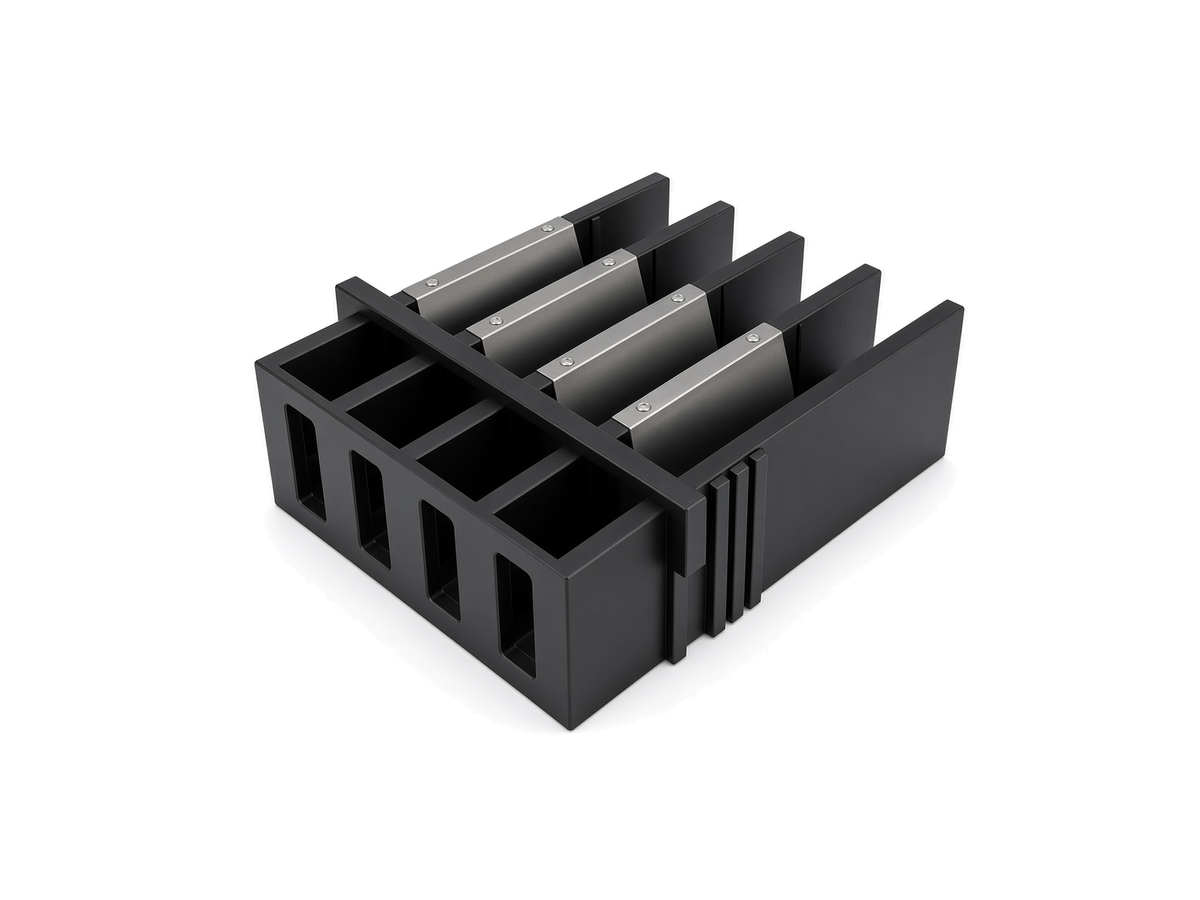

18204257		4 position cell holder(100mm)

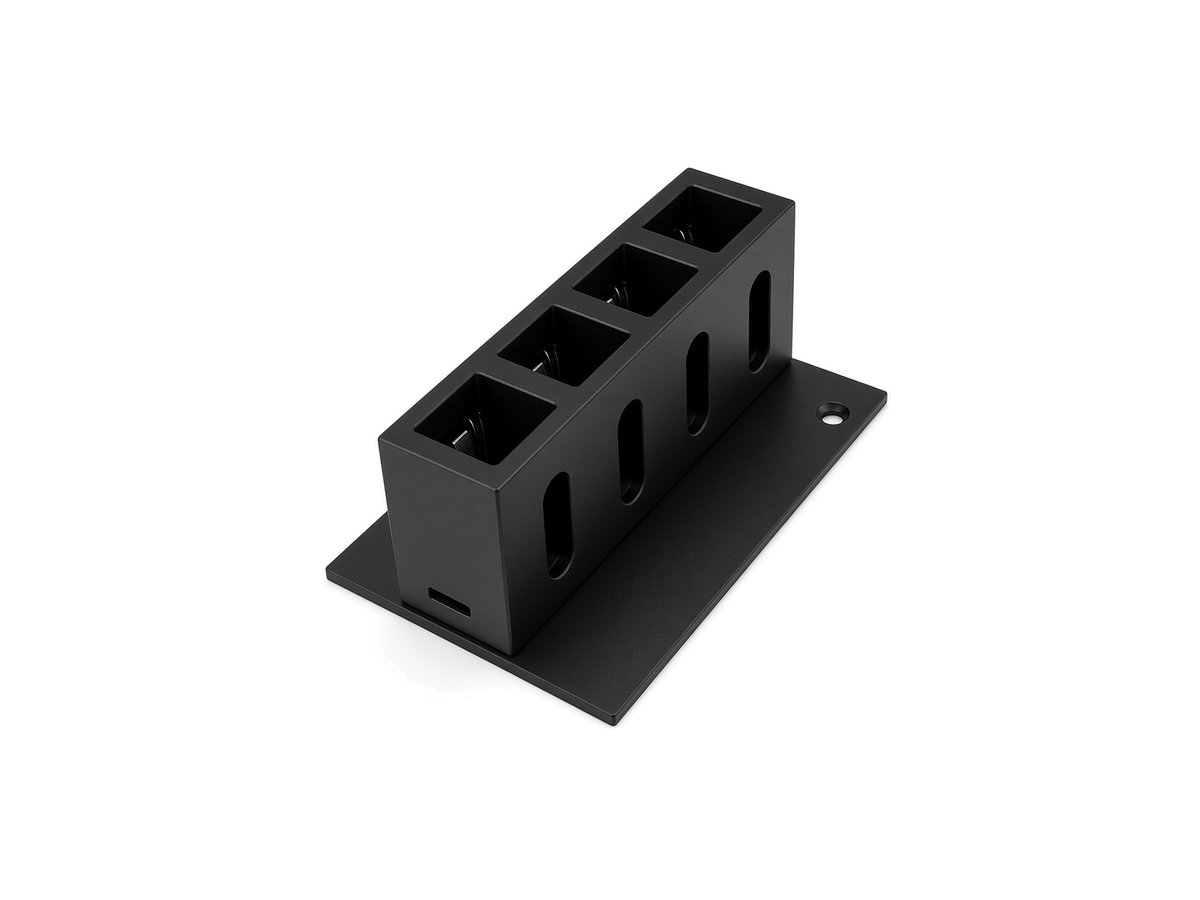

18204255		4 position cell holder(10mm)

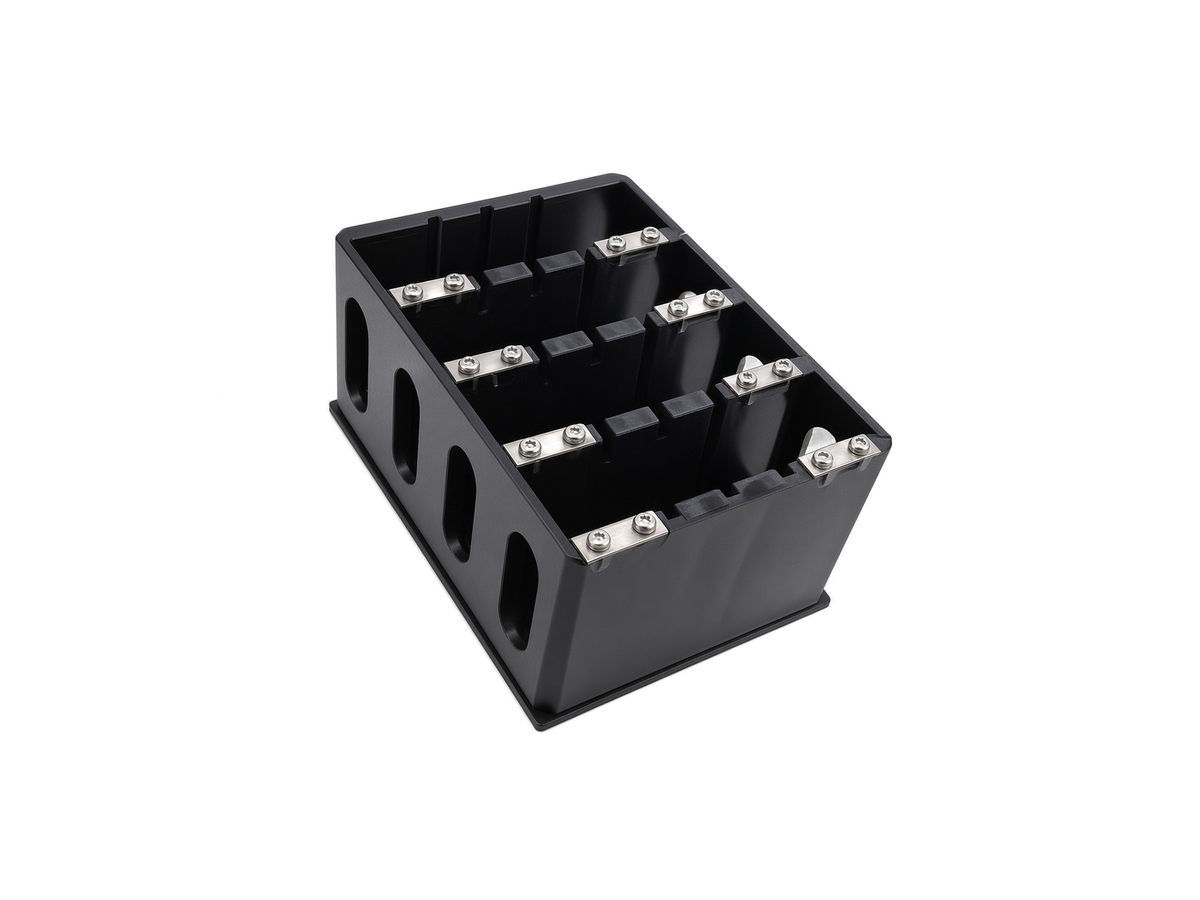

18204256		4 position cell holder(10-50mm)

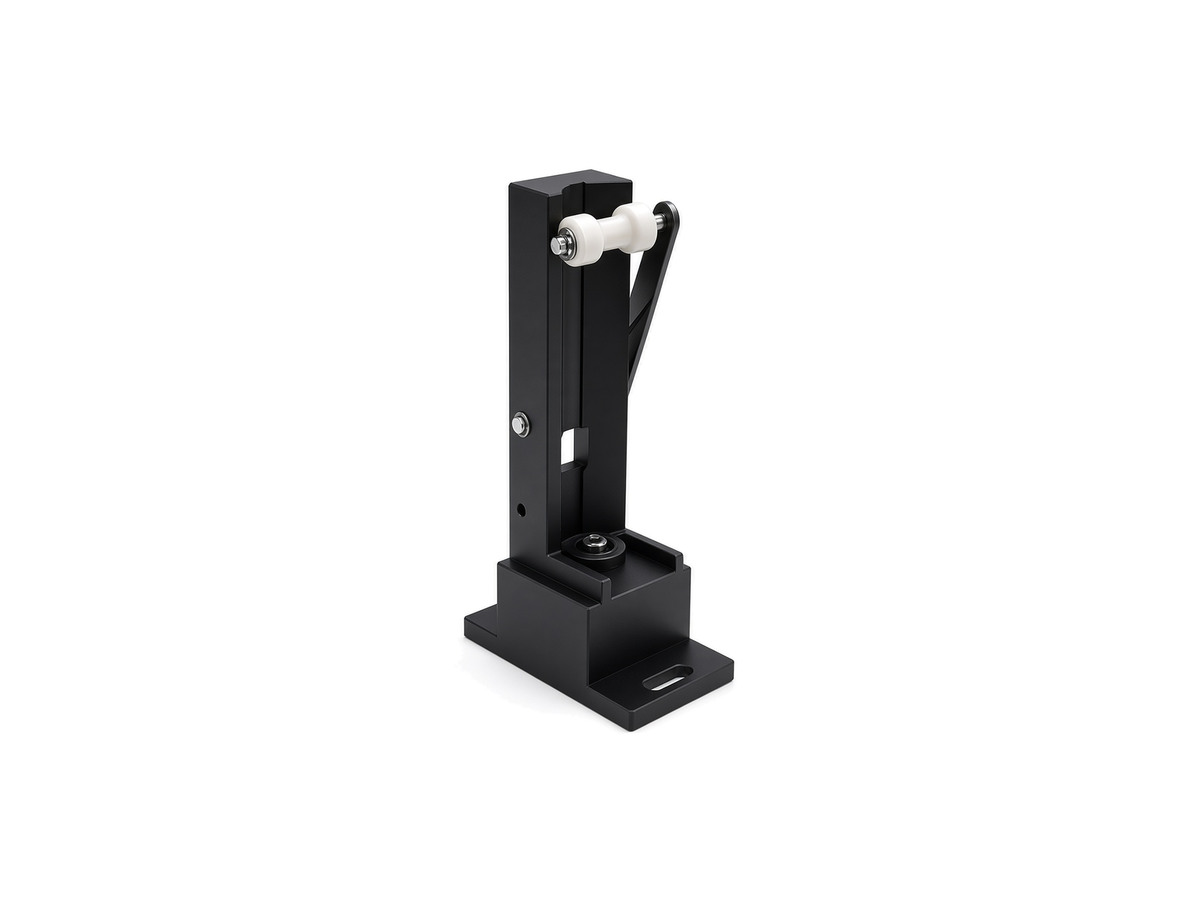

18204262		Tube rack(ø8-ø22mm)

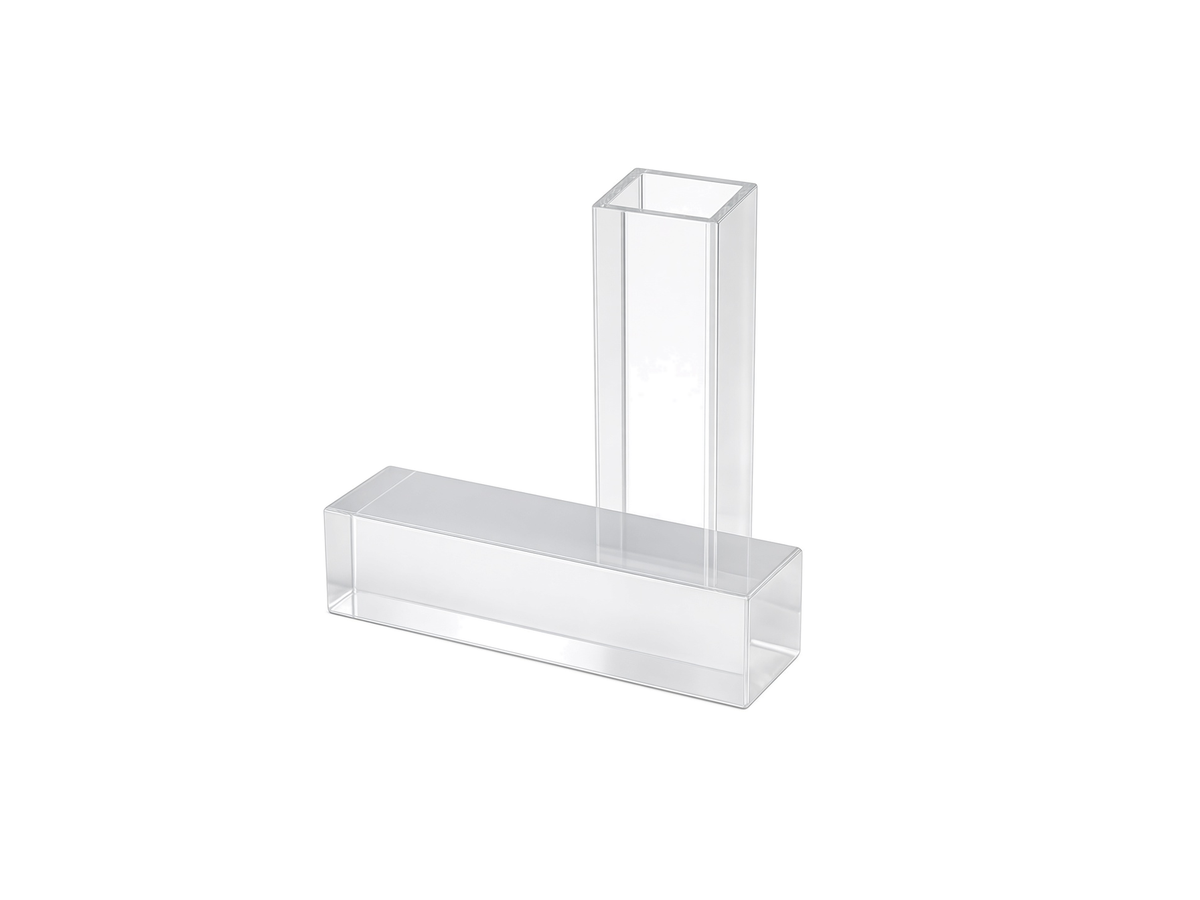

18204268 glass 18204277 quartz		Cuvette glass/quartz

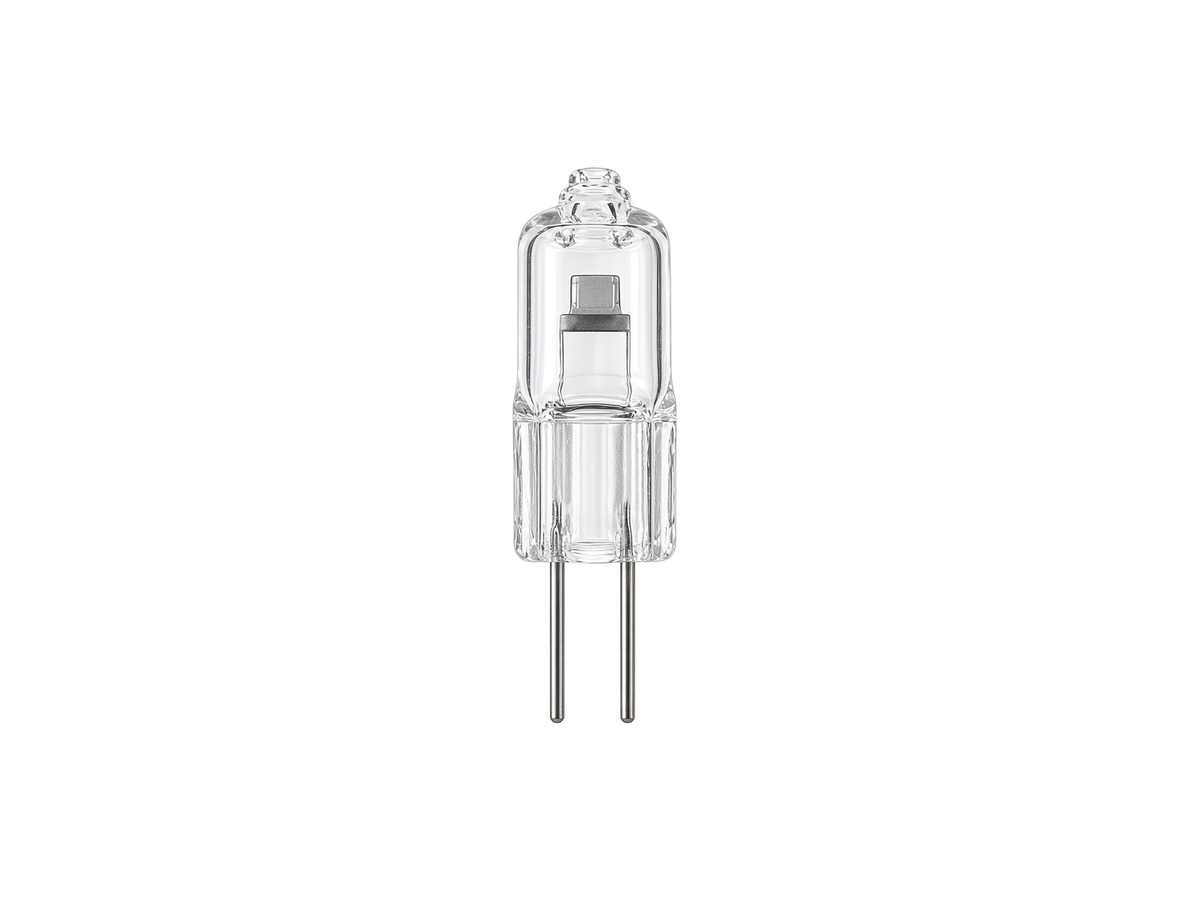

18204265		Tungsten lamp

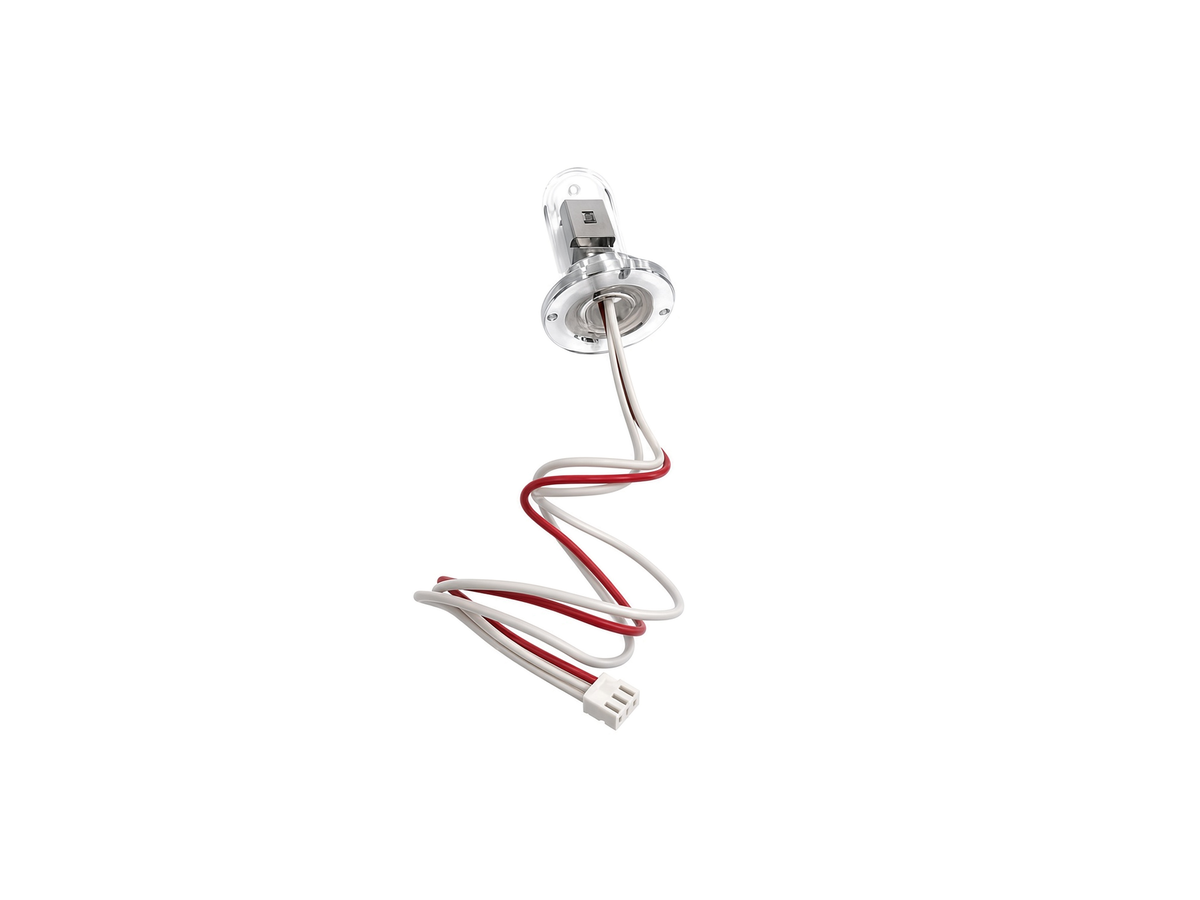

18204266		Deuterium lamp

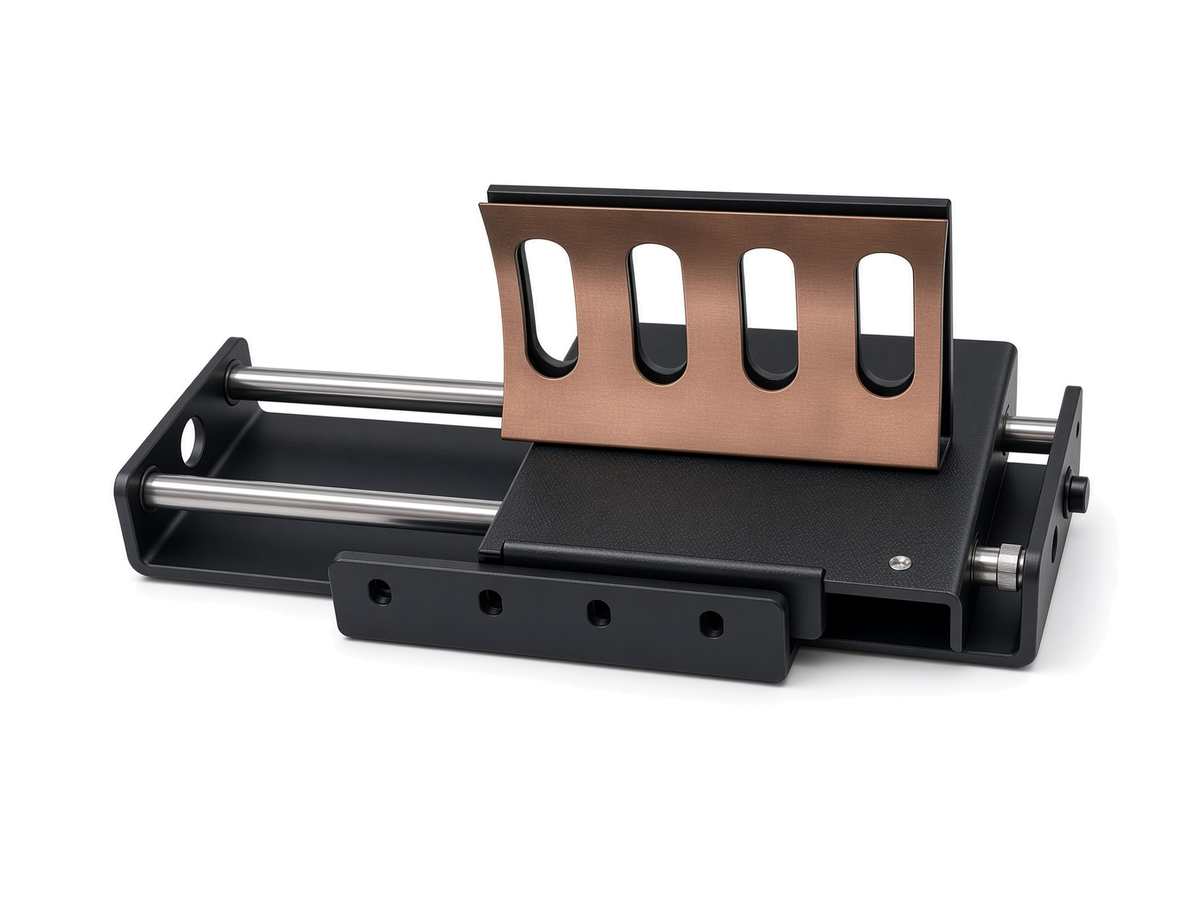

18204263		Solid Specimen Holder

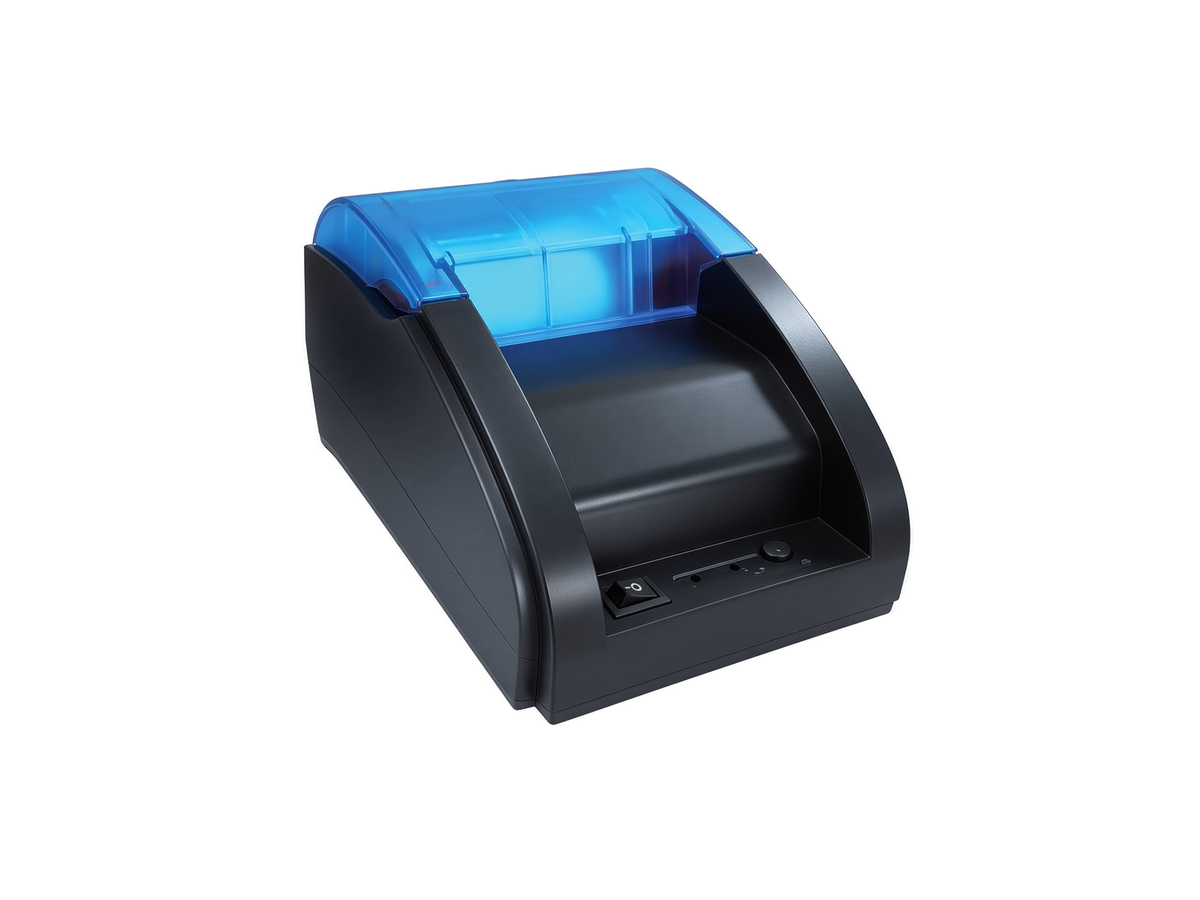

1820434		Bluetooth thermal printer

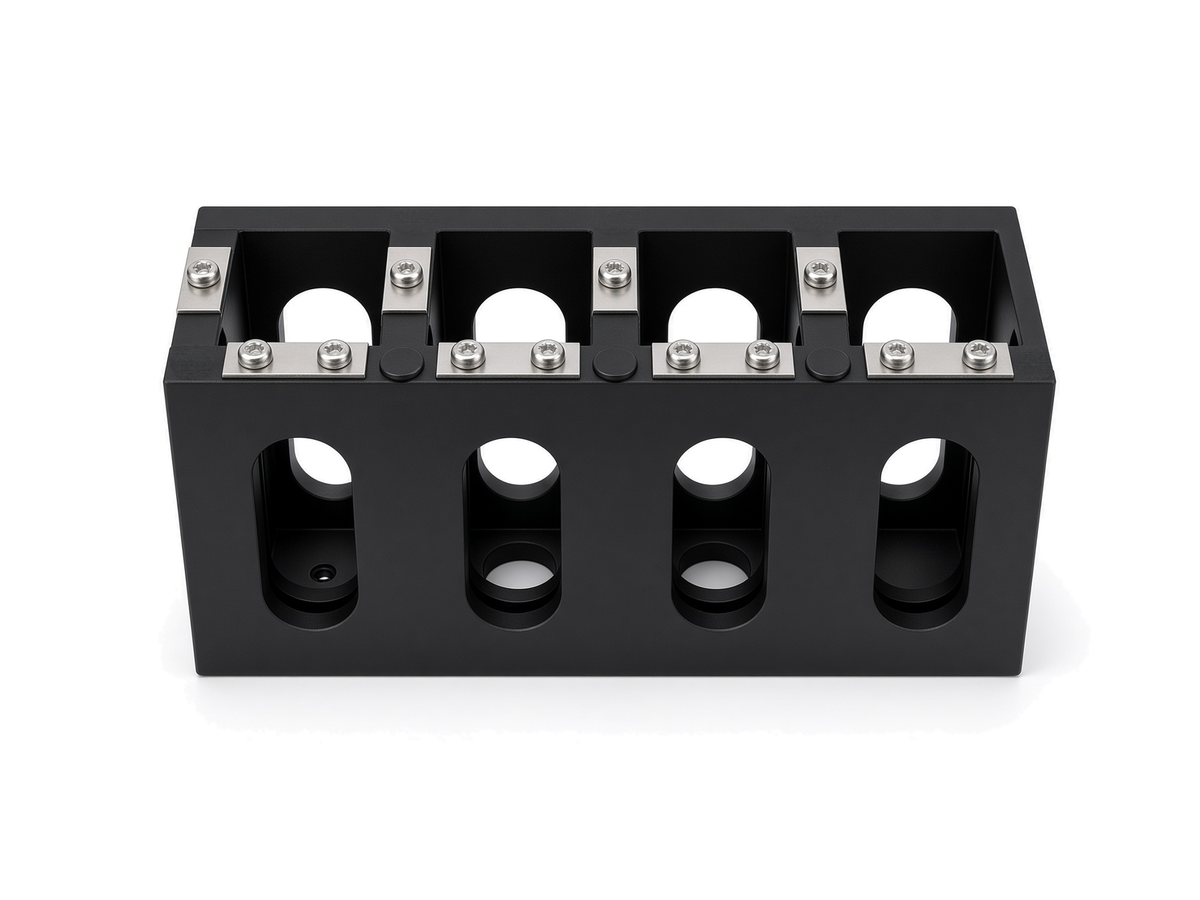

18901116		4 position cell holder(10mm)
18204258		cylindrical cell holder(ø16mm)

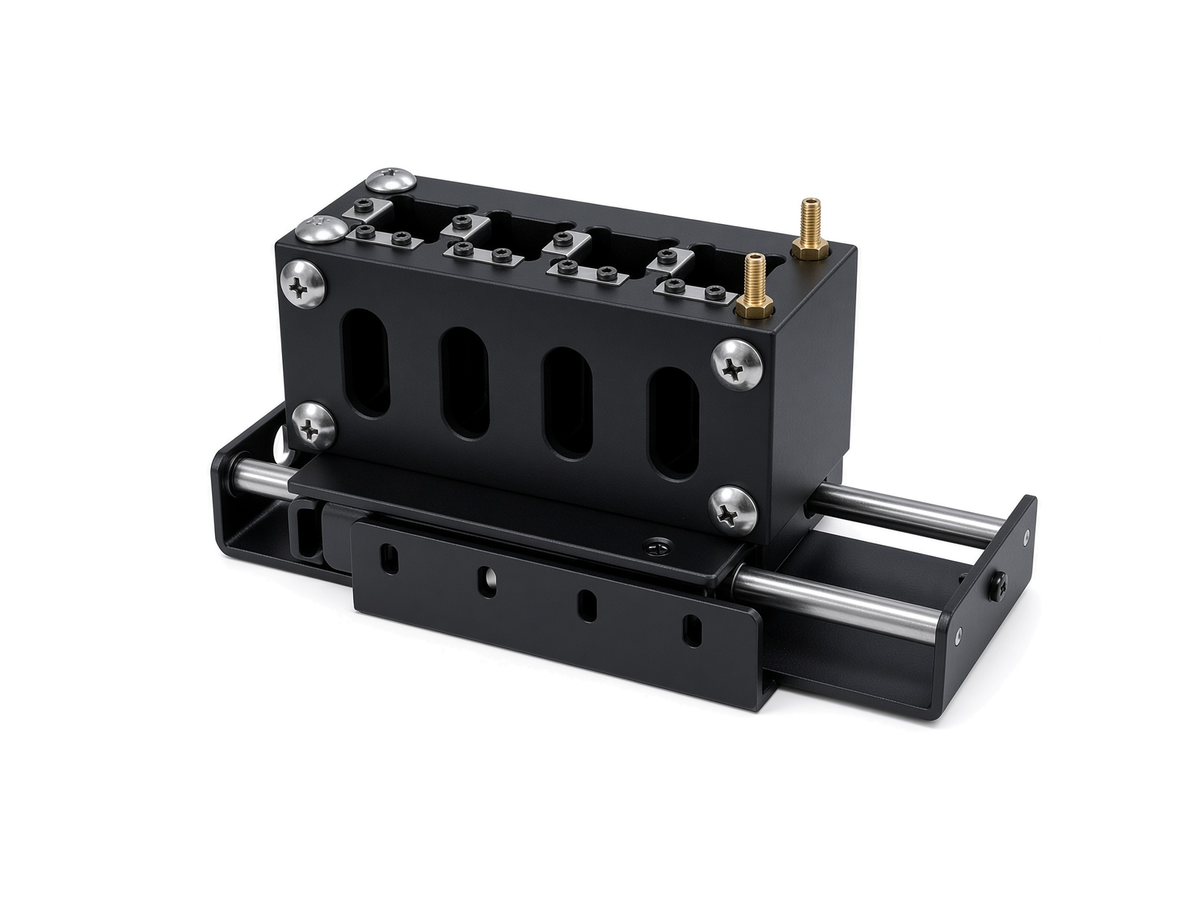

18204260		10mm water-jacketed 4-cell holder (for SP-V1100 & SP-UV1100)

Pictures are shown for reference. Item numbers and descriptions as listed by the manufacturer; only the 10mm water-jacketed 4-cell holder carries a model note (SP-V1100 & SP-UV1100).

Where it fits

A spectrophotometer measures the absorbance or transmittance of a substance at a specific wavelength or within a certain wavelength range, for qualitative or quantitative analysis of that substance, as well as kinetic experiments, protein or DNA detection, DNA and RNA quantitative analysis, protein quantitative analysis and other applications. It can be widely used in medicine and health, clinical testing, biochemistry, petrochemical industry, environmental protection testing, food hygiene and quality control, and as a teaching demonstration and experimental instrument for related courses in colleges and universities. Choose by wavelength range and bandwidth: SP-V1000 325–1000nm / 4.0nm, SP-UV1000 200–1000nm / 4.0nm, SP-V1100 320–1100nm / 2.0nm, SP-UV1100 190–1100nm / 2.0nm; the UV models add a deuterium lamp.

Frequently asked questions

Which models are on this page?

SP-V1000, SP-UV1000, SP-V1100 and SP-UV1100, all single beam with a dot matrix LCD. The specification table lists them side by side; select the model in the order menu.

How do the four models differ?

Light source (SP-V1000 and SP-V1100: tungsten lamp; SP-UV1000 and SP-UV1100: tungsten lamp and deuterium lamp), wavelength range (325–1000nm, 200–1000nm, 320–1100nm, 190–1100nm), spectral bandwidth (4.0nm, 4.0nm, 2.0nm, 2.0nm), accuracy and repeatability values, stray light, power (80W or 120W) and weight (11kg or 14.6kg).

What are the wavelength accuracy and repeatability?

SP-V1000 and SP-UV1000: ±2nm accuracy and ≤1nm repeatability. SP-V1100 and SP-UV1100: ±0.5nm accuracy and ≤0.3nm repeatability.

What photometric range and stability are published?

Photometric range -0.3–3.0 A and 0–200%T for all four models; stability ≤0.002 A/h @ 500 nm (after preheat 2 hours). Photometric accuracy and repeatability are listed per model in the specification table.

How much data can be saved?

Up to 128 sets of standard curves and 4000 test data can be saved. Test data is saved in real time to avoid data loss in case of sudden power failure.

Which functions does the host provide, and what does the computer software add?

The host can independently complete photometric measurement, quantitative test, kinetics measurement and other functions. The computer software can be extended with wavelength scanning, time scanning (kinetics), multi-wavelength scanning and DNA/protein detection analysis.

Which accessories are listed?

Item numbers and descriptions as listed: micro-volume cell holder, 4 position cell holders, tube rack, glass and quartz cuvettes, tungsten lamp, deuterium lamp, solid specimen holder, Bluetooth thermal printer, cylindrical cell holder and a 10mm water-jacketed 4-cell holder (for SP-V1100 & SP-UV1100); see the Accessories table.

What are the power requirements, size and weight?

110/220VAC, 50/60Hz; 80W (SP-V1000, SP-V1100) or 120W (SP-UV1000, SP-UV1100). Dimensions [L×W×H] 475×360×225mm; weight 11kg (SP-V1000, SP-V1100) or 14.6kg (SP-UV1000, SP-UV1100).
