ALab™ SP-UV2101 Touch Screen Single Beam Visible Spectrophotometer
Product Detail
ALab™ SP-UV2101 Touch Screen Single Beam Visible Spectrophotometer — a single beam spectrophotometer with a 10.1-inch capacitive touch screen, a 190–1100 nm wavelength range and a spectral bandwidth of 1.0nm, using tungsten and deuterium lamps.
The SP-UV2101 is a touch screen single beam Visible spectrophotometer with a 10.1 inches high resolution TFT colored capacitive touch screen (1024*600) and a windows graphic interface. It offers photometric measurement, quantitative measurement, kinetics, spectrum scan, DNA\Protein test and multi-wavelength test. Test data and working curves can be saved in the in-house memory (up to 1024M), and the USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage. Optional accessories, like automatic cell holder, thermostatic automatic sampler, adjustable micro cell holder, reflection accessory and integrating sphere, extend the application range of the device and combine the requirements of common samples and special ones. Optical system: Single Beam; spectral bandwidth 1.0nm; stray light ≤0.03%T @ 220,360nm; light source: Tungsten Lamp(Japan HYBEC) | Deuterium Lamp (Milaras).
Why choose the SP-UV2101
Specifications General — SP-UV2101
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | SP-UV2101 |
| SKU # | ALSPU100 |
| Optical System | Single Beam |
| Wavelength Range | 190–1100 nm |
| Spectral Bandwidth | 1.0nm |
| Wavelength Accuracy | ±0.1nm (at 656.1nm), ±0.3nm full range |
| Wavelength Repeatability | ≤0.1nm |
| Photometric Accuracy | ±0.0015A(0–0.5A) ±0.002A(0.5A–1A) |
| Photometric Repeatability | ±0.001A(0–0.5A) ±0.0015A(0.5A–1A) |
| Photometric Range | -0.3–3A, 0–9999C(0–9999F) |
| Stray Light | ≤0.03%T @ 220,360nm |
| Stability | ≤0.001 A/h / 500 nm (After 1 hour of preheating) |
| Baseline Flatness | ±0.001A |
| Noise | 0.0005A@500nm |
| Work Mode | T, A, C, E |
| Scanning Speed | High | Medium | Slow |
| Wavelength Setting | Auto |
| Display | 10.1-inch large color touch screen(1024×600) |
| Light Source | Tungsten Lamp(Japan HYBEC) | Deuterium Lamp (Milaras) |
| Detector | Imported Silicon Photodiode |
| Cuvette Holder | Manual 4-position 1cm holder (standard for single beam) |
| Output | USB Port, Printer Port |
| Power Requirements | 110/220V, 50/60Hz, 120W |
| Dimension[L×W×H] | 570mm×440×210mm |
| Weight | 20kg |
Accessories item numbers as listed for this model
| Item no. | Image | Description |
|---|---|---|

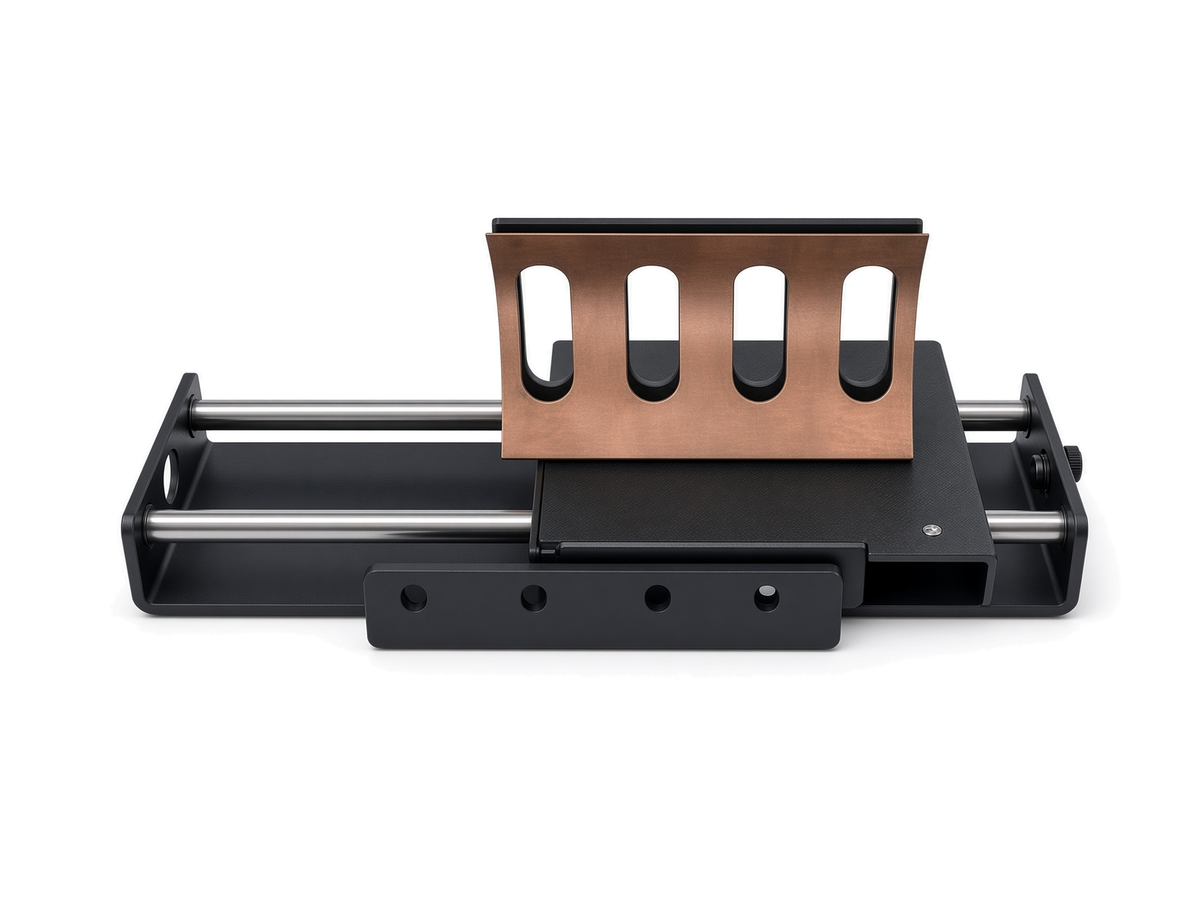

| 18901007 |  | Thin film sample holder 1mm(H)*10mm(W)*30mm(L) (for SP-UV2101/SP-UV2102) |

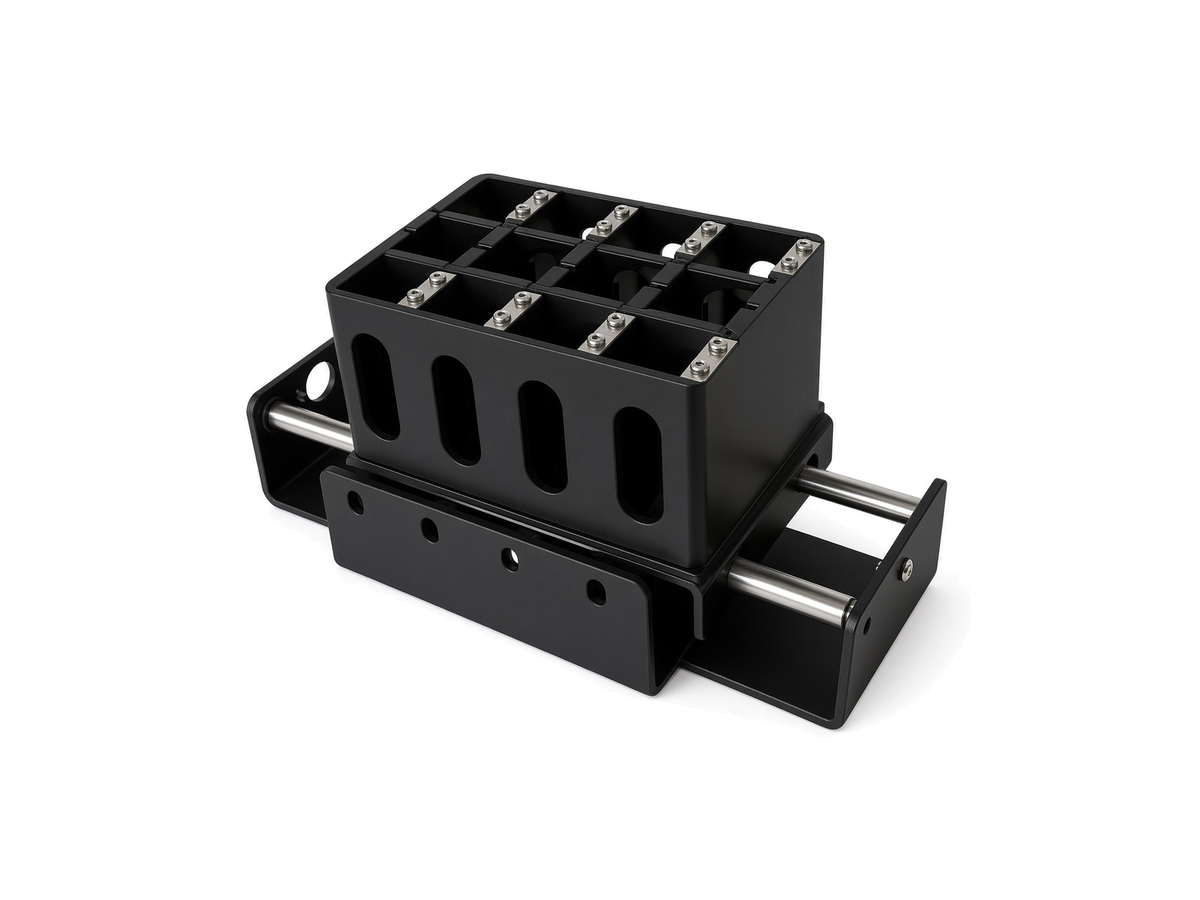

| 18204256 |  | 4 position 5cm holder(1cm-5cm) (for SP-UV2101/SP-UV2102) |

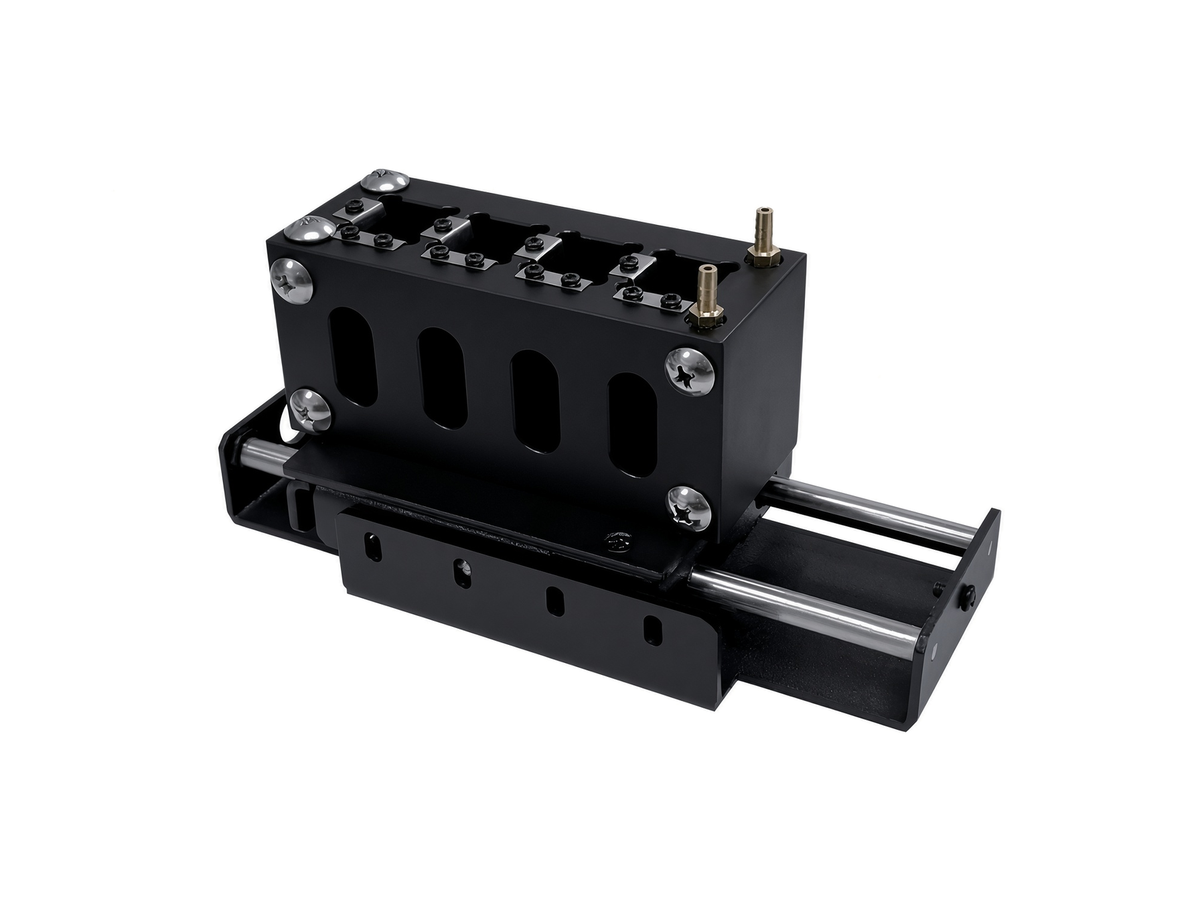

| 18900336 |  | 10MM water bath 4-position manual cuvette holder 1cm (for SP-UV2101/SP-UV2102) |
| 18901012 |  | Integrating Sphere 95mm(L)*101mm(W)*99mm(H) (for SP-UV3101/SP-UV3102/SP-UV2101/SP-UV2102) |

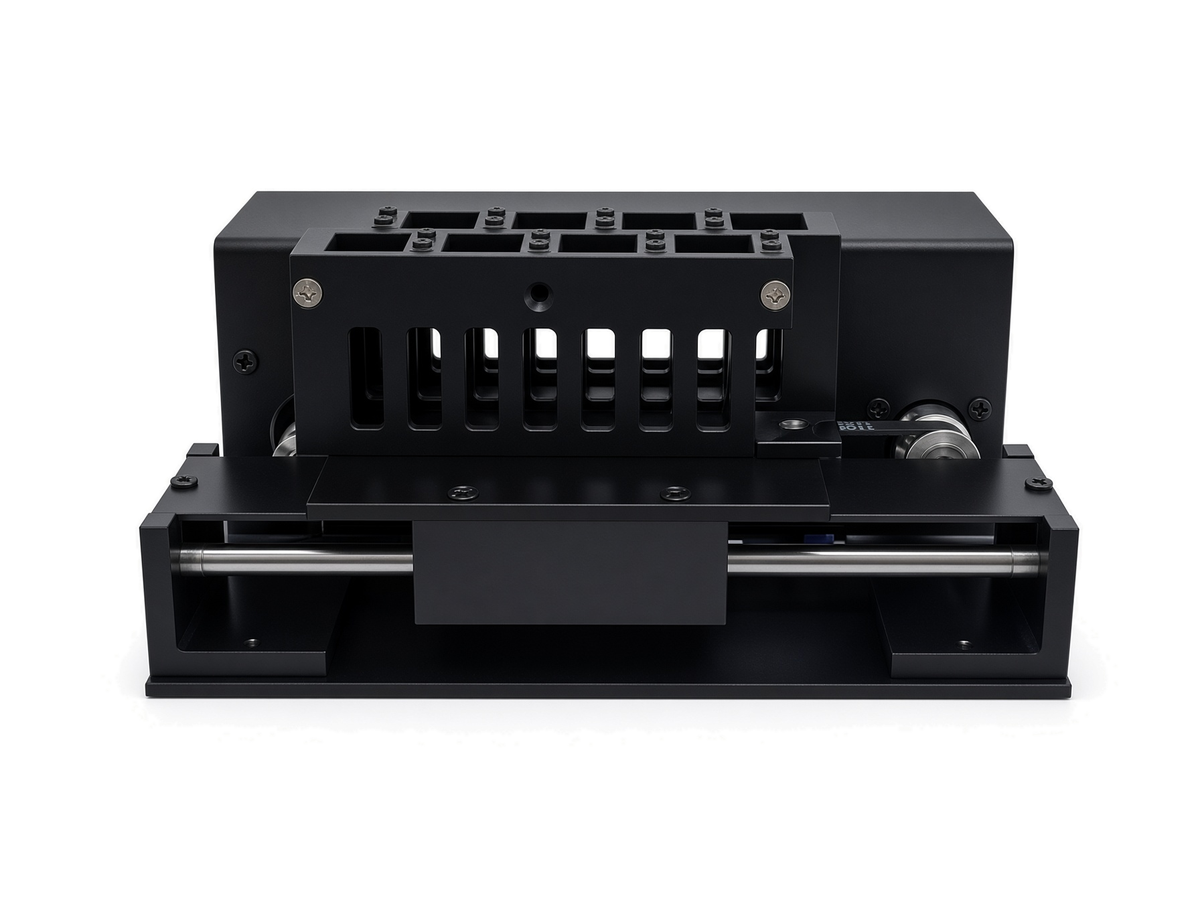

| 18901013 |  | Automatic 8-position cell holder 1cm (for SP-UV2101/SP-UV2102) |

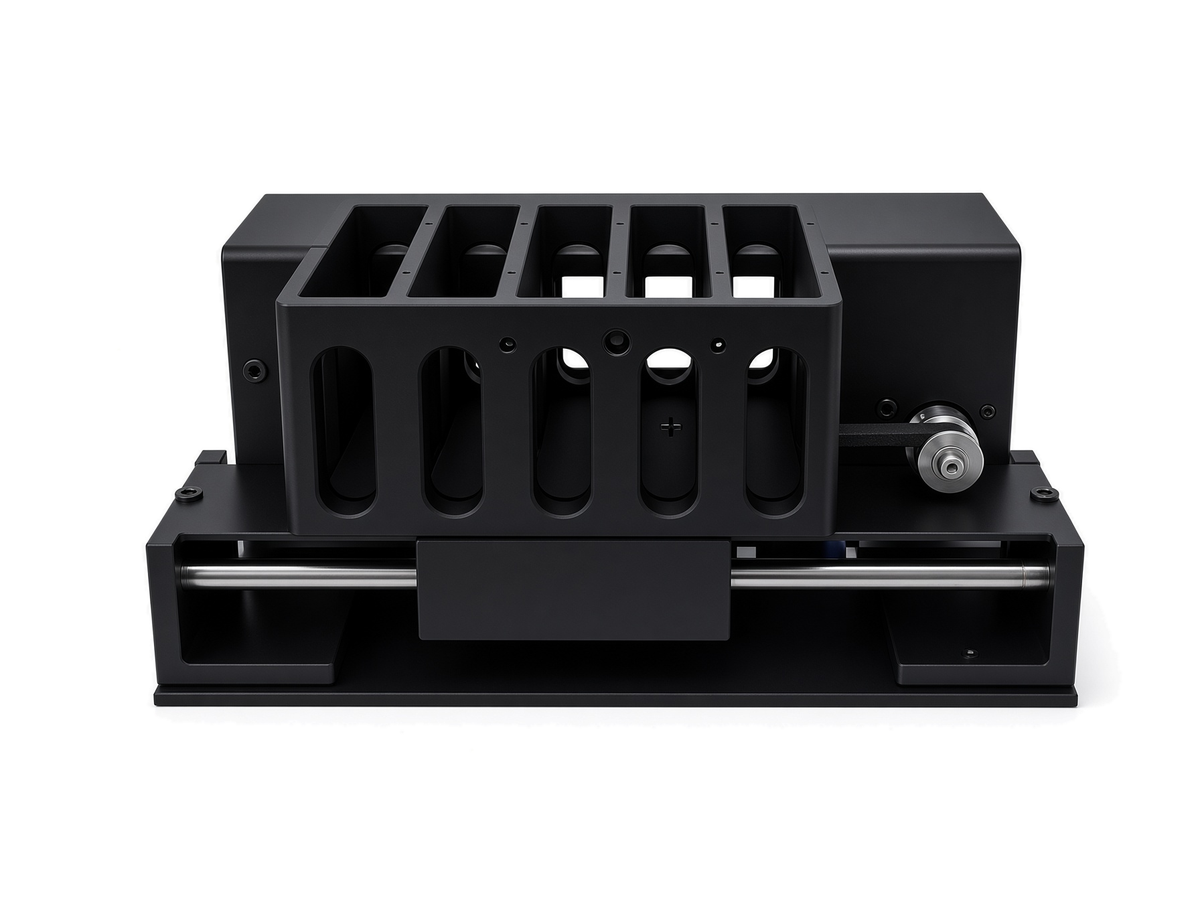

| 18901014 |  | Automatic 5-position cell holder 1cm-5cm (for SP-UV2101/SP-UV2102) |

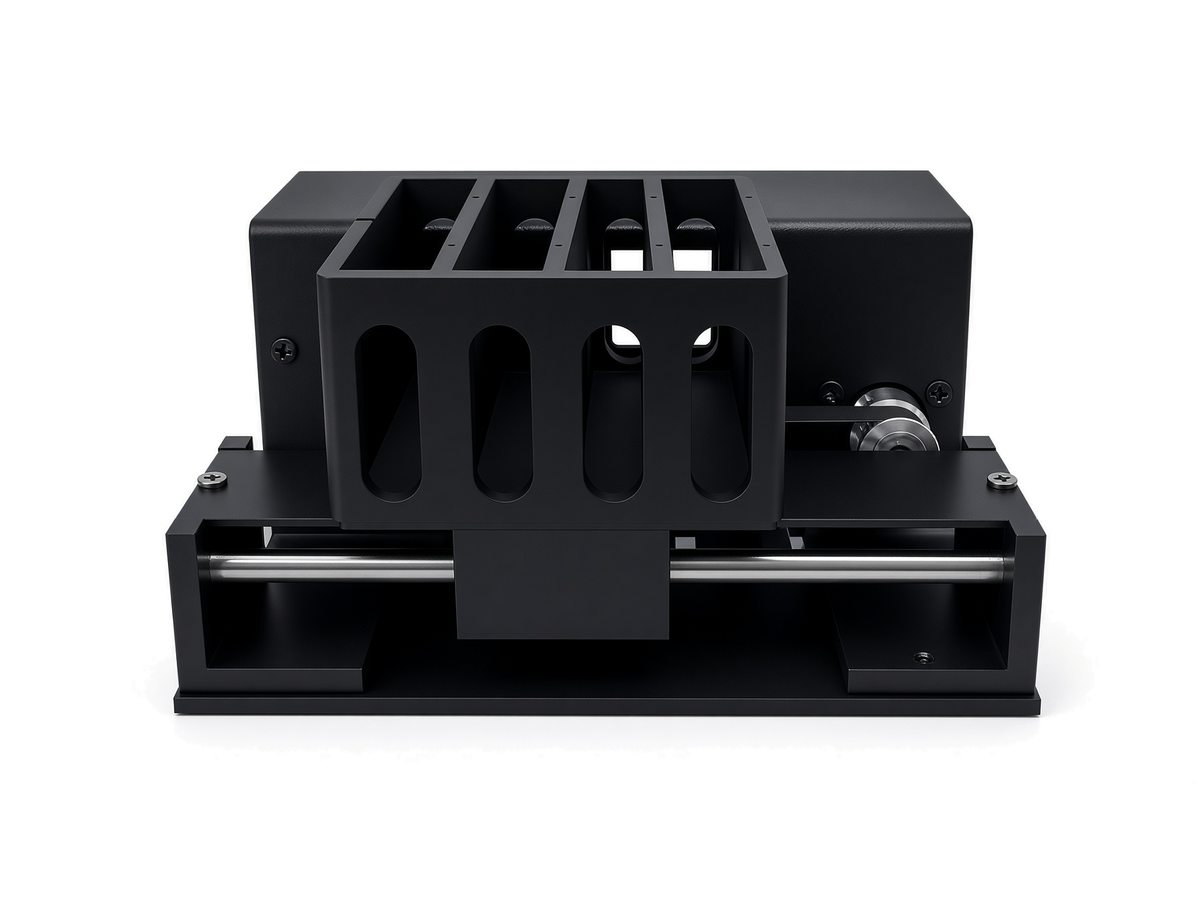

| 18902175 |  | Automatic 4-position cell holder 1cm-5cm (for SP-UV2101/SP-UV2102) |

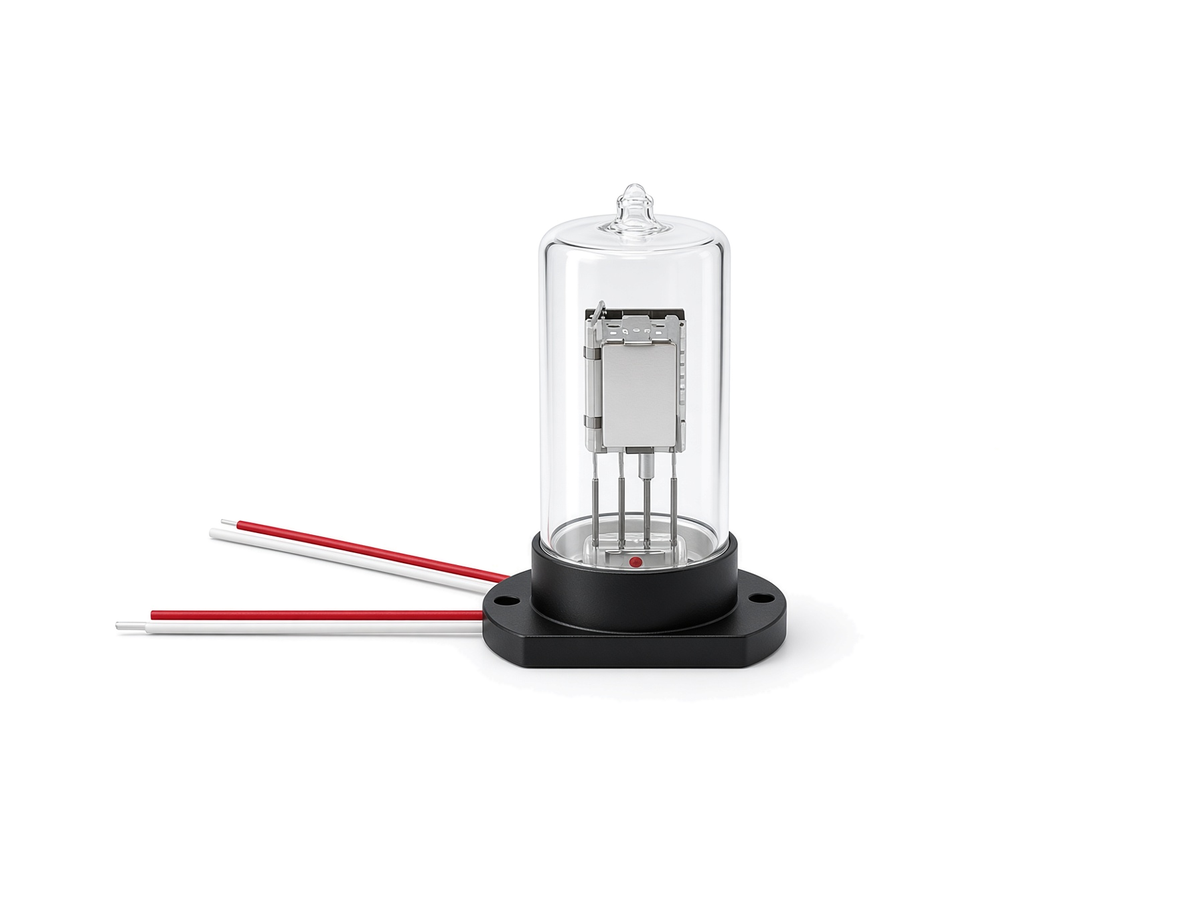

| 18901011 |  | Deuterium lamp (A510KU) 10V (for SP-UV3101/SP-UV3102/SP-UV2101/SP-UV2102) |

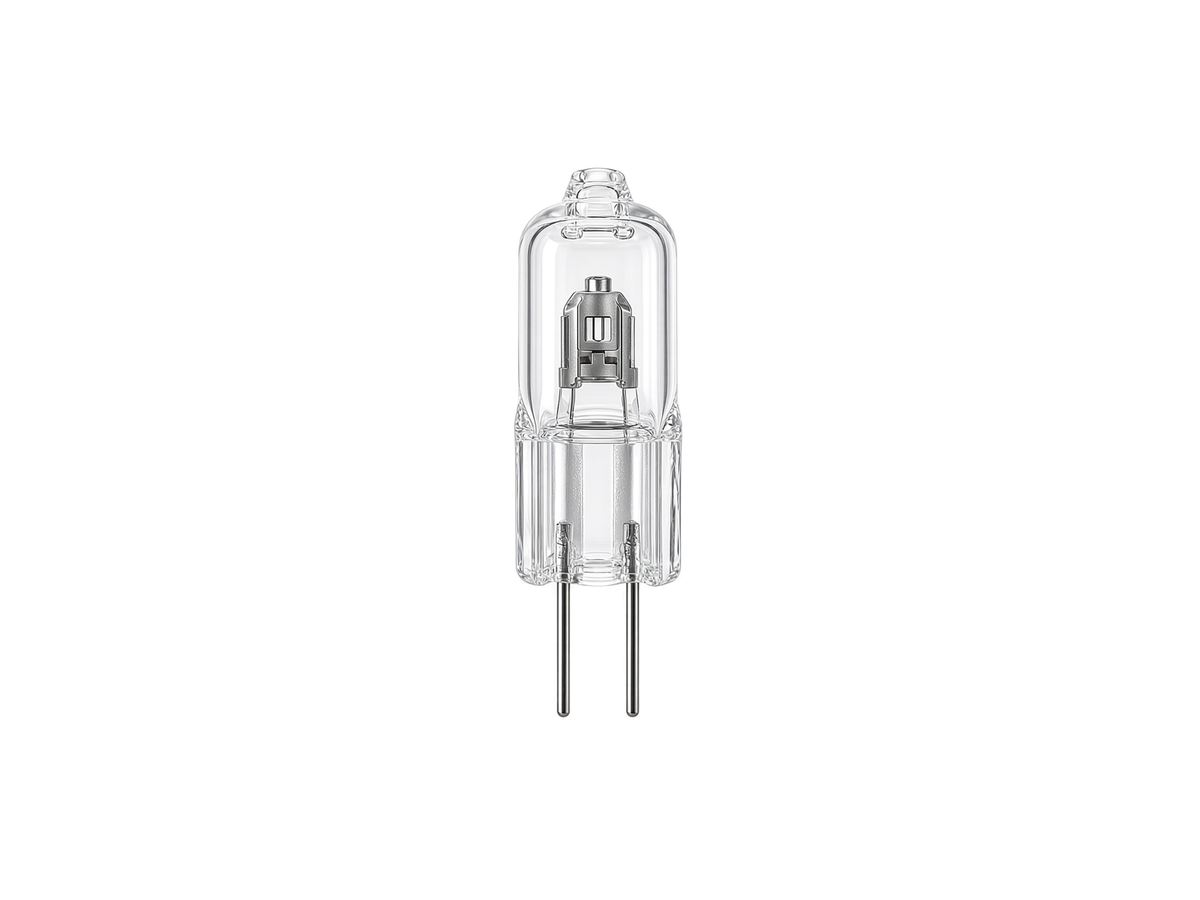

| 18901382 |  | Tungsten lamp HYBEC (for SP-UV3101/SP-UV3102/SP-UV2101/SP-UV2102) |

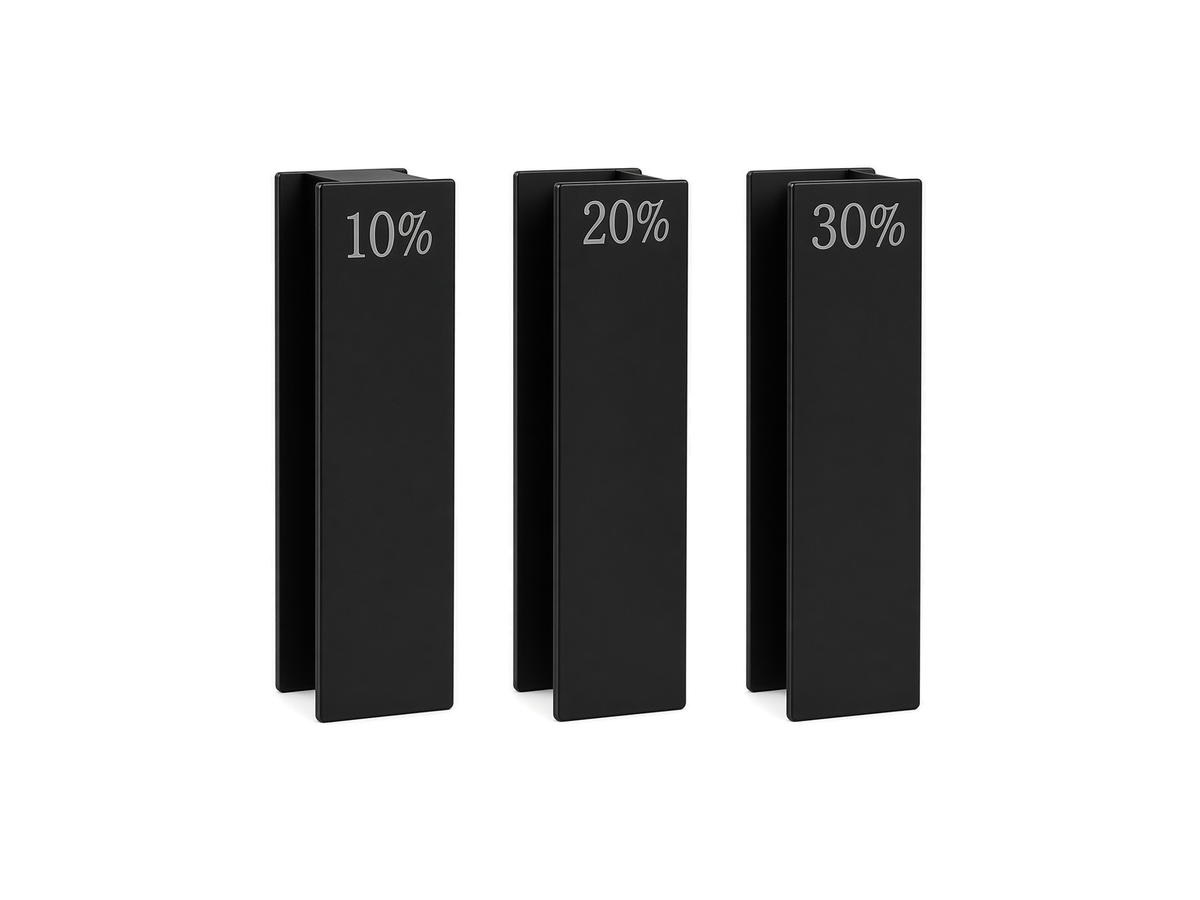

| 18901509 |  | Visible light precision filter 440, 546, 635nm (for full series) |

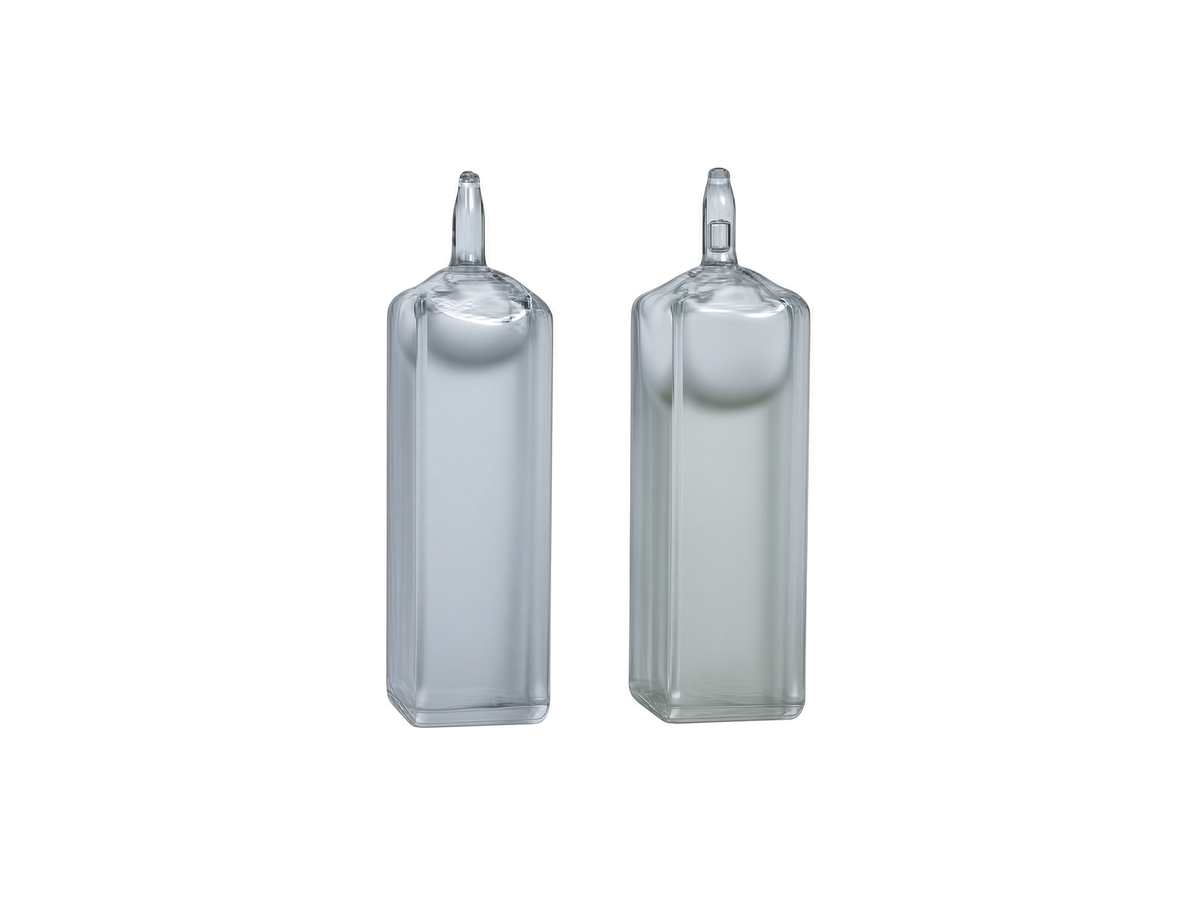

| 18901510 |  | UV-K2Cr2O7 235, 257, 313, 350nm (for full series) |

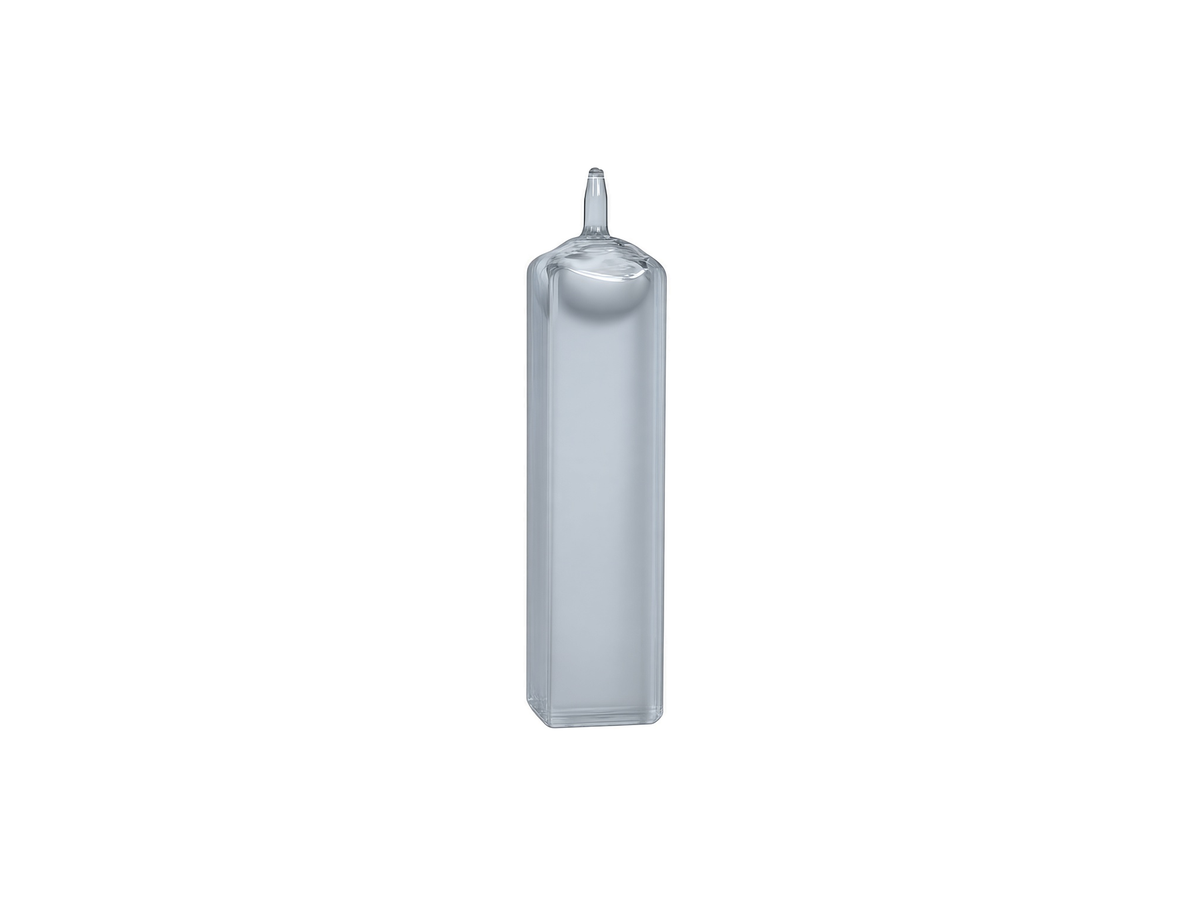

| 18901511 |  | HOMIUM 241, 361, 417, 538, 641nm (for full series) |

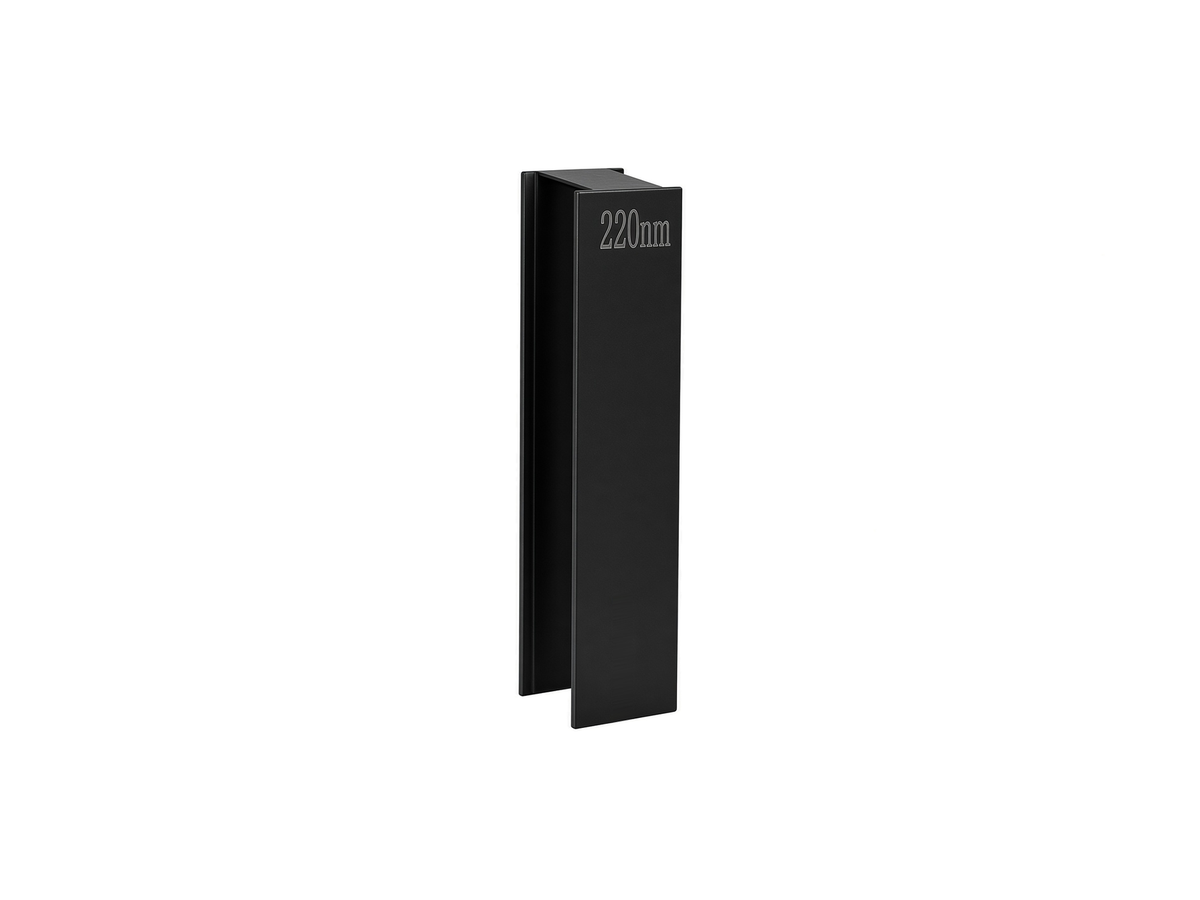

| 18901512 |  | Stray light filter 220nm (for full series) |

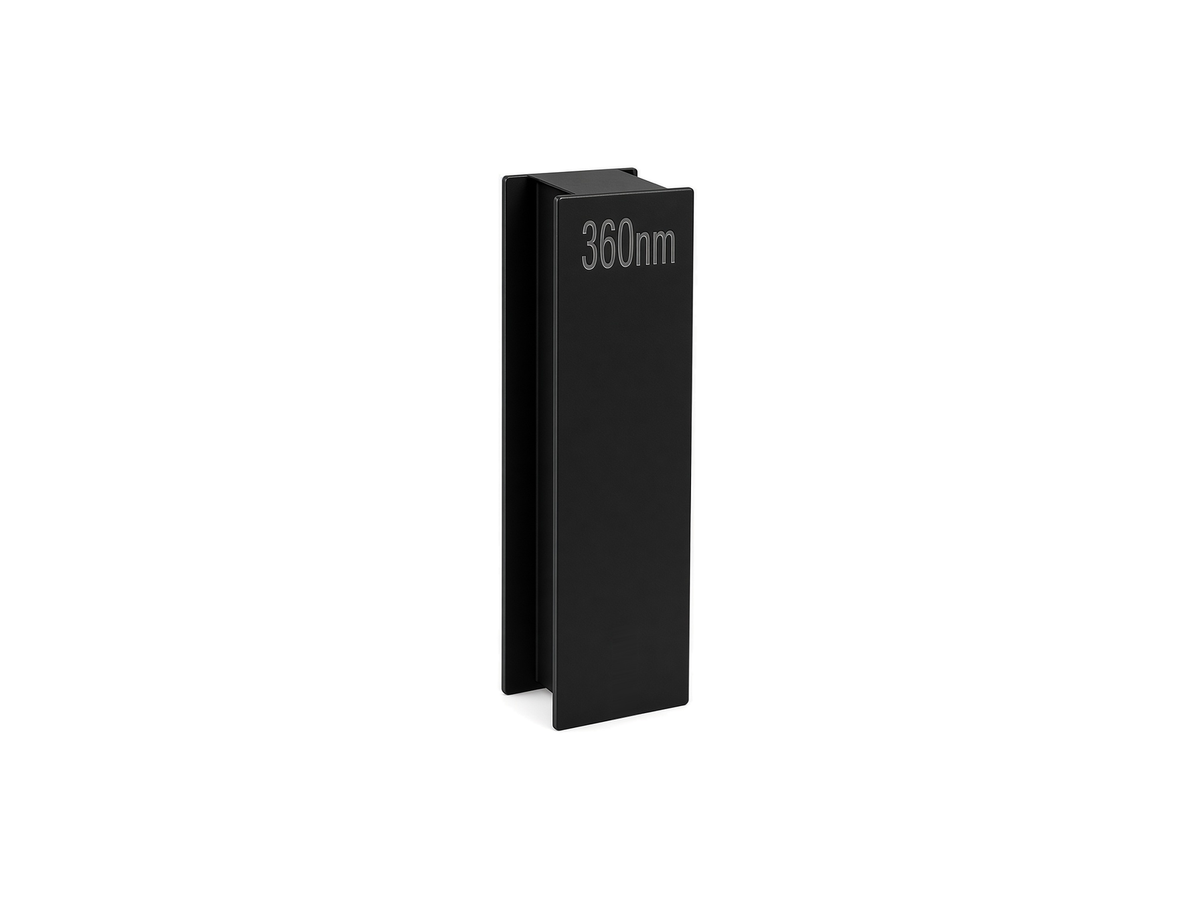

| 18901513 |  | Stray light filter 360nm (for full series) |
Pictures are shown for reference. Item numbers and descriptions as listed by the manufacturer.
Package contents
| Standard accessories | Qty |
|---|---|
| 10mm glass cuvette | 4 |
| 10mm quartz cuvette | 2 |
| Power cord | – |
| User's Manual | – |
| PC software | – |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What measurements can the SP-UV2101 perform?
Photometric measurement, quantitative measurement, kinetics, spectrum scan, DNA\Protein test and multi-wavelength test. Working modes T, A, C, E; scanning speed High | Medium | Slow; wavelength setting Auto.
What are the wavelength range and spectral bandwidth?
Wavelength range 190–1100 nm, spectral bandwidth 1.0nm, wavelength accuracy ±0.1nm (at 656.1nm), ±0.3nm full range and wavelength repeatability ≤0.1nm.
What light source does it use?
Tungsten Lamp (Japan HYBEC) | Deuterium Lamp (Milaras). Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
What photometric performance is published?
Photometric accuracy ±0.0015A(0–0.5A) ±0.002A(0.5A–1A), photometric repeatability ±0.001A(0–0.5A) ±0.0015A(0.5A–1A), photometric range -0.3–3A, 0–9999C(0–9999F), stray light ≤0.03%T @ 220,360nm, stability ≤0.001 A/h / 500 nm (After 1 hour of preheating), baseline flatness ±0.001A and noise 0.0005A@500nm.
How is test data stored and transferred?
Test data and working curves can be saved in the in-house memory (up to 1024M). The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage. Outputs: USB Port, Printer Port.
Which cuvette holder and standard accessories come with it?
Cuvette holder: Manual 4-position 1cm holder (standard for single beam). Standard accessories: 10mm glass cuvette x 4, 10mm quartz cuvette x 2, power cord, user's manual and PC software.
What are the power requirements, size and weight?
Power requirements 110/220V, 50/60Hz, 120W; dimensions [L×W×H] 570mm×440×210mm; weight 20kg.
Which accessories are listed for the SP-UV2101?
Item numbers and descriptions as listed: 18901007 Thin film sample holder 1mm(H)*10mm(W)*30mm(L), 18204256 4 position 5cm holder(1cm-5cm), 18900336 10MM water bath 4-position manual cuvette holder 1cm, 18901012 Integrating Sphere 95mm(L)*101mm(W)*99mm(H), 18901013 Automatic 8-position cell holder 1cm, 18901014 Automatic 5-position cell holder 1cm-5cm, 18902175 Automatic 4-position cell holder 1cm-5cm, 18901011 Deuterium lamp (A510KU) 10V, 18901382 Tungsten lamp HYBEC, 18901509 Visible light precision filter 440, 546, 635nm, 18901510 UV-K2Cr2O7 235, 257, 313, 350nm, 18901511 HOMIUM 241, 361, 417, 538, 641nm, 18901512 Stray light filter 220nm, 18901513 Stray light filter 360nm.
