Graphene is often called a “supermaterial,” and the label is justified when applied carefully to ideal monolayer graphene and selected graphene-family materials — a single layer of carbon that is among the strongest materials ever measured, an excellent conductor of heat and electricity, and nearly transparent. This guide explains what that reputation actually rests on: the real properties, how graphene is made, the main product forms you can buy, and where it is genuinely being used. For the complete reference on the material itself, see our graphene facts guide; here we focus on graphene as a working material and product family.
Short answer. Graphene is a single layer of carbon atoms in a hexagonal “honeycomb” lattice — one atom thick, and the two-dimensional building block of graphite. An ideal, defect-free monolayer is roughly 200 times stronger than steel by weight, conducts heat and electricity exceptionally well, and absorbs only about 2.3% of visible light. It is made either top-down (peeling graphite apart) or bottom-up (growing it atom by atom), and sold in several forms — graphene oxide, reduced graphene oxide, CVD films, nanoplatelets, and quantum dots — each suited to different applications. These headline figures describe a perfect monolayer; real powders, films, and composites capture only a fraction of them, which is why graphene is best understood as a family of materials rather than one fixed specification.
What graphene is, and why it is called a supermaterial

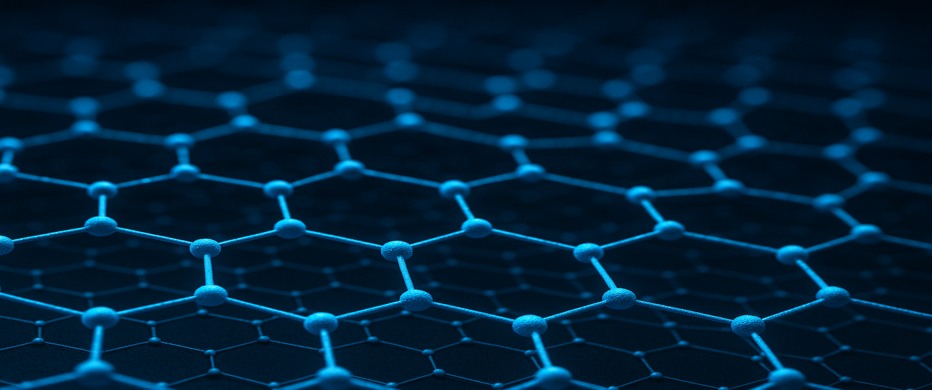

Graphene is a single layer of carbon atoms bonded into a hexagonal lattice — the same honeycomb pattern found in graphite, but isolated as one sheet exactly one atom thick.1 Stack millions of these sheets, held together by weak van der Waals forces about 0.335 nm apart, and you have ordinary graphite, the soft gray carbon in a pencil. Graphene is simply that structure peeled down to a single sheet. It is worth clearing up two common misdescriptions right away: graphene is not “supernatural,” and it is not a chemical compound. It is an allotrope of carbon — a single element arranged in a particular structure — and the “supermaterial” reputation comes from a rare combination of properties in one substance, not from any single magic number. First isolated in 2004, it was studied theoretically for decades before anyone held a piece of it, and it remains stable thanks to its short, exceptionally strong carbon–carbon bonds (about 0.142 nm) and gentle nanoscale ripples.1,2 For the full story of how it was discovered and named, see our graphene facts overview.
The properties behind the reputation
Graphene’s appeal is the combination, not any one figure. The first simulator below shows how the graphene product family differs across common commercial forms — graphene oxide, reduced graphene oxide, CVD films, nanoplatelets, and quantum dots — and why the right form depends on the application.
Strength. Ideal, defect-free monolayer graphene is among the strongest materials ever measured: a Young’s modulus near 1 TPa and an intrinsic breaking strength around 130 GPa, making it roughly 200 times stronger than structural steel on a strength-to-weight basis.3 That strength comes from its network of sp² carbon–carbon bonds, but the figure is for a perfect flake — real graphene contains defects and grain boundaries that lower it, which is why in practice it is used as a reinforcing additive in composites and coatings rather than as a bulk structural solid.4
Electrical conductivity. Near the corners of its Brillouin zone the conduction and valence bands meet at a single point, and the energy varies linearly with momentum, so charge carriers behave as if massless and move with very high mobility.5 One caveat often stated incorrectly: because graphene has no natural bandgap, it cannot fully switch off, so it is not a drop-in replacement for silicon in logic transistors — its electronic strengths are in high-frequency devices, transparent electrodes, and sensors.
Thermal conductivity. Suspended single-layer graphene has a room-temperature thermal conductivity of roughly 4,800–5,300 W/m·K,6 far above copper (~400 W/m·K); real supported films, multilayers, and composites can be much lower, but even a fraction of that is useful for thermal management.
Optical transparency. A suspended monolayer absorbs about 2.3% of visible light — a value fixed by the fine-structure constant — so a single sheet transmits about 97.7%, with each added layer subtracting roughly another 2.3 points.7 The second simulator below lets you add layers and watch how transparency — along with flexibility and surface area — changes as graphene thickens toward graphite. Being transparent, conductive, and flexible at once is what makes graphene attractive for touchscreens and flexible displays.
How graphene is made
There is no single best way to make graphene; the right route depends on whether the goal is quality, quantity, or cost. The methods fall into two families.
Top-down synthesis starts with bulk graphite and separates it into single- or few-layer sheets. The original method — mechanical exfoliation, peeling layers apart with adhesive tape — produces very high-quality flakes but only tiny quantities, so it is used for research rather than production. Scalable top-down routes such as liquid-phase exfoliation and oxidation–reduction can produce graphene and graphene oxide in bulk (a few tonnes a year for uses such as blending into plastics), at the cost of more defects and mixed thickness.
Bottom-up synthesis builds graphene atom by atom from carbon-containing gases. Chemical vapor deposition (CVD) is the leading example: a hydrocarbon gas breaks down in a hot chamber and deposits carbon onto a metal catalyst such as copper or nickel, forming continuous films. CVD gives large-area, high-quality graphene — roll-to-roll processes have produced films on the order of 30 inches wide for transparent electrodes8 — though transfer off the growth substrate and cost remain challenges. Growth on silicon carbide is another bottom-up route that avoids a transfer step.9
The main types of graphene products
“Graphene” is sold in several distinct forms, and choosing the right one matters more than chasing the highest headline number. The main product families are:
Graphite oxide and graphene oxide (GO). Graphite oxide is graphite whose layers carry oxygen-containing groups; exfoliating it gives graphene oxide (GO), single sheets decorated with those oxygen groups. GO disperses easily in water and is chemically reactive, which makes it practical for coatings, composites, membranes, and biomedical work. It is available from graphene oxide suppliers such as ACS Material.10
Reduced graphene oxide (rGO). Removing most of the oxygen from GO — chemically, thermally, or electrochemically — gives reduced graphene oxide, recovering much of graphene’s electrical conductivity while keeping the scalability of the GO route. It is widely used in electrodes and biosensors.
CVD graphene. Single- or multi-layer continuous films grown by chemical vapor deposition on copper or nickel, ideal for sensors, transistors, and transparent conductive films where film quality matters. These are available from a CVD graphene supplier such as ACS Material.
Graphene nanoplatelets. Small stacks of graphene layers — not pure single sheets — that conduct heat and electricity well and blend easily into composites. They are useful in EMI shielding, wearable electronics, supercapacitors, and sensors.
Graphene quantum dots (GQDs). Extremely small graphene fragments, under about 10 nm across, that are water-dispersible, biocompatible, and have tunable optical and electronic properties — useful in sensors, LEDs, drug delivery, and imaging.
Where graphene is being used
Graphene’s properties have carried it into a range of real products and prototypes, though many uses are still emerging rather than mainstream.
Electronics. Its very high carrier mobility makes graphene attractive for high-frequency and flexible electronics, and graphene on flexible substrates such as PET or copper foil supports bendable devices. It is not a replacement for silicon logic, but it is valuable for transparent electrodes, sensors, and interconnects.
Energy storage and batteries. Adding graphene to battery and supercapacitor electrodes can improve conductivity and charge/discharge rates; graphene-containing electrode designs have been studied for faster charge/discharge behavior, though real gains depend heavily on cell design. Its large surface area is particularly useful in supercapacitors.
Healthcare and biosensing. Functionalized grades such as carboxyl graphene are being studied as biocompatible carriers for drugs and genes, and graphene’s large, exposed surface makes it a sensitive platform for biosensors — explored for detecting germs, toxins, and environmental pollutants at low concentrations. Most of these remain in research rather than routine clinical use.
Semiconductors and photonics. Researchers have combined graphene with materials such as gallium arsenide to build hybrid structures by molecular beam epitaxy, opening possibilities for next-generation solar and LED technologies. This work is at the research stage.
Why graphene matters today
First produced in 2004 by peeling it from graphite, graphene matters now because its combination of properties — high electrical and thermal conductivity, flexibility, impermeability, and lightweight strength — maps onto real industrial needs, from efficient sensors and touchscreens to wearable electronics and better electrodes. The honest framing, worth repeating, is that these are the properties of an ideal monolayer; any real product captures only a fraction of them, set by grade, layer number, defect density, and how the material is handled. Seen that way, graphene is not one miracle substance but a versatile family of carbon materials — and the right choice depends on the application. For the complete background on the material, its discovery, and its measured properties, see our graphene facts guide.
Graphene materials for research and industry
Whether your application needs atomic perfection or bulk processability, ACS Material supplies the complete range of graphene materials:
- Graphene Series — the full catalog of research-grade powders, nanoplatelets, and quantum dots.
- CVD Graphene — single- and multi-layer continuous films on copper or ready to transfer for electronics and optoelectronics.
- Graphene Oxide (GO) — solution-processable grades for coatings, membranes, composites, and chemical reduction.
