Levon™ AC100-S Programmable Spin Coater
Product Detail
Levon™ AC100-S Programmable Spin Coater is a compact benchtop spin coater for laboratory applications with a precision motion control system, a maximum speed of 12,000 rpm (no load), a maximum acceleration of 30,000 rpm/s and storage for 100 recipes, with up to 100 steps per recipe.
The AC100-S has an integrated digital display, a real-time operating parameter display with traceable process steps, a waste collection bottle, and an integrated exhaust system that is compatible with external ventilation. It is available in a 110 V type (100–120 V, single phase, 450 W) and a 220 V type (200–230 V, single phase, 450 W).
Why choose the AC100-S
Specifications General — AC100-S
| Parameter | Specification |
|---|---|
| Brand | Levon™ by ACS Material |
| Model | AC100-S |
| SKU # | LVAC1S00 |
| Product Type | Spin coater |
| Maximum speed | 12,000 rpm (no load) |
| Speed resolution | 1 rpm |
| Max acceleration | 30,000 rpm/s |
| Max spin time | 3,000 s |
| Time resolution | 0.1 s |
| Programs | 100 recipes, with up to 100 steps per recipe |
| Standard chuck configurations | 10 mm diameter, 25 mm diameter, 2-inch diameter |
| Power input — 110 V type | 100–120 V, single phase, 450 W |
| Power input — 220 V type | 200–230 V, single phase, 450 W |
| Vacuum input requirement | 0.06–0.09 MPa; minimum vacuum flow rate >15 L/min |
| Vacuum connection | Rear plate outlet, 6 mm outer diameter |
| Dimensions [W × D × H] | 340 × 410 × 385 mm |
| Weight | 15 kg |
| Packing | Carton packaging |
| Warranty | 1-year product warranty |

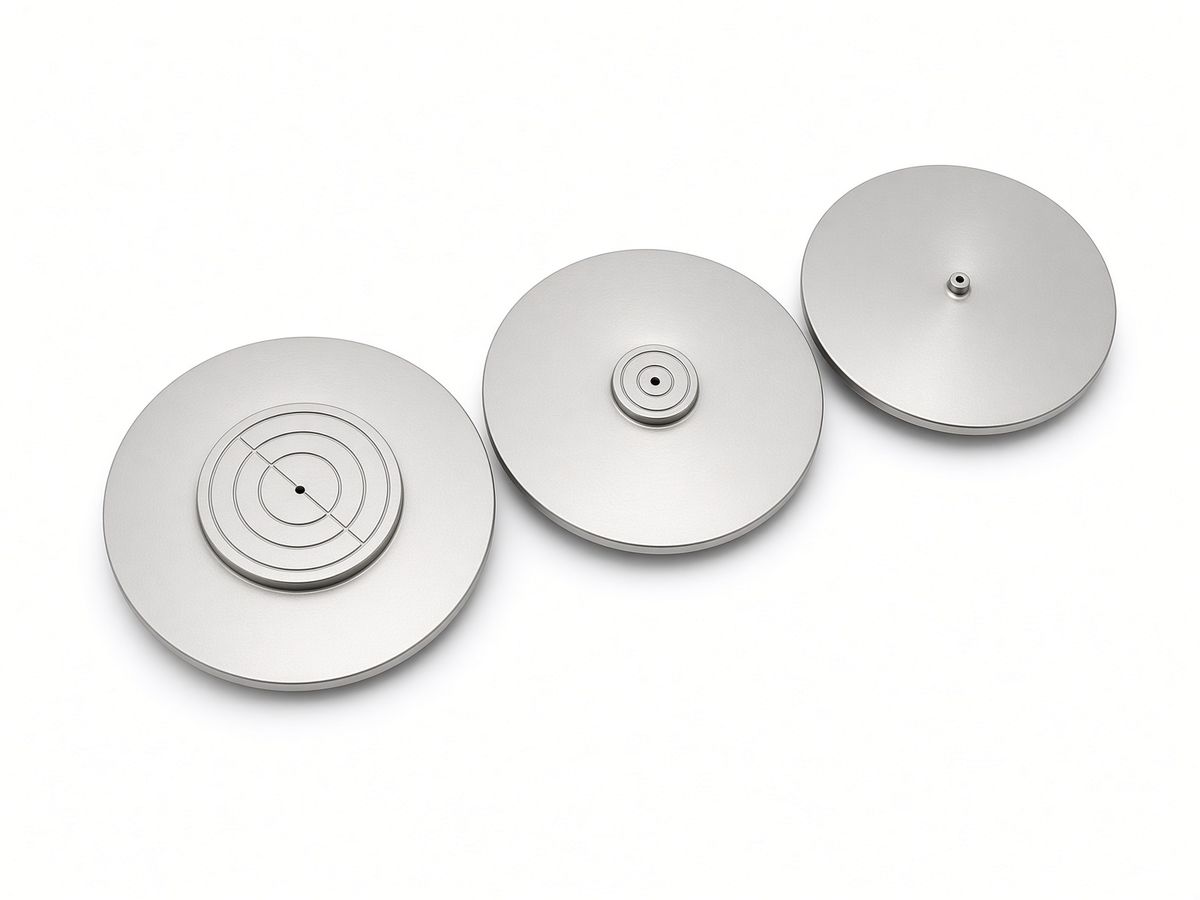

Accessories Chucks
| Accessory | Description | Image |
|---|---|---|
| Standard chucks (10 mm, 25 mm, 2-inch) | Standard chuck configurations: 10 mm diameter, 25 mm diameter and 2-inch diameter. |  |
Accessory images shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| Levon™ AC100-S Programmable Spin Coater main unit (110 V type or 220 V type, as ordered) | 1 |
| Standard chucks: 10 mm, 25 mm, 2-inch diameter | 3 sizes |
| Waste collection bottle | 1 |
Accessories are listed above. External utilities, where required, are supplied by the user. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed and acceleration does the AC100-S reach?
Maximum speed: 12,000 rpm (no load), speed resolution 1 rpm; max acceleration: 30,000 rpm/s. Max spin time 3,000 s at 0.1 s resolution.
How many recipes can be stored?
100 recipes, with up to 100 steps per recipe. Operating parameters are displayed in real time with traceable process steps.
What utilities are required?
Power input: 100–120 V, single phase, 450 W (110 V type) or 200–230 V, single phase, 450 W (220 V type). Vacuum: 0.06–0.09 MPa with a minimum vacuum flow rate above 15 L/min, connected to the 6 mm outer-diameter outlet on the rear plate.
Which chucks are included?
Standard chuck configurations: 10 mm, 25 mm and 2-inch diameter.
