  • PECVD: Low-Temperature Thin-Film Deposition

    Jul 18, 2026 | ACS MATERIAL LLC

    Chemical vapor deposition has one demand that shapes everything around it: heat. Classic thermal CVD asks the substrate itself to power the chemistry, which locks out every material that cannot take the temperature — polymers, finished chips, coated glass. Plasma-enhanced CVD (PECVD) rewrites the deal: energetic electrons in a cold plasma crack the precursor in the gas phase, so the same broad film families — silicon nitride, silicon dioxide, amorphous silicon, diamond-like carbon — grow on substrates hundreds of degrees cooler, carrying their own plasma-era fingerprints in hydrogen content, stress, and density. This guide explains the electron trick, tours the film family it unlocked, follows the idea from vacuum chambers to atmospheric and microwave variants, and looks at where it is heading next: growing 2D materials cold.

    In one paragraph: thermal CVD makes the substrate pay the activation energy, so deposition temperature and substrate tolerance are chained together — and heat-sensitive materials lose. PECVD moves much of that burden into the gas phase: a cold plasma’s hot electrons dissociate the precursor into radicals mid-flight, radicals build the film, and gentle ion bombardment densifies it — while substrate temperature, demoted from engine to control knob, still tunes adsorption, hydrogen removal, stress, and density. That one substitution gave microelectronics its low-temperature nitrides and oxides, put amorphous silicon on glass, and hard coatings on optics; barrier-discharge and jet variants carry it to atmospheric pressure, microwave plasmas push it to diamond, and plasma routes to graphene and 2D materials are its current frontier. Industrial PECVD is an integrated-tool business — a lab low-pressure supply is the honest way to study the physics underneath it.

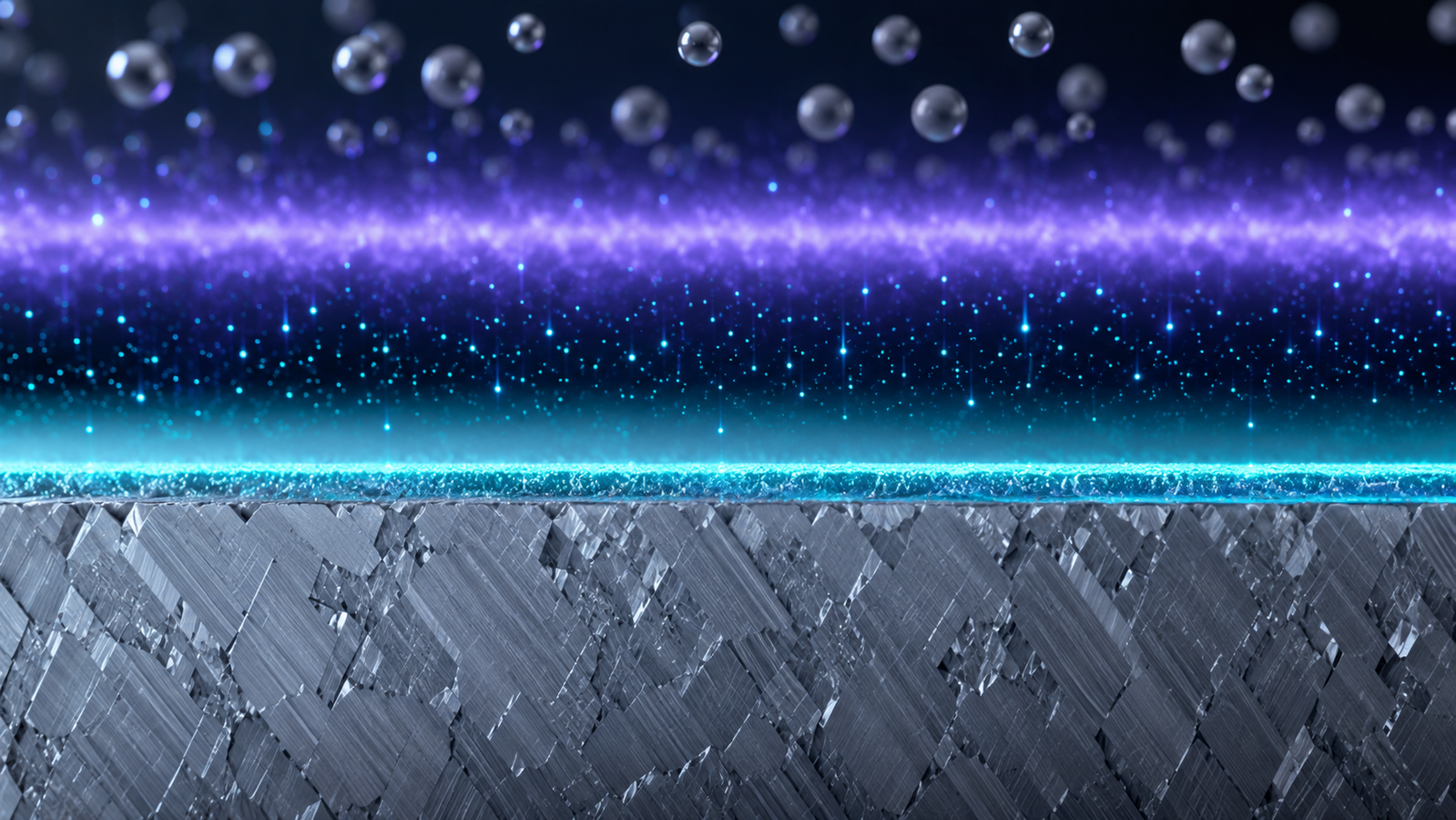

    Cross-section illustration of plasma-enhanced CVD: a violet discharge cracking precursor molecules into radicals that deposit a thin teal film on a cool substrate
    The PECVD bargain: electrons crack the precursor so the substrate does not have to be hot. Schematic, not to scale.

    1.  The temperature tax of thermal CVD

    Chemical vapor deposition is a beautiful bargain: flow a precursor gas over a surface, let chemistry decompose it there, and a solid film assembles itself atom by atom. The fine print is the activation energy. In classic thermal CVD the substrate pays it — the part must be hot enough, often many hundreds of degrees, for the precursor to react at a useful rate.1 That tax silently writes the guest list: refractory substrates are welcome; polymers, finished microelectronics, coated optics, and anything with a modest melting point or a buried device layer are not. It also couples two things a process engineer would love to separate — the chemistry's demands and the substrate's tolerance. Plasma-enhanced CVD exists to break that coupling: let a cold plasma’s electrons shoulder most of the activation burden in the gas phase, and the substrate can stay cool while the same class of film grows — with fingerprints of its own, as we will see.2

    2.  The growth lab

    The simulator below runs the two routes head to head. On the Thermal CVD tab, slide the substrate temperature: below the reaction threshold the precursor molecules touch the surface and bounce away unchanged; cross it and the film starts to grow — on a substrate glowing furnace-red. Switch to PECVD and the temperature slider is gone: a violet discharge zone now cracks the precursors into radicals mid-flight, and those radicals build the same film on a substrate that never left a few hundred degrees.

    3.  Electrons pay most of the activation bill

    The trick at the heart of PECVD is the cold plasma's defining asymmetry: electrons at tens of thousands of kelvin equivalent, gas near ambient. Those hot electrons collide with precursor molecules and do in microseconds what a hot surface does slowly — crack them into radicals, molecular fragments with open bonds that need no further persuasion to react.3,4 The radicals diffuse to the surface and incorporate; ions accelerated across the sheath arrive alongside them, compacting and densifying the growing film — a low-energy bombardment that substitutes for the thermal mobility a cold substrate cannot supply.2,5 Substrate temperature does not leave the stage, though: it still governs adsorption, surface mobility, hydrogen removal, stress, and final density — demoted from engine to control knob, not eliminated.6 Because film properties now track plasma parameters — electron density, ion flux, sheath voltage — the discharge itself becomes the process knob, which is why PECVD engineering leans so heavily on RF diagnostics and on high-density sources like inductively coupled plasmas when more radical flux is wanted at lower pressure.7,8 The definitive review of this materials territory — and the source for much of this section's picture — is Martinu and Poitras on plasma-deposited films.6

    Process knobWhat it mainly setsClassic drift symptom
    Plasma powerRadical generation rate, ion fluxToo high: ion damage, gas-phase powder
    PressureMean free path, sheath ion energyToo high: particle nucleation; too low: poor coverage
    Substrate temperatureAdsorption, hydrogen removal, stress, densityToo cold: hydrogen-rich, porous, unstable film
    Gas ratio & flowFilm stoichiometry and refractive indexOff-ratio: index and stress drift across runs
    Frequency & biasHow energy splits between electrons and ionsToo much ion energy: subsurface damage

    4.  The film family: what PECVD actually builds

    The workhorse outputs read like the credits of modern technology. Silicon dioxide and silicon nitride, deposited from silane chemistries at a few hundred degrees, are the insulation, passivation, and moisture barriers of chip manufacturing — grown directly on top of finished, heat-intolerant transistors. Amorphous silicon from the same family put thin-film solar cells and flat-panel backplanes on glass. Diamond-like carbon and hard optical coatings brought scratch resistance and engineered refractive indices to lenses and tools.6 A sibling branch, plasma polymerization, grows organic-derived films from vapors that classical chemistry would never polymerize — part of the same plasma–surface toolbox that Liston and colleagues codified for polymers.9 The reach keeps extending: biomedical coatings that tune how implants meet tissue, and plasma routes to nanocrystals and particles where the "substrate" is an aerosol.10,11

    5.  Low pressure is the home game — but not the only one

    Classic PECVD lives in vacuum chambers, where long mean free paths and stable glows give uniformity and control. But the plasma-deposition idea travels. Atmospheric-pressure barrier discharges deposit coatings in open air — Kogelschatz's DBD lineage includes exactly this application family — with filamentary microdischarge chemistry setting the texture of what grows.12,13,14 Atmospheric jets carry film-forming chemistry to a localized spot on parts too large or too finished for any chamber.15 Pulse-modulated drive tunes the radical generation duty cycle — and, at atmospheric pressure, the delivered dose is honestly audited the DBD way, by charge–voltage Lissajous measurement rather than dial trust.16,17,18 At the high-energy end, microwave plasmas grow diamond and other demanding films from high-density discharges, with gas heating itself becoming a process variable to manage.19,20,21

    6.  PECVD meets 2D materials

    The frontier case makes the cold-growth argument sharpest. Thermal CVD of graphene famously runs near 1000 °C on copper — spectacular material, brutal thermal budget. Plasma-enhanced routes grow graphene and its relatives at substantially lower substrate temperatures, and extend to vertical graphene nanowalls and direct growth on substrates the furnace recipe excludes.22 The same logic now runs through transition-metal dichalcogenides, where plasma processes handle low-temperature synthesis alongside doping and patterning of the finished monolayers.23 Community roadmaps place exactly this — plasma routes to atomically thin and nanostructured materials — among the field's defining opportunities.24,25 For the furnace-grown benchmark this competes with, see our CVD graphene guide and the CVD graphene product line — the material the plasma community is racing to grow colder.

    7.  Precursor, vacuum & exhaust safety

    PECVD chemistry is not casual chemistry. Silane is pyrophoric; ammonia and hydrogen bring their own hazards; organosilicon and metal-organic precursors add toxicity and flammability of their own — which is why production tools live with gas cabinets, flow-limited delivery, leak monitoring, and interlocks as standard furniture, not options. The chamber side adds vacuum vessels and heated surfaces; the exhaust side matters just as much, because unreacted precursor and corrosive or flammable by-products leave the pump and must be treated — scrubbing and abatement are part of the process, not an afterthought.6 None of this is a reason to avoid the technique; it is the reason real PECVD lives inside engineered gas-handling infrastructure, and any laboratory work with reactive precursors starts with the institutional safety office, the SDS stack, and the exhaust plan — before the first sccm flows.

    8.  Hardware honesty: what runs PECVD

    Production PECVD is a systems business: engineered reactors with showerhead gas distribution, matched RF delivery, heated chucks, and vacuum trains — the film recipes of section 4 assume that integration.2,6 A materials-lab power supply does not replace such a tool, and this guide will not pretend otherwise. What a laboratory supply legitimately offers is the physics platform: the CTP-2000K plasma supply sustains stable glow discharges across air, oxygen, nitrogen, and inert gases — the environment in which deposition-relevant plasma chemistry, electrode behavior, and dose control can be studied and taught before anyone commits to a production reactor. Pair it with the discharge-family map in the pillar guide, and the step from "understanding plasma deposition" to "specifying a deposition tool" gets much shorter.

    Knowledge hub

    Deposition reading, the cross-empire CVD link, and the lab platform:

    FAQ

    What temperature does PECVD run at?

    Typically a few hundred degrees Celsius at the substrate — commonly in the 200–400 °C neighborhood for the classic silicon-based dielectrics — versus the substantially higher temperatures the equivalent thermal reactions demand. The exact figure is a process choice: lower is gentler, higher generally trades toward denser films.

    Is PECVD film quality as good as thermal CVD?

    It is different, and often good enough to be the industry default. Plasma films can carry more hydrogen and different stress than high-temperature equivalents; ion bombardment and recipe tuning claw much of that back. The practical question is not "which is purer" but "what does this substrate survive" — and PECVD usually wins that one.

    What films does PECVD deposit?

    The classic set: silicon nitride and silicon dioxide for passivation and insulation, amorphous silicon for solar and displays, silicon oxynitrides, diamond-like carbon and hard optical coatings, plus plasma-polymerized organic films. Beyond it: diamond by microwave plasma, and a growing 2D-materials frontier led by graphene.

    Why is there RF and a matchbox on a PECVD tool?

    Because the discharge is the chemistry engine, and it must be driven — most tools couple RF (commonly 13.56 MHz) into the showerhead or a coil, with a matching network keeping the power actually entering the plasma equal to the power on the dial. Unstable match means unstable radical supply means drifting film.

    Can PECVD coat plastics?

    That is much of the point. With the substrate held near or below a couple hundred degrees — and recipes tuned for low thermal load — barrier and hard coatings go onto polymers that no thermal CVD furnace could ever see. Substrate-specific qualification still applies: heat is only one of the stresses a plasma delivers.

    Can I do PECVD with a lab plasma power supply?

    You can study the physics underneath it — stable low-pressure glows, gas chemistry, electrode and dose behavior — which is what a supply like the CTP-2000K/L is for. Depositing qualified device films additionally needs the reactor engineering around the discharge: gas delivery, substrate temperature control, and vacuum integration. Learn on the platform; specify the tool with what you learned.

    How is PECVD different from PVD and ALD?

    PVD (sputtering, evaporation) physically transports material from a source to the substrate — no precursor chemistry, line-of-sight coverage. ALD builds films one self-limiting surface reaction at a time — thermal or plasma-assisted — trading speed for atomic thickness control and perfect conformality. PECVD sits between: continuous plasma-activated chemistry, far faster than ALD, more conformal than line-of-sight PVD, and the workhorse wherever micrometers of dielectric or hard coating are needed at low substrate temperature.
