ALab™ dPette & dPette+ Electronic Pipettes
Product Detail
ALab™ dPette+ and dPette — motor driven electronic pipettes: the dPette+ multi functional electronic pipette (single-channel and 8-channel) and the dPette simple electronic pipette (single-channel). Single-channel dPette+: pipetting, mixing, stepper and dilution; single-channel dPette: pipetting and mixing; dPette+ 8-channel: pipetting, mixing and stepper.
The dPette+ is a multi functional electronic pipette and the dPette is a simple electronic pipette: for the single-channel pipettes the dPette+ is for pipetting, mixing, stepper and dilution and the dPette for pipetting and mixing; the dPette+ 8-channel is described for pipetting, mixing and stepper. The dPette combines manual pipette features, as ergonomics and lightweight, with electronic pipette features, such as labor-saving and high accuracy, offering new pipetting experience to users. Both are motor driven digitally controlled pipettes with an intuitive menu interface, 2 buttons for all operational settings, minimal force for pipetting operation, adjustable speed for aspiration and dispensing and a Li-ion battery for longer operation time; self-calibration is applicable. The dPette+ 8-channel version is a multi-functional high performance electronic pipette that offers productive pipetting with easy to understand operations; its uniquely lightweight streamlined design ensures an effortless transfer of multiple samples with an increased throughput and data reproducibility, and it supports dual charging modes (USB charger or charging stand). The specification tables below list the dPette+ 8-channel ranges and the single-channel ranges.
Why choose the dPette+ and dPette
Specifications General — dPette & dPette+
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | dPette & dPette+ |
| SKU # | ALDPTP00 |
| Product Type | dPette+: Multi functional Electronic Pipette; dPette: Simple Electronic Pipette |
| Functions | dPette single-channel: pipetting and mixing; dPette+ single-channel: pipetting, mixing, stepper and dilution; dPette+ 8-channel: pipetting, mixing and stepper |
| Single-channel | Five volume ranges, 0.5–1000 μL (dPette+ and dPette) |
| 8-channel | dPette+: five volume ranges, 0.5–300 μL |
| Battery | Li-ion battery |
| Charging | dPette+ 8-channel: dual charging modes — USB charger or charging stand |
| Calibration reference | ISO 8655 |
Volume range and accuracy dPette+ 8-channel · single-channel (dPette+ and dPette)
dPette+ · 8-channel
| Volume range (µL) | Increment (µL) | Test volume (µL) | Systematic error (µL) | Systematic error (%) | Random error (µL) | Random error (%) |
|---|---|---|---|---|---|---|
| 0.5–10 | 0.01 | 10 5 1 | ±0.20 ±0.20 ±0.08 | ±2.00 ±4.00 ±8.00 | ±0.10 ±0.10 ±0.05 | ±1.00 ±2.00 ±5.00 |
| 10–100 | 0.1 | 100 50 10 | ±0.80 ±0.50 ±0.30 | ±0.80 ±1.00 ±3.00 | ±0.30 ±0.40 ±0.20 | ±0.30 ±0.80 ±2.00 |
| 20–200 | 1 | 200 100 20 | ±1.20 ±1.00 ±0.80 | ±0.60 ±1.00 ±4.00 | ±0.60 ±0.50 ±0.20 | ±0.30 ±0.50 ±1.00 |
| 15–300 | 1 | 300 150 15 | ±1.80 ±1.50 ±0.60 | ±0.60 ±1.00 ±4.00 | ±0.90 ±0.75 ±0.15 | ±0.30 ±0.50 ±1.00 |
| 30–300 | 1 | 300 150 30 | ±1.80 ±1.50 ±0.90 | ±0.60 ±1.00 ±3.00 | ±0.90 ±0.75 ±0.30 | ±0.30 ±0.50 ±1.00 |
Single-channel (one table shared by dPette+ and dPette)
| Volume range (µL) | Increment (µL) | Test volume (µL) | Systematic error (µL) | Systematic error (%) | Random error (µL) | Random error (%) |
|---|---|---|---|---|---|---|
| 0.5–10 | 0.01 | 10 5 1 | ±0.10 ±0.10 ±0.05 | ±1.00 ±2.00 ±5.00 | ±0.05 ±0.10 ±0.03 | ±0.50 ±2.00 ±3.00 |
| 5–50 | 0.1 | 50 25 5 | ±0.40 ±0.25 ±0.20 | ±0.80 ±1.00 ±4.00 | ±0.15 ±0.25 ±0.125 | ±0.30 ±1.00 ±2.50 |
| 20–200 | 1 | 200 100 20 | ±1.20 ±1.00 ±0.80 | ±0.60 ±1.00 ±4.00 | ±0.40 ±0.40 ±0.20 | ±0.20 ±0.40 ±1.00 |
| 30–300 | 1 | 300 100 30 | ±1.80 ±1.00 ±0.90 | ±0.60 ±1.00 ±3.00 | ±0.60 ±0.40 ±0.21 | ±0.20 ±0.40 ±0.70 |
| 100–1000 | 5 | 1000 500 100 | ±6.00 ±5.00 ±2.00 | ±0.60 ±1.00 ±2.00 | ±2.00 ±1.00 ±0.60 | ±0.20 ±0.20 ±0.60 |
* Specifications are used as guidelines and the user calibration should refer to the industrial standard ISO 8655.
Order codes one SKU per configuration
| Model · configuration | SKU # |
|---|---|
| dPette+ · Single-channel · 0.5–10 μL | ALDPTP01 |
| dPette+ · Single-channel · 5–50 μL | ALDPTP02 |
| dPette+ · Single-channel · 20–200 μL | ALDPTP03 |
| dPette+ · Single-channel · 30–300 μL | ALDPTP04 |
| dPette+ · Single-channel · 100–1000 μL | ALDPTP05 |
| dPette+ · 8-channel · 0.5–10 μL | ALDPTP06 |
| dPette+ · 8-channel · 10–100 μL | ALDPTP07 |
| dPette+ · 8-channel · 20–200 μL | ALDPTP08 |
| dPette+ · 8-channel · 15–300 μL | ALDPTP09 |
| dPette+ · 8-channel · 30–300 μL | ALDPTP10 |
| dPette · Single-channel · 0.5–10 μL | ALDPET01 |
| dPette · Single-channel · 5–50 μL | ALDPET02 |
| dPette · Single-channel · 20–200 μL | ALDPET03 |
| dPette · Single-channel · 30–300 μL | ALDPET04 |
| dPette · Single-channel · 100–1000 μL | ALDPET05 |
Parent SKU: ALDPTP00. Select the configuration in the order menu.
Accessories dPette+ 8-channel charging and holder
| Accessory | Image | Description |
|---|---|---|

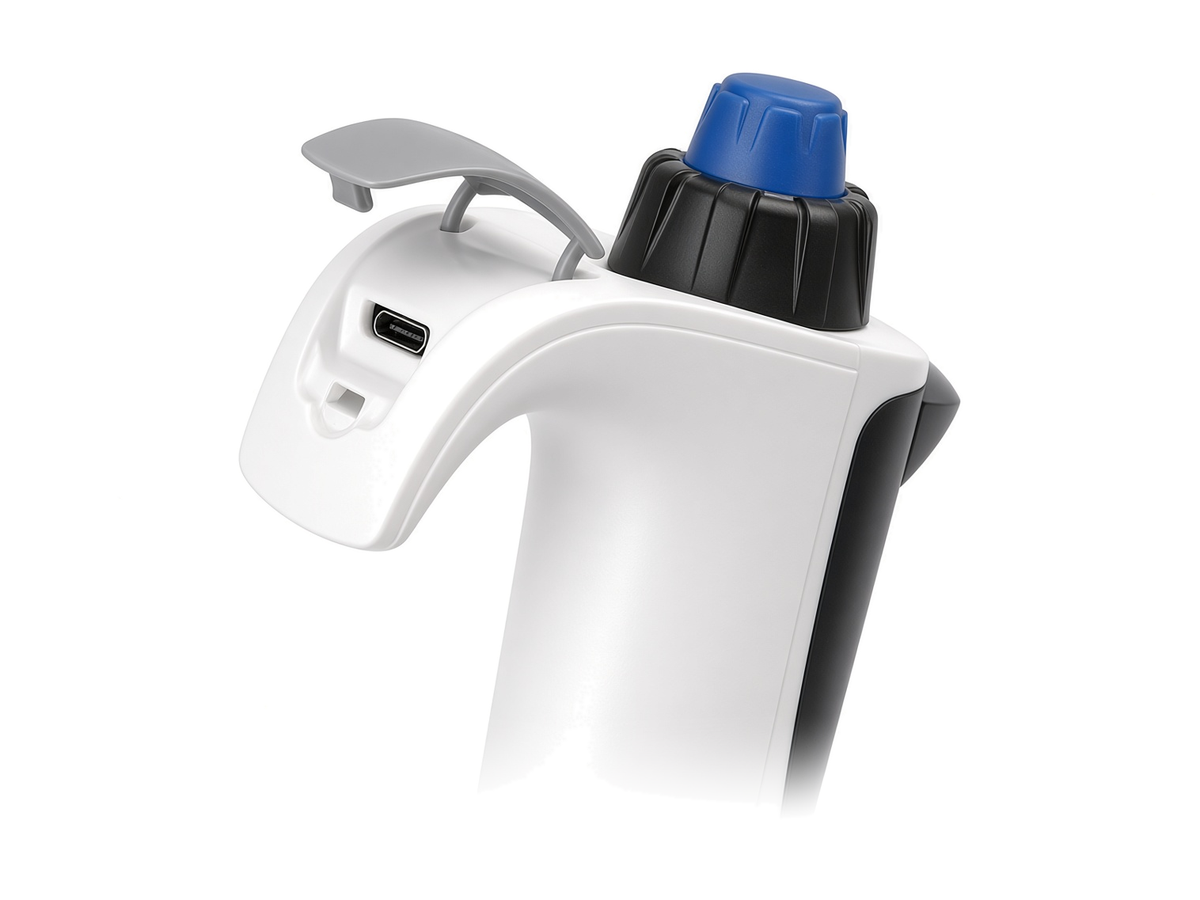

| USB Charging (dPette+ 8-channel) |  | Supports dual charging mode: USB Charging. |

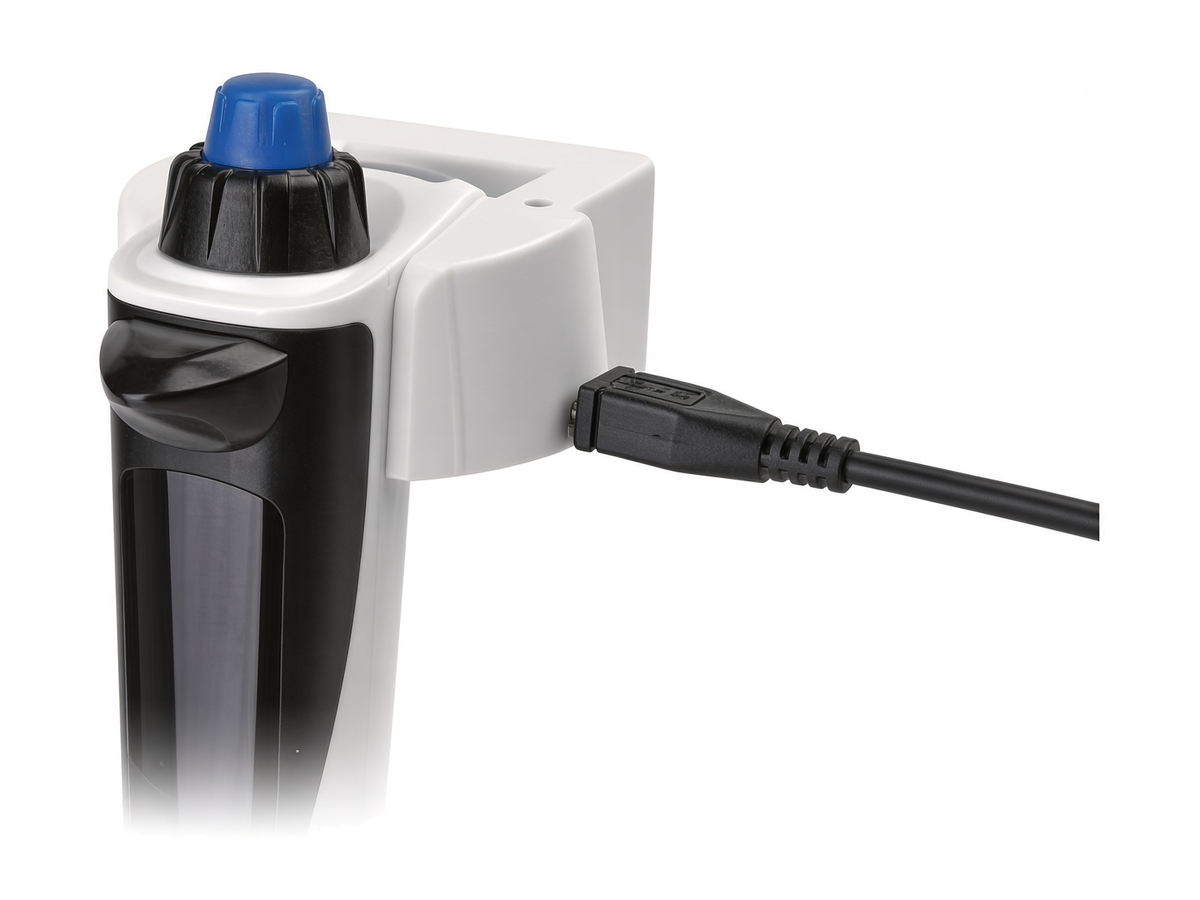

| Contact Charging (dPette+ 8-channel) |  | Supports dual charging mode: Contact Charging. |

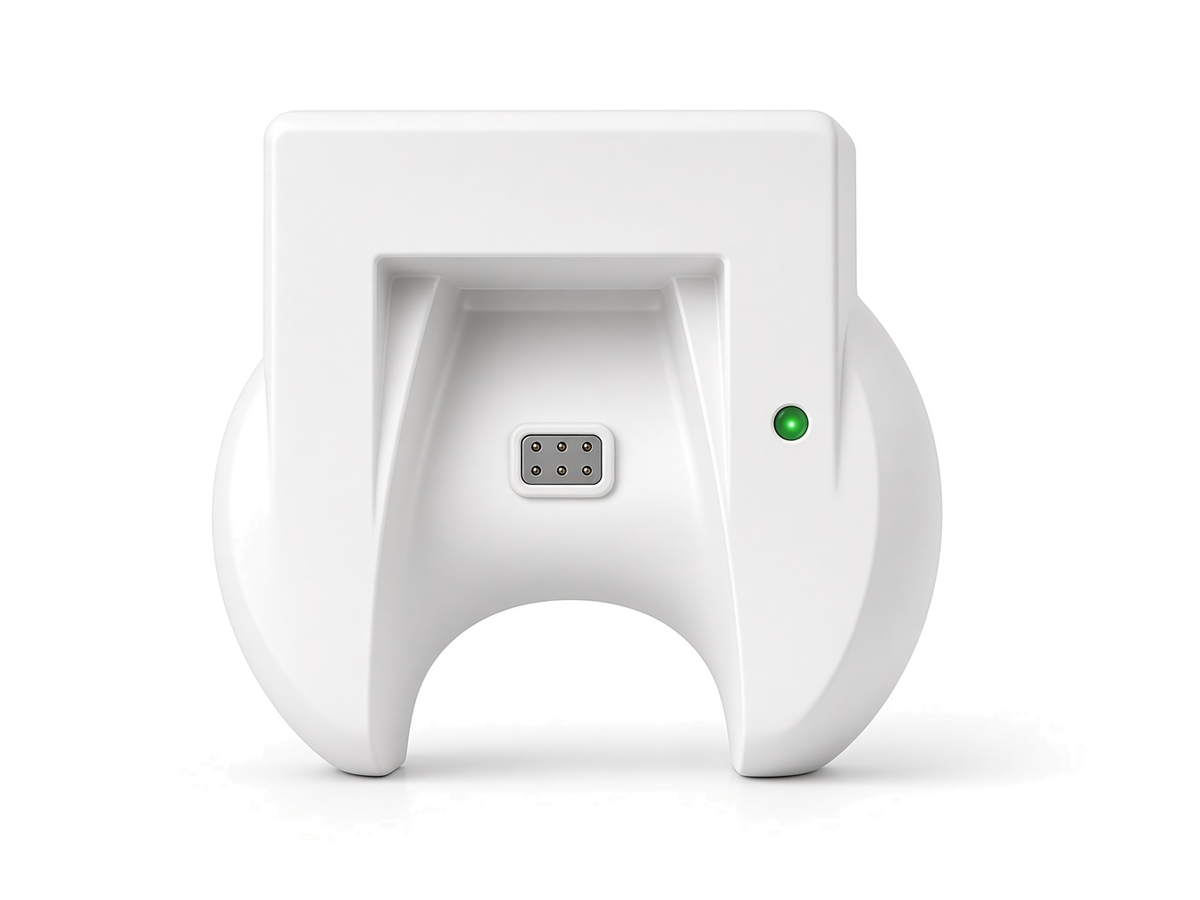

| Complimentary Pipette Holder (dPette+ 8-channel) |  | Complimentary Pipette Holder. |
Charging modes and pipette holder as shown for the dPette+ 8-channel.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ dPette+ or dPette (model, configuration and volume range as selected) | 1 |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What is the difference between the dPette+ and the dPette?
The dPette+ is the multi functional electronic pipette and the dPette is the simple electronic pipette. Single-channel: the dPette+ is for pipetting, mixing, stepper and dilution, the dPette for pipetting and mixing. The dPette+ 8-channel is described for pipetting, mixing and stepper. The dPette+ is listed as single-channel and 8-channel, the dPette as single-channel.
Which volume ranges are available?
Single-channel (dPette+ and dPette): 0.5–10, 5–50, 20–200, 30–300 and 100–1000 µL. dPette+ 8-channel: 0.5–10, 10–100, 20–200, 15–300 and 30–300 µL.
How is the dPette+ 8-channel charged?
The dPette+ 8-channel supports dual charging modes: use of a USB charger or the charging stand ensures uninterrupted use. A complimentary pipette holder is shown with the contact charging mode.
How is the dPette+ 8-channel operated?
Three easy steps: long press the Parameter Knob for 2 seconds to start; rotate the knob back and forth quickly to switch pipetting, continuous dispensing and other function settings; quickly turn the Parameter Knob to unlock it, turn it to adjust the parameter such as volume, press it to pipette, long press it to mix.
Can the pipette be calibrated?
Self-calibration is applicable (dPette+ and dPette single-channel). For the dPette+ 8-channel, connect it to the computer; free software is provided for calibration.
What are the error limits of the 0.5–10 µL single-channel range?
Increment 0.01 µL. At 10, 5 and 1 µL test volume the systematic error is ±0.10, ±0.10 and ±0.05 µL (±1.00, ±2.00 and ±5.00 %) and the random error ±0.05, ±0.10 and ±0.03 µL (±0.50, ±2.00 and ±3.00 %).
Which SKU belongs to which model and configuration?
Each model, channel configuration and volume range has its own SKU; see the order codes table and select the model in the order menu.
