ALab™ MX-F Vortex Mixer
Product Detail
ALab™ MX-F Vortex Mixer is a fixed speed vortex mixer for mixing liquid components in tubes and for the resuspension of cells, using an eccentric mechanism. It runs at a fixed 3000 rpm with an orbital mixing motion and a 4 mm orbital diameter, and offers two run types: Touch operation and Continuous.
Vortex mixers are ideal for mixing liquid components in tubes and for the resuspension of cells, using an eccentric mechanism. They are widely used in clinical labs performing virus diagnostic tests and in biological & chemical analysis applications. The MX-F is perfect for mixing high-viscosity materials, such as waxes and slurries, and for mixing battery slurries, paints, pharmaceuticals and more. A shaded pole motor drives the orbital motion, and the VT1.1 standard top, fitted by default, takes tubes under Ø30 mm and small vessels.
Why choose the MX-F
Specifications General — MX-F
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MX-F |
| SKU # | ALMXF000 |
| Product Type | Fixed speed vortex mixer |
| Voltage, Frequency | 100–120 V / 200–240 V, 50/60 Hz |
| Power | 60 W |
| Mixing motion | Orbital |
| Orbital diameter | 4 mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58 W |
| Motor rating output | 10 W |
| Speed range | 3000 rpm |
| Run type | Touch operation / Continuous |
| Dimension [W × H × D] | 127 × 130 × 160 mm |
| Weight | 2.0 kg |
| Permissible ambient temperature | 5–40 °C |
| Permissible relative humidity | 80% RH |
| Protection class | IP20 |
| Standard Top (Default) | VT1.1 standard top, Cat. No. 18900034 |
Model comparison MX-F vs. MX-E
The MX-F and the MX-E both run at a fixed 3000 rpm with an orbital mixing motion. The table lists the published specifications of both models.
| Parameter | MX-F | MX-E |
|---|---|---|
| Product Type | Fixed speed vortex mixer | Economic vortex mixer |
| Speed | 3000 rpm | 3000 rpm |
| Mixing motion | Orbital | Orbital |
| Orbital / revolving diameter | 4 mm | 4.8 mm |
| Motor | Shaded pole motor | 12 V DC brushless motor |
| Motor rating output | 10 W | 10 W |
| Power | 60 W | 12 W |
| Voltage, frequency | 100–120 V / 200–240 V, 50/60 Hz | 100–240 V, 50/60 Hz |
| Operation | Touch operation / Continuous | Touch operation |
| Dimensions | 127 × 130 × 160 mm (W × H × D) | 133 × 133 × 80 mm (external) |
| Weight | 2.0 kg | 0.6 kg |
| Ambient temperature | 5–40 °C | 5–40 °C |
| Relative humidity | 80% RH | ≤80% RH |
| Protection class | IP20 | IP21 |
| SKU # | ALMXF000 | ALMXE000 |
Accessories MX-F
| Model | Image | Cat. No. | Description |
|---|---|---|---|

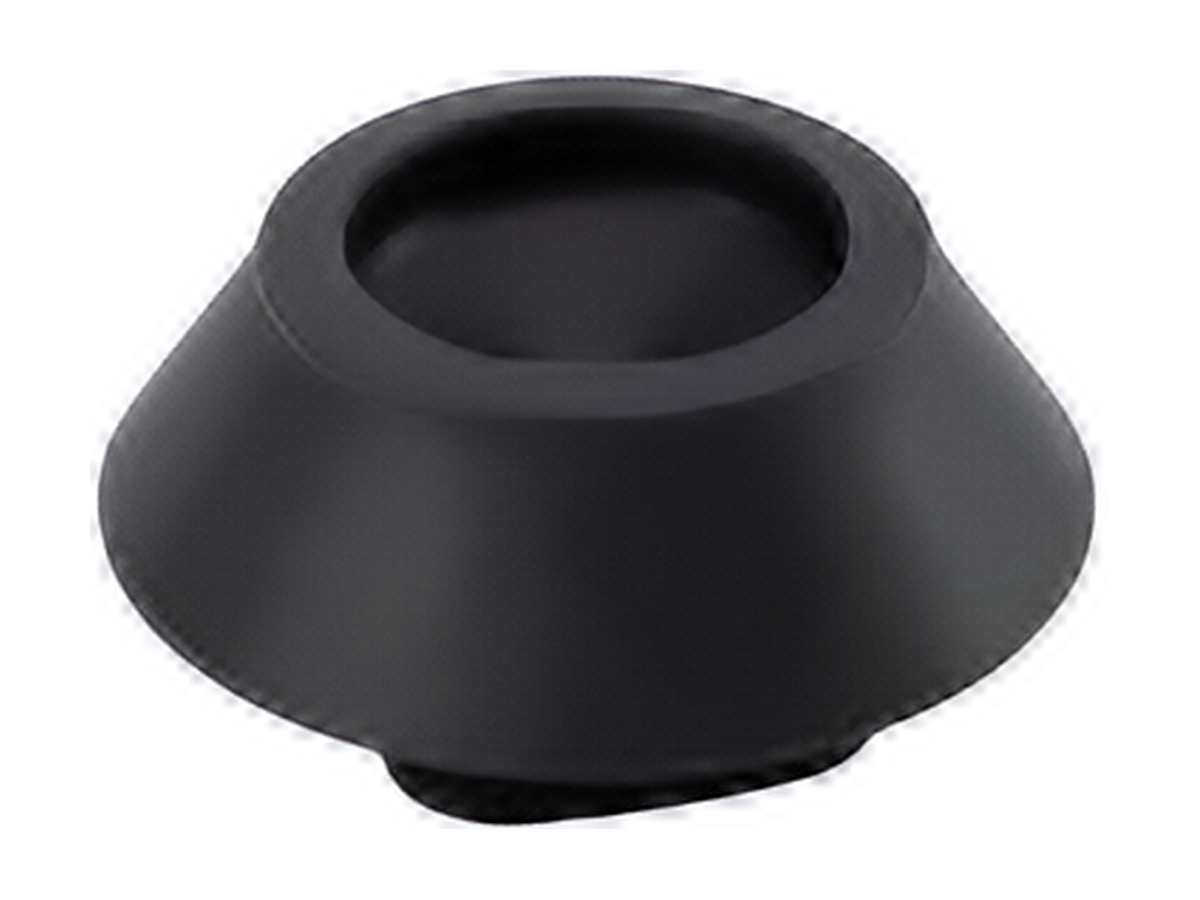

| VT1.1 |  | 18900034 | Standard top (default), for <Ø30 mm tubes and small vessels |
The VT1.1 standard top is the default top of the MX-F.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MX-F Vortex Mixer main unit | 1 |
| VT1.1 standard top (default), Cat. No. 18900034 | 1 |
Accessories are listed above by model and catalog number. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed does the MX-F run at?
The MX-F is a fixed speed vortex mixer with a published speed range of 3000 rpm. The mixing motion is orbital, with a 4 mm orbital diameter.
What run types does it offer?
Two: Touch operation and Continuous.
Which tubes and vessels fit the standard top?
The VT1.1 standard top (default), Cat. No. 18900034, is for tubes under Ø30 mm and small vessels.
What materials can it mix?
Vortex mixers are ideal for mixing liquid components in tubes and for the resuspension of cells. The MX-F is perfect for mixing high-viscosity materials, such as waxes and slurries, and for mixing battery slurries, paints, pharmaceuticals and more.
What is included as standard?
The MX-F main unit with the VT1.1 standard top (default), Cat. No. 18900034. The final scope of supply is confirmed on the quotation.
How does the MX-F differ from the MX-E?
Both run at a fixed 3000 rpm with an orbital mixing motion and a 10 W motor rating output. The MX-F has a 4 mm orbital diameter, a shaded pole motor, 60 W power, Touch operation and Continuous run types, IP20 protection, and weighs 2.0 kg. The MX-E has a 4.8 mm revolving diameter, a 12 V DC brushless motor, 12 W power, touch operation, IP21 protection, and weighs 0.6 kg.
What power supply and environment does it need?
Voltage, frequency: 100–120 V / 200–240 V, 50/60 Hz; power: 60 W. Permissible ambient temperature: 5–40 °C; permissible relative humidity: 80% RH. Protection class: IP20.
