ALab™ MX-S Vortex Mixer
Product Detail
ALab™ MX-S Vortex Mixer is a variable speed vortex mixer with a variable speed of 0–3000 rpm for gentle shaking to rapid mixing of samples. It has an orbital mixing motion with a 4 mm orbital diameter and offers Touch or Continuous operation mode.
Electronic speed control maintains constant speed even during changes in load, and the steel base with specially designed vacuum suction feet provides stability and dampens vibration. The MX-S has a robust aluminum-cast construction and a shaded pole motor. It includes a standard top head, the VT1.1 standard top, for mixing a single test tube or other small vessel up to 30 mm in diameter; tube adapters, a platform pad, a universal top plate, a microplate clamp, an ampule/tube attachment and an Erlenmeyer flask attachment are listed below by catalog number.
Why choose the MX-S
Specifications General — MX-S
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MX-S |
| SKU # | ALMXS000 |
| Product Type | Variable speed vortex mixer |
| Voltage, Frequency | 100–120 V / 200–240 V, 50/60 Hz |
| Power | 60 W |
| Mixing motion | Orbital |
| Orbital diameter | 4 mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58 W |
| Motor rating output | 10 W |
| Speed range | 0–3000 rpm |
| Speed display | Scale |
| Run type | Touch operation / Continuous |
| Dimension [W × H × D] | 127 × 130 × 160 mm |
| Weight | 2.0 kg |
| Permissible ambient temperature | 5–40 °C |
| Permissible relative humidity | 80% RH |
| Protection class | IP20 |
| Standard Top (Default) | VT1.1 standard top (Cat. No. 18900034) |
Model comparison MX-S vs. MX-F
The MX-S and the MX-F have the same published electrical, motor, dimension and environmental data and the same VT1.1 standard top; the MX-S is variable speed, the MX-F runs at a fixed speed. The table lists the published specifications of both models.
| Parameter | MX-S | MX-F |
|---|---|---|
| Product Type | Variable speed vortex mixer | Fixed speed vortex mixer |
| Voltage, Frequency | 100–120 V / 200–240 V, 50/60 Hz | 100–120 V / 200–240 V, 50/60 Hz |
| Power | 60 W | 60 W |
| Mixing motion | Orbital | Orbital |
| Orbital diameter | 4 mm | 4 mm |
| Motor type | Shaded pole motor | Shaded pole motor |
| Motor rating input | 58 W | 58 W |
| Motor rating output | 10 W | 10 W |
| Speed range | 0–3000 rpm | 3000 rpm |
| Run type | Touch operation / Continuous | Touch operation / Continuous |
| Dimension [W × H × D] | 127 × 130 × 160 mm | 127 × 130 × 160 mm |
| Weight | 2.0 kg | 2.0 kg |
| Permissible ambient temperature | 5–40 °C | 5–40 °C |
| Permissible relative humidity | 80% RH | 80% RH |
| Protection class | IP20 | IP20 |
| Standard Top (Default) | VT1.1, Cat. No. 18900034 | VT1.1, Cat. No. 18900034 |
| SKU # | ALMXS000 | ALMXF000 |
Accessories MX-S
| Model | Image | Cat. No. | Description |
|---|---|---|---|

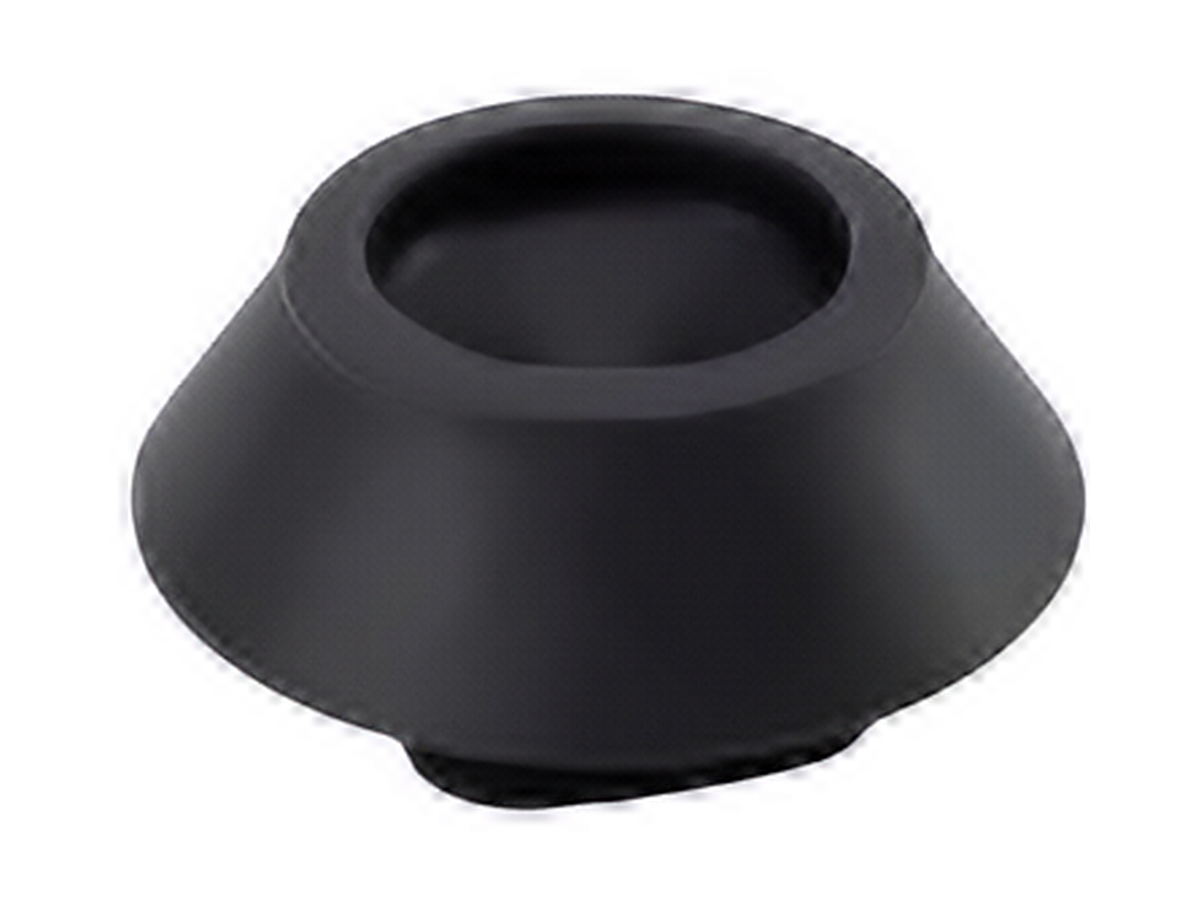

| VT1.1 |  | 18900034 | Standard top (default), for <Ø30 mm tubes and small vessels |

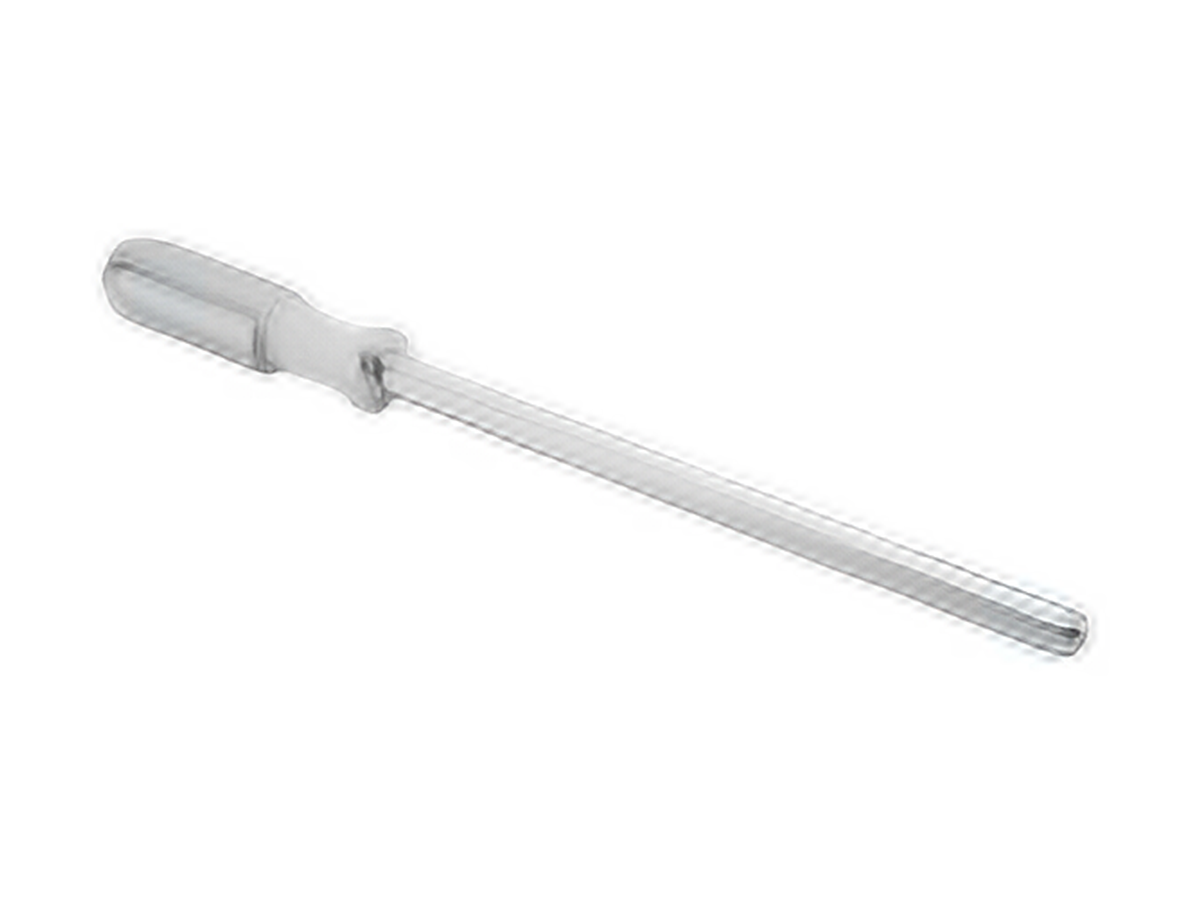

| VT1.2 |  | 18900044 | Tube holding rod, used with tube adapters |

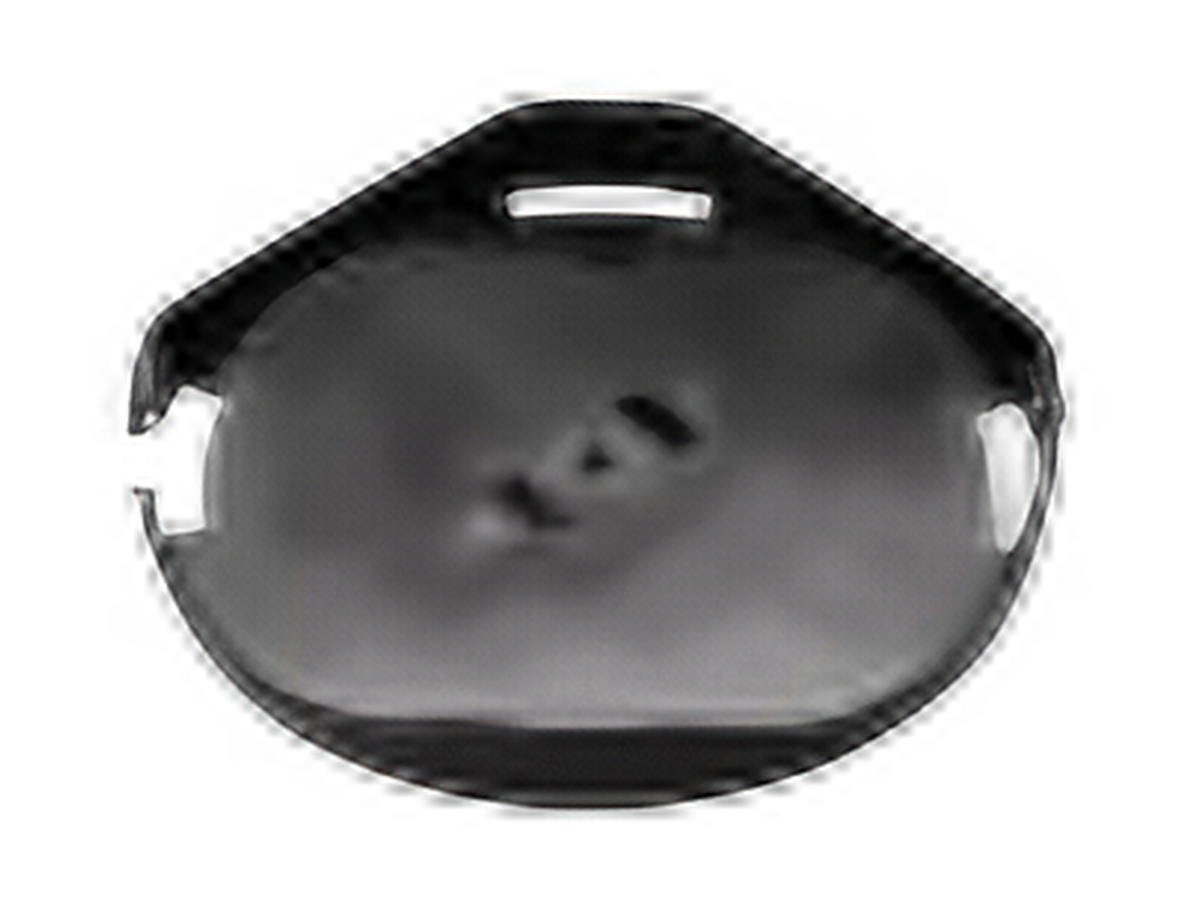

| VT1.3 |   | 18900505 | Universal top plate, Ø100 mm; includes 4 vacuum chuck |

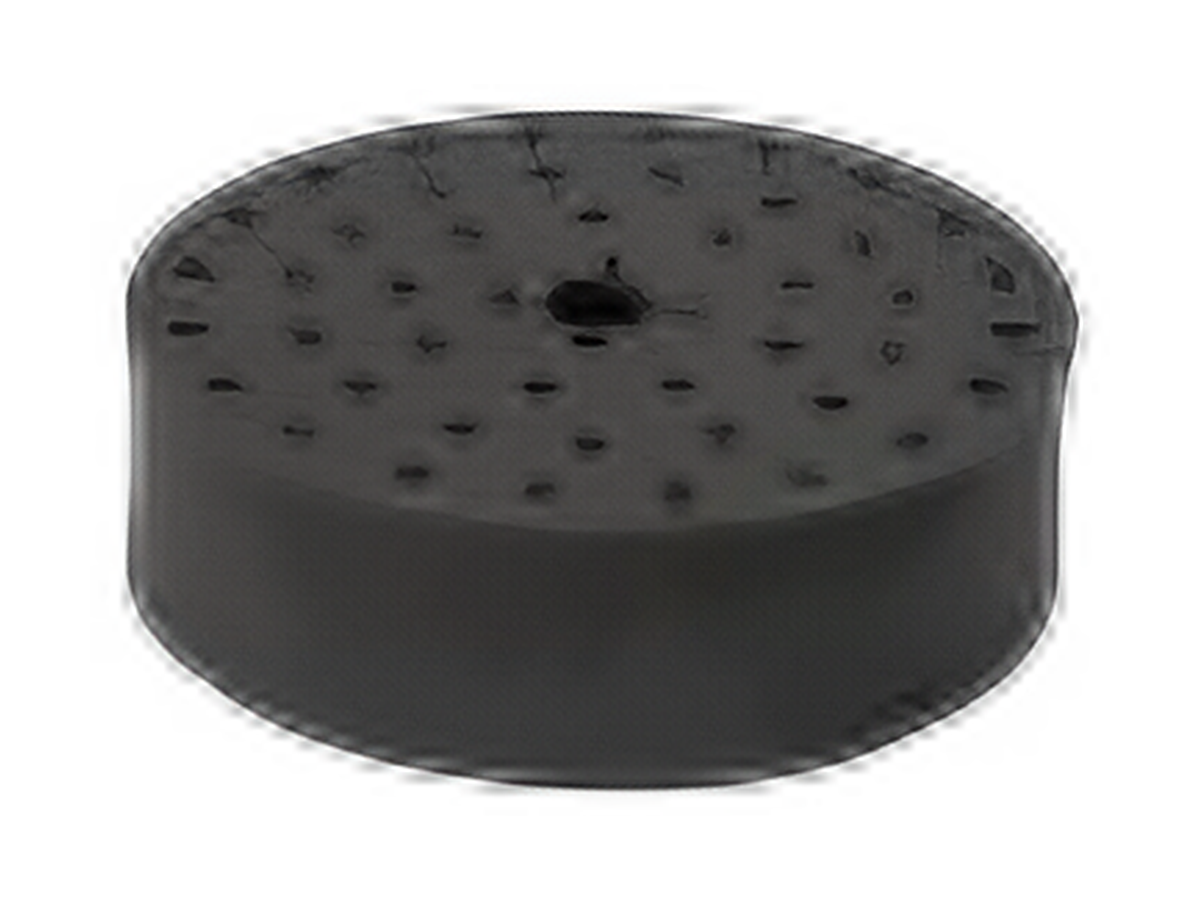

| VT1.3.1 |  | 18900020 | Tube adapter, for 48 test tubes, Ø6 mm (1 mL) |

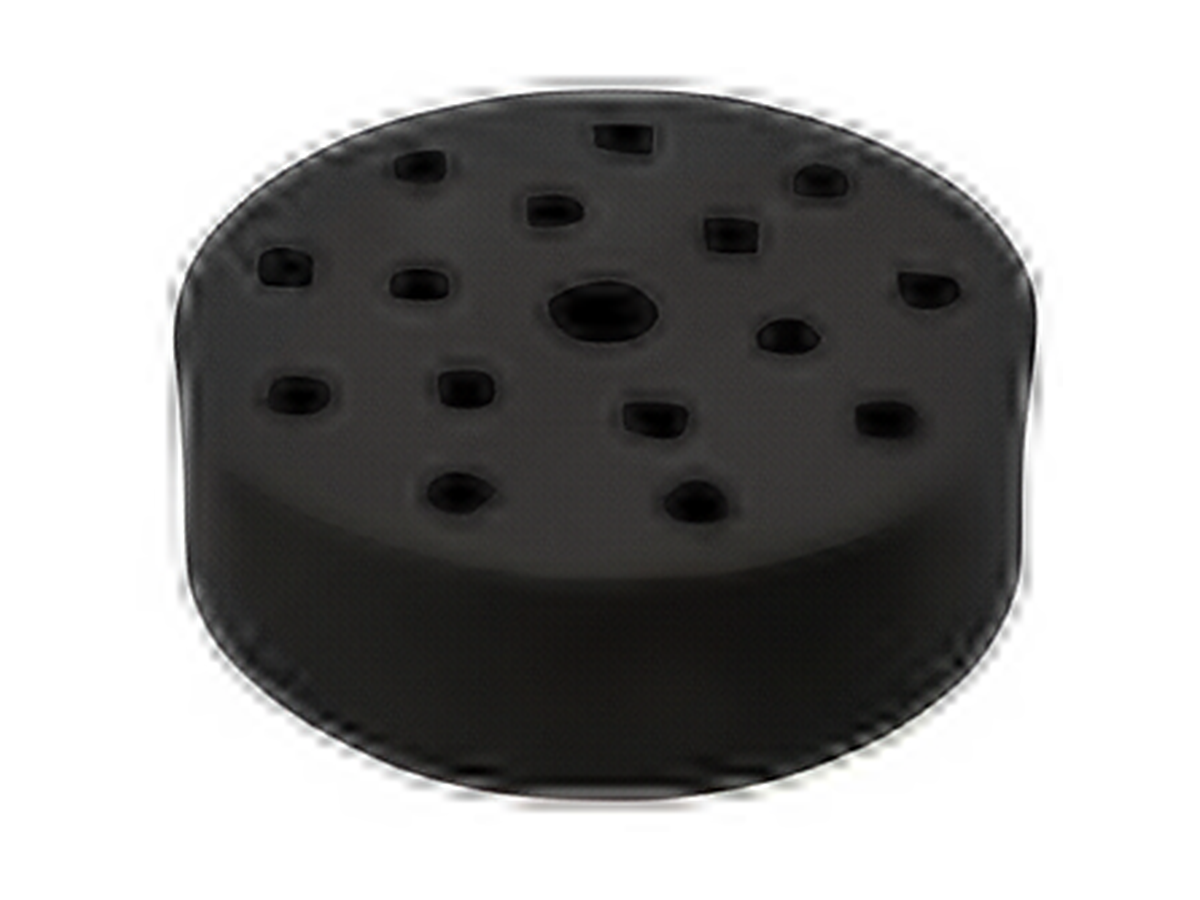

| VT1.3.2 |  | 18900021 | Tube adapter, for 15 test tubes, Ø10 mm (1.5–2 mL) |

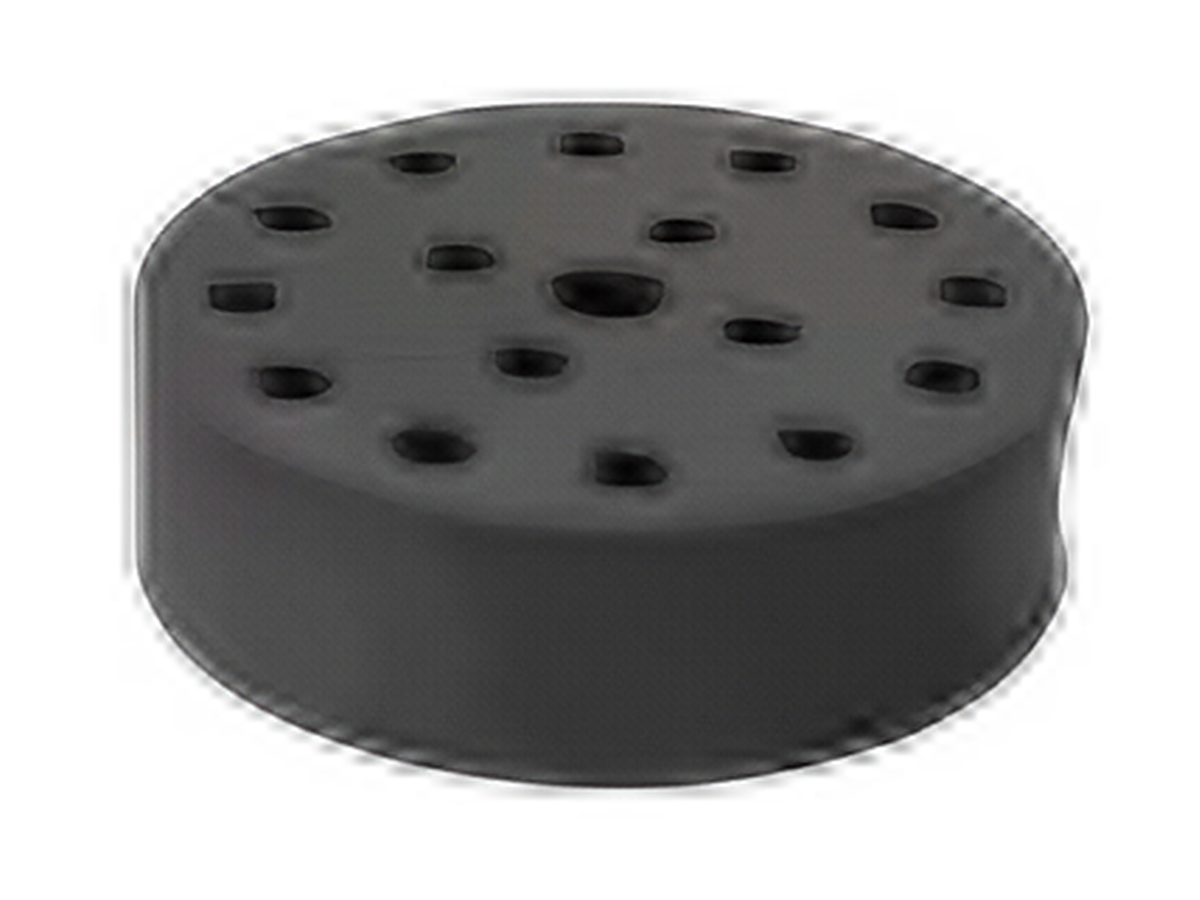

| VT1.3.3 |  | 18900022 | Tube adapter, for 16 test tubes, Ø12 mm (5 mL) |

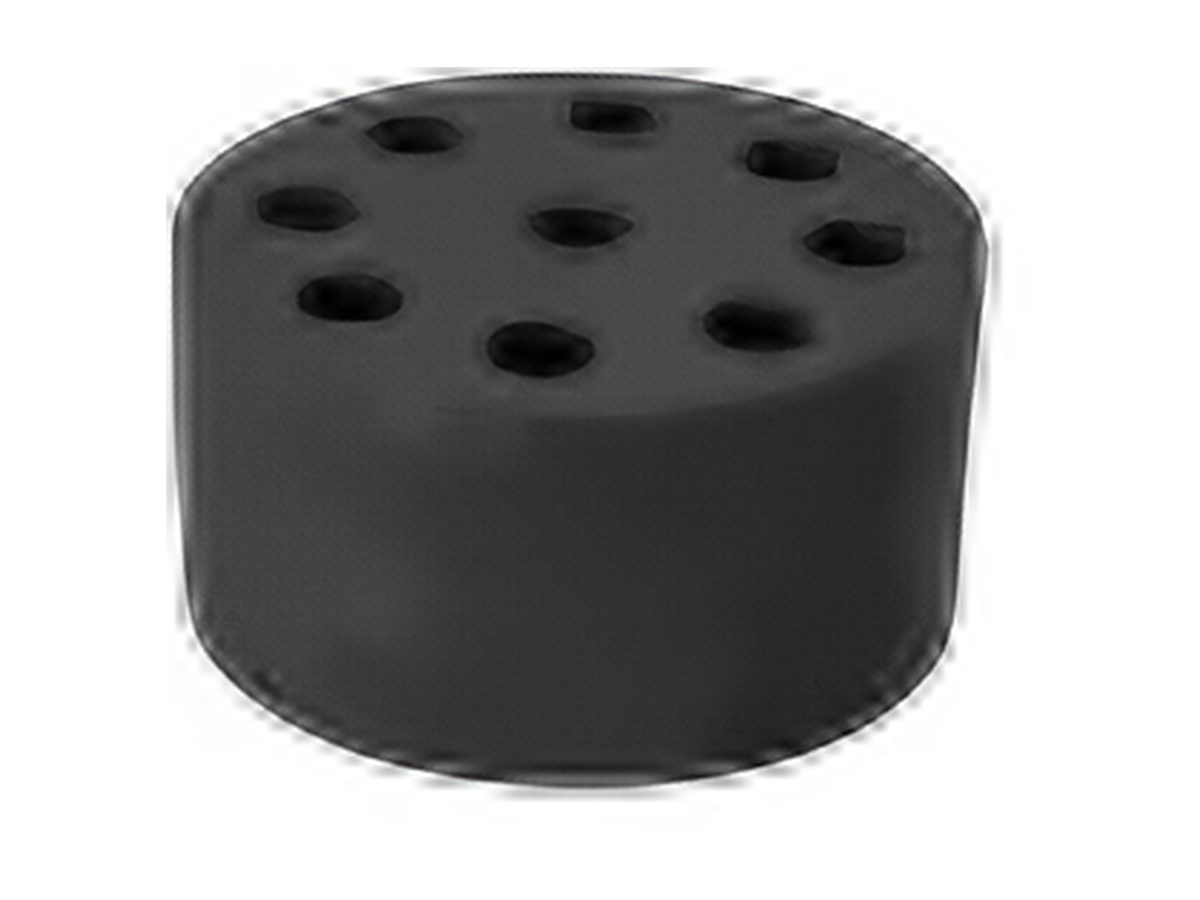

| VT1.3.4 |  | 18900023 | Tube adapter, for 8 test tubes, Ø16 mm (10 mL) |

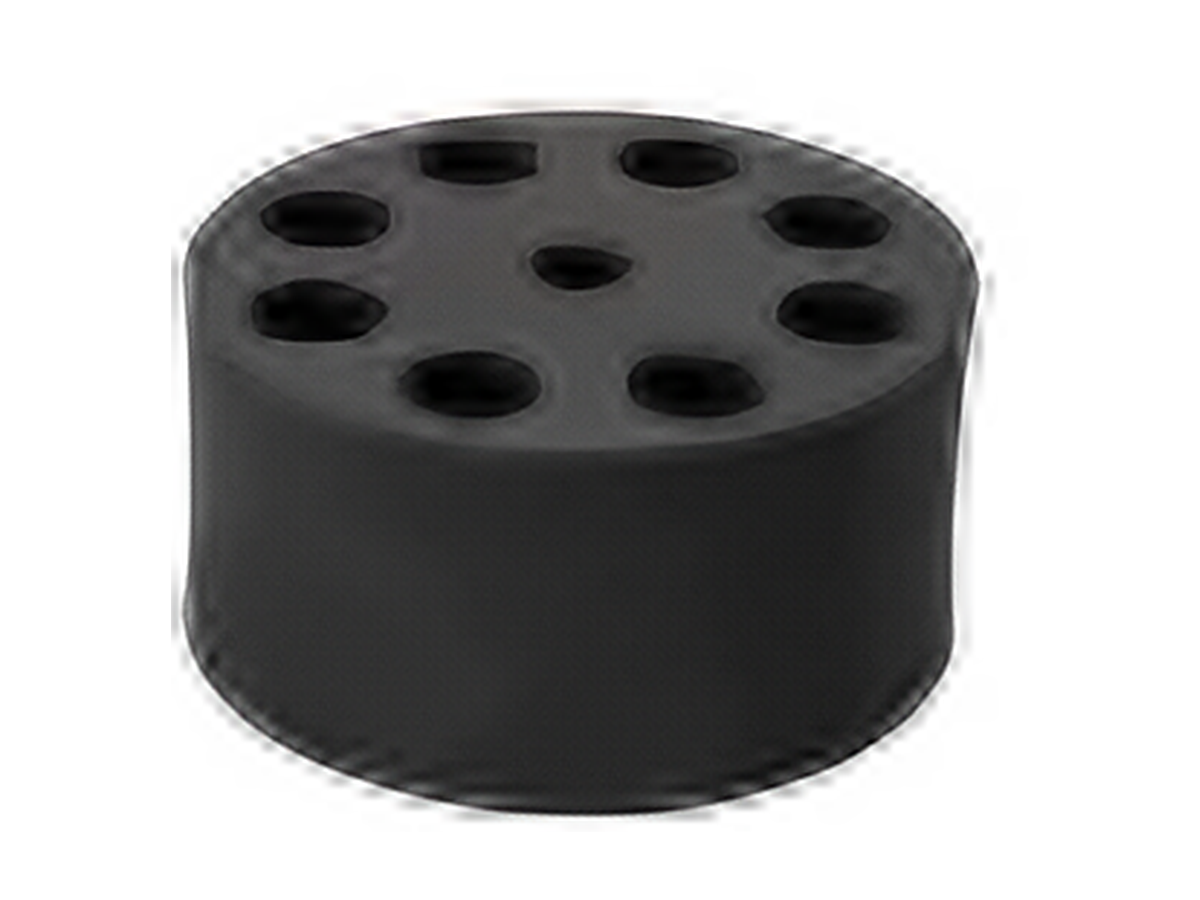

| VT1.3.5 |  | 18900024 | Tube adapter, for 8 test tubes, Ø20 mm (10–15 mL) |

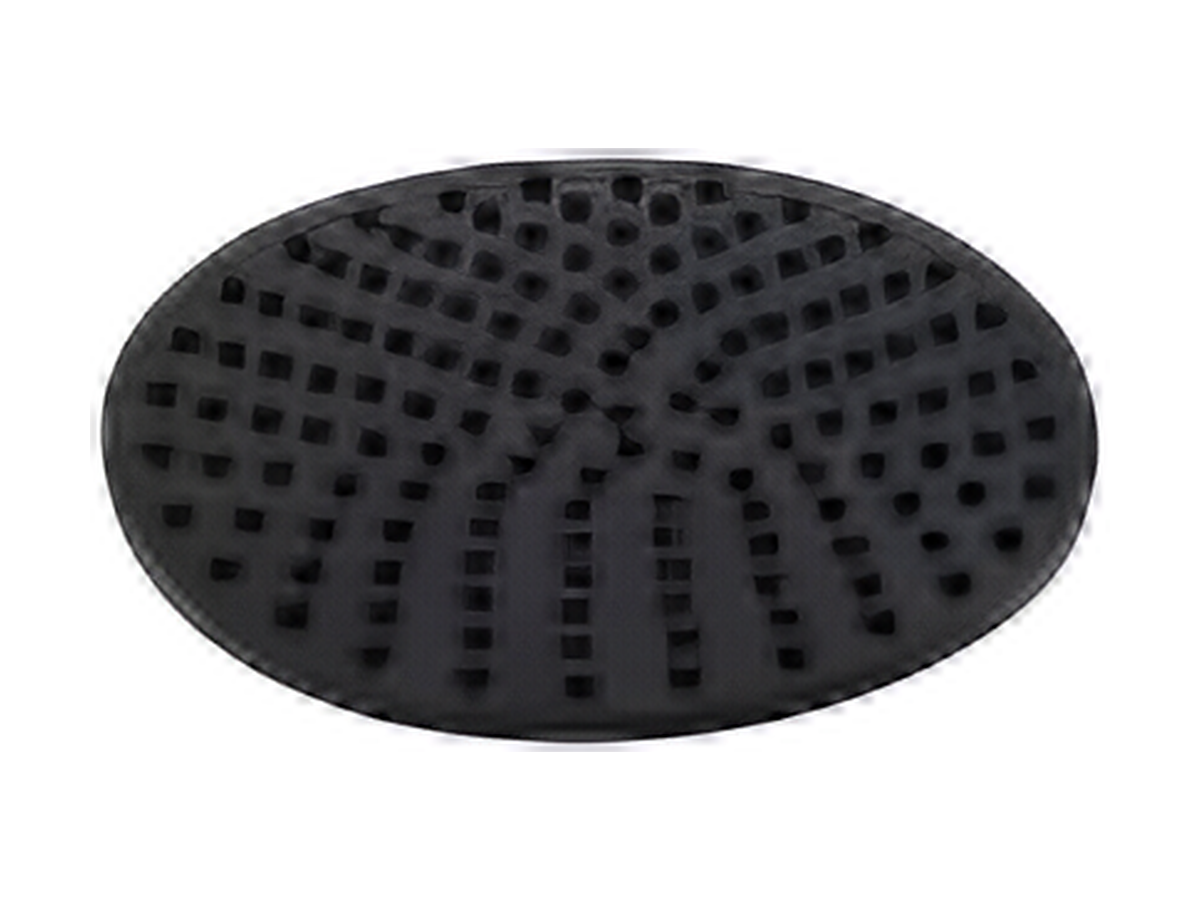

| VT1.3.6 |  | 18900043 | Platform pad, Ø99 mm, multiple small tubes and vessels |

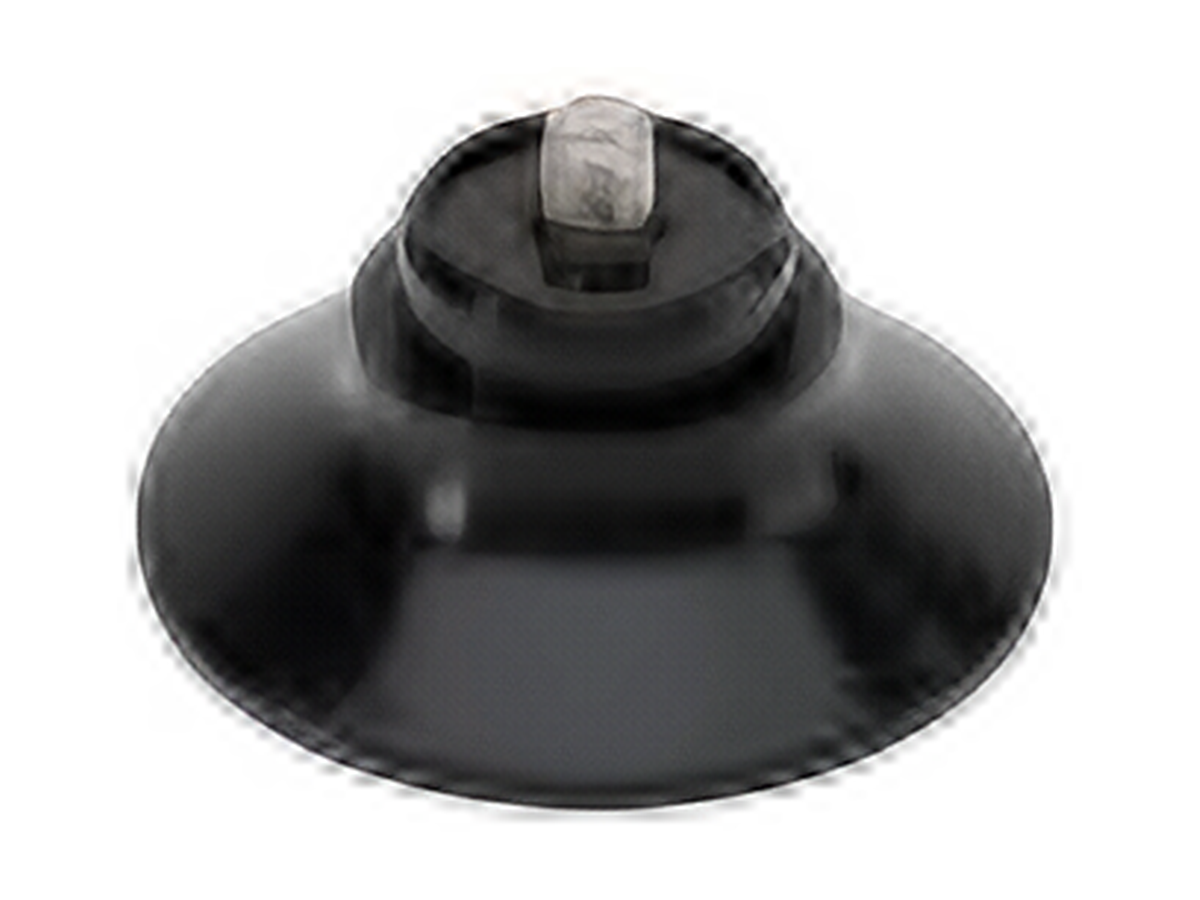

| VT1.3.7 |  | 18900158 | Vacuum chuck, made of rubber |

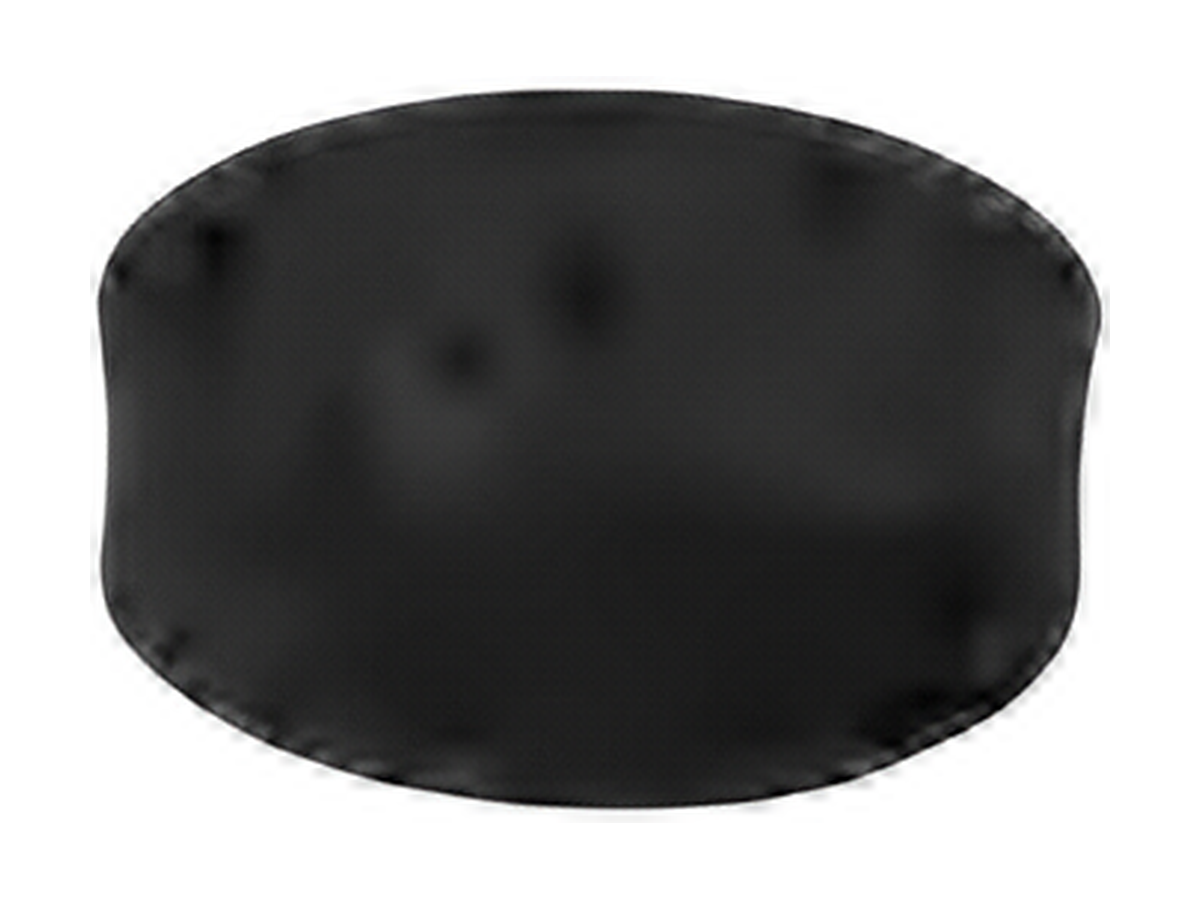

| VT1.3.8 |  | 18900395 | Tube adapter, for 24 holes test tubes, Ø10 mm (1.5–2 mL) |

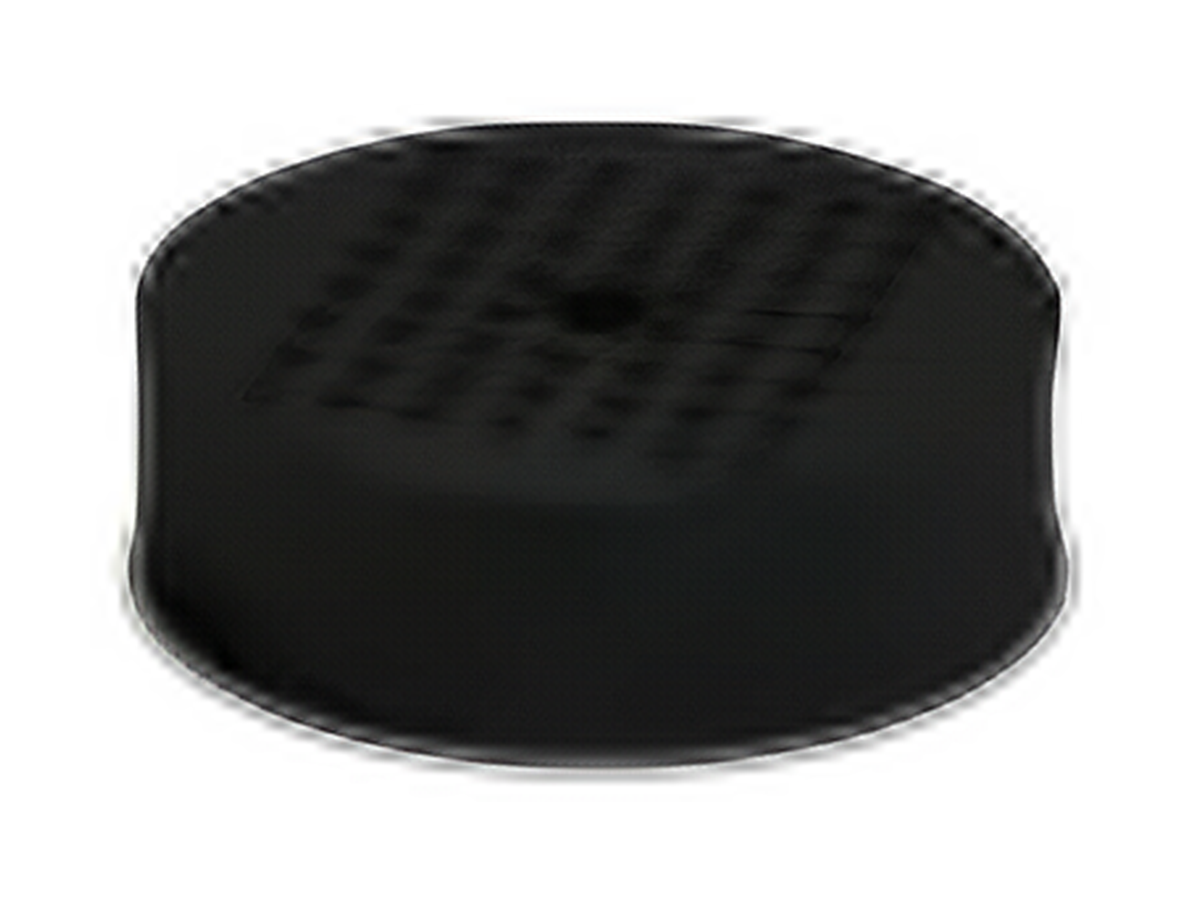

| VT1.3.9 |  | 18204185 | PCR tube adapter, for 56 test PCR tubes, strips of 8, Ø5 mm (0.1–0.5 mL) |

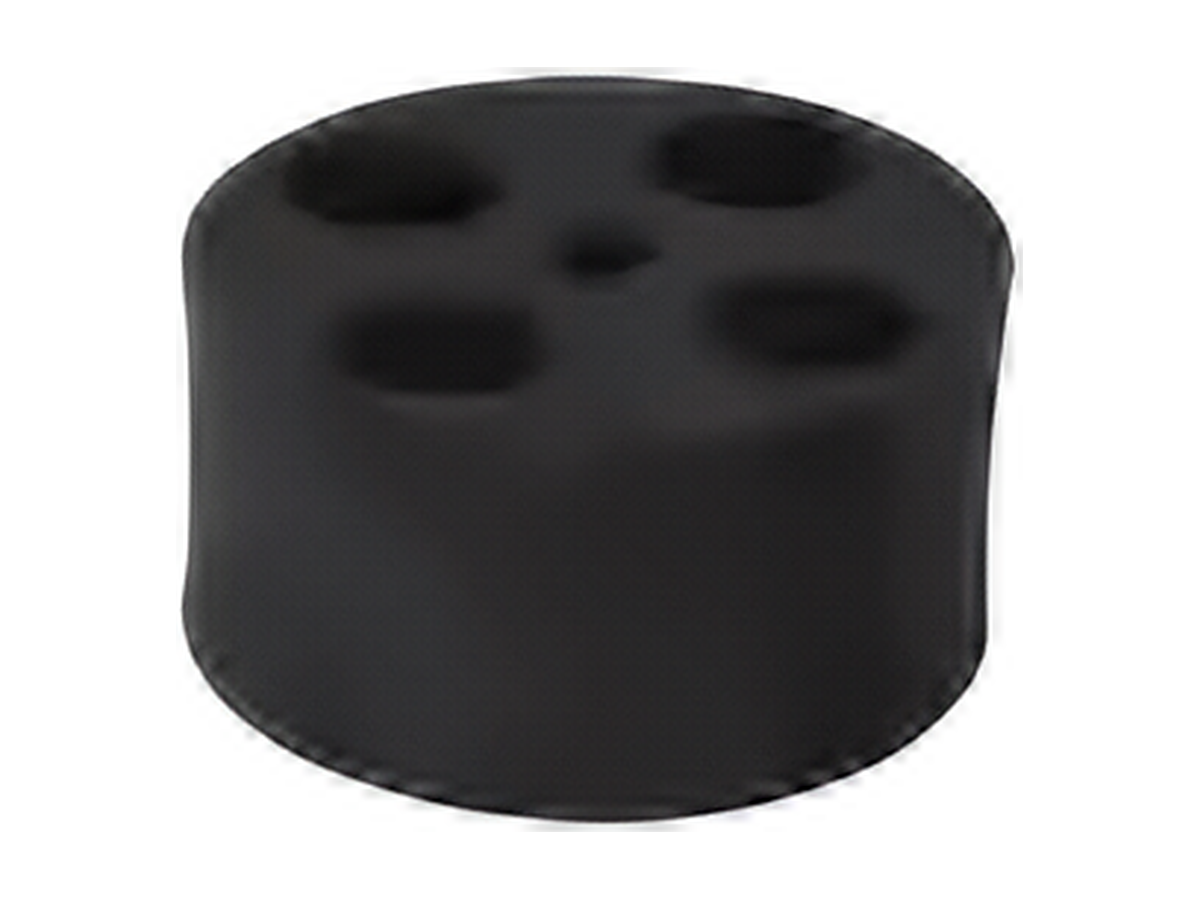

| VT1.3.10 |  | 18900855 | Tube adapter, for 4 holes test tubes, Ø28 mm (50 mL) |

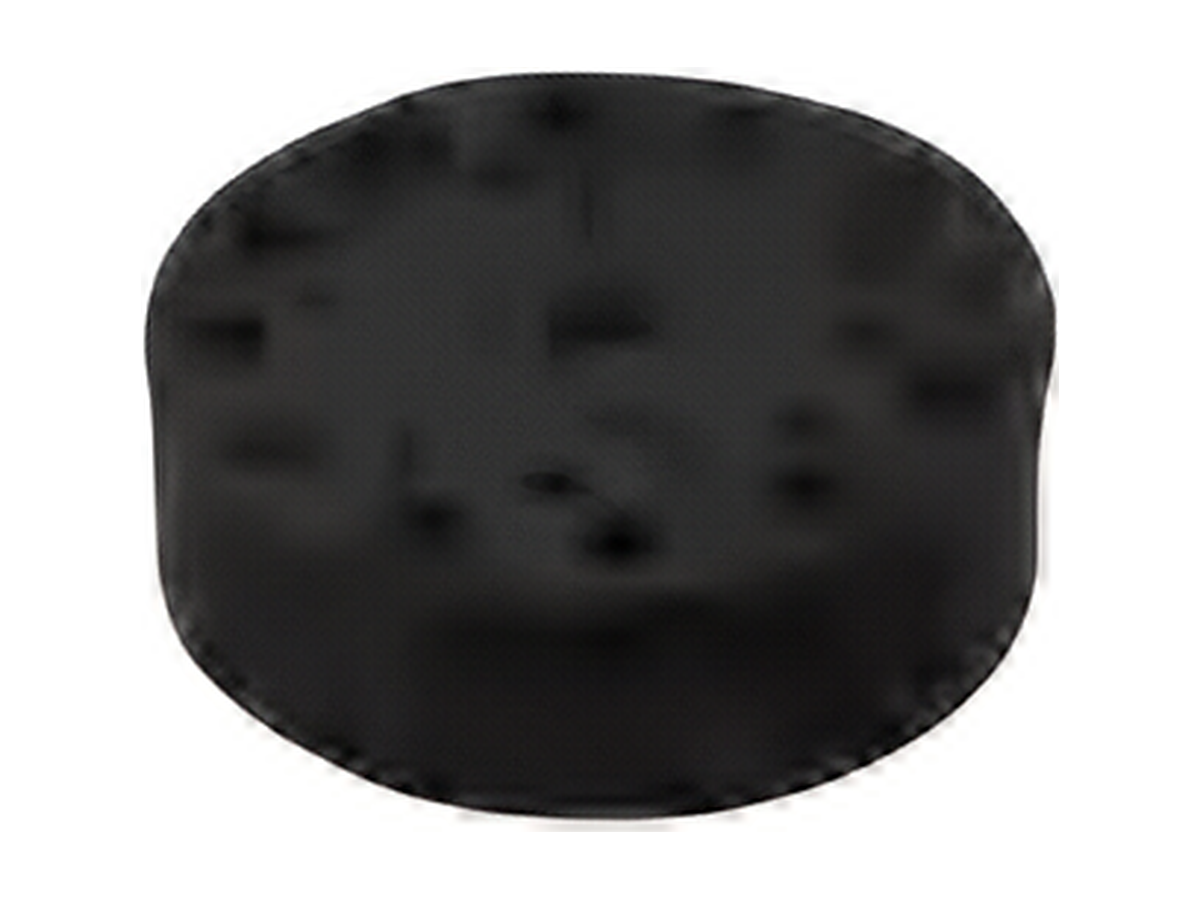

| VT1.3.11 |  | 18900862 | Tube adapter, 12 × Ø9.8 mm + 12 × Ø6.6 mm + 12 × Ø5 mm (1.5/2.0/0.5/0.2 mL) |

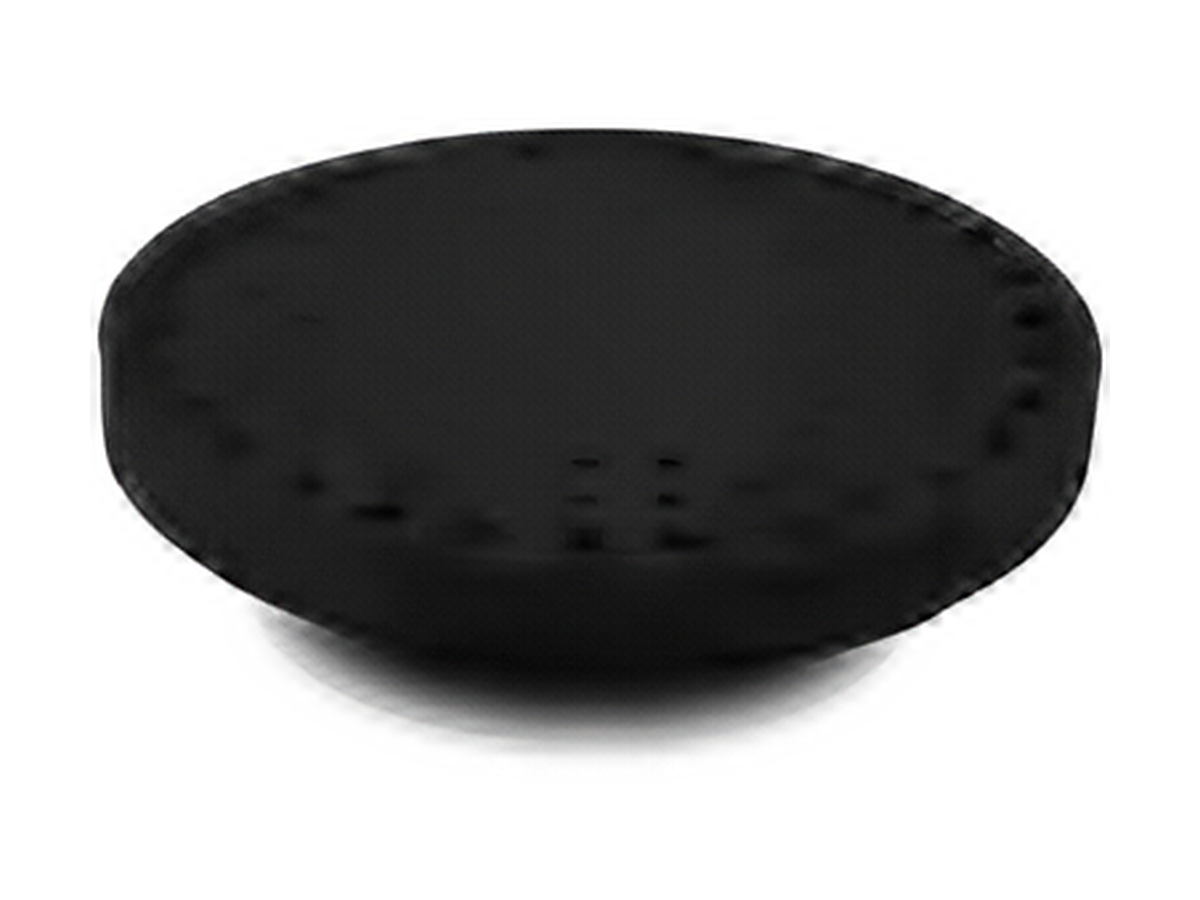

| VT1.3.12 |  | 18900875 | Large platform multi-specimen test tube adapter, 44 holes × Ø5 mm + 55 holes × Ø6.6 mm + 30 holes × Ø9.8 mm (1.5/2.0/0.5/0.2 mL) |

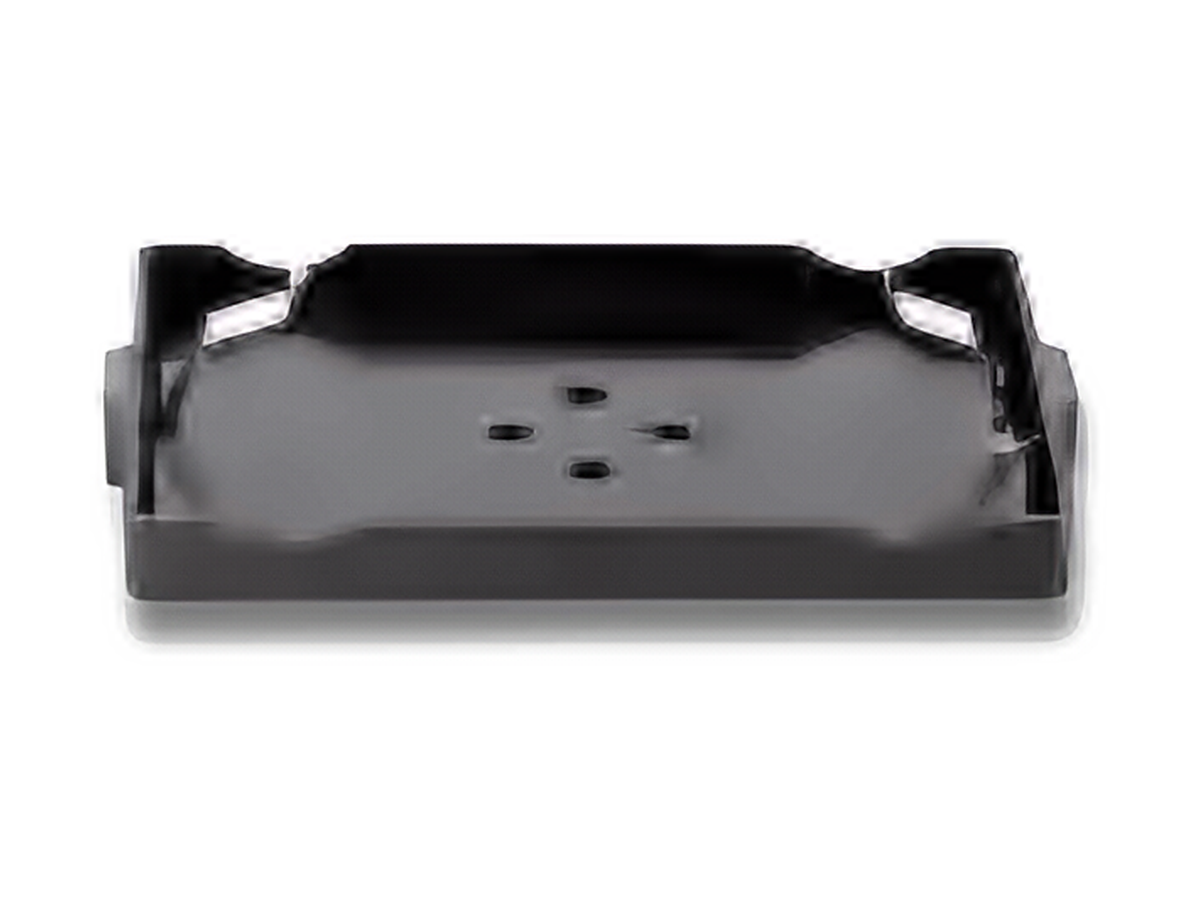

| PS1.0 |  | 18204342 | Microplate clamp, includes rectangle PCR tube adapter |

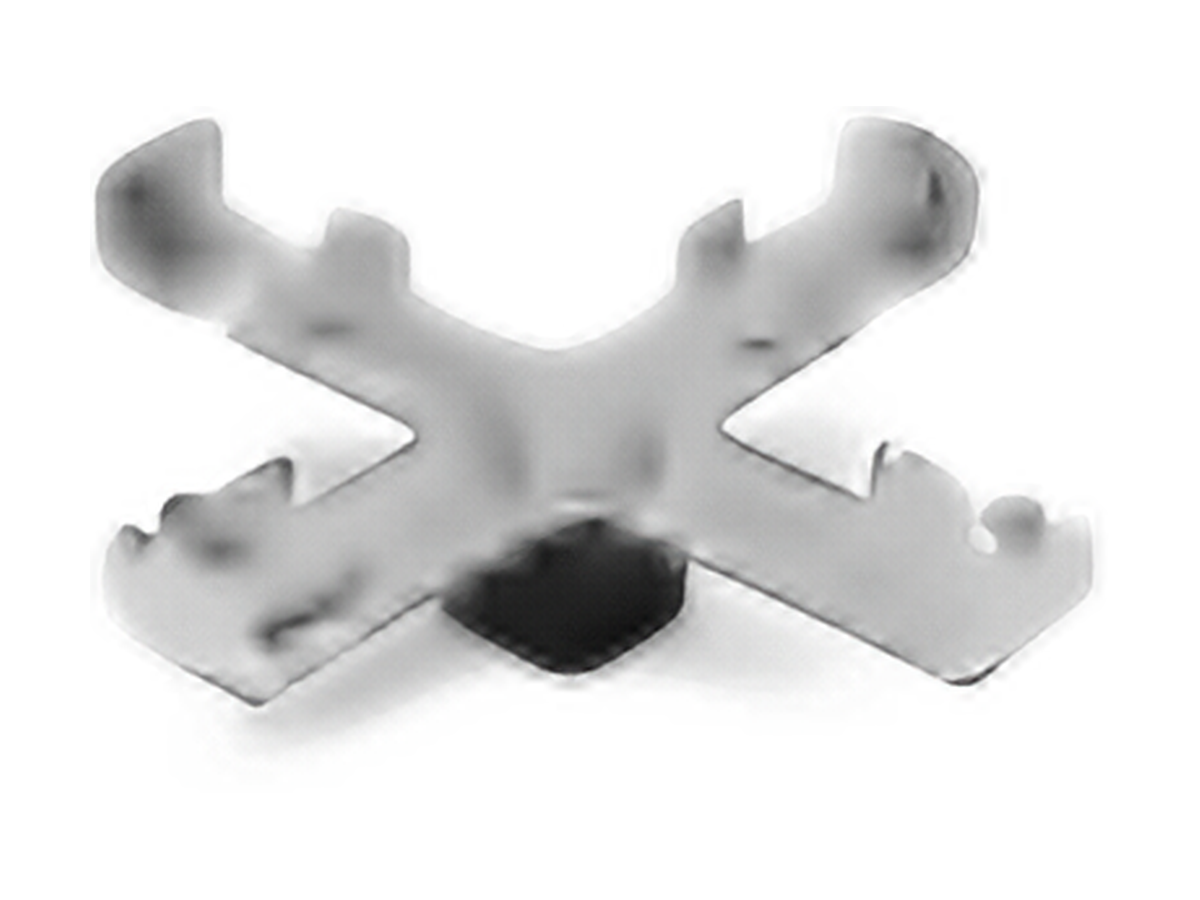

| VT1.4 |  | 18204566 | Ampule/tube attachment, 4 pc ampule/tube (0.2–15 mL) |

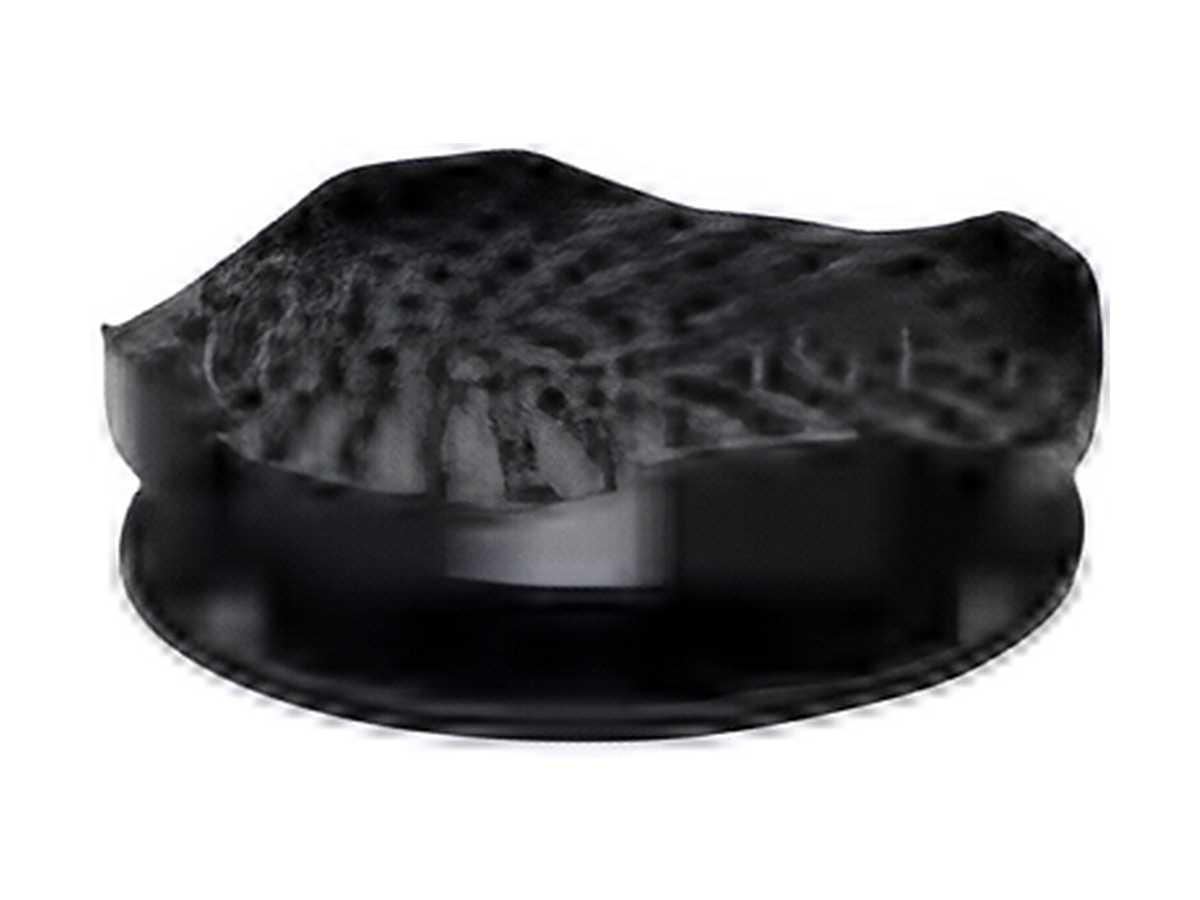

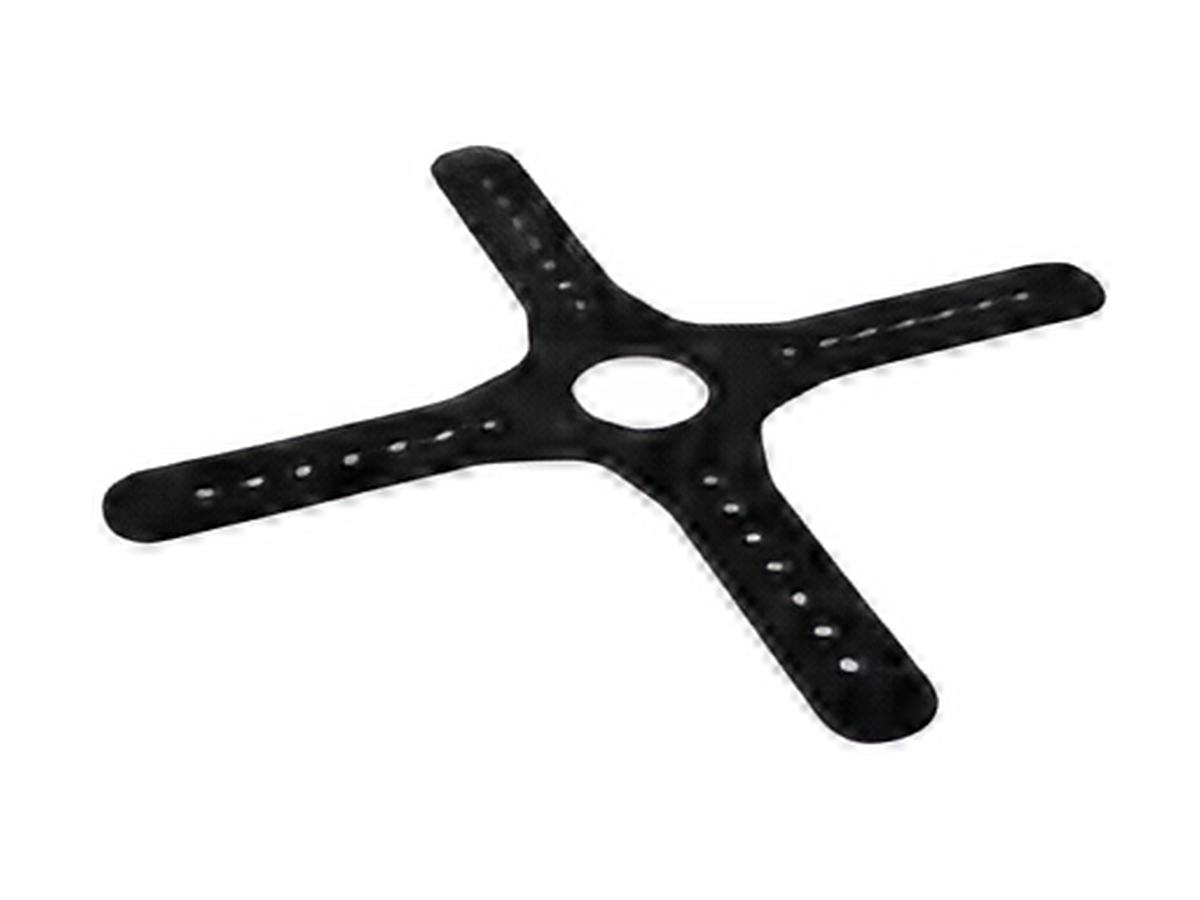

| VT1.5 |   | 18204561 | Erlenmeyer flask attachment, 100–250 mL; operating speed: 0~1500 rpm |
The VT1.1 standard top is the default top of the MX-S. When replacing the tray, first remove the standard head that comes with it for replacement.
Application of accessories Adjustable speed model
| Accessories | Touch mode (High speed area) | Continuous mode (Low speed area) |
|---|---|---|
| VT1.1 | Y | Y |
| VT1.2 + VT1.3.1 | Y | |
| VT1.2 + VT1.3.2 | Y | |
| VT1.2 + VT1.3.3 | Y | |
| VT1.2 + VT1.3.4 | Y | |
| VT1.2 + VT1.3.5 | Y | |
| VT1.3 + VT1.3.6 | Y | |
| VT1.3 + VT1.3.1 | Y | |
| VT1.3 + VT1.3.2 | Y | |
| VT1.3 + VT1.3.3 | Y | |
| VT1.3 + VT1.3.4 | Y | |
| VT1.3 + VT1.3.5 | Y |
Y = application marked for the mode, as published for the adjustable speed model.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MX-S Vortex Mixer main unit | 1 |
| VT1.1 standard top (default), Cat. No. 18900034 | 1 |
Other accessories are listed above by model and catalog number. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What is the speed range of the MX-S?
The MX-S has a variable speed of 0 to 3000 rpm for gentle shaking to rapid mixing of samples. The speed display is a scale, and electronic speed control maintains constant speed even during changes in load.
What operation modes does it have?
Touch or continuous operation mode (run type: Touch operation / Continuous). The application table above shows which accessory combinations are marked for Touch mode (high speed area) and for Continuous mode (low speed area).
Can every attachment be used at 3000 rpm?
Do not assume so. The VT1.5 Erlenmeyer flask attachment has a stated operating speed of 0~1500 rpm, and the application table marks each accessory combination for Touch mode (high speed area) and/or Continuous mode (low speed area). Follow both the instrument and the fitted accessory limits.
Which tubes and vessels can I mix?
The VT1.1 standard top takes tubes under Ø30 mm and small vessels. With the accessories listed above: tube adapters for 48 × Ø6 mm (1 mL), 15 × Ø10 mm (1.5–2 mL), 16 × Ø12 mm (5 mL), 8 × Ø16 mm (10 mL), 8 × Ø20 mm (10–15 mL), 24 × Ø10 mm (1.5–2 mL) and 4 × Ø28 mm (50 mL) test tubes, 56 PCR tubes (strips of 8), multi-size adapters, the VT1.4 attachment for 4 ampules/tubes (0.2–15 mL), and the VT1.5 attachment for 100–250 mL Erlenmeyer flasks. For multiple tubes, use the mounting combinations shown in the accessory application table.
Can the MX-S mix microplates?
Yes, with the PS1.0 microplate clamp (Cat. No. 18204342), which includes a rectangle PCR tube adapter.
What is included as standard?
The MX-S main unit with the VT1.1 standard top (default), Cat. No. 18900034. Other accessories are listed by catalog number, and the final scope of supply is confirmed on the quotation.
How does the MX-S differ from the MX-F?
Both have the same published voltage and frequency, 60 W power, orbital mixing motion with a 4 mm orbital diameter, shaded pole motor (motor rating input 58 W, output 10 W), Touch operation / Continuous run type, 127 × 130 × 160 mm (W × H × D) dimensions, 2.0 kg weight, IP20 protection class and VT1.1 standard top. The MX-S is variable speed (0–3000 rpm, scale speed display); the MX-F is a fixed speed vortex mixer (3000 rpm).
What power supply and environment does it need?
Voltage, frequency: 100–120 V / 200–240 V, 50/60 Hz; power: 60 W. Permissible ambient temperature: 5–40 °C; permissible relative humidity: 80% RH. Protection class: IP20.
