ALab™ MX-RD-E Economical Tube Rotator
Product Detail
ALab™ MX-RD-E Economical Tube Rotator offers effective, affordable mixing: it provides a gentle but effective mixing of biological samples in 1.5 mL to 50 mL micro tubes, with an adjustable speed range from 0 to 80 rpm controlled by a scale and continuous operation.
Laboratory tube rotators are ideal for biochemistry, molecular biology and clinical applications. The MX-RD-E is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostics, etc. A DC motor drives the rotation at 0–80 rpm, and plastic clips for 50 mL, 15 mL and 1.5 mL tubes are used with the MX-RL-E/MX-RD-E disk/rotisserie accessory.
Why choose the MX-RD-E
Specifications General — MX-RD-E
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MX-RD-E |
| SKU # | ALMXRE00 |
| Product Type | Laboratory tube rotator |
| Motor type | DC motor |
| Speed range | 0–80 rpm |
| Speed display | Scale |
| Operation mode | Continuous |
| Voltage, Frequency | 100–240 V, 50/60 Hz |
| Power | 20 W |
| Dimension [D × W × H] | 300 × 220 × 310 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH |
| Protection class | IP21 |
Model comparison MX-RD-E vs. MX-RL-E
The MX-RD-E and the MX-RL-E share the same published motor, 0–80 rpm speed range with a scale speed display, continuous operation, electrical, environmental and protection data, and the same plastic clips for 50 mL, 15 mL and 1.5 mL. They differ in format and dimensions. The table lists the published specifications of both models.
| Parameter | MX-RD-E | MX-RL-E |
|---|---|---|
| Product Type | Laboratory tube rotator | Economical rotator (rotisserie horizontal tube rotator) |
| Motor type | DC motor | DC motor |
| Speed range | 0–80 rpm | 0–80 rpm |
| Speed display | Scale | Scale |
| Operation mode | Continuous | Continuous |
| Voltage, Frequency | 100–240 V, 50/60 Hz | 100–240 V, 50/60 Hz |
| Power | 20 W | 20 W |
| Dimension [D × W × H] | 300 × 220 × 310 mm | 150 × 530 × 190 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH | 5–40 °C, 80% RH |
| Protection class | IP21 | IP21 |
| Plastic Clips | For 50 mL, 15 mL and 1.5 mL | For 50 mL, 15 mL and 1.5 mL |
| SKU # | ALMXRE00 | ALMX0200 |
Accessories MX-RD-E
| Accessory | Image | Description |
|---|---|---|

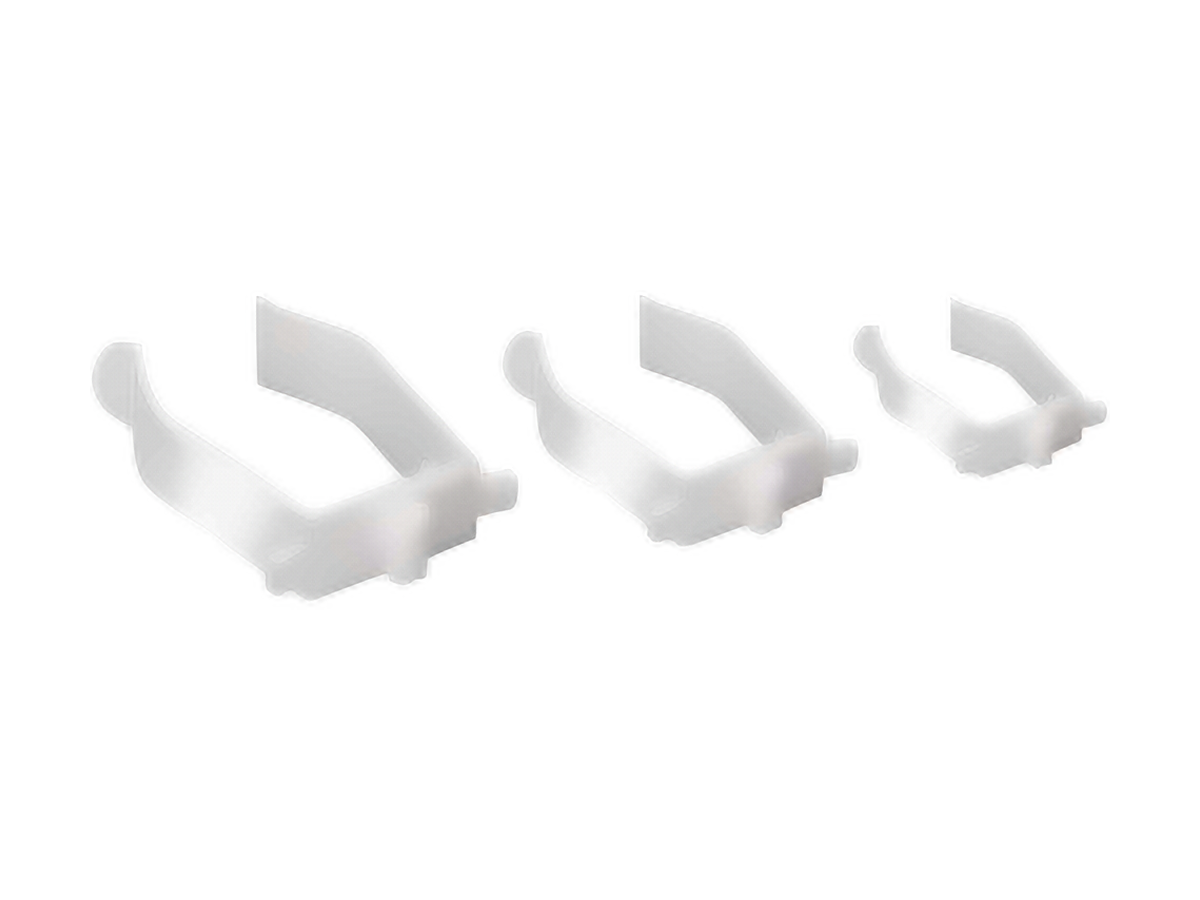

| Plastic Clips |  | Used with MX-RL-E/MX-RD-E disk/rotisserie accessory, for 50 mL, 15 mL and 1.5 mL |
The plastic clips are used with the MX-RL-E and MX-RD-E disk/rotisserie accessory, for 50 mL, 15 mL and 1.5 mL tubes.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MX-RD-E Economical Tube Rotator main unit | 1 |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed range does the MX-RD-E offer?
An adjustable speed range from 0 to 80 rpm. The speed is controlled by a scale, and the operation mode is continuous.
Which tube sizes can I mix?
The MX-RD-E provides a gentle but effective mixing of biological samples in 1.5 mL to 50 mL micro tubes. Plastic clips for 50 mL, 15 mL and 1.5 mL are used with the MX-RL-E/MX-RD-E disk/rotisserie accessory.
What applications is it used for?
Laboratory tube rotators are ideal for biochemistry, molecular biology and clinical applications. The MX-RD-E is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostics, etc.
What motor and power does it use?
A DC motor. Voltage, frequency: 100–240 V, 50/60 Hz; power: 20 W.
How large is the MX-RD-E, and where can it be used?
Dimension [D × W × H]: 300 × 220 × 310 mm. Permissible ambient temperature and humidity: 5–40 °C, 80% RH. Protection class: IP21.
How does the MX-RD-E differ from the MX-RL-E?
Both have a DC motor, an adjustable 0–80 rpm speed range with a scale speed display, continuous operation, 100–240 V, 50/60 Hz, 20 W, 5–40 °C, 80% RH, IP21 and the same plastic clips. The MX-RD-E measures 300 × 220 × 310 mm (D × W × H); the MX-RL-E is a rotisserie horizontal tube rotator measuring 150 × 530 × 190 mm (D × W × H).
