ALab™ MX-RL-E Economical Tube Rotator
Product Detail
ALab™ MX-RL-E Economical Tube Rotator is an economical rotisserie horizontal tube rotator: it provides slow to vigorous mixing of your biological samples and solutions, with gentle but effective rolling and an adjustable speed range from 0 to 80 rpm in continuous operation.
The MX-RL-E is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostic tests, etc. A DC motor drives the rotation at 0–80 rpm with a scale speed display, and plastic clips for 50 mL, 15 mL and 1.5 mL tubes are used with the MX-RL-E/MX-RD-E disk/rotisserie accessory. Not recommended for extended use in incubators or cold rooms.
Why choose the MX-RL-E
Specifications General — MX-RL-E
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MX-RL-E |
| SKU # | ALMX0200 |
| Product Type | Economical rotator |
| Motor type | DC motor |
| Speed range | 0–80 rpm |
| Speed display | Scale |
| Operation mode | Continuous |
| Voltage, Frequency | 100–240 V, 50/60 Hz |
| Power | 20 W |
| Dimension [D × W × H] | 150 × 530 × 190 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH |
| Protection class | IP21 |
Model comparison MX-RL-E vs. MX-RD-E
The MX-RL-E and the MX-RD-E share the same published motor, 0–80 rpm speed range with a scale speed display, continuous operation, electrical, environmental and protection data, and the same plastic clips for 50 mL, 15 mL and 1.5 mL. They differ in format and dimensions. The table lists the published specifications of both models.
| Parameter | MX-RL-E | MX-RD-E |
|---|---|---|
| Product Type | Economical rotator (rotisserie horizontal tube rotator) | Laboratory tube rotator |
| Motor type | DC motor | DC motor |
| Speed range | 0–80 rpm | 0–80 rpm |
| Speed display | Scale | Scale |
| Operation mode | Continuous | Continuous |
| Voltage, Frequency | 100–240 V, 50/60 Hz | 100–240 V, 50/60 Hz |
| Power | 20 W | 20 W |
| Dimension [D × W × H] | 150 × 530 × 190 mm | 300 × 220 × 310 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH | 5–40 °C, 80% RH |
| Protection class | IP21 | IP21 |
| Plastic Clips | For 50 mL, 15 mL and 1.5 mL | For 50 mL, 15 mL and 1.5 mL |
| SKU # | ALMX0200 | ALMXRE00 |
Accessories MX-RL-E
| Accessory | Image | Description |
|---|---|---|

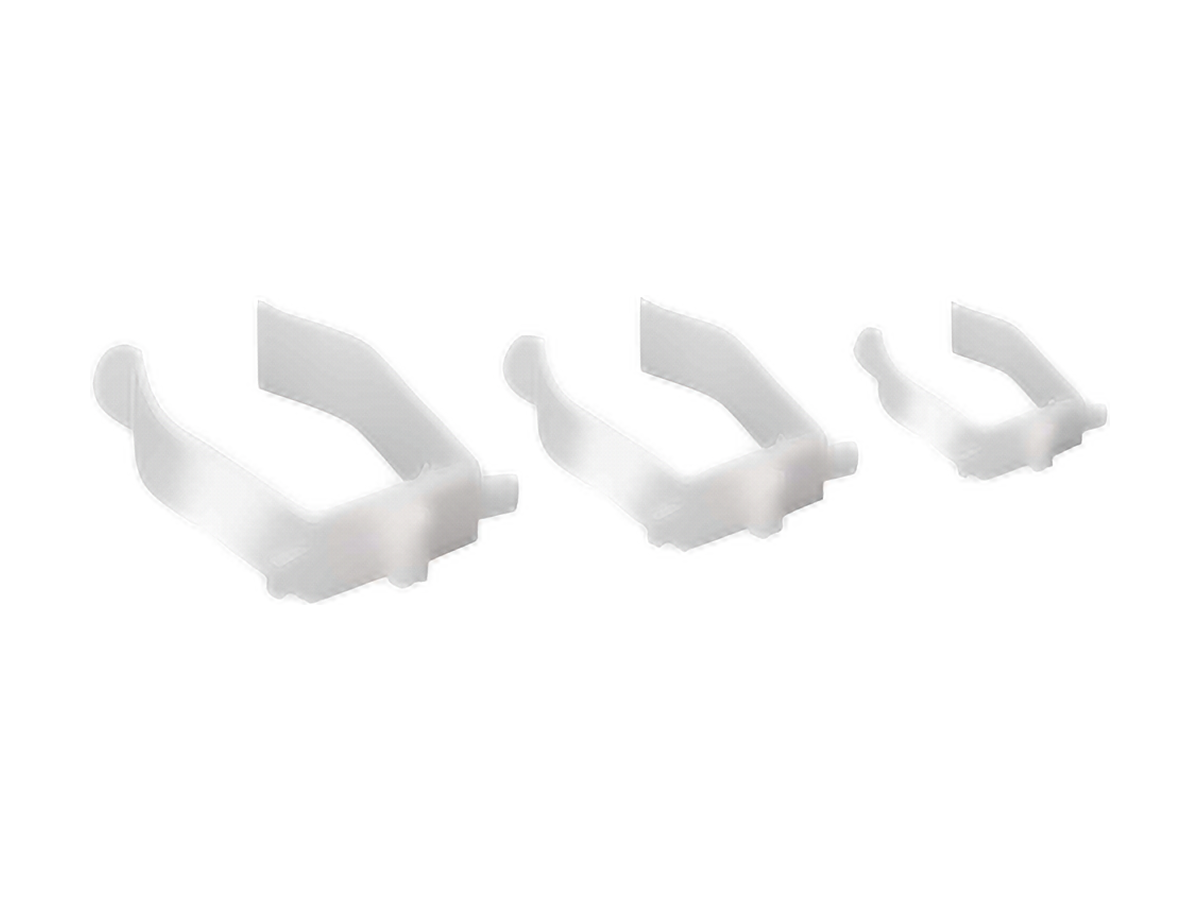

| Plastic Clips |  | Used with MX-RL-E/MX-RD-E disk/rotisserie accessory, for 50 mL, 15 mL and 1.5 mL |
Accessory image shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MX-RL-E Economical Tube Rotator main unit | 1 |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed range does the MX-RL-E offer?
An adjustable speed range from 0 to 80 rpm. The speed display is a scale, and the operation mode is continuous.
Which tube sizes can I use?
Plastic clips for 50 mL, 15 mL and 1.5 mL are used with the MX-RL-E/MX-RD-E disk/rotisserie accessory.
What applications is it used for?
The MX-RL-E provides slow to vigorous mixing of your biological samples and solutions and is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostic tests, etc.
Can I use it in an incubator or cold room?
It is not recommended for extended use in incubators or cold rooms. Permissible ambient temperature and humidity: 5–40 °C, 80% RH; protection class: IP21.
What motor and power does it use?
A DC motor. Voltage, frequency: 100–240 V, 50/60 Hz; power: 20 W. Dimension [D × W × H]: 150 × 530 × 190 mm.
How does the MX-RL-E differ from the MX-RD-E?
Both have a DC motor, an adjustable 0–80 rpm speed range with a scale speed display, continuous operation, 100–240 V, 50/60 Hz, 20 W, 5–40 °C, 80% RH, IP21 and the same plastic clips. The MX-RL-E is a rotisserie horizontal tube rotator measuring 150 × 530 × 190 mm (D × W × H); the MX-RD-E measures 300 × 220 × 310 mm (D × W × H).
