ALab™ MX-RD-Pro LCD Digital Tube Rotator
Product Detail
ALab™ MX-RD-Pro LCD Digital Tube Rotator provides a gentle but effective mixing of biological samples in 1.5 mL to 50 mL micro tubes, with a circular rotating action, an LCD display of speed and time, an adjustable speed range of 10–70 rpm and an adjustable angle of 0–90°.
Laboratory tube rotators are ideal for biochemistry, molecular biology and clinical applications. The MX-RD-Pro is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostics, etc. Its brushless DC motor is ideal for extended use, and longer life, the timer range is 1–1199 min, and a wide variety of accessories is available, including disk accessories for 1.5 mL × 60, 15 mL × 16 and 50 mL × 8 centrifuge tubes.
Why choose the MX-RD-Pro
Specifications General — MX-RD-Pro
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MX-RD-Pro |
| SKU # | ALMXRO00 |
| Product Type | LCD digital tube rotator |
| Motor type | Brushless DC motor |
| Tilt angle | 0–90° |
| Speed range | 10–70 rpm |
| Speed display | LCD |
| Timer display | LCD |
| Timer | 1–1199 min |
| Operation mode | Continuous / timer |
| Voltage, Frequency | 100–240 V, 50/60 Hz |
| Power | 40 W |
| Dimension [D × W × H] | 280 × 210 × 300 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH |
| Protection class | IP21 |
Model comparison MX-RD-Pro vs. MX-RL-Pro
The MX-RD-Pro and the MX-RL-Pro share the same published brushless DC motor, 10–70 rpm speed range, LCD speed and timer displays, 1–1199 min timer, continuous / timer operation mode, 40 W power, 100–240 V, 50/60 Hz electrical data and environmental and protection data. They differ in format and dimensions: the MX-RD-Pro has a circular rotating action with an adjustable angle of 0–90° and uses disk accessories; the MX-RL-Pro is the horizontal model and uses rotisserie accessories. The table lists the published specifications of both models.
| Parameter | MX-RD-Pro | MX-RL-Pro |
|---|---|---|
| Product Type | LCD digital tube rotator | LCD digital tube rotator, horizontal |
| Motor type | Brushless DC motor | Brushless DC motor |
| Tilt angle | 0–90° | — |
| Speed range | 10–70 rpm | 10–70 rpm |
| Speed display | LCD | LCD |
| Timer display | LCD | LCD |
| Timer | 1–1199 min | 1–1199 min |
| Operation mode | Continuous / timer | Continuous / timer |
| Voltage, Frequency | 100–240 V, 50/60 Hz | 100–240 V, 50/60 Hz |
| Power | 40 W | 40 W |
| Dimension [D × W × H] | 280 × 210 × 300 mm | 220 × 510 × 260 mm |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH | 5–40 °C, 80% RH |
| Protection class | IP21 | IP21 |
| Accessories | Disk Accessories Type-1 to Type-3, disk support rods | Rotisserie Accessories Type-1 to Type-6 |
| SKU # | ALMXRO00 | ALMX0100 |
Accessories MX-RD-Pro
| Model | Image | Cat. No. | Description |
|---|---|---|---|
| Disk Accessories Type-1 |  | 18900160 | Used for MX-RD-Pro, for 1.5 mL × 60 centrifuge tubes holder |
| Disk Accessories Type-2 |  | 18900161 | Used for MX-RD-Pro, for 15 mL × 16 centrifuge tubes holder |
| Disk Accessories Type-3 |  | 18900162 | Used for MX-RD-Pro, for 50 mL × 8 centrifuge tubes holder |

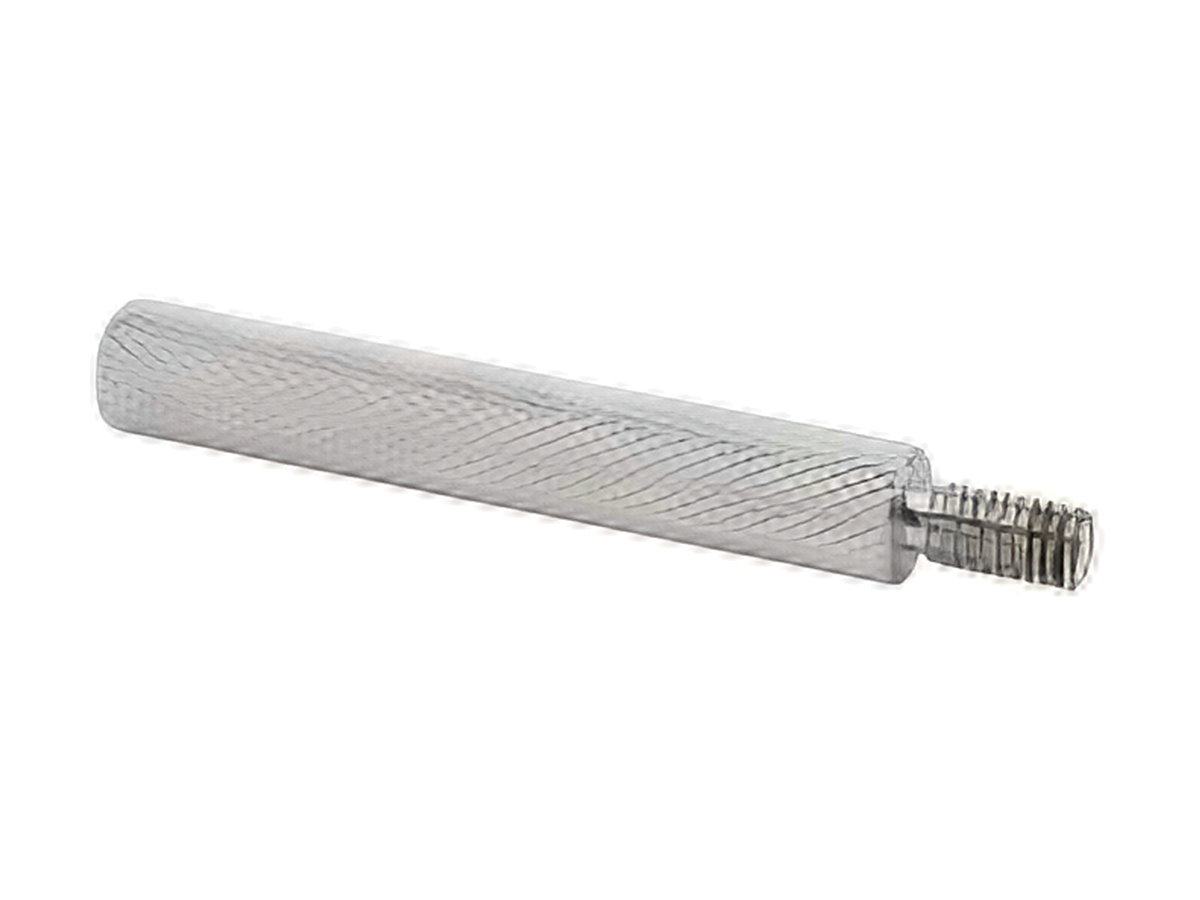

| Disk support rods |  | 18900140 | 4 pcs in a group, use with disk accessories |
Accessory images shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MX-RD-Pro LCD Digital Tube Rotator main unit | 1 |
Accessories are listed above by model and catalog number. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed range and angle does the MX-RD-Pro offer?
An adjustable speed range from 10 to 70 rpm and an adjustable angle from 0 to 90°. The speed and the time are shown on an LCD display.
What timer and operation mode does it have?
Timer range: 1–1199 min; timer display: LCD. Operation mode: continuous / timer.
Which tube sizes can I mix?
The MX-RD-Pro provides a gentle but effective mixing of biological samples in 1.5 mL to 50 mL micro tubes. Disk Accessories Type-1, Type-2 and Type-3 are listed for 1.5 mL × 60, 15 mL × 16 and 50 mL × 8 centrifuge tube holders (Cat. Nos. 18900160, 18900161 and 18900162); disk support rods, 4 pcs in a group, are used with the disk accessories (Cat. No. 18900140).
What applications is it used for?
Laboratory tube rotators are ideal for biochemistry, molecular biology and clinical applications. The MX-RD-Pro is used in a variety of applications including immune precipitations, prevention of blood coagulation, latex diagnostics, etc.
What motor and power does it use, and how large is it?
A brushless DC motor, ideal for extended use, and longer life. Voltage, frequency: 100–240 V, 50/60 Hz; power: 40 W. Dimension [D × W × H]: 280 × 210 × 300 mm.
Where can it be used?
Permissible ambient temperature and humidity: 5–40 °C, 80% RH. Protection class: IP21.
How does the MX-RD-Pro differ from the MX-RL-Pro?
Both have a brushless DC motor, an adjustable 10–70 rpm speed range, LCD speed and timer displays, a 1–1199 min timer, continuous / timer operation, 40 W, 100–240 V, 50/60 Hz, 5–40 °C, 80% RH and IP21. The MX-RD-Pro measures 280 × 210 × 300 mm (D × W × H) with an adjustable angle of 0–90° and disk accessories; the MX-RL-Pro is the horizontal model measuring 220 × 510 × 260 mm (D × W × H) and uses rotisserie accessories.
