ALab™ Laboratory Deck Rocking Rotator Mixer
Product Detail
ALab™ Laboratory Deck Rocking Rotator Mixer is available as the SK-R30S-E (Short Deck Rocking Rotator), the SK-R30L-E (Long Deck Rocking Rotator) and the SK-R30D-E (Long Deck Double Layer Rocking Rotator), with a brushless DC motor, a continuous mode of operation and a speed range of 0–30 rpm.
The Laboratory Deck Rocking Rotator Mixer is suitable for molecular biology, virology, microbiology, pathology, immunology and other laboratories in scientific research units, medical schools, emergency control centres, and medical and health units. All three models have a brushless DC motor, a load capacity of 1 kg and are available with various silicone mattress accessories; the four silicone mattresses with Cat. Nos. 18202835, 18202846, 18202852 and 18202853 are listed below for long and short decks.
Why choose the Laboratory Deck Rocking Rotator Mixer
Specifications SK-R30S-E · SK-R30L-E · SK-R30D-E
| Parameter | SK-R30S-E | SK-R30L-E | SK-R30D-E |
|---|---|---|---|
| Brand | ALab™ by ACS Material | ||
| Product Name | ALab™ Laboratory Deck Rocking Rotator Mixer | ||
| Series (Parent SKU) | ALSKR30G | ||
| SKU # | ALSKRE00 | ALSK0100 | ALSK0200 |
| Product Type | Short Deck Rocking Rotator | Long Deck Rocking Rotator | Long Deck Double Layer Rocking Rotator |
| Tilt angle | 30 ± 3° | 30 ± 3° | 40 ± 3° |
| Load capacity | 1 kg | 1 kg | 1 kg |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Speed range | 0–30 rpm | 0–30 rpm | 0–30 rpm |
| Operation mode | Continuous | Continuous | Continuous |
| Dimension (W × D × H) | 295 × 160 × 120 mm | 405 × 160 × 120 mm | 405 × 160 × 160 mm |
| Voltage, Frequency | 100–240 V, 50/60 Hz | 100–240 V, 50/60 Hz | 100–240 V, 50/60 Hz |
| Power | 15 W | 15 W | 15 W |
| Weight | 1.8 kg | 2 kg | 2.2 kg |
| Permissible ambient temperature and humidity | 5–40 °C, 80% RH | 5–40 °C, 80% RH | 5–40 °C, 80% RH |
Accessories Silicone mattresses
| Accessory | Image | Cat. No. | Description |
|---|---|---|---|

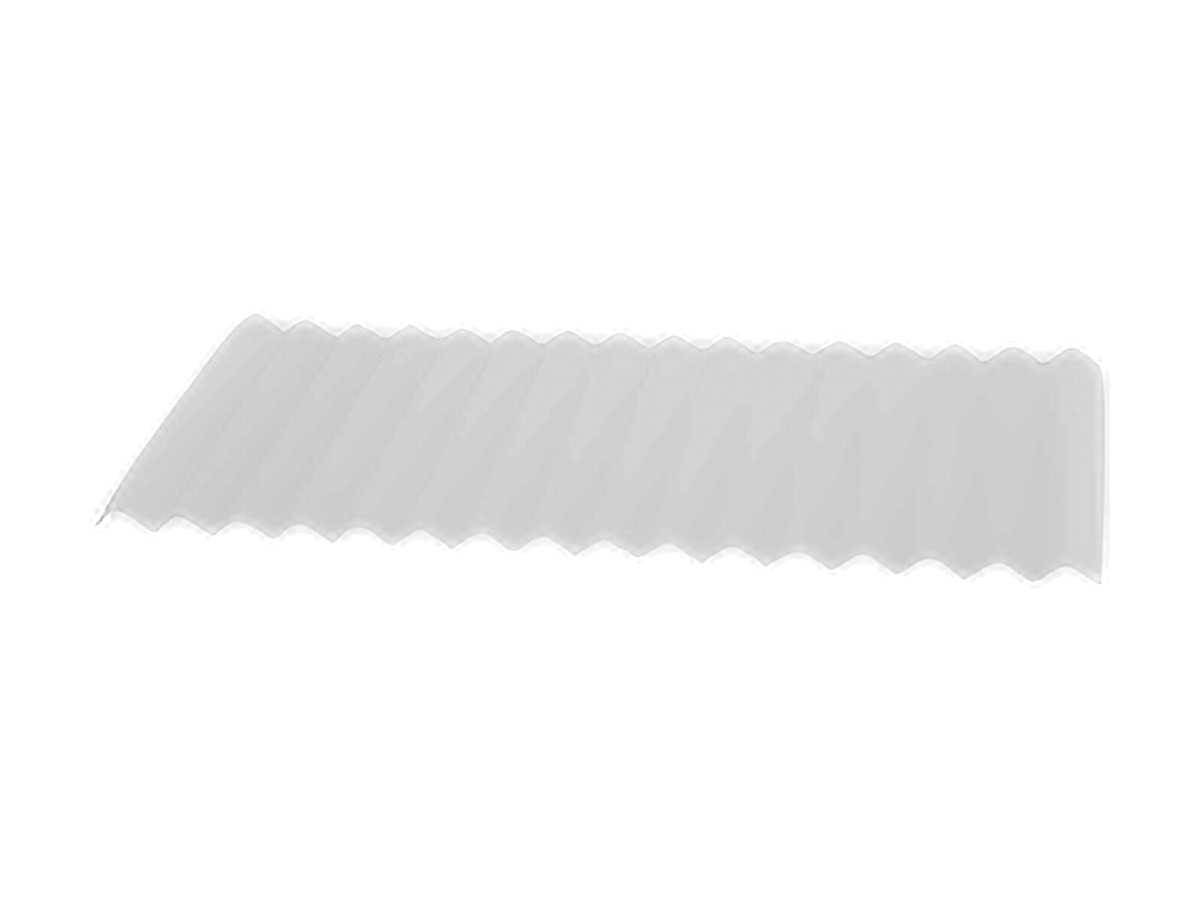

| Silicone mattress |  | 18202835 | Silicone mattress for 16 × 5–10 mL blood collection tubes on long decks (SK-R30L-E & SK-R30D-E) |

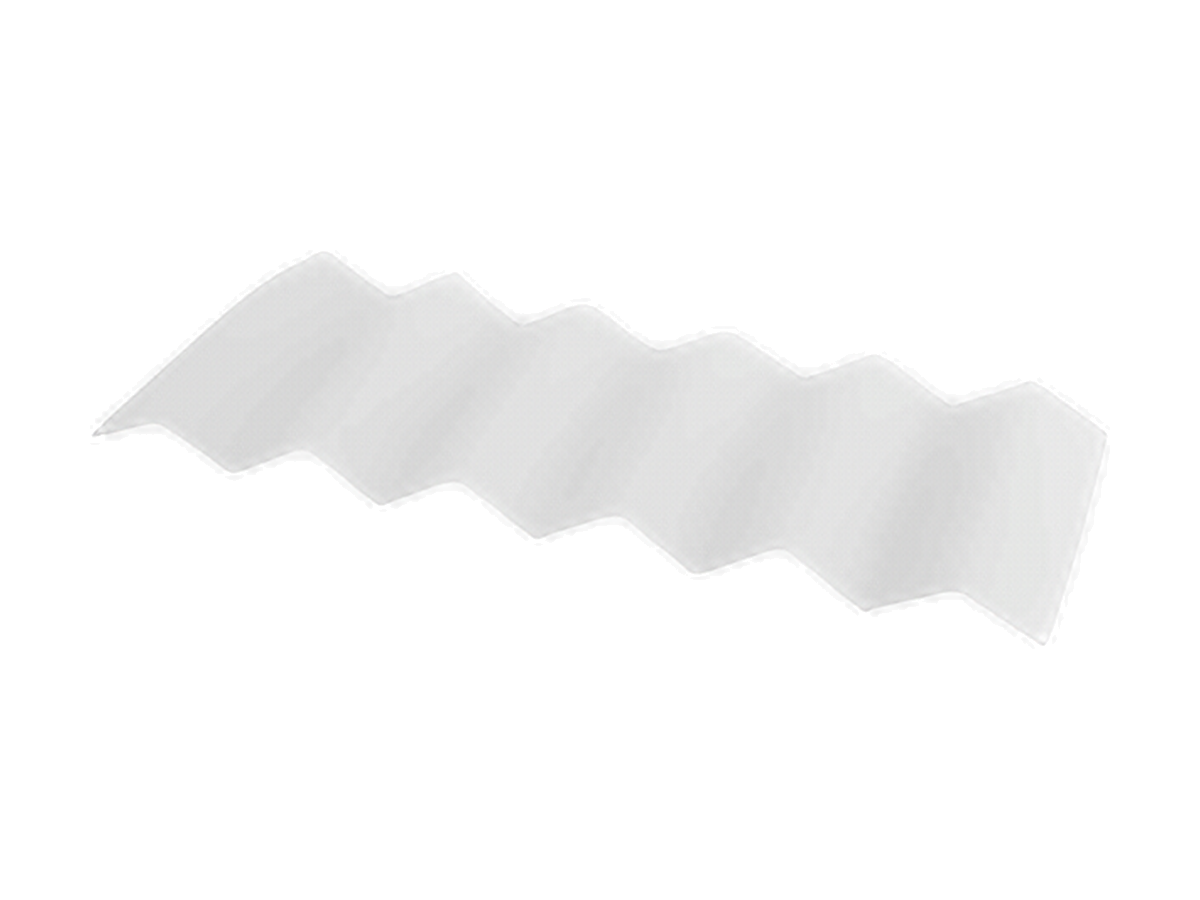

| Silicone mattress |  | 18202846 | Silicone mattress for 6 × 50 mL test tubes on long decks (SK-R30L-E & SK-R30D-E) |

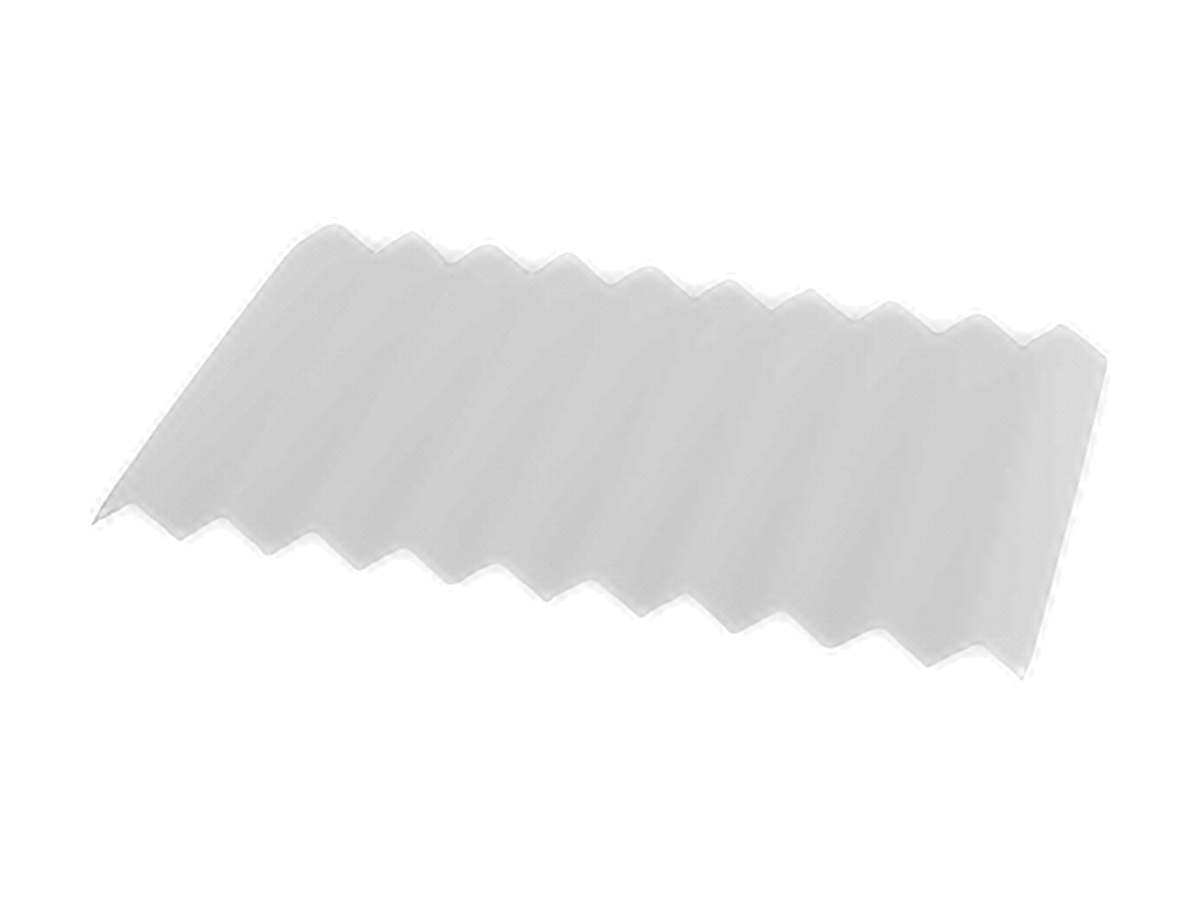

| Silicone mattress |  | 18202852 | Silicone mattress for 10 × 5–10 mL blood collection tubes on short decks (SK-R30S-E) |

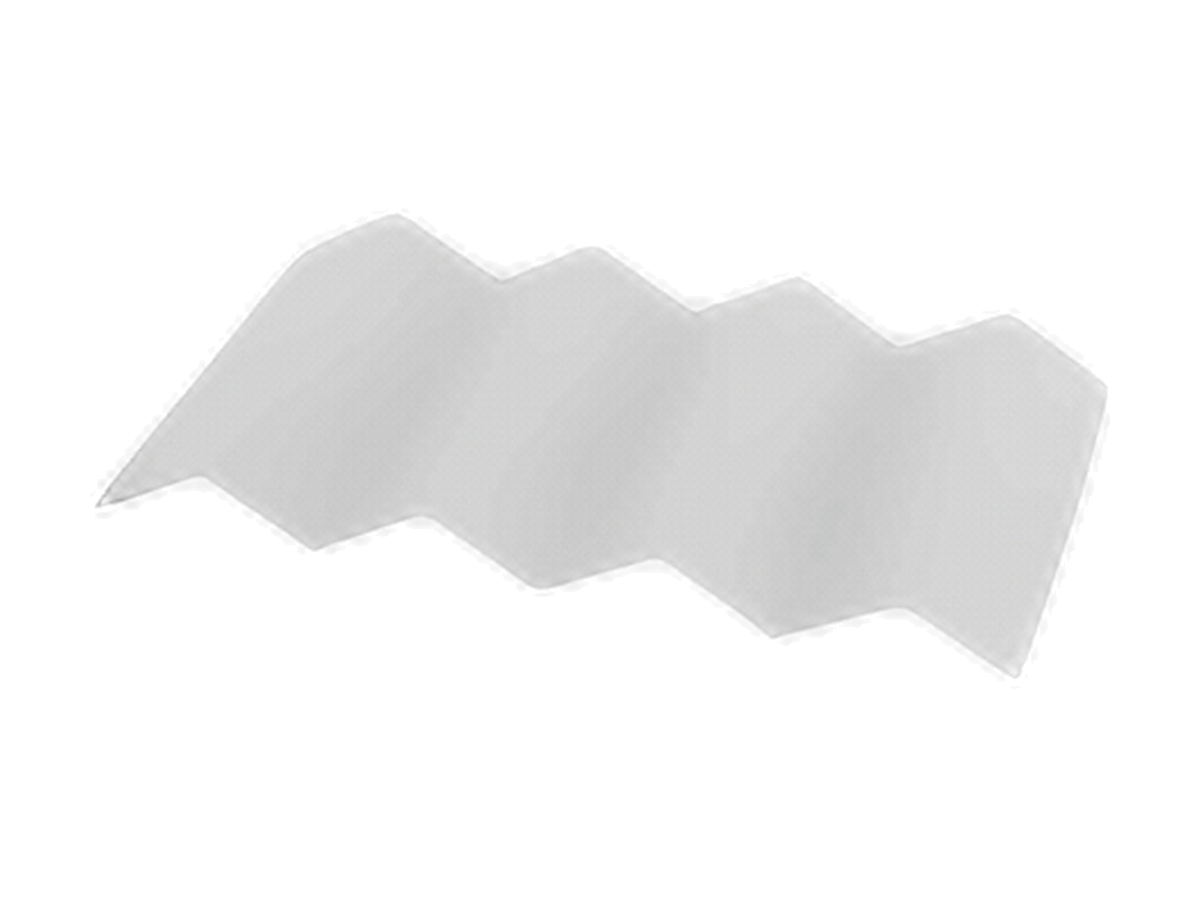

| Silicone mattress |  | 18202853 | Silicone mattress for 4 × 50 mL test tubes on short decks (SK-R30S-E) |
Accessory images shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ Laboratory Deck Rocking Rotator Mixer main unit (SK-R30S-E, SK-R30L-E or SK-R30D-E, as selected) | 1 |
Accessories are listed above by model and catalog number. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
Which models does this page cover?
Three models of the Laboratory Deck Rocking Rotator Mixer: SK-R30S-E (Short Deck Rocking Rotator), SK-R30L-E (Long Deck Rocking Rotator) and SK-R30D-E (Long Deck Double Layer Rocking Rotator). Select the model in the order menu; the SKU of each model is listed in the specifications table.
What speed range and operation mode do they have?
All three models have a speed range of 0–30 rpm and a continuous mode of operation, driven by a brushless DC motor.
What tilt angle do the models have?
SK-R30S-E and SK-R30L-E: 30 ± 3°. SK-R30D-E: 40 ± 3°.
What load capacity, size and weight do they have?
Load capacity: 1 kg for all three models. Dimension (W × D × H): SK-R30S-E 295 × 160 × 120 mm, 1.8 kg; SK-R30L-E 405 × 160 × 120 mm, 2 kg; SK-R30D-E 405 × 160 × 160 mm, 2.2 kg.
Which silicone mattress is listed for which model?
For long decks (SK-R30L-E & SK-R30D-E): Cat. No. 18202835 for 16 × 5–10 mL blood collection tubes and Cat. No. 18202846 for 6 × 50 mL test tubes. For short decks (SK-R30S-E): Cat. No. 18202852 for 10 × 5–10 mL blood collection tubes and Cat. No. 18202853 for 4 × 50 mL test tubes.
What are the electrical and environmental specifications?
Voltage, frequency: 100–240 V, 50/60 Hz; power: 15 W. Permissible ambient temperature and humidity: 5–40 °C, 80% RH.
What applications is it suitable for?
The Laboratory Deck Rocking Rotator Mixer is suitable for molecular biology, virology, microbiology, pathology, immunology and other laboratories in scientific research units, medical schools, emergency control centres, and medical and health units.
