ALab™ TM40 3D Rotating Mixer
Product Detail
ALab™ TM40 3D Rotating Mixer is a compact, uniquely designed instrument that mixes samples in various sample tubes by rotating horizontally, vertically or at any angle, with a speed range of 10–40 rpm and three switchable working modes: rotation mixing, shaking mixing and angle mixing.
The TM40 is widely used in the mixing of samples such as molecular hybridization and blood, and in biomolecular science, histochemistry, biochemistry, clinical medicine, etc. The two clamps on the rotating panel can be adjusted independently, so that two different methods can be used in one mixing. The instrument is compact and convenient, and can be used in laboratory benches, cold storage or incubators; its shell and panel are specially designed for easy cleaning and decontamination.
Why choose the TM40
Specifications General — TM40
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | TM40 |
| SKU # | ALTM4000 |
| Product Type | 3D rotating mixer |
| Speed range | 10–40 rpm |
| Oscillation amplitude | 20–99° |
| Movement mode | Rotation/Shake/Angle |
| Working mode | Continuous/Timed |
| Display | LED |
| Timing range | 1–999 min / 0–999 s |
| Power | 4 W |
| Application tubes | 0.5/1.5/2/5/7/10/15/50 mL |
| Input voltage | 100–240 V, 50/60 Hz |
| Dimension [L × W × H] | 240 × 140 × 210 mm |
| Weight | 1.2 kg |
Accessories Tube clamps
| Accessory | Image | Description |
|---|---|---|

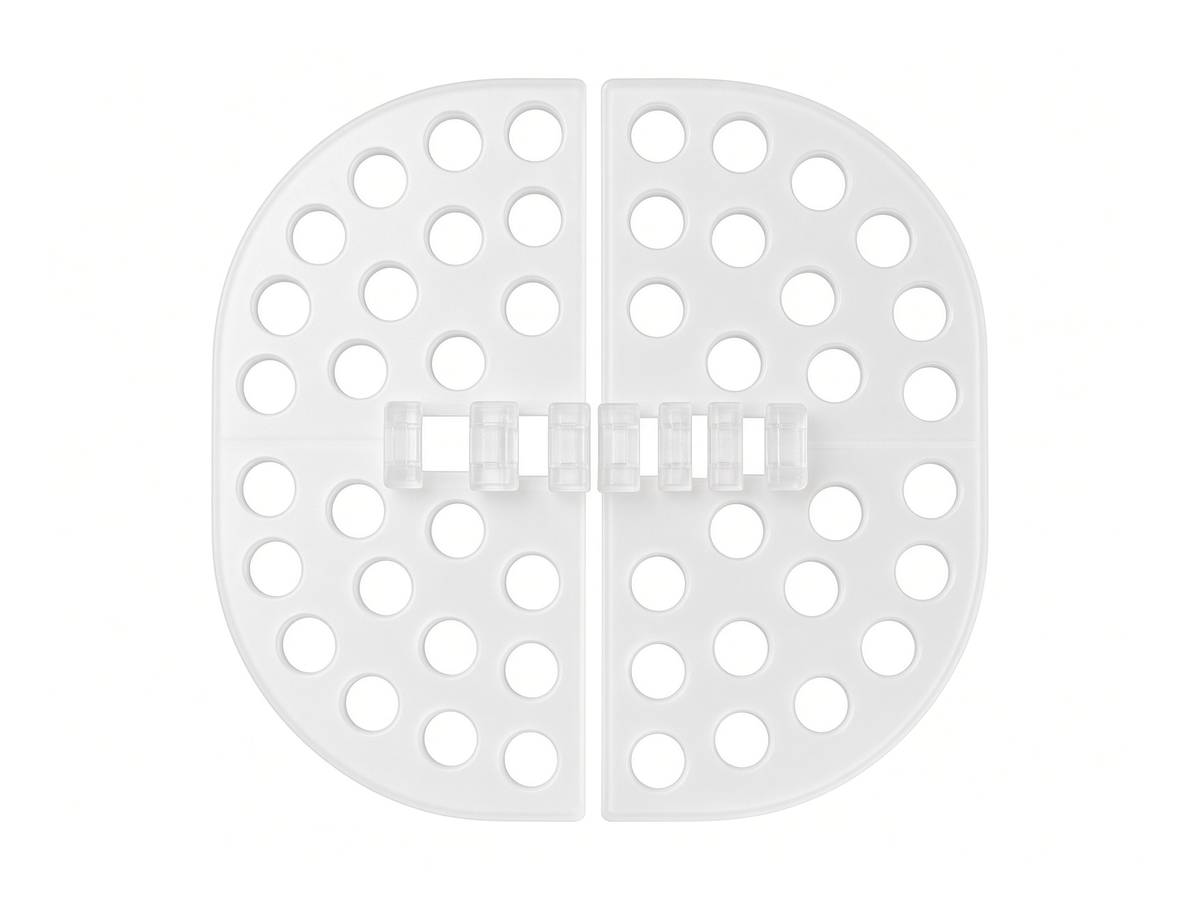

| Tube clamp (1.5/2 mL) |  | Suitable for 1.5/2 mL centrifuge tube |

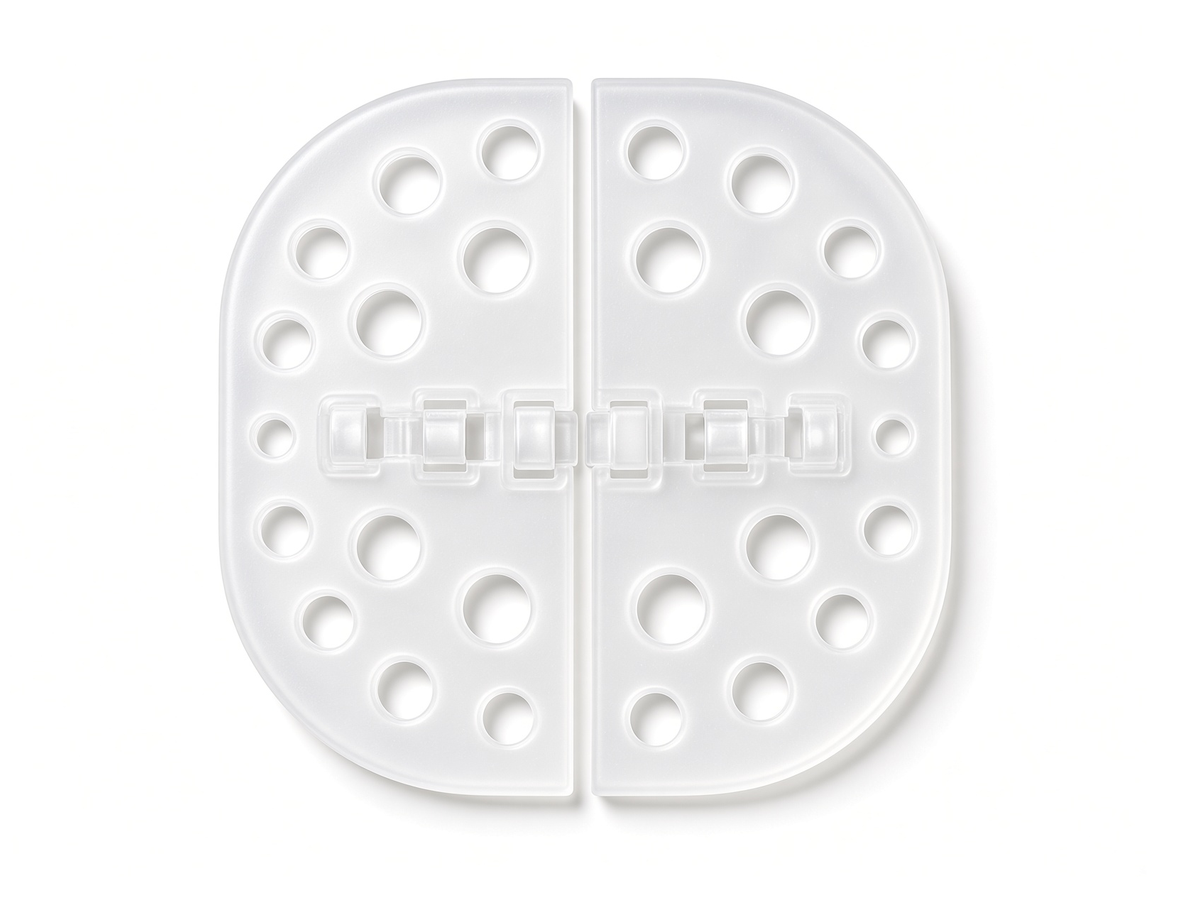

| Tube clamp (5/7 mL, 10–15 mL) |  | Suitable for 5/7 mL and 10–15 mL centrifuge tube |

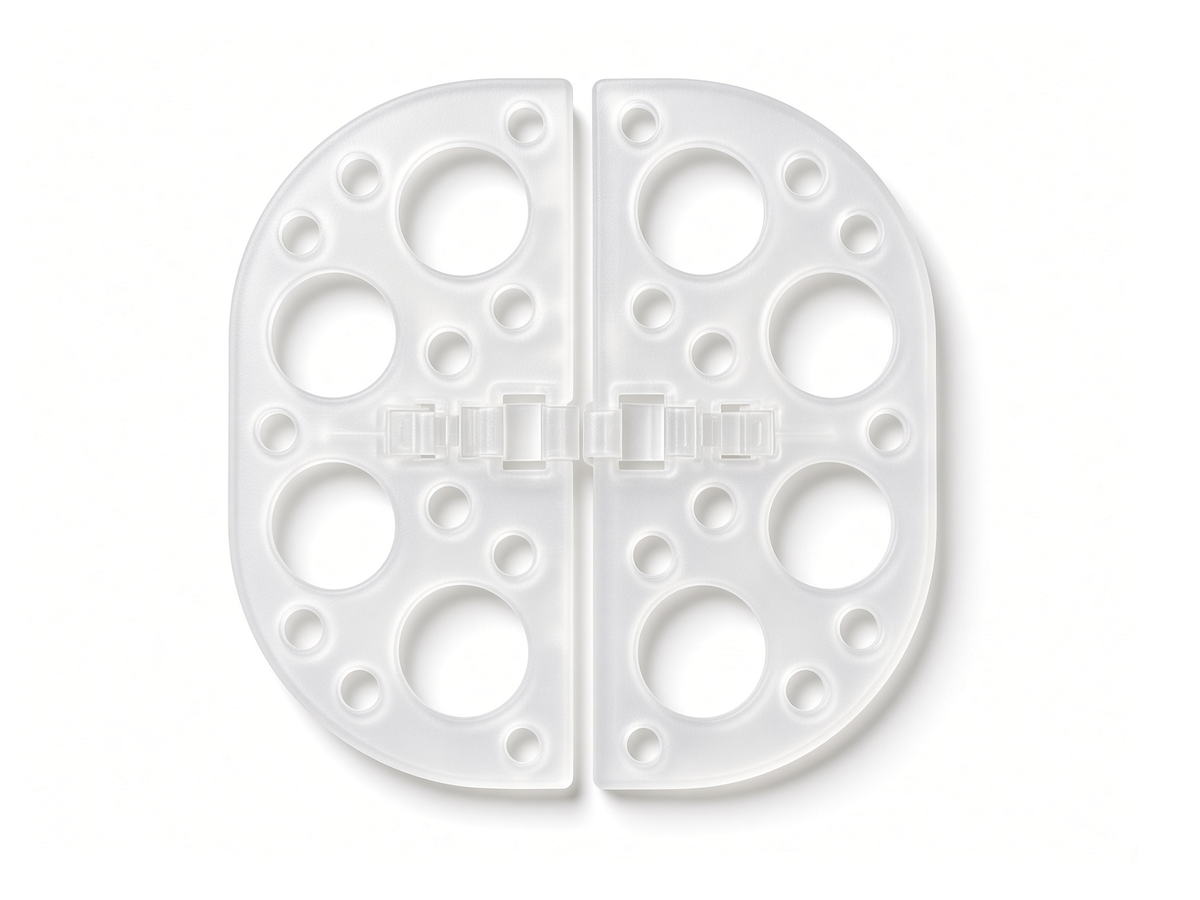

| Tube clamp (0.5 mL, 50 mL) |  | Suitable for 0.5 mL and 50 mL centrifuge tube |
Accessory images shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ TM40 3D Rotating Mixer main unit | 1 |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
What speed range and movement modes does the TM40 offer?
Speed range: 10–40 rpm; oscillation amplitude: 20–99°. Movement mode: Rotation/Shake/Angle — three working modes can be switched: rotation mixing, shaking mixing and angle mixing.
Which tubes can I use?
Application tubes: 0.5/1.5/2/5/7/10/15/50 mL. The tube clamps are suitable for 1.5/2 mL tubes, for 5/7 mL and 10–15 mL tubes, and for 0.5 mL and 50 mL centrifuge tubes; the clamps can be combined arbitrarily and are easy to disassemble.
How is the mixing time set?
Working mode: Continuous/Timed. Timing range: 1–999 min / 0–999 s. The display is an LED display.
At what angles can the TM40 rotate the tubes?
Through the adjustment of the rotating panel, the product can be rotated horizontally or vertically or at any angle. The two clamps on the rotating panel can be adjusted independently, so that two different methods can be used in one mixing.
Can I use it in cold storage or an incubator?
Yes. The instrument is compact and convenient, and can be used in test benches, cold storage or incubators. Its shell and panels are specially designed for easy cleaning and decontamination.
Does the TM40 remember its settings?
Yes. With the memory function, when the instrument is turned on it displays the last speed/angle setting value.
What applications is it used for?
It is widely used in the mixing of samples such as molecular hybridization and blood, and widely used in biomolecular science, histochemistry, biochemistry, clinical medicine, etc.
What are the power, size and weight?
Power: 4 W; input voltage: 100–240 V, 50/60 Hz. Dimension [L × W × H]: 240 × 140 × 210 mm; weight: 1.2 kg.
