ALab™ MVM25 Multi-tube Vortex Mixer
Product Detail
ALab™ MVM25 Multi-tube Vortex Mixer can mix and process 50 samples at the same time, with built-in timing, continuous and touch operating modes and a speed range of 500–2500 rpm.
The MVM25 is quiet and stable. Various accessories can be selected to meet the requirements of vortex mixing of tubes of different specifications, and many models of foam test tube racks can be selected. The built-in timing, continuous and touch operating modes allow work to be more convenient and efficient. It has a DC brushless motor, a timing range of 1 s–9999 min and a maximum loading capacity of 5 kg; the foam test tube clamps, replaceable pallet and acrylic test tube clamp are listed below with their number of holes and dimensions.
Why choose the MVM25
Specifications General — MVM25
| Parameter | Specification |
|---|---|
| Brand | ALab™ by ACS Material |
| Model | MVM25 |
| SKU # | ALMVM500 |
| Product Type | Multi-tube vortex mixer |
| Speed range | 500–2500 rpm |
| Amplitude of oscillation | 4 mm |
| Precision | ±1 rpm |
| Timing range | 1 s–9999 min |
| Maximum loading capacity | 5 kg |
| Motor type | DC brushless motor |
| Operating mode | Inching/Continuous mode |
| Dimensions of top cover plate | W 184 × L 311 mm |
| Power | 60 W |
| Input power | AC 100–230 V, 50/60 Hz |
| Fuse | 250 V, 1 A φ5 × 20 |
| Dimensions | W 250 × D 426 × H 480 mm |
| Net weight | 15 kg |
Accessories Foam test tube clamps, pallet and acrylic clamp
| Accessory | Image | Description |
|---|---|---|

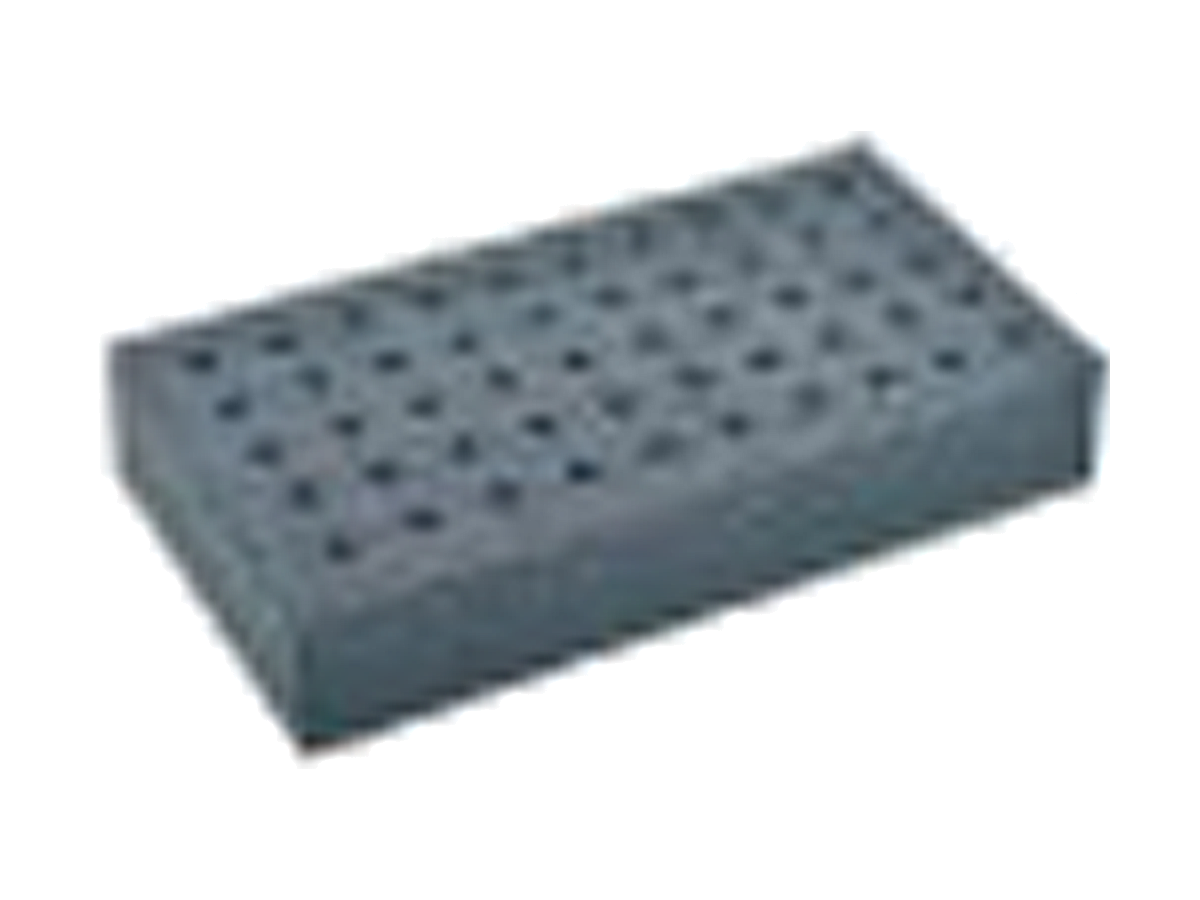

| φ10 mm foam test tube clamp |  | 50 holes; W 245 × D 132 × H 45 mm |

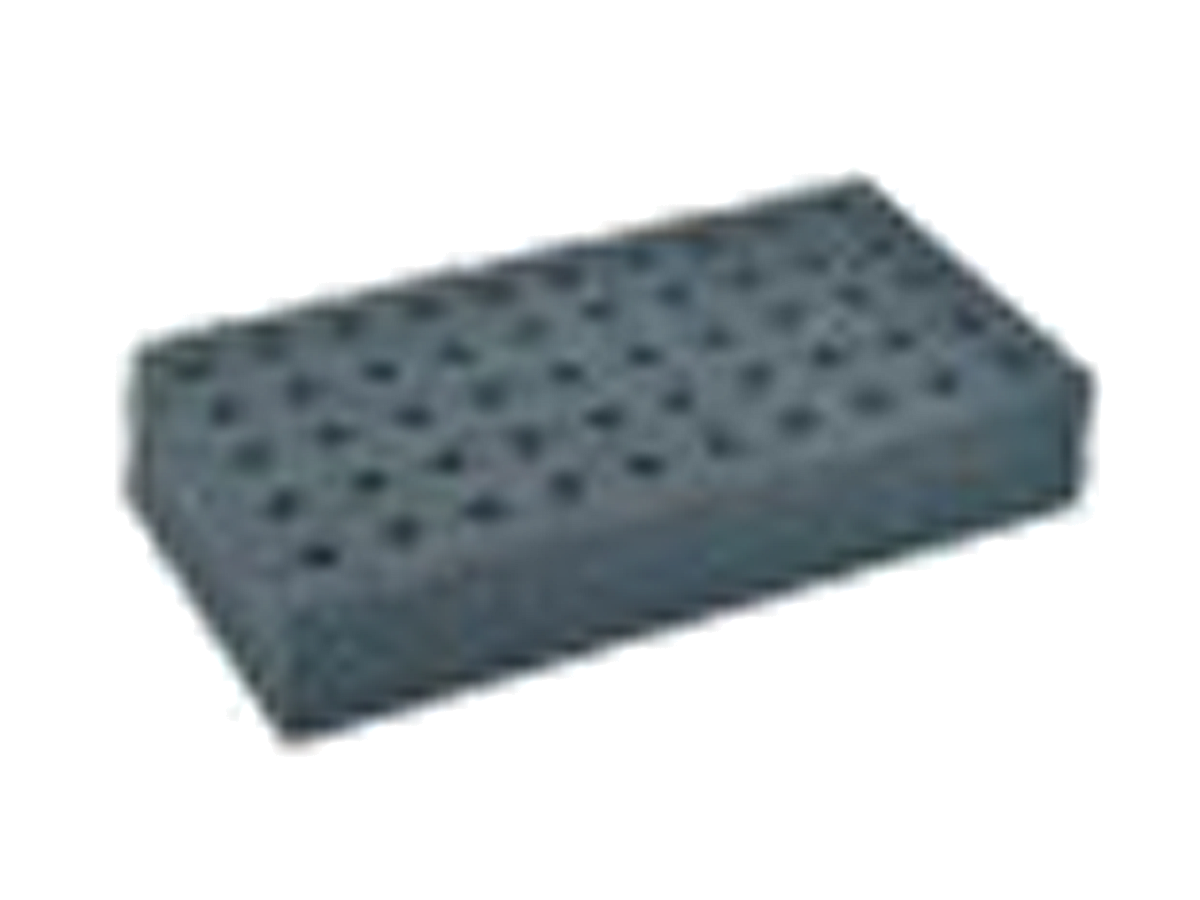

| φ12 mm foam test tube clamp |  | 50 holes; W 245 × D 132 × H 45 mm |

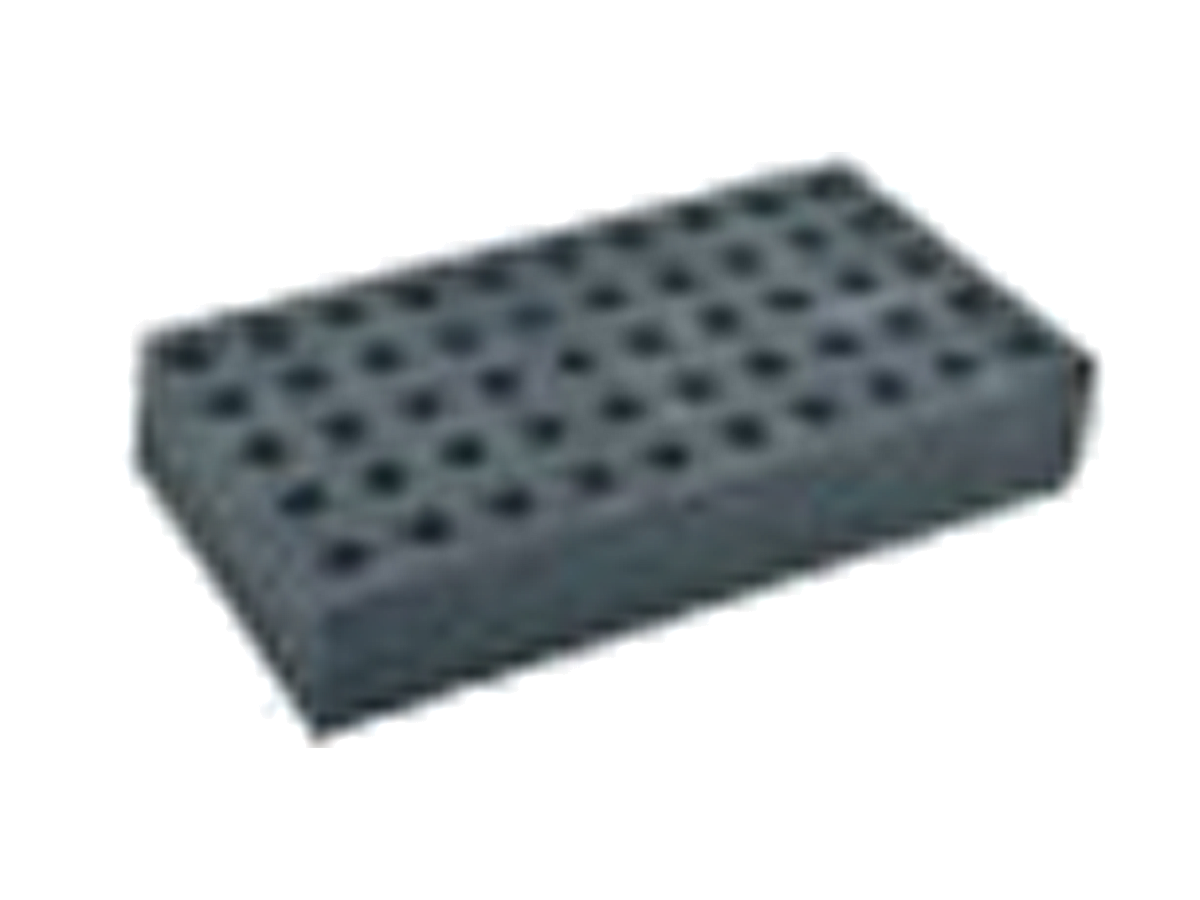

| φ13 mm foam test tube clamp |  | 50 holes; W 245 × D 132 × H 45 mm |

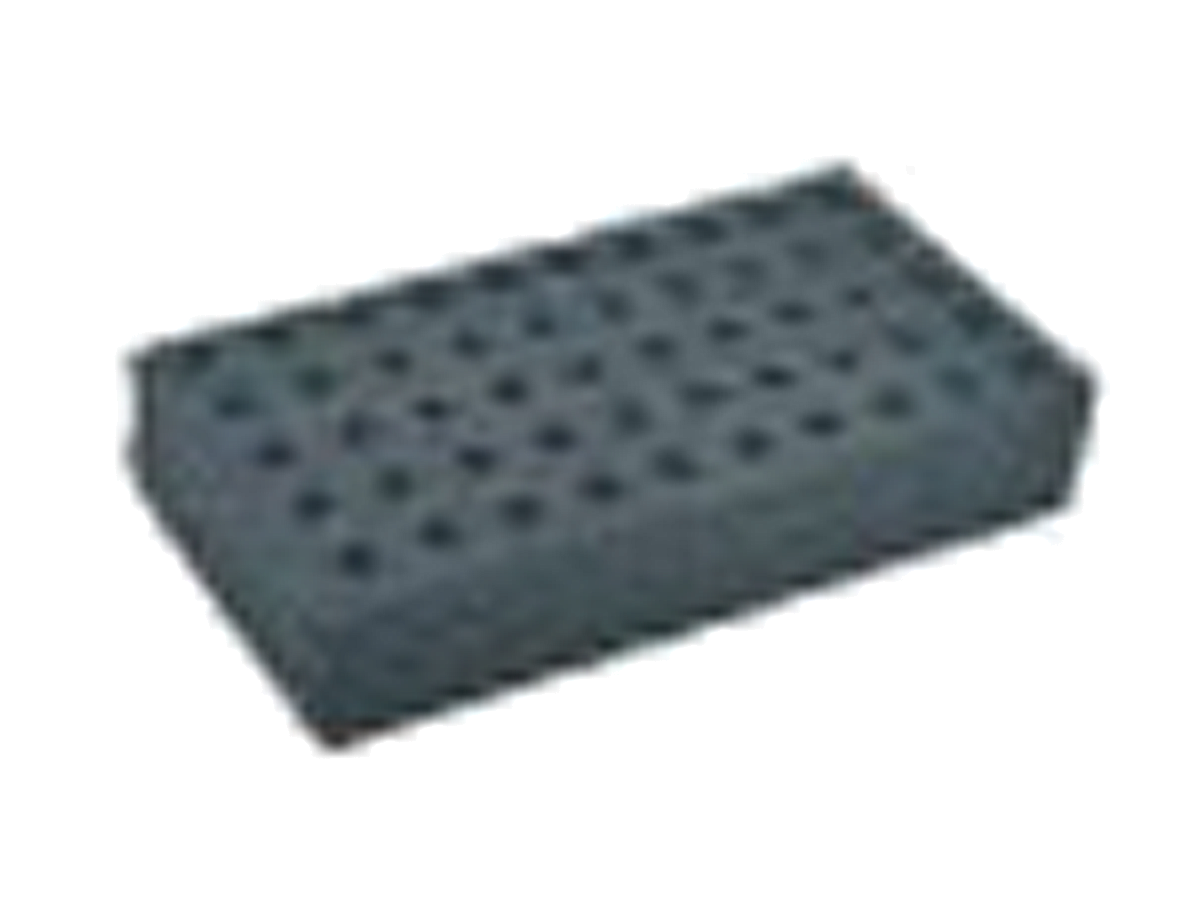

| φ16 mm foam test tube clamp |  | 50 holes; W 245 × D 132 × H 45 mm; it can place 15 mL centrifugal tubes |

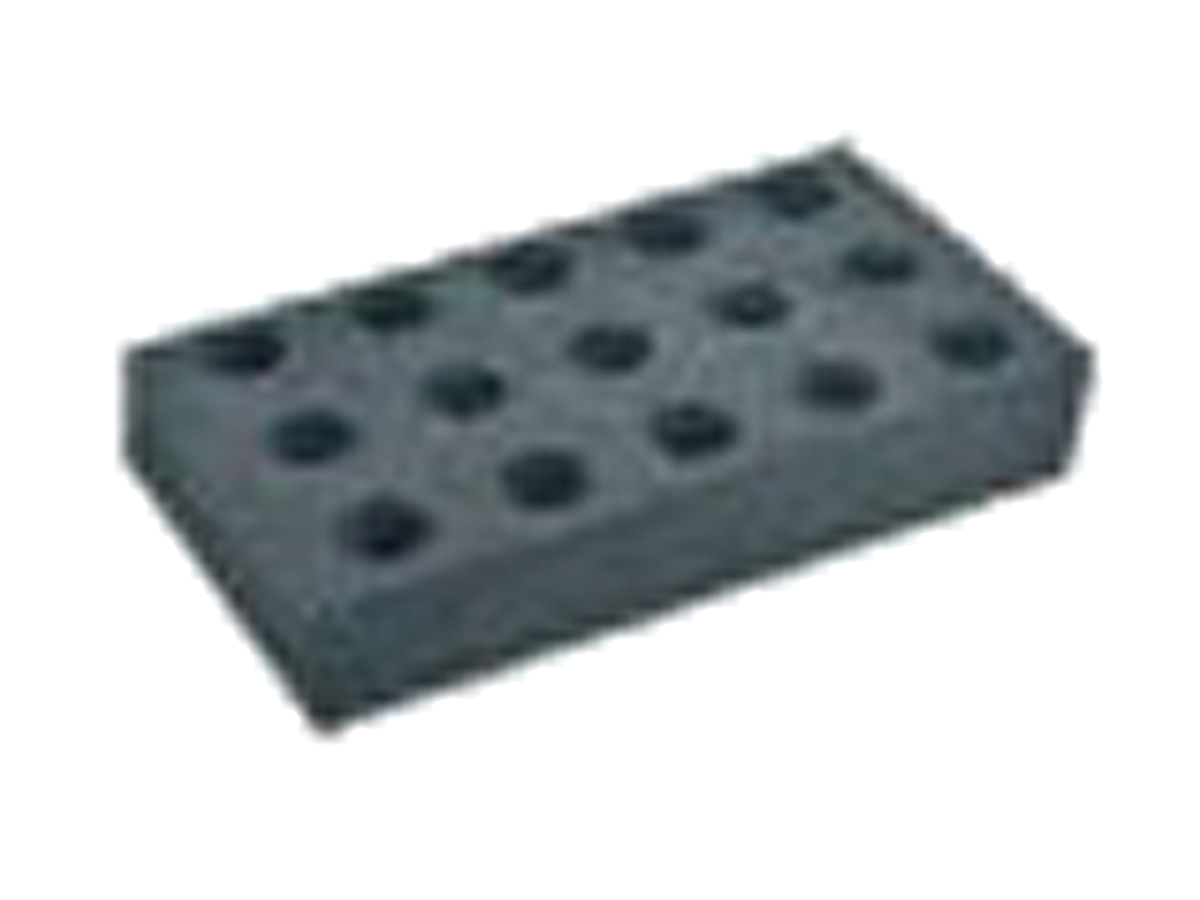

| φ25 mm foam test tube clamp |  | 15 holes; W 245 × D 132 × H 45 mm |

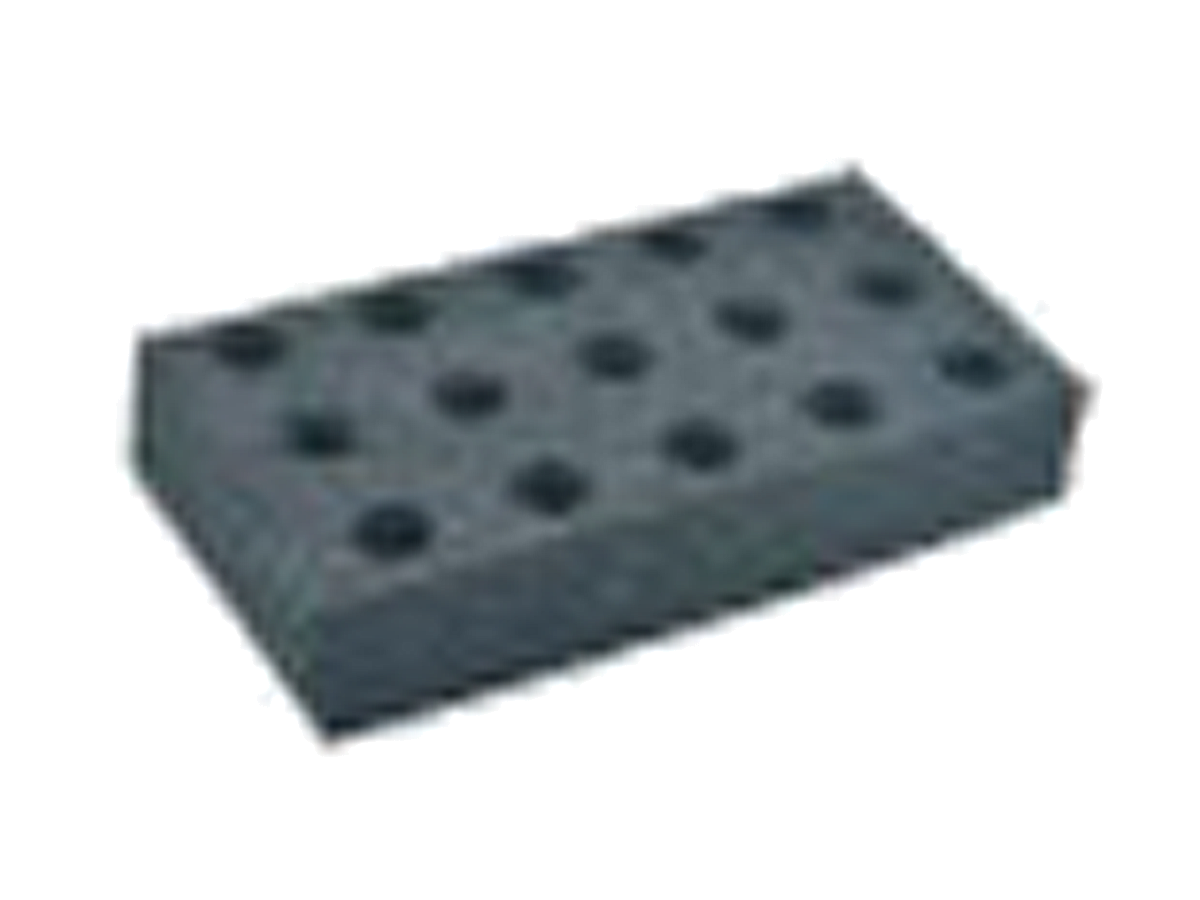

| φ29 mm foam test tube clamp |  | 15 holes; W 245 × D 132 × H 45 mm; it can place 50 mL centrifugal tubes |
| φ38 mm foam test tube clamp |  | 10 holes; W 245 × D 132 × H 45 mm; it can place 100 mL centrifugal tubes |

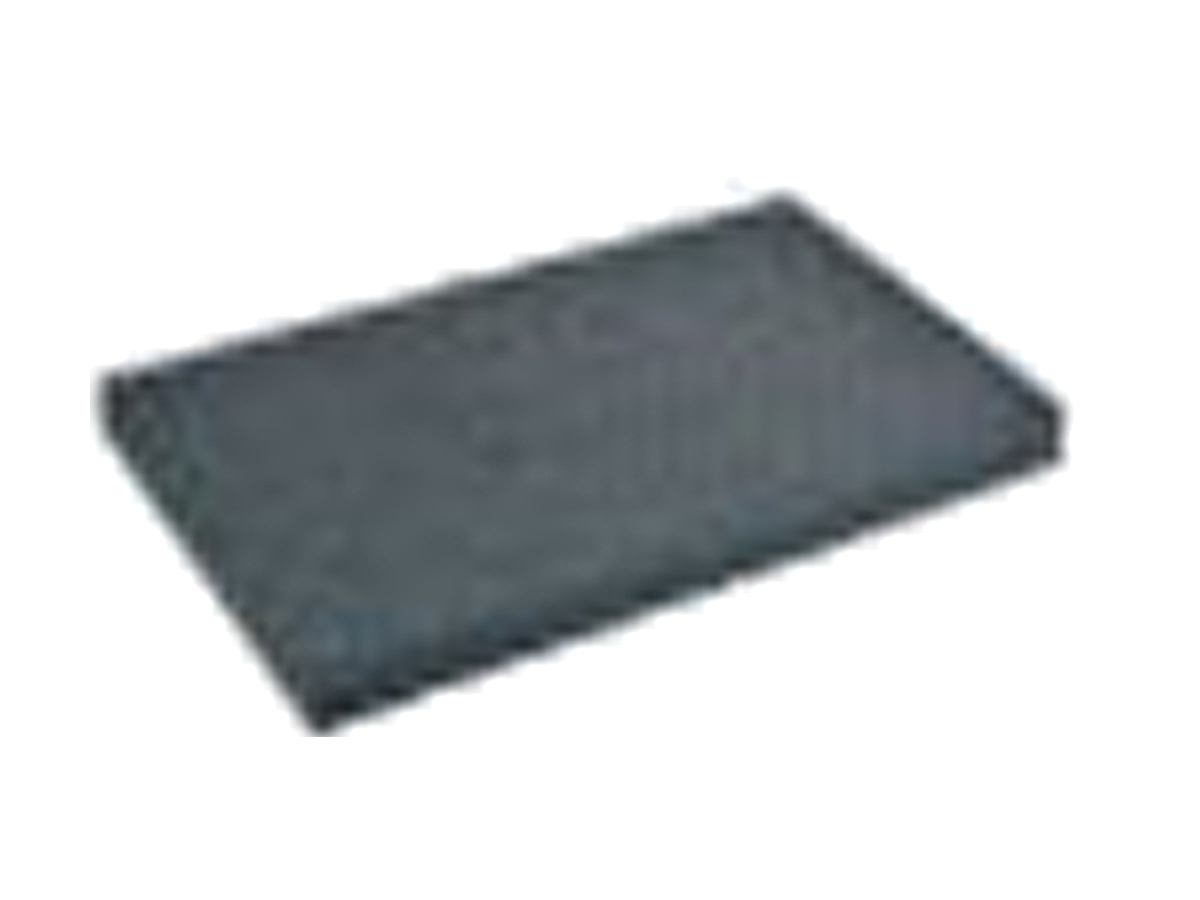

| Replaceable pallet (upper and lower) |  | W 305 × D 178.5 × H 25 mm |

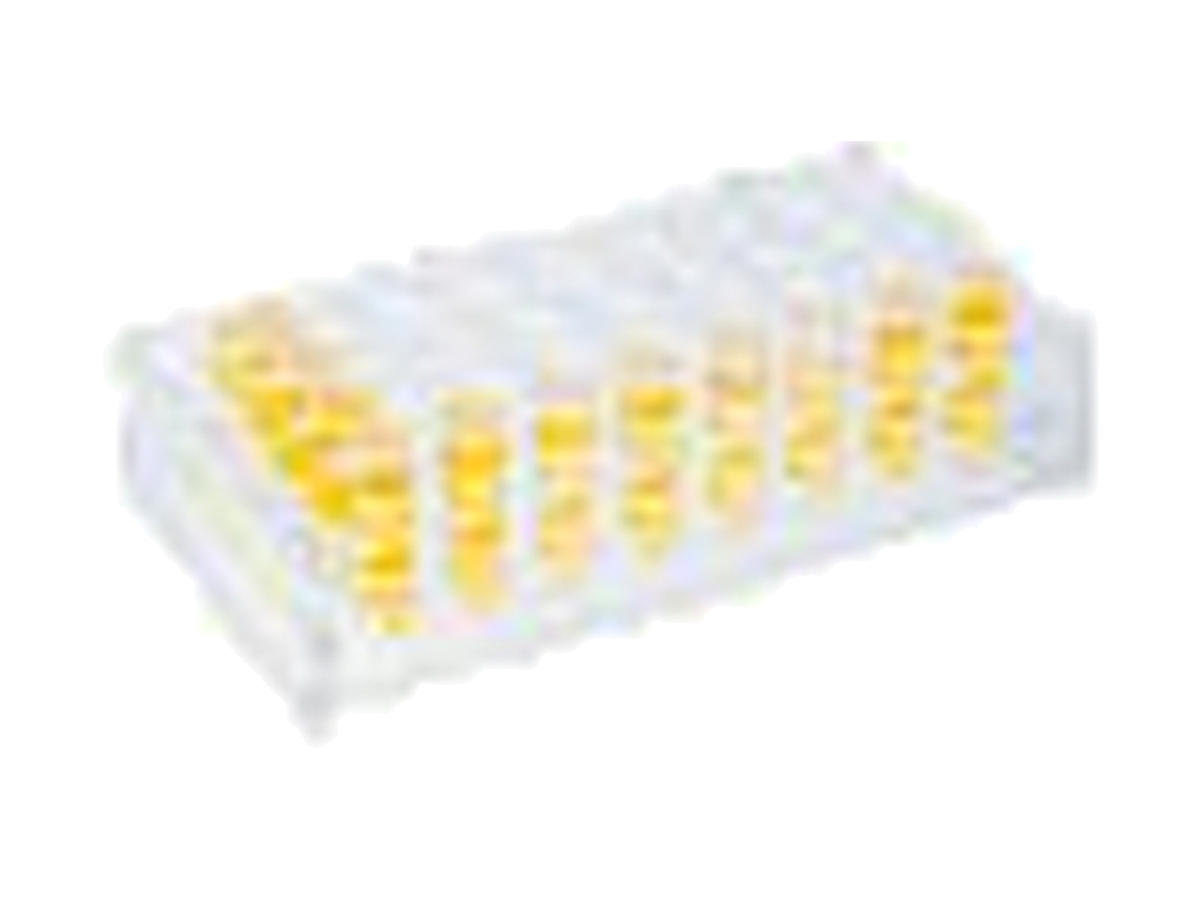

| φ11 mm acrylic test tube clamp |  | 40 holes; W 169 × D 84 × H 41 mm; it can place 1.5/2.0 mL centrifugal tubes |
Accessory images shown for reference; the supplied configuration is confirmed on the quotation.
Package contents
| Supplied with the instrument | Qty |
|---|---|
| ALab™ MVM25 Multi-tube Vortex Mixer main unit | 1 |
Accessories are listed above. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.
Where it fits
Frequently asked questions
How many samples can the MVM25 mix at the same time?
The MVM25 can mix and process 50 samples at the same time. The number of holes depends on the accessory: 50 in the φ10, φ12, φ13 and φ16 mm foam test tube clamps, 15 in the φ25 and φ29 mm clamps, 10 in the φ38 mm clamp and 40 in the φ11 mm acrylic test tube clamp.
What speed range does the MVM25 offer?
A speed range of 500–2500 rpm with an amplitude of oscillation of 4 mm and a precision of ±1 rpm.
What operating modes does the MVM25 have?
The MVM25 has built-in timing, continuous and touch operating modes, which allow work to be more convenient and efficient.
What timing range does it have?
Timing range: 1 s–9999 min.
Which tubes can I use with it?
Various accessories can be selected for tubes of different specifications. The φ16 mm foam test tube clamp can place 15 mL centrifugal tubes, the φ29 mm clamp 50 mL centrifugal tubes and the φ38 mm clamp 100 mL centrifugal tubes; the φ11 mm acrylic test tube clamp can place 1.5/2.0 mL centrifugal tubes. Foam test tube clamps are also listed for φ10, φ12, φ13 and φ25 mm; the replaceable pallet (upper and lower) is listed as W 305 × D 178.5 × H 25 mm.
What is the maximum loading capacity, and how large is it?
Maximum loading capacity: 5 kg. Dimensions: W 250 × D 426 × H 480 mm; dimensions of top cover plate: W 184 × L 311 mm; net weight: 15 kg.
What motor and power supply does it use?
A DC brushless motor. Power: 60 W; input power: AC 100–230 V, 50/60 Hz; fuse: 250 V, 1 A φ5 × 20.
What is included as standard?
The MVM25 main unit. The accessories listed above are available; the final scope of supply is confirmed on the quotation.
