Optical Heating Stage AH200-Mini/AH600S/AH800S
Product Detail
InSitu Pro™ AH200-Mini, AH600S, and AH800S are heating-only optical stages: when your work starts at room temperature and goes up, they are the simplest way there. Three ceilings to choose — 200, 600, or 800 °C — all with ±0.1 °C stability and 150 °C·min⁻¹ heating, from the palm-sized chamberless Mini to the stainless-steel-staged AH800S for serious high-temperature optics.
Key features
- Three ceilings: 200 / 600 / 800 °CPick by your hottest point — and by stage metallurgy: copper (Mini) to 200 °C, silver (AH600S) to 600 °C, stainless steel (AH800S) to 800 °C.
- Fast, stable heatingUp to 150 °C·min⁻¹ with ±0.1 °C stability across all three models; fixed-point holds and programmed ramps on the same host-computer software, with LabVIEW VIs / C# SDK for custom control.
- AH200-Mini: palm-sized and chamberlessJust 40 × 40 × 12 mm and 0.2 kg with a φ20 mm copper stage — drop it anywhere, place the sample, measure.

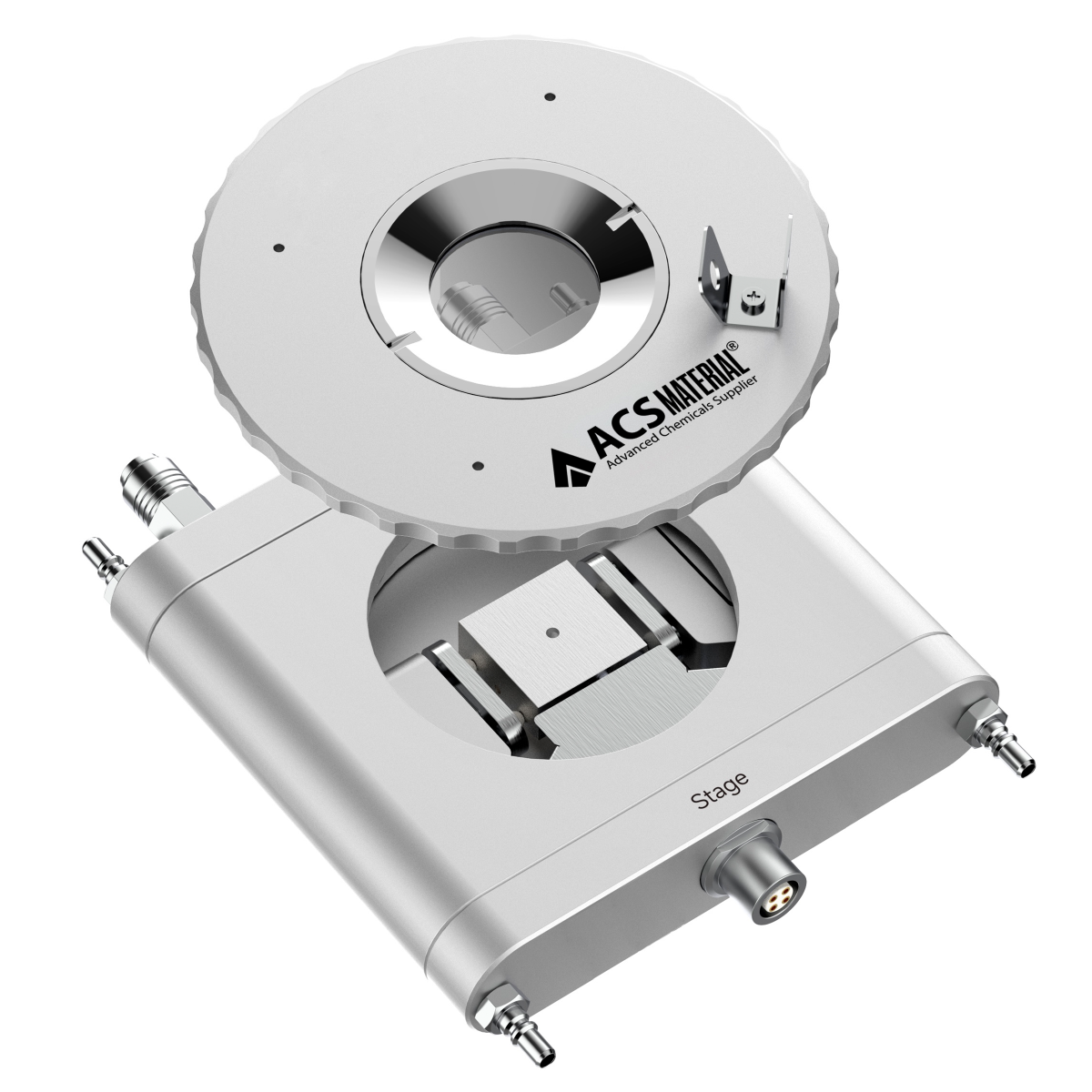

- Reflection and transmission optics (AH600S / AH800S)Hand-removable JGS2 quartz windows support both light paths; a twist-off top cover makes sample loading and removal quick — full geometry in the table below.
- Nothing to refillResistive heating with a controllable cooling rate on the way down — no cryogens, no compressors; a water-circulation system protects the body during high-temperature work.
- Quote-ready orderingRequest pricing via this page or the Stage Selector; our engineers confirm the configuration for your optics.
Product specifications
| Parameter | AH200-Mini | AH600S | AH800S |
|---|---|---|---|
| SKU # | EIAH20MI | EIAH600S | EIAH800S |
| Heating Method | Resistive heating | ||
| Temperature Range | RT ~ 200 °C | RT ~ 600 °C | RT ~ 800 °C |
| Temperature Stability | ±0.1 °C | ||
| Temperature Control Rate | Max heating 150 °C/min · cooling rate controllable | ||
| Sample Stage | Copper · φ20 × 4 mm | Silver · 23 × 23 mm | Stainless steel · 23 × 23 mm |
| Optical Path | Reflective | Reflection / Transmission (φ2 mm hole) | |
| Top Window | — | φ25 × 1 mm, JGS2 quartz (220–2500 nm), removable | |
| Bottom Window | — | φ10 × 1 mm (optional, transmission) | |
| Window-to-Stage Distance | — | 4.5 mm · chamber height 3.5 mm | |
| Chamber | Open (chamberless) | Atmosphere | |
| Dimensions | 40 × 40 × 12 mm | 124 × 97 × 24 mm | 91 × 97 × 24 mm |
| Net Weight | 0.2 kg | 0.4 kg | |
Basic configuration
| Included with every stage | Qty |
|---|---|
| Main unit (AH200-Mini, AH600S, or AH800S) | 1 |
| Temperature controller | 1 |
| Water-circulation system | 1 |
| PC control software | 1 |
| Connection cables, tubing & accessories | — |
Options include adapter plates, custom water circulators, host PCs, and custom control software. Final configuration and accessories are confirmed at quotation.
High-temperature atmosphere: plan for oxidation
The Mini runs fully open; AH600S and AH800S run in an atmosphere chamber. When operated in air, oxide growth on many metals and alloys becomes significant approaching 600–800 °C, rising steeply with temperature; under diffusion-controlled conditions it is often approximated by parabolic kinetics. Hold a sample for an hour at your working temperature and see:
Model: parabolic oxidation x² = k·t with an Arrhenius rate constant — an approximation for diffusion-controlled oxidation, not every material or temperature; the vacuum panel illustrates the model response when the oxidant supply is suppressed. Takeaway: oxidation-tolerant samples — oxides, ceramics, many minerals — are at home here; if your sample must come back chemically intact, look at the vacuum-chamber models such as the ACH400SV (vacuum service to 400 °C). Curves are schematic, not a guarantee for a specific unit.
Heating-only or heating + cooling? · quick navigation
| Family | AH200-Mini / AH600S / AH800Sthis page | ACH600S / ACH400SVLN₂ H&C | APE120 familyPeltier |
|---|---|---|---|
| Best for | RT upward to 200 / 600 / 800 °C · cryogen-free | −190 °C deep cryo to 600 °C | −25 ~ 120 °C, cryogen-free |
| Page | — you are here — | LN₂ family → | Peltier → |
Matched temperature controller & water-circulation system. Each stage ships with its controller and water circulation for body protection at high temperature — no cryogen hardware needed. The matched set is specified with your quotation.
FAQ
Which of the three?
Decide by your hottest point, then by footprint. Everything under 200 °C on small samples: the palm-sized Mini. Up to 600 °C with full reflection/transmission optics: AH600S. Pushing to 800 °C: AH800S, whose stainless-steel stage takes the heat. All three share the same controller platform and 150 °C·min⁻¹ ramping.
What if I need cooling too?
These are heating-only stages — the cooling rate on the way down is controllable, but there is no active refrigeration below ambient. If your protocol needs active cooling or sub-ambient points, step over to the ACH600S/ACH400SV (LN₂, −190 °C, 40 °C·min⁻¹ cooling) or the Peltier family (−25 to 120 °C, cryogen-free).
Will my sample oxidize at 600–800 °C?
If the stages are operated in air, many metals and alloys can oxidize rapidly at these temperatures — the rate depends on composition, surface condition, temperature, atmosphere, and exposure time; the simulator above gives a schematic comparison. Some oxides, ceramics, glasses, and minerals may be more suitable, depending on phase stability, atmosphere compatibility, and exposure time. For oxidation-sensitive samples the vacuum-chamber ACH400SV covers up to 400 °C; above that, confirm the intended operating atmosphere at quotation.
Where does the Mini fit?
Anywhere a full stage will not: its 40 × 40 × 12 mm chamberless body and φ20 mm copper stage make it the quickest way to put controlled heat under any microscope, probe rig, or crowded bench — reflective work up to 200 °C.
