Polytevo Series Film Blowing Machine
Product Detail

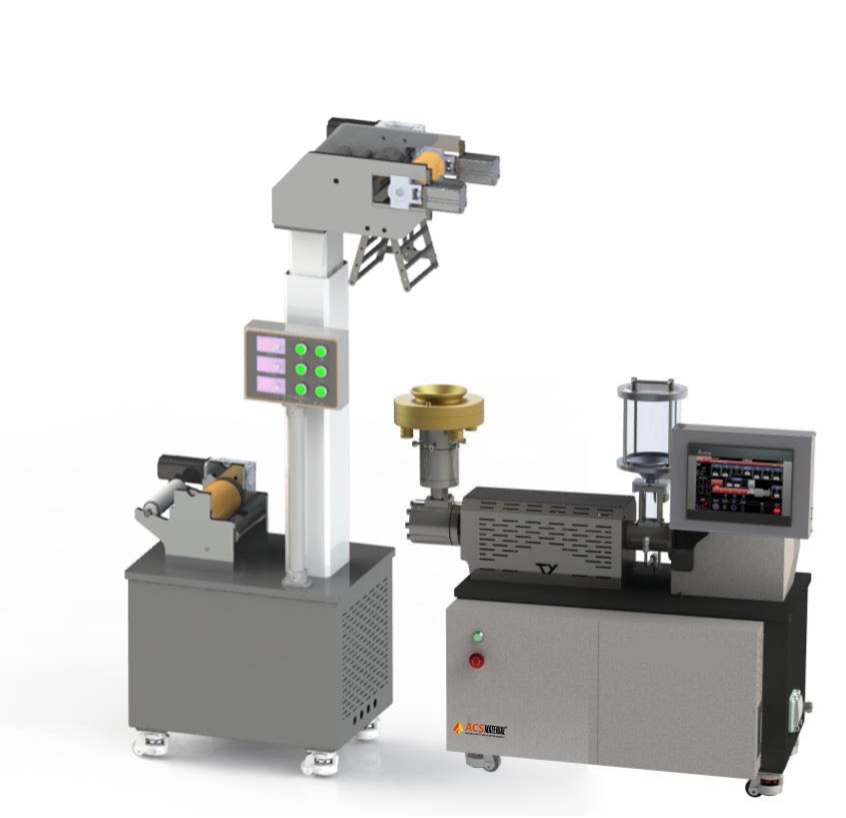

Polytevo Series Film Blowing Machine (ACS-7008FB) is a PLC-programmable laboratory film blowing machine with a 20 mm single-screw extruder (L/D 28:1, RT to 380°C), a Ø25 mm annular die and a maximum folded film width of 80 mm, used to evaluate the film-blowing feasibility of polymers and degradable materials.
In extrusion film blowing, a plastic melt is continuously extruded through a die, expanded by compressed air and cooled via a cooling ring, and variable-frequency traction produces double-fold plastic film. The ACS-7008FB is primarily used to evaluate the film-blowing feasibility of polymers and degradable materials, to assess the melt gel content within materials, and to examine the dispersibility of colored dispersions, controlled mixtures and extrudates.
Why choose the ACS-7008FB
Specifications General — ACS-7008FB
Swipe horizontally to view all columns.
| Parameter | Specification |
|---|---|
| Brand | Polytevo Series by ACS Material |
| Model | ACS-7008FB |
| SKU # | ERP7FB01 |
| Product Type | Laboratory film blowing machine (PLC programmable type) |
| Screw diameter | Ø20 mm |
| Screw L/D | 28:1 |
| Screw compression ratio | 2.3:1 |
| Screw material | 38CrMoAlA high-grade nitrided ultra-high strength alloy steel |
| Screw speed | 0.1–120 rpm (servo motor speed control) |
| Drive system | 1:16 planetary gear reducer + synchronous belt |
| Output | Approximately 5 kg/h |
| Temperature | RT to 380°C |
| Cylinder cooling device | Ball-insert cooling fan |
| Main motor | 1.5 kW |
| Electrical control system | PLC, 10-inch color touch screen and human-machine interface (HMI) control system |
| Dimensions (W × D × H) | Approx. 2150 × 660 × 2060 mm |
| Power supply | 3-phase, AC 380 V ±10%, 5.5 kW |
| Weight | Approx. 580 kg |
Film blowing auxiliary equipment Technical parameters
Swipe horizontally to view all columns.
| Parameter | Specification |
|---|---|
| Die opening diameter | Ø25 mm |
| Inflation gas | Compressed air: 0–0.8 MPa |
| Cooling gas | Blower flow rate: 65 m³/h |
| Traction roller dimensions | Ø80 × L200 mm (one rubber roller, one steel roller) |
| Reel roller dimensions | Ø100 × L200 mm (rubber roller) |
| Air-expanding shaft | Ø50 × L200 mm |
| Guide roll | Ø38 × L200 mm (stainless steel) |
| Traction winding speed | Stepless speed regulation |
| Maximum folded film width | 80 mm |
| Pulling motor | 400 W (servo motor) |
| Reel winding motor | 400 W (servo motor) |
| Fan | 370 W |
| Auxiliary power supply | AC 220 V ±10%, 1.17 kW |
Main components Die and cooling ring, traction rollers, controls and feed hopper
Swipe horizontally to view all columns.
| Component | Description |
|---|---|
| Annular die and cooling air ring | Ø25 mm annular die opening for film extrusion; the air ring delivers air uniformly around the film bubble at 360° for stable cooling and shaping. |
| Traction roller assembly | One rubber roller and one steel roller (Ø80 × L200 mm) with servo drive and uniformly controllable speed. |
| Traction and reeling operation panel | Independent pull and winding button controls. |
| Transparent feed hopper | Metal frame with a high-clarity, impact-resistant cylinder; material level and feed flow are visible in real time. |
The supplied configuration is confirmed on the quotation.
Where it fits
Frequently asked questions
What does the ACS-7008FB do?
It produces double-fold blown film from a continuously extruded melt that is expanded by compressed air, cooled via a cooling ring and drawn by variable-frequency traction. It is used to evaluate the film-blowing feasibility of polymers and degradable materials and to assess melt gel content and dispersibility.
What are the extruder specifications?
20 mm screw, L/D 28:1, compression ratio 2.3:1, screw speed 0.1–120 rpm, output approximately 5 kg/h and a temperature range of RT to 380°C.
What film size can it make?
The annular die opening is Ø25 mm and the maximum folded film width is 80 mm.
How is the machine controlled?
By a PLC with a 10-inch color touch screen and HMI system that shows zone temperatures, screw speed and traction speed; traction and winding have independent button controls.
What power supply does it need?
The main unit uses 3-phase AC 380 V ±10%, 5.5 kW; the auxiliary equipment uses AC 220 V ±10%, 1.17 kW. Compressed air of 0–0.8 MPa is used for inflation.
