Polytevo Series Single Screw Extruder

In stock
SKU# ERP7SSE

Product Detail

Polytevo Series Single Screw Extruder (ACS-7008 with a 20 mm screw and ACS-7008-30 with a 30 mm screw) is a laboratory single screw extruder with L/D 28:1 and a maximum temperature of 380°C, supplied with a cooling tank and an air-drying and pelletizing unit for mixing and processing engineering plastics, modified plastics, masterbatch and other polymers.

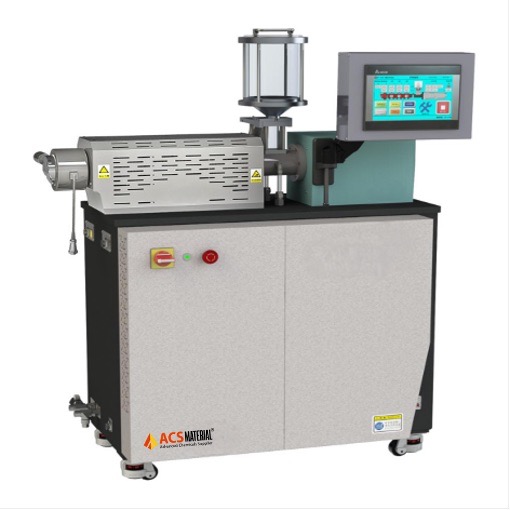

ACS-7008 laboratory single screw extruder with touch screen and feed hopper
Polytevo Series Single Screw Extruder (ACS-7008) — image shown for reference.

The ACS-7008 and ACS-7008-30 suit the mixing and processing of engineering plastics, modified plastics, masterbatch and other polymers, with the advantages of uniform dispersion, plastic coloring and filling modification. The 20 mm screw delivers 3–6 kg/h and the 30 mm screw a maximum output of 5–10 kg/h. Heating zones 1–3 and the die have a maximum temperature of 380°C under four SSR-controlled temperature zones, and a PLC control system runs the machine.

Why choose the ACS-7008 and ACS-7008-30

Two screw sizes20 mm screw (ERP7SSE1, ACS-7008) with 3–6 kg/h output, or 30 mm screw (ACS-7008-30, ERP7SSE2) with a maximum output of 5–10 kg/h; both L/D 28:1 with a 2.4:1 compression ratio.
Extrusion line with cooling and pelletizingSupplied with a cooling tank and an air-drying and pelletizing unit alongside the extruder.
Broad polymer coverageMixing and processing of engineering plastics, modified plastics, masterbatch and other polymers; uniform dispersion, plastic coloring and filling modification.
Nitrided alloy-steel screwScrew made of 38CrMoAl high strength nitride alloy steel, L/D 28:1, compression ratio 2.4:1.
Four SSR temperature zonesFour SSR-controlled temperature zones and one temperature measurement zone; heating zones 1–3 and die have a maximum temperature of 380°C.
PLC control and planetary drivePLC control system with a 1.5 kW main motor and a 1:20 planetary reducer + synchronous belt drive.
Screw diameter, ERP7SSE1
20 mm
Screw diameter, ERP7SSE2
30 mm
L/D ratio
28:1
Output, ERP7SSE1
3–6 kg/h
Output, ERP7SSE2
5–10 kg/h
Maximum temperature
380°C

Specifications General — ACS-7008 and ACS-7008-30

Swipe horizontally to view all columns.

ParameterSpecification
BrandPolytevo Series by ACS Material
ModelsACS-7008 (20 mm screw) / ACS-7008-30 (30 mm screw)
SKU #ERP7SSE1 (ACS-7008, 20 mm) / ERP7SSE2 (ACS-7008-30, 30 mm)
Product TypeLaboratory single screw extruder
Screw L/D28:1
Screw compression ratio2.4:1
Screw material38CrMoAl high strength nitride alloy steel
Maximum temperature380°C (heating zones 1–3 and die)
Heating methodFour SSR-controlled temperature zones and one temperature measurement zone
Cooling systemBall-insert cooling fan
Main motor power1.5 kW
Drive system1:20 planetary reducer + synchronous belt
Air-drying and pelletizing unit powerAC 220 V ±10%, 800 W
Cooling tank weight60 kg
Pelletizing unit size (L × W × H) and weight590 × 550 × 1100 mm; 79 kg

Model comparison 20 mm vs 30 mm screw

Swipe horizontally to view all columns.

ParameterACS-7008 (20 mm)ACS-7008-30 (30 mm)
SKU #ERP7SSE1ERP7SSE2
Screw diameter20 mm30 mm
Output3–6 kg/h5–10 kg/h (maximum output)
Melt pressure measurementMeasuring range 0.1–50 MPa; measuring accuracy 0.5% FSUpper measurement limit: 50 MPa; measuring accuracy 0.5% FS
Barrel heating power5 kW6 kW
Main machine power supplyAC 380 V ±10%, 6,500 W total powerAC 380 V ±10%, 7,500 W total power
Machine size (L × W × H)1050 × 570 × 1390 mm1450 × 570 × 1390 mm
Main machine weight300 kg380 kg
ACS-7008 single screw extrusion line with cooling trough and pelletizer
Polytevo Series Single Screw Extruder (ACS-7008, extrusion line) — image shown for reference.

ACS-7008 (20 mm) additional specifications Screw speed

Swipe horizontally to view all columns.

ParameterSpecification
Screw speed0.1–100 rpm

System components Cooling tank and pelletizing unit

Swipe horizontally to view all columns.

ComponentDescription
Cooling tankWater cooling tank (water tank length 1000 mm, can be customized); weight 60 kg.
Air-drying and pelletizing unitPelletizing unit, 590 × 550 × 1100 mm; weight 79 kg; power AC 220 V ±10%, 800 W.

The supplied configuration is confirmed on the quotation.

Package contents

Supplied with the instrumentQty
Single screw extruder1 set
Cooling tank1 set
Air-drying and pelletizing unit1 set
PLC control system1 set
Accessories1 set
Technical data1 set

External utilities, where required, are supplied by the user. Package contents reflect the current published configuration; the itemized bill of materials is confirmed on the quotation.

Where it fits

For mixing and processing engineering plastics, modified plastics, masterbatch and other polymers in the laboratory, with uniform dispersion, plastic coloring and filling modification.

Frequently asked questions

Which materials can the extruder process?

The ACS-7008 and the ACS-7008-30 are suitable for mixing and processing engineering plastics, modified plastics, masterbatch and other polymers, with uniform dispersion, plastic coloring and filling modification.

What is the difference between the 20 mm and 30 mm versions?

Screw diameter (20 mm vs 30 mm), output (3–6 kg/h vs a maximum of 5–10 kg/h), barrel heating power (5 kW vs 6 kW), total power (6,500 W vs 7,500 W), machine size (1050 × 570 × 1390 mm vs 1450 × 570 × 1390 mm) and weight (300 kg vs 380 kg). L/D, compression ratio, maximum temperature and the 1.5 kW main motor are the same.

What is the maximum temperature?

Heating zones 1–3 and the die have a maximum temperature of 380°C. The system has four SSR-controlled temperature zones and one temperature measurement zone.

What power supply does it need?

The main machine uses AC 380 V ±10% (6,500 W total power for the 20 mm version, 7,500 W for the 30 mm version); the air-drying and pelletizing unit uses AC 220 V ±10%, 800 W.

What is supplied with the machine?

One set each of the single screw extruder, cooling tank, air-drying and pelletizing unit, PLC control system, accessories and technical data.
