Violet Phosphorus
Product Detail
Violet phosphorus has both high carrier mobility and anisotropy, and has the characteristics of broad-band gap, stability and easy stripping. Compared with black phosphorus, violet phosphorus is more promising in photons, electronics and semiconductors.
1. Characterization
|
Product name |
Violet Phosphorus Crystal |
Violet Phosphorus Powder |
|
Appearance |
Crystal with metallic luster |
Violet Phosphorus powders were ground by crystal, showing purple-red or red-brown flakes or powder crystals with metallic luster. |
|
Package |
Quartz tubes full of inert gas |
|
|
Purity |
＞99wt% (EDS) |
|
Fig.1 SEM images of Violet Phosphorus Crystal
Fig.2 SEM images of Violet Phosphorus Crystal

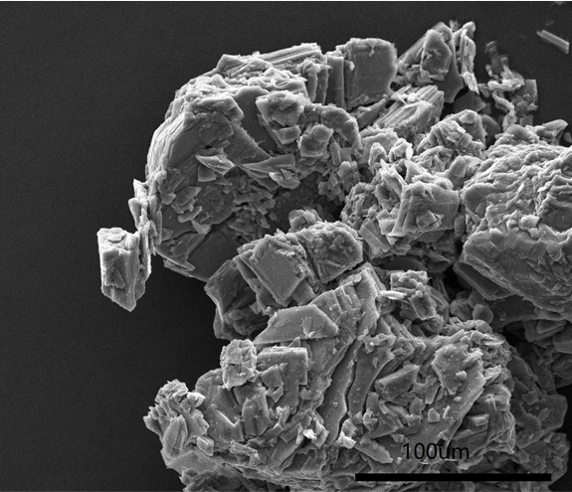

Fig.3 SEM images of Violet Phosphorus Powder
Fig.4 SEM images of Violet Phosphorus Powder
Fig.5 Raman spectrum of Violet Phosphorus Crystal
Fig.6 XRD spectrum of Violet Phosphorus Powder
Table 1 Element analysis of Ti3C2Tx (EDS)
|
（Element） |
（Wt %） |
（At %） |
|
P K |
99.34 |
99.83 |
|
Sn L |
0.38 |
0.10 |
|
I L |
0.28 |
0.07 |
Note: This is a single measurement data, allowing floating between different batches.
2. Applications
Photons, electronics and semiconductors applications, etc.
