Graphene Nanoplatelets (1-5nm)

As low as $186.00 $0.00
In stock
SKU# GNNP02

Thickness: 1-5 nm

Product Detail

Graphene nanoplatelets that have an average thickness of 1-5 nanometers have proved their worth by displaying positive chemical properties and high electrical conductivity. While many other conductive additives sacrifice diminishing aesthetic and mechanical properties in the base resin in exchange for being highly conductive, graphene nanoplatelets have displayed immense stiffness and strength while also remaining highly conductive. This means that products using graphene nanoplatelets will neither scratch nor burn easily. For multifunctional nanoparticles that improve a variety of properties, trust graphene nanoplatelets to serve you well.

CAS No.: 7782-42-5

Types of Graphene Nanoplatelets

Product No. Product Name Thickness Diameter Size
GNNP0051 Graphene Nanoplatelets (2-10nm thick)  2-10nm  2-7µm  50g
GNNP0052 500g
GNNP01A5 Graphene Nanoplatelets (1-2nm thick) 1-2nm 2-3µm 500mg
GNNP0201 Graphene Nanoplatelets (1-5nm thick)   1-5nm   ~5µm   1g
GNNP0205 5g
GNNP0211 10g



1. Preparation Method

 Interlayer catalytic cleavage method

2. Characterizations

Thickness

1-5 nm

Flake Diameter

~5 μm

BET Surface Area

90-130 m2/g

Appearance

Black powder

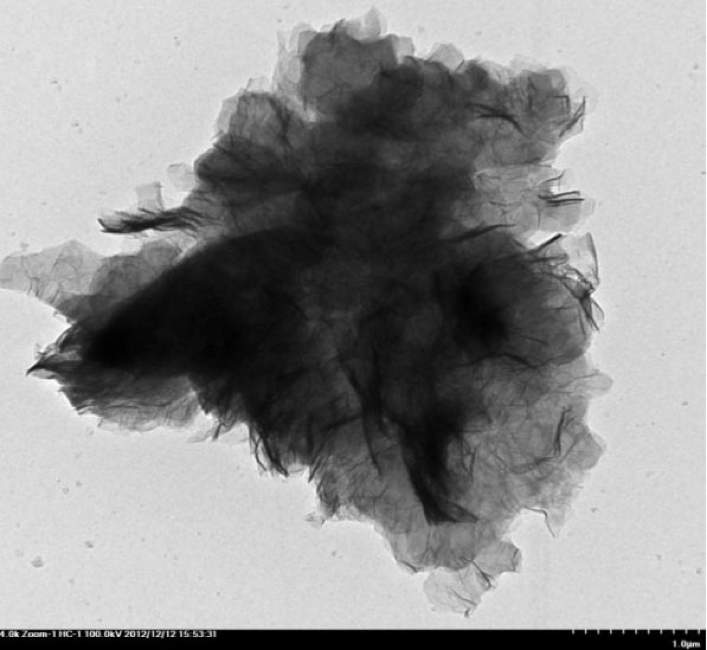

TEM Image of ACS Material Graphene nanoplatelets (1-5nm)

Typical TEM Image of ACS Material Graphene nanoplatelets (1-5nm)



3. Applications

  •  Use as a high performance additive for composites with PPO‚ POM ‚PPS‚ PC‚ ABS‚ PP‚ PE‚ PS‚ Nylon and rubbers.
  •  Can improve composites tensile strength‚ stiffness‚ corrosion resistance‚ abrasion resistance and anti-static electricity and lubricant properties.
  •  For all mechanical properties modifications‚ typical amounts are about 2-6wt%
  •  For conductivity modification‚ typical amounts are about 2-8wt%

Application Instruction

  • Mix Graphene nanoplatelets with the target polymer using a double-roller‚ banburymixer‚ twin screw extruder or other mixer commonly used in the plastics industry. For better dispersion of the product powder in the target polymer matrix‚ some surface modifiers‚ such as silane coupling agent‚ titanate coupling agent or aluminate coupling agent‚ etc are recommended to use before mixing the powder with plastics resin.

Attention

  • The effectiveness of modification depends very much on the type and the amount of surface modifiers used. We would be delighted to speak with you about what works best for your application.  Please call (US) 866-227-0656



Disclaimer: ACS Material LLC believes that the information on our website is accurate and represents the best and most current information available to us. ACS Material makes no representations or warranties either express or implied, regarding the suitability of the material for any purpose or the accuracy of the information listed here. Accordingly, ACS Material will not be responsible for damages resulting from use of or reliance upon this information.

Q&A

Q: What are the thermal stability of Graphene Nanoplatelets at ambient pressure?

A: GNPs will not oxide below 600 Celsius‚ and they are very stable.

Research Citations of ACS Material Products

  1. Xu, Peng, et al. “Load transfer and mechanical properties of chemically reduced graphene reinforcements in polymer composites.” Nanotechnology, vol. 23, no. 50, 2012, p. 505713., doi:10.1088/0957-4484/23/50/505713.
  2. Zhang, Xueping, et al. “Preparation and characterization of Pt nanoparticles supported on modified graphite nanoplatelet using solution blending method.” International Journal of Hydrogen Energy, vol. 38, no. 21, 2013, pp. 8909–8913., doi:10.1016/j.ijhydene.2013.05.038.
  3. Xia, Gaoqiang, et al. “Highly uniform platinum nanoparticles supported on graphite nanoplatelets as a catalyst for proton exchange membrane fuel cells.” International Journal of Hydrogen Energy, vol. 39, no. 28, 23 Sept. 2014, doi:10.1016/j.ijhydene.2013.08.033.
  4. Li, Xiguang, et al. “Forced assembly by multilayer coextrusion to create oriented graphene reinforced polymer nanocomposites.” Polymer, vol. 55, no. 1, 2014, pp. 248–257., doi:10.1016/j.polymer.2013.11.025.
  5. Wang, Xuebin, et al. “Three-Dimensional strutted graphene grown by substrate-Free sugar blowing for high-Power-Density supercapacitors.” Nature Communications, vol. 4, 2013, doi:10.1038/ncomms3905.
  6. Luan, Xinning, and Ying Wang. “Thermal Annealing and Graphene Modification of Exfoliated Hydrogen Titanate Nanosheets for Enhanced Lithium-Ion Intercalation Properties.” Journal of Materials Science & Technology, vol. 30, no. 9, 2014, pp. 839–846., doi:10.1016/j.jmst.2014.07.003.
  7. Yilmazoglu, O., et al. “Photocathodes based on graphene nanoplatelet emitters on semi-Insulating GaAs photoswitch.” 2014 27th International Vacuum Nanoelectronics Conference (IVNC), 2014, doi:10.1109/ivnc.2014.6894740.
  8. Swiderska-Mocek, Agnieszka, and Ewelina Rudnicka. “Lithium–sulphur battery with activated carbon cloth-Sulphur cathode and ionic liquid as electrolyte.” Journal of Power Sources, vol. 273, 2015, pp. 162–167., doi:10.1016/j.jpowsour.2014.09.020.
  9. Johnson, Drew W. “Characterizations of Nanofluid Heat Transfer Enhancements.” June 2013, doi:10.21236/ada590127.
  10. Wehnert, F., et al. “Design of multifunctional adhesives by the use of carbon nanoparticles.” Journal of Adhesion Science and Technology, vol. 29, no. 17, 2015, pp. 1849–1859., doi:10.1080/01694243.2015.1014536.
  11. Li, Mingqi, et al. “Fabrication of graphene nanoplatelets-Supported SiO x -Disordered carbon composite and its application in lithium-Ion batteries.” Journal of Power Sources, vol. 293, 2015, pp. 976–982., doi:10.1016/j.jpowsour.2015.06.019.
  12. Zhang, Genlei, et al. “Small-Sized and highly dispersed Pt nanoparticles loading on graphite nanoplatelets as an effective catalyst for methanol oxidation.” Nanoscale, vol. 7, no. 22, 2015, pp. 10170–10177., doi:10.1039/c5nr01882j.
  13. Filippidou, M.K., et al. “A flexible strain sensor made of graphene nanoplatelets/Polydimethylsiloxane nanocomposite.” Microelectronic Engineering, vol. 142, 2015, pp. 7–11., doi:10.1016/j.mee.2015.06.007.
  14. Zhang, Genlei, et al. “Facile synthesis of graphene nanoplate-Supported porous Pt–Cu alloys with high electrocatalytic properties for methanol oxidation.” Journal of Materials Chemistry A, vol. 4, no. 9, 2016, pp. 3316–3323., doi:10.1039/c5ta09937d.
  15. Nieto, Andy, et al. “Graphene reinforced metal and ceramic matrix composites: a review.” International Materials Reviews, vol. 62, no. 5, 2016, pp. 241–302., doi:10.1080/09506608.2016.1219481.
  16. Rashed, A.E., and A.A. El-Moneim. “Two steps synthesis approach of MnO 2 /Graphene nanoplates/Graphite composite electrode for supercapacitor application.” Materials Today Energy, vol. 3, 2017, pp. 24–31., doi:10.1016/j.mtener.2017.02.004.
  17. Dai, Shengdong, et al. “Biothiol-Mediated synthesis of Pt nanoparticles on graphene nanoplates and their application in methanol electrooxidation.” Journal of Materials Science, vol. 53, no. 1, Jan. 2017, pp. 423–434., doi:10.1007/s10853-017-1508-5.
  18. Piszczyk, Łukasz, et al. “Elastic polyurethane foams containing graphene nanoplatelets.” Advances in Polymer Technology, 2017, doi:10.1002/adv.21819.
  19. Yoo, Eunjoo, and Haoshen Zhou. “Carbon Cathodes in Rechargeable Lithium-Oxygen Batteries Based on Double-Lithium-Salt Electrolytes.” ChemSusChem, vol. 9, no. 11, 2016, pp. 1249–1254., doi:10.1002/cssc.201600177.
  20. Talati, Chetasi, and Eric Padron. “An Exercise in Extrapolation: Clinical Management of Atypical CML, MDS/MPN-Unclassifiable, and MDS/MPN-RS-T.” Current Hematologic Malignancy Reports, vol. 11, no. 6, 2016, pp. 425–433., doi:10.1007/s11899-016-0350-1.
  21. Gutić, Sanjin. “Primena materijala na bazi grafena u elektrokatalizi i skladištenju energije.” 12 Sept. 2016.
  22. Nasser, Ali, et al. “Enhancing stability of Co gradient in nano-Structured WC&Ndash;Co functionally graded composites using graphene additives.” Journal of the Ceramic Society of Japan, vol. 124, no. 12, 2016, pp. 1191–1198., doi:10.2109/jcersj2.16148.
  23. Liu, Biwu, et al. “Iron oxide nanozyme catalyzed synthesis of fluorescent polydopamine for light-up Zn2 Detection.” Nanoscale, vol. 8, no. 28, 2016, pp. 13620–13626., doi:10.1039/c6nr02584f.
  24. Brcic, Haris. “Investigation of the Rheological Properties of Asphalt Binder Containing Graphene Nanoplatelets.” NTNU, 2016.
  25. Gabriel Hunter MESA. Graphene enhanced piezoelectric article of manufacture, system and method of energy generator and storage cell .
  26. Strankowski, Michał, et al. “Morphology, Mechanical and Thermal Properties of Thermoplastic Polyurethane Containing Reduced Graphene Oxide and Graphene Nanoplatelets.” Materials, vol. 11, no. 1, June 2018, p. 82., doi:10.3390/ma11010082.
  27. Köckritz, Tilo, et al. “Integration of carbon allotropes into polydimethylsiloxane to control the electrical conductivity for novel fields of application.” International Journal of Adhesion and Adhesives, 2017, doi:10.1016/j.ijadhadh.2017.12.001.
  28. Kumar, Pravir, et al. “Strength of Mg–3%Al alloy in presence of graphene nano-Platelets as reinforcement.” Materials Science and Technology, 2018, pp. 1–10., doi:10.1080/02670836.2018.1424380.
  29. Negro, E., et al. “Graphene-Supported Au-Ni Carbon Nitride Electrocatalysts for the ORR in Alkaline Environment.” ECS Transactions, vol. 72, no. 29, 2016, pp. 1–14., doi:10.1149/07229.0001ecst.
  30. El-Kady, Omayma, Hossam M. Yehia, and F. Nouh. "Preparation and characterization of Cu/(WC-TiC-Co)/graphene nano-composites as a suitable material for heat sink by powder metallurgy method." International Journal of Refractory Metals and Hard Materials 79 (2019): 108-114.
  31. Ranjan, Rachit, Nirmal Kumar Singh, Anand Prakash Jaiswal, and Vivek Bajpai. "Metal matrix nano composites using graphene nano platelets indented on copper particles in aluminium matrix." Indent 60 (2018): 600rpm.
  32. Tapasztó, Orsolya, Viktor Puchy, Zsolt E. Horváth, Zsolt Fogarassy, Eszter Bódis, Zoltán Károly, Katalin Balázsi, Jan Dusza, and Levente Tapasztó. "The effect of graphene nanoplatelet thickness on the fracture toughness of Si3N4 composites." Ceramics International (2018).
  33. Lazarević-Pašti, Tamara, Vladan Anićijević, Miloš Baljozović, Dragana Vasić Anićijević, Sanjin Gutić, Vesna Vasić, Natalia V. Skorodumova, and Igor A. Pašti. "The impact of the structure of graphene-based materials on the removal of organophosphorus pesticides from water." Environmental Science: Nano (2018).
  34. Butmee, Preeyanut, Gamolwan Tumcharern, Pranorm Saejueng, Dalibor Stankovic, Astrid Ortner, Juthamas Jitcharoen, Kurt Kalcher, and Anchalee Samphao. "A direct and sensitive electrochemical sensing platform based on ionic liquid functionalized graphene nanoplatelets for the detection of bisphenol A." Journal of Electroanalytical Chemistry 833 (2019): 370-379.
  35. Karimi, Samira, Ismaeil Ghasemi, and Foroud Abbassi-Sourki. "A study on the crystallization kinetics of PLLA in the presence of Graphene Oxide and PEG-grafted-Graphene Oxide: Effects on the nucleation and chain mobility." Composites Part B: Engineering 158 (2019): 302-310.
  36. Boonkaew, Suchanat, Sudkate Chaiyo, Sakda Jampasa, Sirirat Rengpipat, Weena Siangproh, and Orawon Chailapakul. "An origami paper-based electrochemical immunoassay for the C-reactive protein using a screen-printed carbon electrode modified with graphene and gold nanoparticles." Microchimica Acta 186, no. 3 (2019): 153.
  37. Konecka, Kinga, Mariola Brycht, Andrzej Leniart, and Sławomira Skrzypek. "Development and first application of the edge plane pyrolytic graphite electrode modified with graphene nanoplatelets for highly sensitive voltammetric determination of oxolinic acid." Journal of Electroanalytical Chemistry 826 (2018): 76-83.
  38. Yehia, Hossam M., F. Nouh, and Omayma El-Kady. "Effect of graphene nano-sheets content and sintering time on the microstructure, coefficient of thermal expansion, and mechanical properties of (Cu/WC–TiC-Co) nano-composites." Journal of Alloys and Compounds 764 (2018): 36-43.
  39. Sun, Yanyan, Ilya Sinev, Wen Ju, Arno Bergmann, Sören Dresp, Stefanie Kühl, Camillo Spöri et al. "Efficient electrochemical hydrogen peroxide production from molecular oxygen on nitrogen-doped mesoporous carbon catalysts." ACS Catalysis 8, no. 4 (2018): 2844-2856.
  40. Piszczyk, Łukasz, Paulina Kosmela, and Michał Strankowski. "Elastic polyurethane foams containing graphene nanoplatelets." Advances in Polymer Technology 37, no. 6 (2018): 1625-1634.
  41. Alam, Fahad, M. Choosri, Tejendra K. Gupta, K. M. Varadarajan, D. Choi, and S. Kumar. "Electrical, mechanical and thermal properties of graphene nanoplatelets reinforced UHMWPE nanocomposites." Materials Science and Engineering: B 241 (2019): 82-91.
  42. Ranjan, Rachit, Nirmal Kumar Singh, Anand Prakash Jaiswal, and Vivek Bajpai. "Metal matrix nano composites using graphene nano platelets indented on copper particles in aluminium matrix." Indent 60 (2018): 600rpm.
  43. Gupta, Tejendra K., M. Choosri, K. M. Varadarajan, and S. Kumar. "Self-sensing and mechanical performance of CNT/GNP/UHMWPE biocompatible nanocomposites." Journal of materials science 53, no. 11 (2018): 7939-7952.
  44. Anas, Muhammad, Muhammad Ali Nasir, Zeeshan Asfar, Saad Nauman, Mehmet Akalin, and Faiz Ahmad. "Structural health monitoring of GFRP laminates using graphene-based smart strain gauges." Journal of the Brazilian Society of Mechanical Sciences and Engineering 40, no. 8 (2018): 397.
  45. Negro, Enrico, Antoine Bach Delpeuch, Keti Vezzu, Graeme Nawn, Federico Bertasi, Alberto Ansaldo, Vittorio Pellegrini et al. "Toward Pt-free anion-exchange membrane fuel cells: Fe–Sn carbon nitride–graphene core–shell electrocatalysts for the oxygen reduction reaction." Chemistry of Materials 30, no. 8 (2018): 2651-2659.
  46. Strankowski, Michał. "Effect of Variation of Hard Segment Content and Graphene-Based Nanofiller Concentration on Morphological, Thermal, and Mechanical Properties of Polyurethane Nanocomposites." International Journal of Polymer Science 2018 (2018).
  47. Chen, Junjie, and Jiecheng Han. "A combination of graphene and graphene nanoplatelets: An effective way to improve thermal conductivity for polymers." Results in Physics 15 (2019): 102803.
  48. Phuong, M. T., P. V. Trinh, N. V. Tuyen, N. N. Dinh, P. N. Minh, N. D. Dung, and B. H. Thang. "Effect of Graphene Nanoplatelet Concentration on the Thermal Conductivity of Silicone Thermal Grease." Journal of Nano-and Electronic Physics 11, no. 5 (2019).
  49. Mai, Phuong Thi, Tuan Anh Bui, Hau Van Tran, Trinh Van Pham, Dinh Nang Nguyen, Minh Ngoc Phan, and Thang Hung Bui. "Application of Graphene Silicone Grease in heat dissipation for the Intel Core i5 Processor." JOIV: International Journal on Informatics Visualization 3, no. 2-2 (2019): 222-226.
  50. Rao, YuanQiao, Ping Cai, Kevin J. Cann, F. David Hussein, Wesley R. Mariott, and Phuong A. Cao. "Supported catalyst with improved flowability." U.S. Patent Application 16/357,699, filed July 18, 2019.
  51. Zrinski, Ivana, Kingkan Pungjunun, Sanja Martinez, Janez Zavašnik, Dalibor Stanković, Kurt Kalcher, and Eda Mehmeti. "Evaluation of phenolic antioxidant capacity in beverages based on laccase immobilized on screen-printed carbon electrode modified with graphene nanoplatelets and gold nanoparticles." Microchemical Journal 152 (2020): 104282.
  52. Yaqoob, Basit, Riffat Asim Pasha, Mokhtar Awang, Muhammad Ali Nasir, Azhar Hussain, and Kamran Nazir. "Comparison of Mixing Strategies and Hybrid Ratio Optimization for Mechanical Properties Enhancement of Al-CeO 2-GNP’s Metal Matrix Composite Fabricated by Friction Stir Processing." Metallography, Microstructure, and Analysis 8, no. 4 (2019): 534-544.
  53. ARAÚJO, Ivana dos Santos. "Desenvolvimento e caracterização de revestimentos nanocompósitos de Ni-Grafeno com propriedades anticorrosivas." Master's thesis, Universidade Federal de Pernambuco, 2019.
