  • Plasma Surface Activation: How It Improves Wettability & Adhesion

    Jul 18, 2026 | ACS MATERIAL LLC

    Try to print on polypropylene, glue polyethylene, or coat PTFE, and you meet the quiet villain of manufacturing: a low-energy surface. The ink beads, the adhesive peels, the coating fisheyes — not because the materials are bad, but because their surfaces refuse to be wetted. Plasma surface activation fixes this in seconds — no solvent bath, and in qualified processes it can reduce or replace primers: a brief exposure to cold plasma grafts polar chemical groups onto the top few nanometers, surface energy climbs, water and adhesives spread instead of beading, and bonds that used to fail now hold. This guide explains the physics — contact angle, surface energy, and what the plasma actually does to the outermost atomic layers — the one catch everyone must plan around (the treatment ages), and how to choose between a DBD cell, a plasma jet, and a low-pressure chamber for your parts.

    In one paragraph: many low-surface-energy polymers — polyethylene, polypropylene, and fluoropolymers above all — present predominantly nonpolar surface chemistry, so liquids bead up — a high water contact angle is the tell. Cold plasma bombards the surface with energetic electrons, ions, radicals, and UV photons that break surface bonds and graft polar oxygen- and nitrogen-containing groups into the top 1–10 nm; surface energy rises, the contact angle collapses, and wetting, printing, painting, and bonding improve dramatically — while the bulk material is untouched. The effect is real but perishable: hydrophobic recovery lets chains reorient and bury the new polar groups over hours to weeks, so the rule of practice is treat, then bond, promptly. Delivery hardware spans dielectric-barrier discharge cells for batch treatment, atmospheric plasma jets for in-line and local treatment, and low-pressure chambers for uniform, three-dimensional coverage.

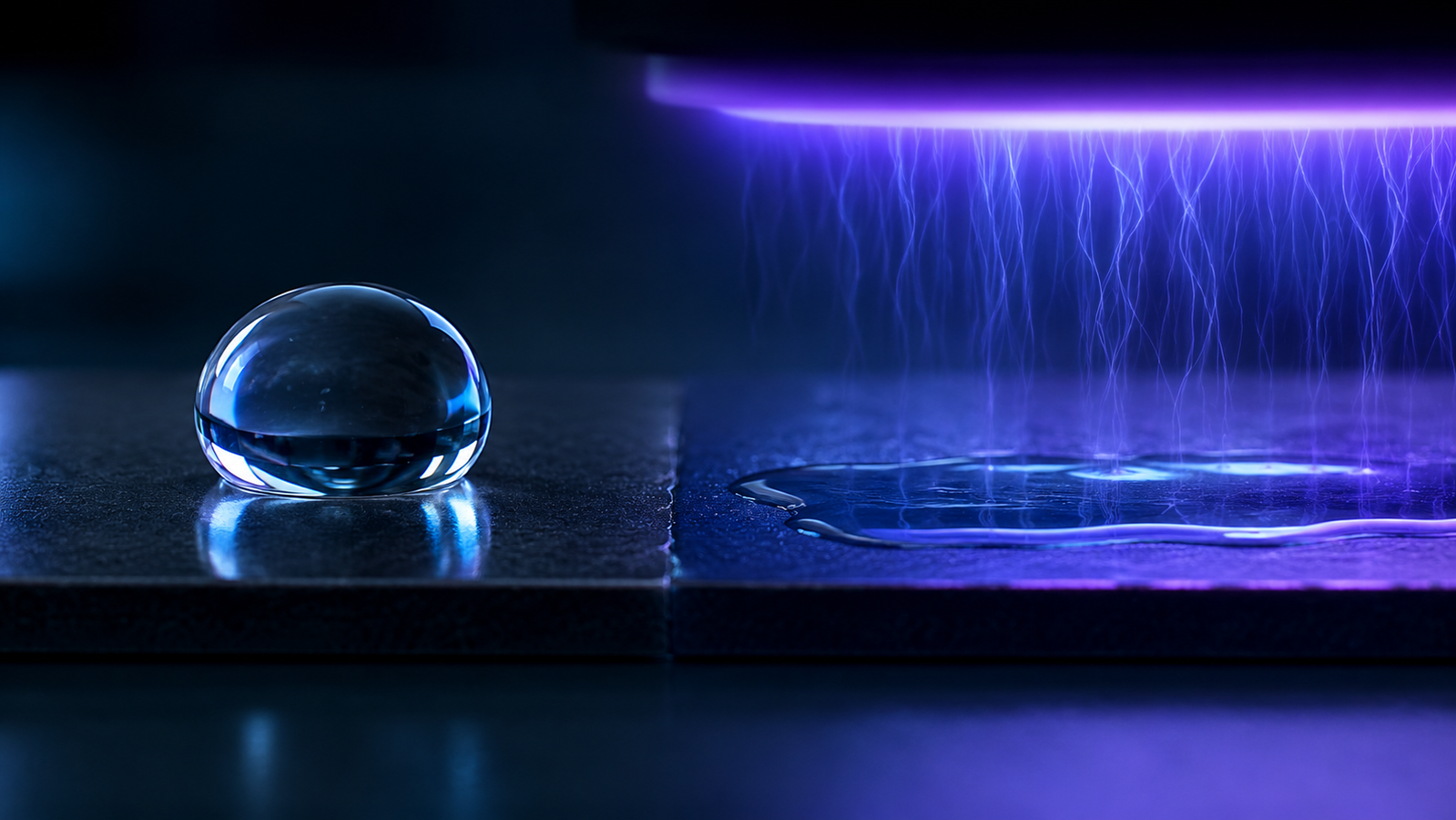

    Water droplet spreading on a plasma-activated polymer surface beside a beading droplet on the untreated side, with a violet cold plasma treating the surface
    Before and after activation: the same water, two surface energies. Schematic, not to scale.

    1.  Why surfaces refuse to bond

    Whether a liquid spreads on a solid or pulls into a bead is an energy negotiation, and the solid's side of the negotiation is its surface free energy. Polyethylene, polypropylene, and fluoropolymers present predominantly nonpolar C–H and C–F chemistry at their surface, so their surface energy is low — while more polar engineering plastics such as PET, polyamide, or polycarbonate start higher and respond differently to the same treatment — and water, inks, paints, and adhesives (all far more polar) minimize contact with them. The visible symptom is the contact angle: on a pristine polyolefin, a water drop stands tall at 90° or more; on a high-energy surface it collapses toward a film. Young's picture of the contact line, refined by Owens and Wendt into the standard method of splitting surface energy into dispersive and polar components — from contact angles of two or more probe liquids of different polarity — turned that symptom into a number every coating lab still uses.1

    The trouble is that adhesion lives or dies at this interface. An adhesive that cannot wet a surface cannot grip it: it bridges over the microscopic topography instead of flowing into it, contact area collapses, and the joint fails at a fraction of its potential. Low surface energy is not a defect to sand off — it is chemistry, uniform through the bulk — so mechanical roughening and solvent wiping only go so far. What is needed is a way to change the chemistry of the outermost nanometers only, without touching the bulk properties that made the polymer worth choosing. That is precisely the job description of a cold, non-thermal plasma, whose energetic electrons drive surface chemistry while the gas — and the part — stays cool.2,3

    2.  The activation lab

    The simulator below puts the whole story on two sliders. Push the plasma dose up and watch the water droplet respond — same volume, spreading wider and flatter as polar groups accumulate and the contact angle falls. Then advance time since treatment and watch the aging clock quietly claw part of the gain back.

    3.  What the plasma actually does

    A cold plasma is a reactive cocktail: energetic electrons, ions, neutral radicals, excited metastables, and ultraviolet photons, all impinging on whatever surface it touches.4,5 On a polymer, the sequence runs in two beats. First, bond scission: electron impact, ion bombardment, and VUV photons crack surface C–H and C–C bonds, creating surface radicals — open valences waiting for a partner. Second, grafting: those radicals react with oxygen (or nitrogen) species from the plasma or the ambient air, installing polar functional groups — hydroxyl, carbonyl, carboxyl, amine — directly into the polymer's outermost chains. The classic critical review of the field by Liston, Martinu, and Wertheimer laid out these interaction channels — particle bombardment, UV photochemistry, and surface reactions — and they remain the working picture.3

    Three properties make this nearly ideal as an industrial treatment. It is shallow: the strongest chemical modification is usually concentrated within the outermost nanometers, so qualified low-dose treatments generally preserve bulk mechanical, optical, and electrical properties — though excessive dose can still etch, crosslink, roughen, or heat the surface.6 It is dry and solvent-free: no primers, no VOC handling, no drying step. And it is cold: because the electron temperature far exceeds the gas temperature in these discharges, even heat-sensitive films and electronics survive — the same two-temperature physics that defines every non-thermal discharge on this site.2 Activation also commonly removes light organic contamination in the same exposure — the same oxidative chemistry volatilizes the thin adventitious layer — though gross oils, particles, and mold-release residues still call for a dedicated pre-clean first.3,6

    4.  From wetting to adhesion

    Wetting is the visible half of the payoff. As polar groups accumulate, the polar component of surface energy climbs, the water contact angle falls from the 90s into the 30s or below, and test inks of increasing dyne level suddenly wet out — the shop-floor way of watching surface energy rise. The deeper half is adhesion. A wettable surface lets the adhesive or coating flow into intimate molecular contact across the full real area; the grafted polar groups then participate directly — hydrogen bonding, acid–base interactions, and in favorable systems covalent links into the curing adhesive. Peel strengths on plasma-treated polyolefins routinely rise severalfold over untreated controls, which is why corona and plasma treatment sit inline on virtually every film-printing and laminating line on earth.3,7

    Two honest boundaries keep expectations calibrated. First, more treatment is not monotonically better: overtreatment can over-oxidize the surface into low-molecular-weight fragments — a weak boundary layer of the plasma's own making — so peel strength versus dose typically rises, plateaus, and can decline. Dose windows are found, not assumed. Second, activation raises the surface's contribution to a joint; it cannot rescue a poorly chosen adhesive, a contaminated bond line, or a joint designed to peel. Plasma is the enabling step, not the whole bond.3

    5.  The aging clock

    Now the catch. A freshly activated surface is a thermodynamically uncomfortable object: polar groups pinned into a nonpolar matrix, facing air. Polymer chains near the surface retain segmental mobility, and over hours to weeks they reorient, rotating polar groups inward and burying them below the outermost layer — while low-molecular-weight fragments migrate. The contact angle creeps back up. This is hydrophobic recovery, documented quantitatively since the classic aging studies of oxygen-plasma-treated polyolefins by Morra and co-workers, and it is the single most important process fact in activation practice.8

    The practical consequences are three. Bond promptly: the highest and most reproducible adhesion comes from bonding, coating, or printing within hours of treatment — the sim's second slider is the discipline in miniature. Recovery is partial, not total: treated surfaces rarely relax fully back to the untreated state, and storage conditions (temperature, humidity, contact materials) set the rate — cool, clean storage slows the clock. Re-treatment works: an aged surface can simply be activated again; the process is repeatable. Teams that treat on Friday and bond on Monday are running an uncontrolled experiment on this clock — measure your own material's recovery curve once, then set the process window with data.8,3

    6.  Dose, uniformity & control

    Activation is a dose-controlled process. As a first approximation dose scales with delivered energy per unit area — power times residence time — but the chemically effective dose also depends on species flux, gas composition, working distance, scan overlap, and the substrate's own response. On the power side, the honest number for a barrier-discharge treater is the energy per cycle from a charge–voltage Lissajous measurement — the standard since Manley's classic analysis — not the generator's nameplate setting.9,10 On the time side, line speed or scan speed sets residence, and for pulsed and burst-modulated supplies the duty cycle becomes a precision dose knob: our guide to frequency and duty-cycle tuning covers exactly how repetition rate and burst envelope translate into delivered dose without extra gas heating. Diagnostics close the loop: contact-angle or dyne-ink checks at the line, and XPS when the chemistry itself must be verified.11,12

    Uniformity is the other axis. A planar DBD can treat large areas between its barriers, with uniformity that depends on discharge mode, electrode flatness, gap, and gas flow; a jet treats a spot or a stripe and relies on motion for coverage; surface-discharge arrangements extend barrier treatment to wide webs.13,14 The choice of gas matters too: air and oxygen-containing mixtures graft oxygen functionalities cheaply; nitrogen-based chemistries install amines valued in biointerface work; noble-gas jets carry the discharge to the part and let ambient air supply the oxygen at the treatment zone.15,16

    7.  Measuring activation: contact angle, dyne pens & surface energy

    Three tiers of measurement cover activation practice. A single water contact angle is the fast, daily wettability indicator — but it is not a complete surface-energy measurement: Owens–Wendt analysis needs contact angles from at least two probe liquids of different polarity to separate the polar and dispersive components, and roughness, liquid parameters, and technique all shift the numbers.1 Dyne pens and inks turn the same physics into a go/no-go line check — the highest dyne level that wets out brackets the surface energy in seconds. And when the chemistry itself must be verified — which groups, how much oxygen — XPS is the development-lab ground truth. Use the angle daily, the inks at the line, and the spectrometer when qualifying the recipe.

    Different materials also demand different recipes — the same oxygen dose that wakes up polypropylene can overtreat an already-polar polyester:

    MaterialTypical challengeCommon treatment directionMain caveat
    PP / PEVery low surface energyAir or O2 plasmaHydrophobic recovery
    PTFE & fluoropolymersStrong C–F bondsMore aggressive or specialty chemistryEtching and fast aging
    PET / PC / PAAlready moderately polarLower dose, verify gainOvertreatment
    Glass / metalsOrganic contaminationCleaning + hydroxylationOxide-state changes

    8.  Choosing the hardware

    Three delivery formats cover nearly all activation work. A dielectric-barrier discharge cell — the benchtop DBD experiment device driven by a CTP-2000K supply — treats flat samples and films batchwise with excellent uniformity and full parameter control, the natural R&D and process-development platform. An atmospheric plasma jet — the plasma jet generator for points and contours, the wide-width jet for stripes and panels — brings the plasma to the part in open air, no chamber required; our plasma jet guide covers plume physics, working distance, and the focused-versus-wide decision in depth. And a low-pressure chamber discharge wraps uniform glow around three-dimensional parts and porous materials that line-of-sight treatment cannot reach — the territory of the low-pressure supply (CTP-2000K/L) with a suitable vessel.17,18

    Activation earned its industrial standing across films, automotive polymers, composites, and printed packaging, and the same surface chemistry underpins research frontiers from biomaterial interfaces to plasma medicine and agriculture — fields with their own purpose-built instruments and literatures.6,19,20,21,22,23,24 One clarification for completeness: ACS Material systems are laboratory and industrial research equipment for surface treatment and materials work; they are not presented here as medical devices. Where the field is heading — better dose metrology, tailored chemistries, roll-to-roll integration — is charted in the community's roadmaps.25,26,27,28 Tell us your substrate, geometry, and takt time, and we will spec the format, the supply, and the dose window.

    Knowledge hub

    Activation hardware and related reading:

    FAQ

    How long does plasma activation last?

    Anywhere from minutes to weeks — recovery starts as soon as the plasma stops, and its pace depends on polymer chain mobility, plasma chemistry, dose, temperature, humidity, and storage environment. Peak adhesion comes from bonding within hours; many processes qualify a window of one to a few days with controlled storage. Measure the recovery curve for your own material once, then enforce the window.

    What contact angle counts as "activated"?

    There is no universal number, but the direction is universal: untreated polyolefins sit near or above 90°, and effective activation typically pulls water below roughly 40–60°, often much lower. What matters is the value your downstream process needs — qualify the bond or print against the angle, then use the angle (or dyne inks) as the daily gate.

    Is plasma activation the same as corona treatment?

    Corona treatment is the film industry's name for atmospheric barrier-type discharge treatment in air — a member of the same family. Purpose-built plasma systems add controlled gas chemistry, adjustable waveform and dose, and formats (jets, chambers) that corona treaters do not offer, at the cost of more equipment than a simple corona bar.

    Does activation damage or heat the part?

    The modification is confined to the top nanometers, and in a non-thermal discharge the bulk gas — and the part — can stay near ambient under suitable conditions, which is why films and electronics tolerate it. The genuine risk is overtreatment: excessive dose can over-oxidize the surface into a weak layer, so dose windows are qualified, not maximized.

    Which gas should I use for activation?

    Air is the workhorse — cheap, effective oxygen chemistry for wettability and bonding. Oxygen enriches the same chemistry; nitrogen-based mixtures graft amine functionality valued in biointerface and specialty coating work; noble-gas jets carry the discharge to the part and let entrained air do the grafting at the surface.

    Can I activate metals, glass, or ceramics — not just polymers?

    Yes — on inorganics the dominant effect is removal of the organic contamination layer plus surface hydroxylation, which likewise raises wettability and bond strength. The mechanism leans more toward cleaning than grafting; for that side of the story, see the companion guide to plasma cleaning.
