Rotary Evaporation: The Complete Guide to Principles, Setup and Solvent Recovery

Rotary evaporation is one of the most widely used separations in the laboratory and the least-examined. A flask spins, a bath warms, a pump pulls, and solvent disappears — and because it usually works, few people ask why it works, or what it costs when it does not. This guide takes the technique apart: the thermodynamics that set the boiling point, the fluid mechanics that set the rate, the vacuum and cooling subsystems that decide whether a run is reproducible, and the sample-integrity and solvent-recovery questions that decide whether the result is trustworthy and the process defensible. This guide covers how the technique actually works — vapor pressure and the Δ20 °C rule, vacuum and condenser sizing, bumping control, sample integrity and solvent recovery — with interactive tools and the primary literature behind each claim.

Why this technique exists

Separation is where chemistry spends its energy. Thermally driven separations — distillation above all — account for a large share of industrial energy use, and a widely cited analysis in Nature put chemical separations at roughly 10–15% of global energy consumption, arguing that displacing heat-driven purification would be one of the highest-leverage moves available to the chemical enterprise.¹ The laboratory version of that economics is the rotary evaporator. Every gram of isolated product has, somewhere behind it, liters of solvent that had to be put in and then taken out again.

The scale is easy to underestimate. In pharmaceutical manufacturing, solvents typically dominate process mass intensity — the total mass of material used per mass of product — and the industry adopted PMI precisely because it makes that dominance visible rather than hiding it inside yield calculations.² The E-factor literature makes the same point from the waste side: the mass of waste per mass of product in fine chemicals and pharmaceuticals is measured in tens to hundreds, and solvent is the largest single contributor.³ Whatever removes that solvent, and whatever happens to it afterwards, is not a peripheral detail of the process. It is a large fraction of the process.

Rotary evaporation earns its place in that picture because of what it avoids. A simple distillation at atmospheric pressure exposes the whole liquid to its normal boiling point for as long as the distillation lasts; for ethanol that means 78 °C, for water 100 °C, for DMSO 189 °C. Many of the molecules chemists actually care about — natural products, intermediates with labile stereocenters, biologically active compounds — do not survive those conditions unchanged. Rotary evaporation trades pressure for temperature, and in doing so converts a thermally aggressive operation into a gentle one.

The physics: pressure, temperature, and the film

The vapor-pressure curve is the whole story

A liquid boils when its saturated vapor pressure equals the pressure above it. That single sentence contains everything practical about setting up a rotary evaporator. The vapor pressure of a pure liquid rises steeply and non-linearly with temperature, and over the range that matters in the laboratory it is well described by the Antoine equation:

Here P is the saturated vapor pressure, T the temperature, and A, B, C are substance-specific constants fitted over a stated validity range. The coefficients used in this guide and in the tool below follow this specific unit convention: Antoine constants are unit-dependent — other compilations use bar, kPa or Pa with kelvin — and constants must never be mixed between conventions. Rearranged, the equation gives the boiling point at any chosen pressure, which is exactly the number you need before you touch the bath dial.

The equation is empirical rather than derived, and its authority rests on how well it reproduces measured data within a stated range — the classical review of the form and its fitting sets out both its power and its limits.⁴ That matters practically: Antoine constants are valid only over the interval across which they were regressed, and using them outside it produces confident-looking numbers that are simply wrong. High-accuracy modern work extends the range with Wagner-type equations fitted to ebulliometric measurement — the vapor pressures of acetonitrile, for example, have been determined from 4.3 kPa upward and correlated that way, with a separate Antoine form quoted for the sub-atmospheric region that laboratory evaporation actually occupies.⁵ For bench purposes the Antoine form is entirely adequate, provided the validity range is respected — which is why the tool below refuses to extrapolate beyond it.

Two consequences follow immediately. First, halving the pressure does not halve the boiling point; the relationship is logarithmic, so the first reduction from atmospheric pressure buys a large temperature drop and each subsequent reduction buys less. Second, solvents do not respond equally: at 100 mbar water still boils near 46 °C while dichloromethane has long since boiled away. Any rule of thumb that ignores the identity of the solvent will be wrong for half the solvents in the cabinet.

The tool below computes the boiling point from the Antoine equation for twelve common solvents and shows where the bath and coolant guides fall. Drag the pressure and watch the crossing point move — that crossing is the physical meaning of “setting the vacuum”.

What the chart shows: the blue curve is the solvent’s vapor-pressure line computed from published Antoine coefficients within their stated validity range; the horizontal line is the pressure you have set; their intersection is the boiling point. The orange and teal guides mark the bath and coolant temperatures suggested by the Δ20 °C rule discussed below. Values outside the published coefficient range are not extrapolated — the tool says so rather than guessing. A schematic teaching aid, not performance data for a specific system.

Approximate pressure for a 40 °C boiling point

The tool above computes this for any pressure; the table below fixes the boiling point at a bath-friendly 40 °C and reads off the pressure each solvent needs to get there. It is the quickest way to see how far apart solvents really are.

Approximate pure-solvent values computed with the Antoine convention stated above, rounded; mixtures, dissolved solids and real process conditions differ. Use them to compare solvents, not as setpoints.

The Δ20 °C rule, and what it is really saying

The best-known heuristic in the field — often called the 20/40/60 rule — sets the coolant about 20 °C below the vapor temperature and the bath about 20 °C above it. Stated that way it sounds arbitrary. It is not. It is a statement about three thermal resistances in series.

Heat must flow from the bath, through the flask wall and the liquid film, into the boiling liquid; the vapor must then travel to the condenser and give up its latent heat through the condenser wall into the coolant. Each transfer needs a temperature difference to drive it. Too small a bath-to-liquid difference and the evaporation rate collapses; too small a vapor-to-coolant difference and vapor escapes uncondensed into the pump, where it is lost, and where it may damage the pump or contaminate the exhaust. Roughly 20 °C on each side is the empirical compromise that keeps both driving forces adequate without pushing the sample hotter than necessary.

The rule is a starting point, not a specification. Foaming systems want a smaller bath differential; high-boiling residues and viscous concentrates may need a larger one; a condenser working near its capacity limit needs a larger coolant differential, not a smaller one. Treat Δ20 as the first setting and the observed condensation front as the real feedback.

Why the flask rotates

Rotation does three things at once, and only one of them is obvious.

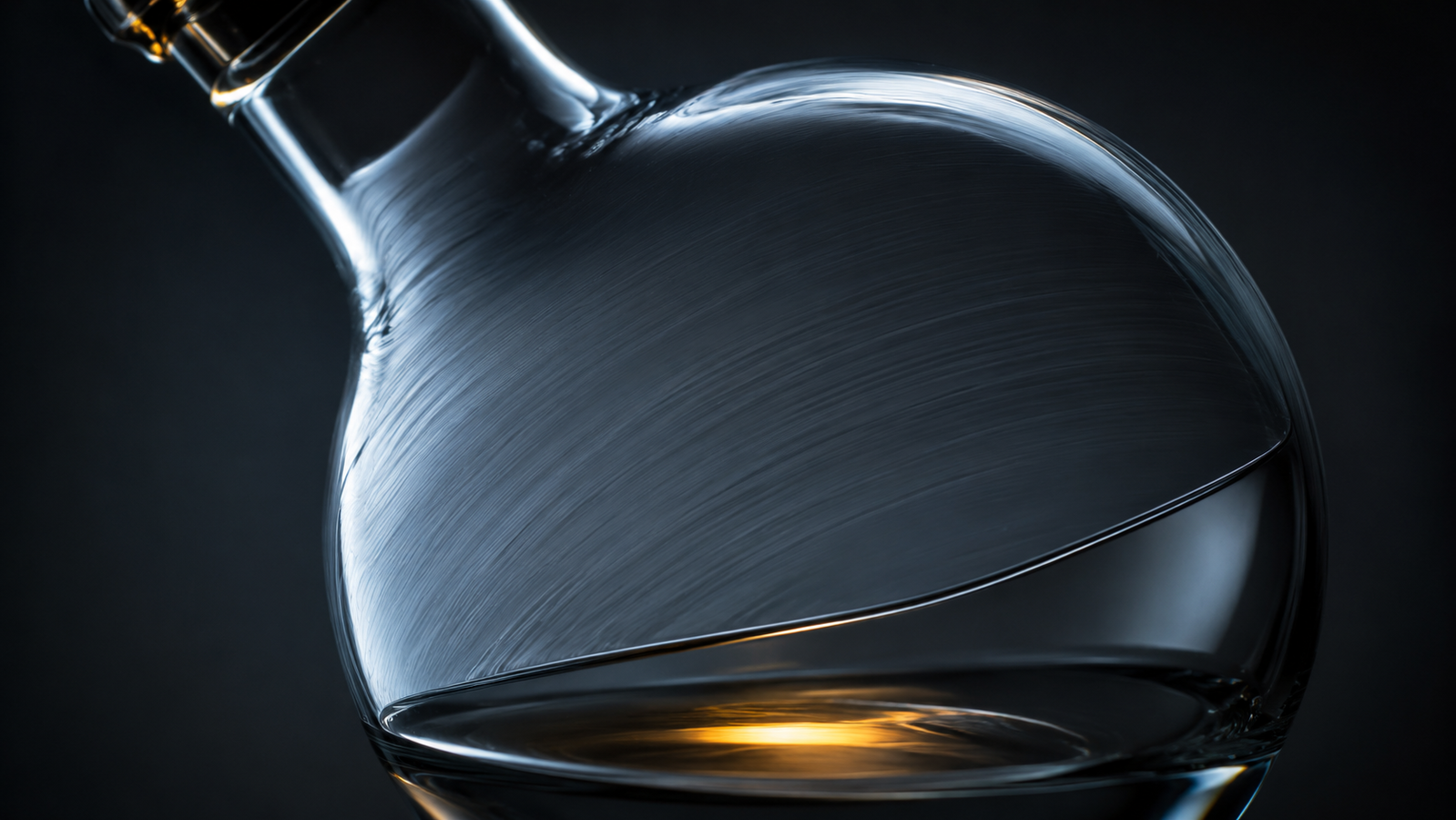

It multiplies surface area. A static flask evaporates from a flat liquid surface whose area is fixed by the flask cross-section. A rotating flask spreads the same liquid as a film over a large fraction of the inner wall, increasing the area available for evaporation several-fold at constant volume.

It thins the conduction path. In a thin film, heat crosses the liquid mainly by conduction, and the resistance is proportional to film thickness. Thinning the film is one of the principal ways to reduce the liquid-side conductive resistance without raising the bath temperature. The dynamics of such films — their thickness, their stability, the waves that form on them and the way those waves enhance transport — constitute a substantial physics literature in their own right.⁶ The engineering side of the same problem — how much heat a thin falling film actually transfers, and how that depends on film Reynolds number, heat flux and surface condition — has been reviewed critically for the tube geometries used in industrial evaporators.^{7, 8} These studies provide a useful qualitative analogy, although the geometry and hydrodynamics differ from a rotating flask: transfer improves as the film thins, degrades sharply wherever the film breaks and leaves a dry patch, and depends on how the liquid is distributed rather than on how much of it there is. The wavy, continuously renewed film of a rotating flask is a practical embodiment of what that literature describes: interfacial disturbance increases both the interfacial area and the convective transport near the interface.⁹

It can reduce localized superheating. Boiling requires nucleation sites. In a smooth glass flask under vacuum, a quiescent liquid can heat well above its boiling point before nucleation occurs; when it finally does, the release is violent. Continuous mechanical renewal of the surface keeps the liquid close to equilibrium and converts what would be an eruption into steady evaporation. Under comparable conditions, rotation can reduce localized superheating and may lower the tendency to bump by continuously renewing the liquid film; overall safety still depends on the equipment, glassware, solvent, operator practice and protective measures.

Typical benchtop drives cover roughly 20–280 rpm. Faster is not automatically better: excessive speed can lead to poor film distribution, entrainment or foaming, depending on fill level, viscosity and flask geometry. Speed is a variable to tune, not a dial to maximize.

Mixtures: the first solvent off is not always the one you expect

Everything above concerns a pure solvent. Real flasks rarely contain one. In an ideal mixture, each component contributes vapor pressure in proportion to its mole fraction, so the composition of the vapor differs from the composition of the liquid — the more volatile component is enriched in the vapor, and that enrichment is what makes any distillation work. The ratio of those enrichments is the relative volatility, and it is the quantity that decides whether a separation is easy, slow or impossible.

Three practical consequences follow. First, the boiling point of a mixture is not the boiling point of its most volatile component; it lies between the components and rises as the volatile fraction is stripped away. A run that starts comfortably at 150 mbar can stall at the same setting an hour later, not because anything has failed but because the liquid remaining in the flask is no longer the liquid you started with. Second, a fixed pressure setpoint is therefore a compromise across the whole run; this is precisely the situation programmed pressure ramps were designed for. Third, at an azeotropic composition the equilibrium vapor and liquid compositions are equal at the specified pressure, so the components stop separating. Simply pulling deeper vacuum is not a reliable general solution: some azeotropes are pressure-sensitive, while others require an entrainer, a different separation method or a change of process design.

For the common laboratory case of a reaction mixture worked up into an organic solvent with residual water, the useful mental model is not “the solvent evaporates and the water stays” but “the composition of what leaves changes continuously, and the last fraction to leave may be mostly water”. That is why concentrates so often end up wetter than expected, and why a chase solvent is a deliberate tool rather than an admission of failure.

The four subsystems, and the weakest-link rule

A rotary evaporation setup is four coupled subsystems, and its performance is set by whichever is currently limiting.

How to set up and run a rotary evaporator

The sequence below is deliberately manufacturer-neutral: it names the decisions and their order, not the valve positions of any particular model. The operating manual and your laboratory’s standard operating procedure take precedence at every step, and the shutdown sequence in particular differs enough between instruments that it should be read rather than assumed.

A frequently skipped step: stabilizing bath and coolant before starting. It costs a few minutes and removes a major source of run-to-run variability, because every parameter you set afterwards is then measured against a steady baseline rather than a moving one.

Vacuum: the misunderstood half of the system

Ultimate vacuum is not working pressure

Pump datasheets quote an ultimate vacuum — the lowest pressure the pump reaches against a blanked, leak-tight, dry system. That number is a capability limit, not a promise about your process. During evaporation the pump is fighting a continuous vapor load; the pressure that actually establishes itself is set by the balance between how fast the flask generates vapor, how much of it the condenser removes, and how fast the pump can take the rest away. A pump rated to 13 mbar may sit at 200 mbar during a vigorous evaporation and reach its rating only after the solvent is gone.

Pumping speed collapses as pressure falls

The second misconception is that a pump has one speed. It does not. Volumetric capacity falls steeply as pressure drops — a pump quoted at 25 L/min of free air may deliver a fraction of that at a few hundred millibar. Sizing a system from the headline free-air figure alone can produce an optimistic estimate.

The tool below plots a real published speed curve and estimates an idealized pump-down time by integrating the throughput balance, so the effect is visible rather than assumed.

What the chart shows: pumping speed interpolated between manufacturer-published pressure/flow pairs, and the pressure interval used for the time estimate. Times integrate t = V ∫ dp / [S(p) · p] for a closed, leak-tight, isothermal system — the idealized floor, not a prediction. Real systems are slower once hose conductance, traps, leaks and evaporating solvent vapor are added. Where the manufacturer publishes no data, the tool computes nothing rather than extrapolating.

Why diaphragm pumps dominate this application

Solvent vapor passes through the pump. That single fact settles the pump-technology question for most rotary evaporation. In an oil-sealed rotary-vane pump, vapor can dissolve or condense in the oil, degrading it, raising the achievable pressure and potentially carrying solvent-contaminated mist into the exhaust; the maintenance burden and the disposal of contaminated oil follow. Chemistry-design diaphragm pumps have no oil in the gas path, need no oil changes, and are often better suited to condensable solvent-vapor duty. Oil-sealed rotary-vane pumps may still be used when properly protected with suitable traps, gas-ballast operation and a maintenance schedule. The trade is depth: diaphragm pumps in this class typically reach the low tens of millibar rather than the 10⁻³ mbar range.

For routine work that depth is sufficient, and the boiling-point tool above shows why: ethanol reaches 40 °C at roughly 178 mbar and water at roughly 74 mbar — both well above a 13 mbar ultimate-vacuum rating. Deeper vacuum may be required for high-boiling solvents such as DMF or DMSO when the target is a moderate bath temperature, and for short-path and molecular distillation or final drying of residues.

Control: the difference between reaching a pressure and holding one

An uncontrolled pump pulls to its limit. That is rarely what you want. Two control strategies are common: two-point control, in which a valve opens and closes around a setpoint, producing a characteristic sawtooth; and programmed control, which ramps pressure along a defined profile. Programmed ramps matter most at the start of a run, when a rapid pull-down on a full flask is the classic route to bumping, and during multi-solvent removals, where holding at an intermediate plateau lets the more volatile component leave before the pressure drops further. Controlled ramps do not eliminate bumping, but they remove its most common trigger.

Condensation and cooling duty

The duty is latent heat, and it is bigger than people expect

Everything that evaporates must condense, and condensing releases the latent heat that evaporation absorbed. The cooling system therefore has to remove, continuously, the enthalpy of vaporization of everything the flask produces:

— equivalently, Q = rate × density × ΔH_vap when the rate is expressed volumetrically. The number that comes out is usually in the hundreds of watts, and for water it exceeds a kilowatt at rates a benchtop evaporator can easily reach.

Solvents differ enormously here. Water carries roughly 2260 kJ/kg, ethanol roughly 840, acetone roughly 500, dichloromethane roughly 330. At the same volumetric evaporation rate, an aqueous concentration can demand three to six times the cooling of an organic one. This is a common reason a chiller that “worked fine last month” suddenly cannot keep up: the solvent changed.

What the chart shows: condensing duty against evaporation rate for the selected solvent, computed from enthalpies of vaporization at the normal boiling point, against a 700 W reference capacity published at a 20 °C coolant temperature. Latent heat only — sensible cooling of vapor and returning coolant, hose gain and bath losses add to it, so allow margin. Property values are reference data, not manufacturer data, and vary with temperature and pressure.

Condenser area, coolant temperature, and their trade-off

Condenser capacity scales with area and with the temperature difference driving heat across the wall. Benchtop vertical coil condensers commonly offer 1200–1700 cm²; pilot-scale two-section coil assemblies reach the order of a square meter. More area buys margin at a given coolant temperature; colder coolant buys margin at a given area. Both have limits: a chiller’s capacity is specified at a stated coolant temperature, and the capacity available at the intended operating setpoint must be verified from published model data or confirmed with the manufacturer. This is why a chiller rated, say, 700 W at a 20 °C coolant temperature cannot be assumed to deliver 700 W at −10 °C.

Coolant choice

Below 0 °C water alone freezes, so a heat-transfer fluid appropriate to the setpoint is required. The choice is not cosmetic: coolant viscosity changes with temperature, so the circulation flow available at −15 °C may differ from a room-temperature rating, and that in turn affects the heat the coolant can carry away. Follow the circulator manufacturer’s fluid guidance; where no approved-fluid list or concentration range is published, confirm the intended heat-transfer fluid before use.

Cold traps, secondary condensers, and the vapor that gets away

Do not assume complete solvent capture under every operating condition: capture efficiency depends on vapor load, coolant temperature and flow, condenser area and geometry, pressure, solvent properties and system tightness. Whatever passes the condenser has a fate that depends on what sits downstream. A cold trap between condenser and pump serves three distinct purposes that are worth separating in one’s mind: it protects the pump from condensable vapor, it protects the exhaust — and therefore the room — from solvent, and it recovers material that would otherwise be lost from the mass balance. Only the first of these is about the equipment; the other two are about the process and the people in the room.

Trap performance is governed by the same physics as the main condenser, with the temperature difference doing most of the work. A trap at −20 °C is effective for solvents whose vapor pressure at that temperature is low, and much less effective for dichloromethane or diethyl ether, whose vapor pressures remain appreciable well below zero. This is the technical reason dry-ice traps persist alongside mechanical cooling: at roughly −78 °C, a dry-ice/acetone bath reaches temperatures a compact recirculating chiller cannot, and for the most volatile solvents that margin is decisive. The trade-offs are equally real — consumable cost, handling hazard, no temperature control, and a bath that must be attended and replenished.

A secondary condenser component is the middle path: fixed, powered from the same coolant loop, and adding condensing area exactly where the primary condenser runs out of it. Whichever route is chosen, the diagnostic is visible: substantial or increasing condensate accumulation in the downstream trap can indicate vapor breakthrough or inadequate primary condensation, most often from coolant temperature or an evaporation rate above what the installed area can handle.

Bumping, foaming and film control

Bumping is the sudden, violent boiling of a superheated liquid; foaming is the stabilization of gas within the liquid by surfactants, proteins or fine solids. They look similar in the flask and have different cures.

Bumping is a nucleation problem, and it is provoked by rapid pressure drops, a bath much hotter than the boiling point, an over-filled flask and a stationary or slowly rotating flask. The cures follow directly: ramp the pressure rather than dropping it, keep the bath differential modest, fill the flask to no more than about half its volume, and let rotation do its job. A bump trap between flask and vapor duct is strongly recommended for bump-prone, valuable, contamination-sensitive or limited-volume samples — recovering a sample from the condenser is a bad afternoon.

Foaming is an interfacial problem. Lower rotation can help, as can a larger flask, a lower bath temperature, a slower pressure ramp, and in some systems a change of solvent or an antifoam where the chemistry tolerates it. Foam that is allowed to climb the vapor duct contaminates the condenser and the receiving flask, and destroys the mass balance of the run.

Both failure modes share a root cause worth naming: the operator is asking for a rate the system cannot deliver smoothly, and the system answers by delivering it unevenly.

Sample integrity: what you can lose besides solvent

Volatile analytes leave with the solvent

Concentration is not selective. Anything with an appreciable vapor pressure at the working conditions leaves along with the solvent, and this is a measurable, documented effect rather than a theoretical worry. A study of metabolomic extracts concentrated on a rotary vacuum evaporator demonstrated the unavoidable loss of non-dissociating volatile metabolites such as acetone and ethanol, showed that the retention of dissociating species such as organic acids depends on solution pH and buffer content — an acid is retained as long as it remains predominantly in its dissociated form — and traced how precipitating buffer salts at the end of drying form a matrix that traps residual analytes.¹⁰ The practical lessons transfer directly to natural-product, flavour and fragrance work: if the target is volatile, stop the concentration short of dryness, work colder, and consider whether pH control changes what stays behind.

Thermal and oxidative degradation

Reduced pressure lowers the temperature but does not eliminate exposure. Time at temperature still matters, and the last stage of a concentration — when the film is thin, the solvent nearly gone and the wall temperature closest to the bath — is where a labile compound is most at risk. Two habits reduce that risk: end the run at the point of interest rather than at dryness, and remove the flask from the bath rather than letting it sit hot while the vacuum is released.

Concentrating peroxide-forming solvents

Concentrating peroxide-forming solvents is one of the highest-consequence, well-documented hazards associated with rotary evaporation, and it deserves more than a caution. Ethers such as diethyl ether, tetrahydrofuran and 1,4-dioxane autoxidize on contact with air to form hydroperoxides and peroxides; the process is accelerated by light and heat, begins as soon as a container is opened, and runs fastest in partially empty bottles.¹¹ The laboratory-safety literature classifies such materials by whether they are hazardous on storage alone or specifically on concentration — a distinction that puts rotary evaporation directly in the frame.^{12, 13}

The reason is straightforward physics. Peroxides are far less volatile than the parent solvent, so evaporation does not remove them — it concentrates them in the residue, in exactly the direction that increases risk. Take such a solution to dryness and what remains can be a shock-sensitive solid. Published incident accounts repeat the same sequence: an aged or unstabilized ether, a routine concentration, and a flask that fails violently.¹⁴

Four habits follow. Screen before concentrating — screen peroxide-forming solvents according to the current safety data sheet and your institution’s procedure. Test strips have limitations, do not detect every unstable peroxide species, and do not replace container inspection, storage controls or professional evaluation of a suspect container. Respect both dates, receipt and opening, since inhibitors such as BHT are consumed over time and an inhibited solvent is not an immune one. Never evaporate to dryness — leave a heel of solvent. Do not move, open or test a container showing crystals, discoloration, stratification, unusual viscosity, pressure or a stuck cap; leave it undisturbed and contact your institution’s EHS team.

The hazard is not confined to ethers. Secondary alcohols peroxidize as well, and forensic work on consumer-aged 2-propanol has characterized spontaneous acetone peroxide formation in ordinary stored material.¹⁵ Bio-derived oxygenates raise the same question in a newer context, where the peroxide number has been argued as the practical safety metric for solvents of that class.¹⁶

Azeotropes and co-evaporation

Rotary evaporation separates by relative volatility, and azeotropes are the case where relative volatility fails. Water carried through from an aqueous workup is the common practical instance: it does not simply come off first, and residual water in a concentrate can compromise the next step. Where it matters, a chase solvent that forms a low-boiling azeotrope with water — used deliberately and documented — is the standard answer.

Solvent choice as one control among several

Solvent selection can reduce process risk, but it does not remove the need for peroxide management. 2-Methyltetrahydrofuran, for instance, is bio-derived and has been examined as a THF alternative for organometallic and biphasic chemistry with process and sustainability advantages in some applications¹⁷ — but it remains a peroxide-forming ether. Choosing it does not eliminate the requirement for current SDS review, institutional peroxide-former controls, dating, storage limits and pre-concentration screening. The same caution applies to the solvent selection guides discussed in the next section: they rank solvents on safety, health and environmental criteria, which is useful input to a decision, not a substitute for the controls that decision still requires.

Residual solvent: when “dry” is a specification, not an impression

A flask that looks dry is not a flask that is dry. Solvent is retained in three ways that visual inspection cannot detect: physically trapped in a crystalline lattice or an amorphous glass, adsorbed on high-surface-area solids, and dissolved in an oil or gum that never truly solidifies. Rotary evaporation removes bulk solvent efficiently and residual solvent poorly, because the last increments are held by mechanisms that a modest vacuum and a gentle bath cannot overcome.

Where residual solvent is a regulated or contractual attribute — pharmaceutical intermediates and finished materials being the obvious case — the honest position is that a rotary evaporator is a concentration device, not a drying device. Reaching a specification normally requires a further step at deeper vacuum and, often, elevated temperature: a vacuum oven, a lyophilizer for aqueous systems, or a dedicated drying train. Extending a rotary evaporation to force the last percent tends to cost more in thermal exposure than it gains in solvent removal, which is exactly the wrong trade for a thermally sensitive compound.

Two habits make this manageable. Define what “dry” means numerically before the run rather than after — a target residual level, and the method that will measure it, whether that is loss on drying, headspace gas chromatography or a nuclear magnetic resonance integration against an internal standard. And record the conditions actually used: pressure, bath temperature, rotation speed and time. A concentration run under the same recorded conditions is more likely to produce comparable residual-solvent levels; one performed “until it looked done” is not, and the difference tends to surface later as unexplained variation in the next step.

Solvent recovery, and why it is a green-chemistry question

The distillate in the receiving flask is not waste by default; it is a decision. That decision has become the center of gravity of green-chemistry practice in the fine-chemical and pharmaceutical industries, for the simple reason that solvent dominates the mass balance. Life-cycle and process-metric analyses consistently identify solvent selection and solvent handling as the dominant environmental levers,¹⁸ and the argument for recovery is that solvent recycled on site displaces both the production burden of virgin solvent and the disposal burden of waste solvent.

The framework for making these choices is unusually mature. Major manufacturers publish solvent selection guides that rank solvents on safety, health and environmental criteria, and the guides have converged enough to be compared side by side^{19, 20, 21} — a convergence that has itself been surveyed and mapped.²² The CHEM21 guide extended the approach to less classical and bio-derived solvents using criteria aligned with the Globally Harmonized System, giving a transparent way to rank a solvent that no in-house guide covers.²³ Broader frameworks assess “greenness” against full life-cycle impact rather than single attributes,²⁴ and the field has repeatedly cautioned that a solvent scoring well on one axis may score poorly on another.^{25, 26} Surveys of what chemists actually use show how slowly practice follows guidance,²⁷ and metric work continues to argue for holistic rather than single-number assessment.²⁸

For a laboratory, the operational conclusions are concrete. Recovered solvent from a single-solvent process step is often clean enough for reuse in earlier, less demanding operations such as extraction or column loading, provided it is analyzed rather than assumed. Mixed distillate is worth much less, so keeping streams separate at the receiving flask is one of the highest-value habits available. Where recovery by distillation is not attractive — high-boiling or thermally sensitive solvents in particular — membrane-based approaches such as organic solvent nanofiltration are an active alternative, and recent work demonstrates recovery of high-boiling green solvents without a thermal step.²⁹ The general direction of travel, away from purely thermal separation, is the same one the Nature analysis set out.¹

Selecting and sizing a system

Start from the process, not the catalog

Four process facts determine almost every specification decision: the solvent (which sets vapor pressure and latent heat), the batch volume (which sets flask size), the throughput you need (which sets condenser and chiller duty), and the thermal sensitivity of the sample (which sets how deep the vacuum must be). Everything else follows.

Reading the specification sheet critically

Three numbers on every rotary evaporator datasheet deserve scrutiny. Evaporation capacity is quoted under a stated solvent and condition — typically water or a defined alcohol mixture — and cannot be transferred to another solvent without recalculating the latent duty. Condenser surface is comparable between models only at the same coolant temperature. Ultimate vacuum, as section 5 explained, is a capability boundary rather than an operating pressure. A specification sheet is a set of conditional statements; treat the conditions as part of the number.

Equipment referenced in this guide

• ALab™ RE100-Pro Digital Rotary Evaporator — 50–3000 mL flasks, 20–280 rpm, 150 mm motorized lift, 1700 cm² vertical condenser, 5 L water/oil bath with a manufacturer-stated overall range up to 180 °C; a suitable heat-transfer oil is required for higher-temperature operation.
• ALab™ RE100-S LED Digital Rotary Evaporator — manual lift with auxiliary lift, 20–200 rpm, 1200 cm² condenser, and a 5 L bath with independent control that can be used on its own.
• ALab™ RE200-Pro 20 L Industrial Digital Rotary Evaporator — pilot scale: 20 L evaporating flask, 10 L receiving flask with drain valve, 1.2 m² two-section triple-coil condenser.
• ALab™ C410 Chemistry-Design Diaphragm Vacuum Pump — oil-free, 13 mbar ultimate vacuum, 25 L/min free air, published pressure/flow table.
• ALab™ CCP5-Mini Low-Temperature Circulator — −20 °C to room temperature, ±0.3 °C stability, 700 W at 20 °C coolant, bench, under-bench or fume-hood installation.
• ALab™ DCP-5 Low-Temperature Cooling Circulator — −20 to 40 °C, ±0.3 °C, 700 W at 20 °C coolant, intelligent PID with PT 100 sensor.

Scale-up to pilot volumes

Moving from a 1 L bench flask to a 20 L pilot flask is not a linear extension of the same experiment. Three things change character.

The duty rises faster than the volume feels. At several liters per hour, latent-heat demand can reach the kilowatt range, particularly for water-rich streams, which usually means a different class of chiller rather than a bigger version of the same one.

Surface-to-volume falls. The film area per unit charge is smaller at 20 L than at 1 L, so the heat-transfer advantage that made the bench run fast is partially given back. Parameters must be re-optimized rather than transferred; a bath temperature that was gentle at 1 L may be inadequate at 20 L, and a rotation speed that made a good film in a small flask may not in a large one.

Handling becomes an engineering problem. Twenty liters of solvent is a mass to be lifted, a vacuum load to be sealed and a spill to be planned for. Features that are conveniences at bench scale — a motorized lift, a drain valve on the receiving flask, a switch valve that allows distillate to be drawn off without breaking vacuum — become the difference between a process that runs and one that stops every hour.

Maintenance and troubleshooting

The five faults that account for most bad runs

The maintenance that actually matters

The vacuum seal is the component that decides whether the system holds pressure, and it is consumable: PTFE-based seals harden and score with time, and a seal that leaks slightly turns every specification on the datasheet into fiction. Glassware needs inspection for star cracks around joints before each vacuum run. Condenser coils foul on the coolant side in hard-water systems and on the process side with involatile residues; both reduce effective area silently. Pump diaphragms and valves are wear parts with a defined service interval. None of this is exotic, and all of it is cheaper than a lost batch.

Summary: eight things worth internalizing

One. Pressure is the second temperature dial — and the one that protects your sample. Two. The boiling point at a given pressure is solvent-specific; compute it rather than assuming it. Three. Δ20 °C is a statement about three thermal resistances, not a superstition. Four. Rotation buys area, thin films and nucleation control simultaneously. Five. Ultimate vacuum is a capability, not an operating pressure, and pumping speed collapses as pressure falls. Six. Cooling duty is latent heat, it is larger than intuition suggests, and it depends strongly on the solvent. Seven. Concentration is not selective — volatile analytes, peroxides and azeotropes all follow their own rules. Eight. The distillate is a decision: recovered solvent is one of the largest levers available to many laboratories on both cost and environmental footprint.

Frequently asked questions

References
