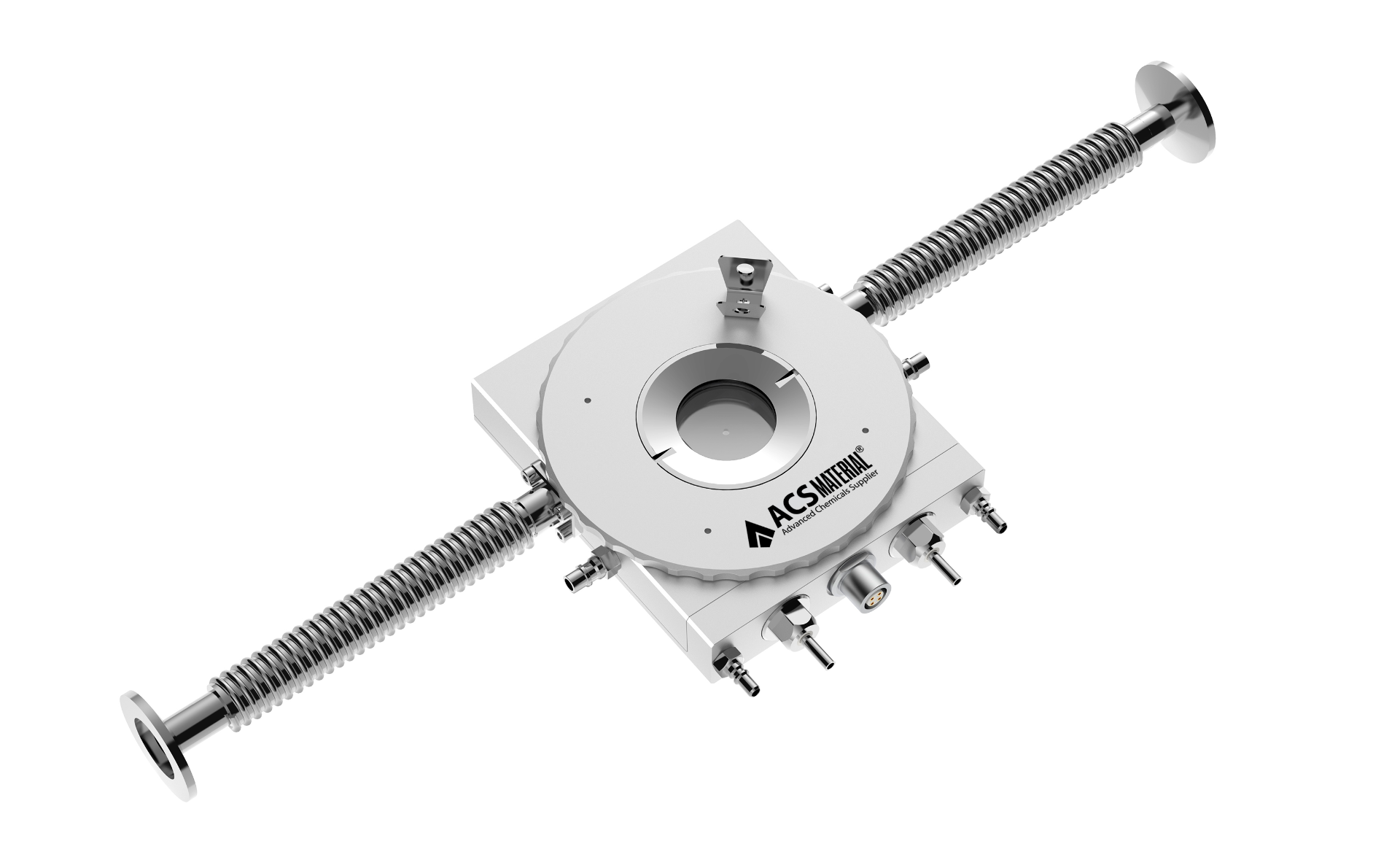

Optical Heating and Cooling Stage ACH600S-T/ACH400SV-T
Product Detail
InSitu Pro™ ACH600S-T and ACH400SV-T are the ultra-thin members of the LN₂ optical family — the same −190 °C to 600 °C heating-and-cooling engine (ACH400SV-T: to 400 °C in vacuum) packed into a body only 21.5 mm tall. When the clearance under your objective, condenser, or beam path is the limiting factor, the T variants keep full temperature-resolved microscopy and Raman capability where the standard 24 mm body will not fit.
Key features
- Thinnest profile in the familyAt 86 × 100 × 21.5 mm the T body stands 2.5 mm lower than the standard ACH600S/ACH400SV — built to fit optical instruments with extremely tight installation space, such as Horiba Raman spectrometers.
- Full −190 to 600 °C in one stageLiquid-nitrogen cooling and resistive heating in the same body; heating and cooling branches of a transition measured on one sample, one instrument.
- ±0.1 °C with three control modesFixed-point, ramp, and multi-segment programmable profiles; the provided LabVIEW VIs / C# SDK support customized programming.
- Reflection and transmission opticsHand-removable quartz windows and a through-hole silver stage support both light paths; a twist-off top cover makes sample loading and removal quick — full geometry in the table below.
- Condensation-free imagingGas-blowing bracket routes the liquid-nitrogen exhaust across the window during low-temperature runs.
- Choose your atmosphereACH600S-T runs in an atmosphere chamber for the fastest workflow; ACH400SV-T adds a vacuum chamber that suppresses oxidation during measurements (see the simulator below for why that matters).
Product specifications
| Parameter | ACH600S-T | ACH400SV-T |
|---|---|---|
| SKU # | EICH60ST | EICH4SVT |
| Heating / Cooling Method | Liquid-nitrogen cooling · resistive heating | |
| Temperature Range | −190 °C ~ 600 °C | −190 °C ~ 400 °C |
| Temperature Stability | ±0.1 °C | |
| Temperature Control Rate | Max heating 150 °C/min · max cooling 40 °C/min | |
| Sample Stage | Silver · 23 × 23 mm | |
| Optical Path | Reflection / Transmission (φ2 mm light-transmitting hole) | |
| Top Window | φ25 × 1 mm | |
| Bottom Window | φ10 × 0.5 mm (optional, for transmission path) | |
| Window Material | JGS2 quartz glass, 220–2500 nm; manually removable and replaceable | |
| Window Defogging | Gas-blowing bracket; LN₂ exhaust defogs at low temperature | |
| Window-to-Stage Distance | 4.8 mm | |
| Chamber Height | 3.8 mm | |
| Chamber | Atmosphere | Vacuum |
| Dimensions | 86 × 100 × 21.5 mm | 86 × 100 × 21.5 mm (excl. bellows) |
| Net Weight | 0.5 kg | 0.6 kg |
Basic configuration
| Included with every stage | Qty |
|---|---|
| Main unit (ACH600S-T or ACH400SV-T) | 1 |
| Temperature controller | 1 |
| Cooling controller | 1 |
| Liquid-nitrogen tank | 1 |
| Water-circulation system | 1 |
| PC control software | 1 |
| Connection cables, tubing & accessories | — |
Options include adapter plates, custom LN₂ tanks, custom water circulators, vacuum systems, host PCs, and custom control software. Final configuration and accessories are confirmed at quotation.
Plan your cooling run
Both T models cool with liquid nitrogen at up to 40 °C·min⁻¹ down to −190 °C. Set your target below and see how LN₂ compares with Peltier stages and passive cooling — and how long a run to your temperature actually takes.
Model: controller-limited linear ramp with a Newton-type approach near each technology's floor. Takeaway: below −25 °C, LN₂ is the only option — exactly what this stage family provides. Curves are schematic family-level behavior, not a guarantee for a specific unit.
Why the vacuum model? · ACH400SV-T
Above a few hundred °C in air or another oxidizing atmosphere, oxide growth on many metals and alloys becomes significant, rising steeply with temperature; under diffusion-controlled conditions it is often approximated by parabolic kinetics. Hold a sample for an hour at your working temperature and compare the two chambers:
Model: parabolic oxidation x² = k·t with an Arrhenius rate constant — an approximation for diffusion-controlled oxidation, not every material or temperature; the vacuum panel suppresses the oxidant supply. Takeaway: if your sample must come back chemically intact from high temperature, reach for the vacuum chamber of the ACH400SV-T.
The LN₂ optical family · quick navigation
| Model | ACH600S / ACH400SVstandard | ACH600S-T / ACH400SV-Tthis page | ACH600S-XY / ACH400SV-XYXY positioning |
|---|---|---|---|
| Distinctive | Standard body · R/T optics | Thinnest profile, 21.5 mm | XY ±6 mm · 0.01 mm |
| Page | Standard → | — you are here — | XY variants → |
Temperature controller, LN₂ cooling-rate controller, dewar & auto-refill pump. Every stage ships with its matched temperature controller and cooling controller; smart LN₂ auto-refill and dewar options keep long low-temperature runs unattended. Ask for the matching set when you request a quote.
FAQ
T variant or standard — which one?
Pick by clearance. If your microscope, Raman system, or beamline has generous headroom, the standard ACH600S/ACH400SV does everything the T does. If the space between your objective (or condenser) and the sample plane is tight, the T's 21.5 mm body — 2.5 mm lower — is often the difference between fitting and not fitting. Temperature performance is identical.
Is the optical performance the same?
Yes — same silver 23 × 23 mm stage, same φ2 mm through-hole, and the same 220–2500 nm JGS2 quartz optics; the optional transmission bottom window is a thinner φ10 × 0.5 mm in the T geometry. Top-window-to-sample distance is 4.8 mm and chamber height 3.8 mm.
Does the window fog during cooling?
The same gas-blowing bracket routes the liquid-nitrogen exhaust across the window to defog it, helping keep the view clear during long runs at −190 °C.
Which atmosphere should I choose?
ACH600S-T for everyday work in air up to 600 °C on oxidation-tolerant samples; ACH400SV-T (vacuum) whenever the sample must not oxidize — metals, perovskites, air-sensitive 2D materials (see the simulator above).
