Optical Heating and Cooling Stage ACH600S-XY/ACH400SV-XY
Product Detail

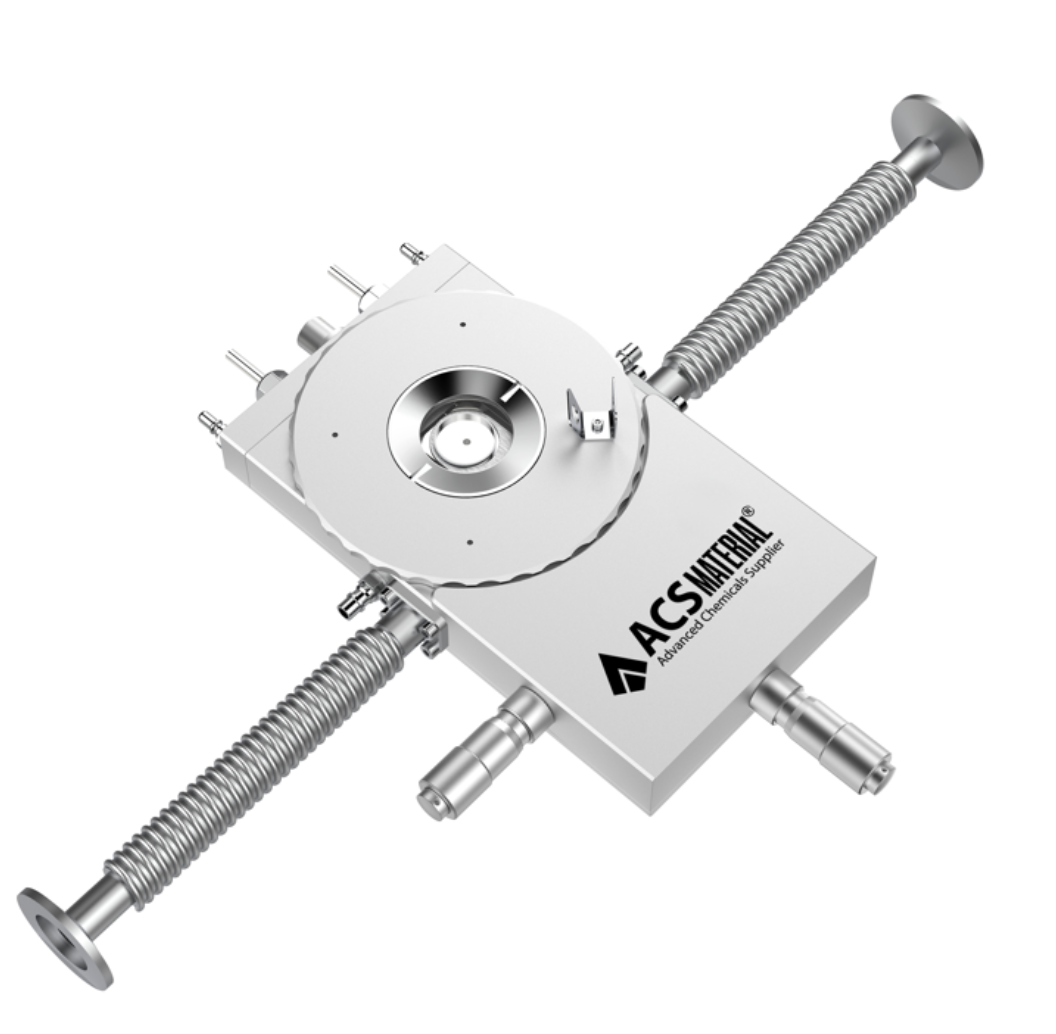

InSitu Pro™ ACH600S-XY and ACH400SV-XY add precision sample positioning to the LN₂ optical family: an XY-adjustable stage with ±6 mm travel and 0.01 mm accuracy, so you can move between regions of interest, map across a sample, or re-center a feature during a run — without touching the microscope. The same −190 °C to 600 °C engine (ACH400SV-XY: to 400 °C in vacuum), ±0.1 °C stability, in a 21.5 mm-tall body.
Key features
- XY positioning: ±6 mm, 0.01 mm accuracyMove the sample under the objective instead of the stage under the sample — visit multiple grains, devices, or flakes, map temperature-dependent behavior across a surface, and keep a feature centered as it drifts.
- Full −190 to 600 °C in one stageLiquid-nitrogen cooling and resistive heating in the same body; heating and cooling branches of a transition measured on one sample, one instrument.
- ±0.1 °C with three control modesFixed-point, ramp, and multi-segment programmable profiles; the provided LabVIEW VIs / C# SDK support customized programming.
- Reflection and transmission opticsHand-removable JGS2 quartz windows and a through-hole silver stage support both light paths; a twist-off top cover makes sample loading and removal quick — full geometry in the table below.
- Light, thin and compactSame 21.5 mm height class as the ultra-thin T variants; the 155 mm length houses the XY mechanism while the body adapts to optical instruments of different brands and models.
- Choose your atmosphereACH600S-XY runs in an atmosphere chamber for the fastest workflow; ACH400SV-XY adds a vacuum chamber that suppresses oxidation during measurements (see the simulator below for why that matters).
Product specifications
| Parameter | ACH600S-XY | ACH400SV-XY |
|---|---|---|
| SKU # | EICH6SXY | EICH4SVY |
| Heating / Cooling Method | Liquid-nitrogen cooling · resistive heating | |
| Temperature Range | −190 °C ~ 600 °C | −190 °C ~ 400 °C |
| Temperature Stability | ±0.1 °C | |
| Temperature Control Rate | Max heating 150 °C/min · max cooling 40 °C/min | |
| Sample Stage | Silver · 23 × 23 mm | |
| Optical Path | Reflection / Transmission (φ2 mm light-transmitting hole) | |
| Top Window | φ20 × 0.3 mm | φ20 × 1 mm |
| Bottom Window | φ10 × 1 mm (optional, for transmission path) | |
| Window Material | JGS2 quartz glass, 220–2500 nm; manually removable and replaceable | |
| Window Defogging | Gas-blowing bracket; LN₂ exhaust defogs at low temperature | |
| Window-to-Stage Distance | 5.1 mm | |
| Chamber Height | 4.8 mm | |
| Chamber | Atmosphere | Vacuum |
| Slide Glass | φ16 × 0.15 mm | |
| Sample Displacement | XY axis adjustable ±6 mm · accuracy 0.01 mm | |
| Dimensions | 155 × 86 × 21.5 mm | 155 × 86 × 21.5 mm (excl. bellows) |
| Net Weight | 0.7 kg | 0.8 kg |
Basic configuration
| Included with every stage | Qty |
|---|---|
| Main unit (ACH600S-XY or ACH400SV-XY) | 1 |
| Temperature controller | 1 |
| Cooling controller | 1 |
| Liquid-nitrogen tank | 1 |
| Water-circulation system | 1 |
| PC control & imaging software | 1 |
| Connection cables, tubing & accessories | — |
Options include adapter plates, custom LN₂ tanks, custom water circulators, vacuum systems, host PCs, and custom control software. Final configuration and accessories are confirmed at quotation.
Plan your cooling run
Both XY models cool with liquid nitrogen at up to 40 °C·min⁻¹ down to −190 °C. Set your target below and see how LN₂ compares with Peltier stages and passive cooling — and how long a run to your temperature actually takes.
Model: controller-limited linear ramp with a Newton-type approach near each technology's floor. Takeaway: below −25 °C, LN₂ is the only option — exactly what this stage family provides. Curves are schematic family-level behavior, not a guarantee for a specific unit.
Why the vacuum model? · ACH400SV-XY
Above a few hundred °C in air or another oxidizing atmosphere, oxide growth on many metals and alloys becomes significant, rising steeply with temperature; under diffusion-controlled conditions it is often approximated by parabolic kinetics. Hold a sample for an hour at your working temperature and compare the two chambers:
Model: parabolic oxidation x² = k·t with an Arrhenius rate constant — an approximation for diffusion-controlled oxidation, not every material or temperature; the vacuum panel suppresses the oxidant supply. Takeaway: if your sample must come back chemically intact from high temperature, reach for the vacuum chamber of the ACH400SV-XY.
The LN₂ optical family · quick navigation
| Model | ACH600S / ACH400SVstandard | ACH600S-T / ACH400SV-Tultra-thin | ACH600S-XY / ACH400SV-XYthis page |
|---|---|---|---|
| Distinctive | Standard body · R/T optics | Thinnest profile, 21.5 mm | XY ±6 mm · 0.01 mm |
| Page | Standard → | T variants → | — you are here — |
Temperature controller, LN₂ cooling-rate controller, dewar & auto-refill pump. Every stage ships with its matched temperature controller and cooling controller; smart LN₂ auto-refill and dewar options keep long low-temperature runs unattended. Ask for the matching set when you request a quote.
FAQ
XY variant or standard — which one?
Pick by workflow. If you measure one spot per run, the standard ACH600S/ACH400SV is simpler and shorter. If you need to visit several regions, map behavior across a sample, or re-center a feature that drifts with thermal expansion, the XY stage's ±6 mm travel at 0.01 mm accuracy does it without disturbing your optics. Temperature performance is identical across the family.
What can I do with ±6 mm of travel?
A ±6 mm travel gives a 12 × 12 mm accessible window around center — enough to hop between multiple flakes or devices on one chip, follow a phase front, or build a coarse temperature-dependent map, with 0.01 mm positioning accuracy.
How does the geometry differ from the other variants?
The body keeps the low 21.5 mm height of the T variants but runs 155 mm long to house the XY mechanism; the top window sits 5.1 mm above the sample surface with a 4.8 mm chamber height. Check lateral space on your microscope stage plate.
Which atmosphere should I choose?
ACH600S-XY for everyday work in air up to 600 °C on oxidation-tolerant samples; ACH400SV-XY (vacuum) whenever the sample must not oxidize — metals, perovskites, air-sensitive 2D materials (see the simulator above).
