Titanium Silicalite-1 (TS-1)

Name: Titanium Silicalite-1, powder, Type B, 50g
Brand: ACS Material
SKU: MSTS1B51
Price: 222 USD
Availability: InStock

As low as $222.00 $0.00

In stock

SKU# 147

Microporous Ti-Si Molecular Sieve, TS-1

Qty

Product Detail

ACS Material Titanium Silicalite-1 (TS-1) is a microporous Ti-Si molecular sieve supplied as a powder in the H⁺ form, with a SiO₂/TiO₂ molar ratio of ≥25, a BET surface area of 360–420 m²/g and a pore diameter of ~0.5 nm. It is calcined and ready to use directly.

Key specifications at a glance

SiO₂/TiO₂ molar ratio≥25

BET surface area360–420 m²/g

Pore diameter~0.5 nm

Comparative crystallinity>95%

Na₂O<0.1%

CationH⁺

Overview

Titanium Silicalite-1, TS-1, was the first framework-substituted redox molecular sieve to be identified. Redox molecular sieves offer a significant advantage over standard heterogeneous catalysts; a redox sieve makes it possible to get a significantly higher selectivity to primary oxidation products. TS-1 has unique properties as a heterogeneous catalyst when H₂O₂ is used as the oxidant and H₂O₂ is attractive for industrial applications because of its relatively low cost and because it is clean.

ACS Material TS-1 is prepared using the hydrothermal method. Powder (Type B), 20–50 µm, is currently available; Powder (Type A), 0.3–0.5 µm, has been discontinued, and its specifications are kept on this page for reference.

Product information

Parameter	Value
Product name	Titanium Silicalite-1 (TS-1); Microporous Ti-Si Molecular Sieve TS-1
CAS No.	13463-67-7 (Titanium Dioxide) / 7631-86-9 (Silicon Dioxide)
Preparation method	Hydrothermal Method
Cation	H⁺
Supplied	Calcined, ready to use directly

Characterizations

Characterization	Powder (Type A) (Discontinued)	Powder (Type B)
Form	Powder	Powder
SiO₂/TiO₂ molar ratio	≥25	≥25
Particle size (µm)	0.3–0.5	20–50
Pore diameter (nm)	~0.5	~0.5
Pore volume (cm³/g)	N/A	~0.2
BET surface area (m²/g)	360–420	360–420
Comparative crystallinity (%)	>95	>95
Na₂O (%)	<0.1	<0.1
Cation	H⁺	H⁺

This product is calcined and ready to use directly. Powder (Type A) has been discontinued; its specifications are kept here for reference.

Ordering information

Type	Package	Product No.
Powder (Type B)	50 g	MSTS1B51
Powder (Type B)	200 g	MSTS2022
Powder (Type B)	1 kg	MSTS1B31

Typical data

Powder (Type B)

Typical SEM image of ACS Material TS-1 (Type B) — ACS Material TS-1, Type B: **Left:** typical SEM image (×1.50k; scale bar 30.0 µm); **Right:** typical XRD analysis (2θ 10–80°).

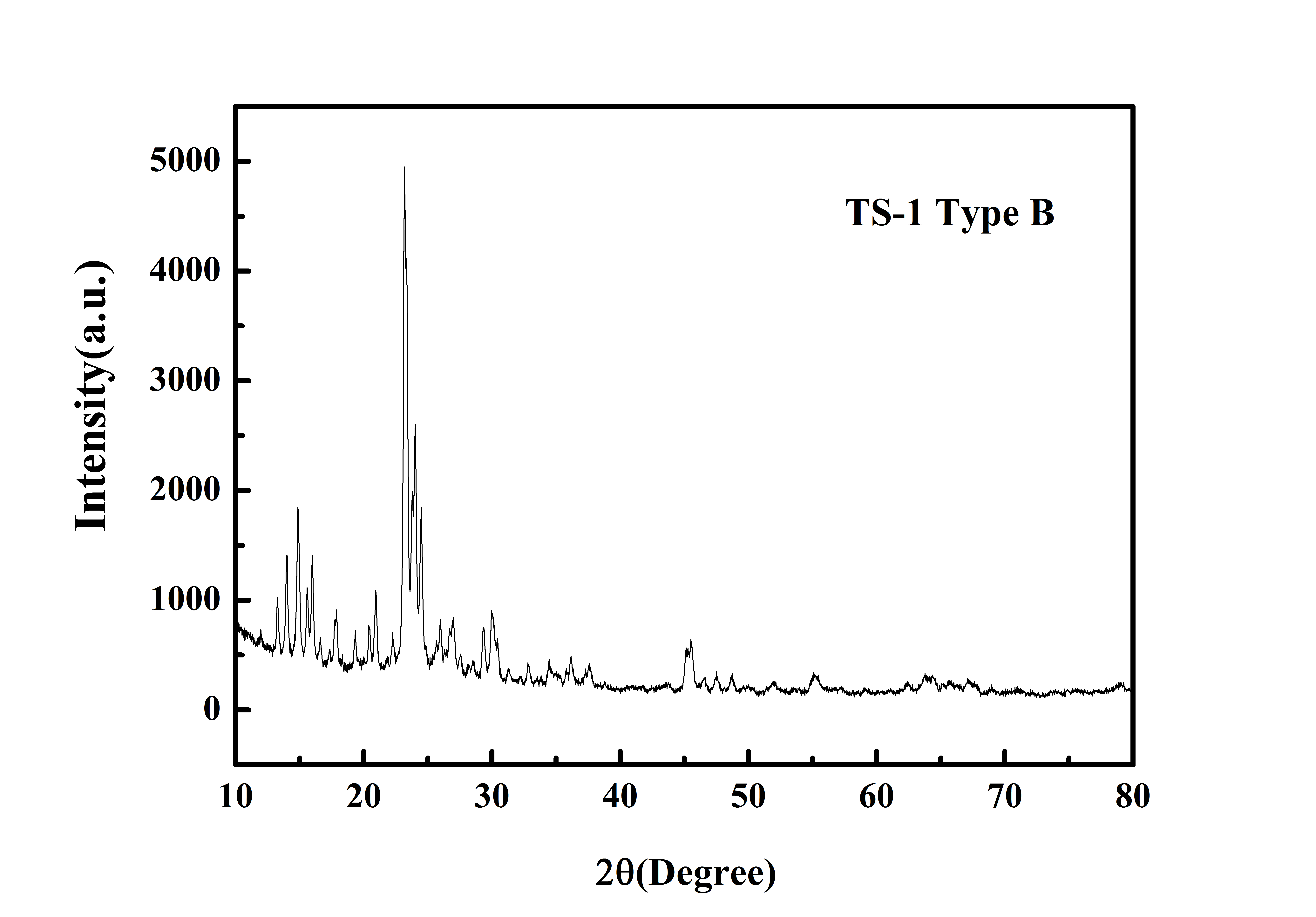

Typical XRD analysis of ACS Material TS-1 (Type B) — ACS Material TS-1, Type B: **Left:** typical SEM image (×1.50k; scale bar 30.0 µm); **Right:** typical XRD analysis (2θ 10–80°).

Application fields

Titano silicalite TS-1 has attracted attention due to its excellent catalytic properties in partial oxidation of many organic compounds, including:

Alkene epoxidation.
Cyclohexanone ammoxidation.
Alcohol oxidation.
Oxidation of saturated hydrocarbons.
Hydroxylation of aromatic hydrocarbons.

FAQ

What is the source of H⁺ in Powder (Type A) of TS-1?

H⁺ comes from an organic amine contained in the raw material. Powder (Type A) has been discontinued.

Does TS-1 need to be calcined before use?

No. ACS Material TS-1 is calcined and ready to use directly.

Which type and package sizes are available?

Powder (Type B), 20–50 µm, in 50 g (MSTS1B51), 200 g (MSTS2022) and 1 kg (MSTS1B31).

Where can I find the TDS and SDS?

The Technical Data Sheet (TDS) and Safety Data Sheet (SDS) for this product are available under the price on this page.

Published research using ACS Material TS-1

Integrated electrochemical porous solid electrolyte reactor and packed bed reactor for efficient synthesis of nylon-6 precursor

S.-K. Zhang, Y. Feng, S. Hao, et al.

Nature Communications 2026, 17, 2163. https://doi.org/10.1038/s41467-026-70236-2

Direct CO₂ Hydrogenation to Aromatics Using ZnO/t-ZrO₂ and Zeolite Bifunctional Catalysts

M. T. Nikolajsen, E. S. Kold, A. B. Møller, et al.

ChemCatChem 2025, 17, e202500099. https://doi.org/10.1002/cctc.202500099

Interfacial electrochemical-chemical reaction coupling for efficient olefin oxidation to glycols

S.-K. Zhang, Y. Feng, A. Elgazzar, et al.

Joule 2023, 7, 1887–1901. https://doi.org/10.1016/j.joule.2023.06.022

Microwave-Assisted Lignin Wet Peroxide Oxidation to C4 Dicarboxylic Acids

C. A. Vega-Aguilar, C. Costa, M. F. Barreiro, et al.

Industrial & Engineering Chemistry Research 2022, 61, 3570–3581. https://doi.org/10.1021/acs.iecr.1c05004

Study of the Product Distribution in the Epoxidation of Propylene over TS-1 Catalyst in a Trickle-Bed Reactor

M. Alvear, K. Eränen, D. Yu. Murzin, et al.

Industrial & Engineering Chemistry Research 2021, 60, 2430–2438. https://doi.org/10.1021/acs.iecr.0c06150

Post-synthesis Treatment of TS-1 with TPAOH: Effect of Hydrophobicity on the Liquid-Phase Oxidation of Furfural to Maleic Acid

Y. Rodenas, J. L. G. Fierro, R. Mariscal, et al.

Topics in Catalysis 2019, 62, 560–569. https://doi.org/10.1007/s11244-019-01149-2

Improving the production of maleic acid from biomass: TS-1 catalysed aqueous phase oxidation of furfural in the presence of γ-valerolactone

Y. Rodenas, R. Mariscal, J. L. G. Fierro, et al.

Green Chemistry 2018, 20, 2845–2856. https://doi.org/10.1039/c8gc00857d
