Ultra-High Temperature Heating Stage AH1500-RG/AH1400-RG-XY
Product Detail
InSitu Pro™ AH1500-RG and AH1400-RG-XY are the 1500 °C and 1400 °C resistive-heating stages in the optical AH range — furnace-type on the AH1500-RG, tunnel-type with X/Y sample travel on the AH1400-RG-XY. Both hold ±0.1 °C, climb at up to 150 °C/min with a controllable cooling rate, and the AH1500-RG's off-center rotating glass viewing window helps keep the field of view clear during testing.
Key features
- 1500 / 1400 °C resistive-heating stagesRT to 1500 °C on AH1500-RG or 1400 °C on AH1400-RG-XY — the ultra-high-temperature resistive-heating members of the optical AH range.
- Two structures, one missionAH1500-RG carries a furnace-type stage with a ceramic φ8 × 2 mm circular groove; AH1400-RG-XY runs a tunnel-type stage with a ceramic 20 × 4 × 20 mm through slot.

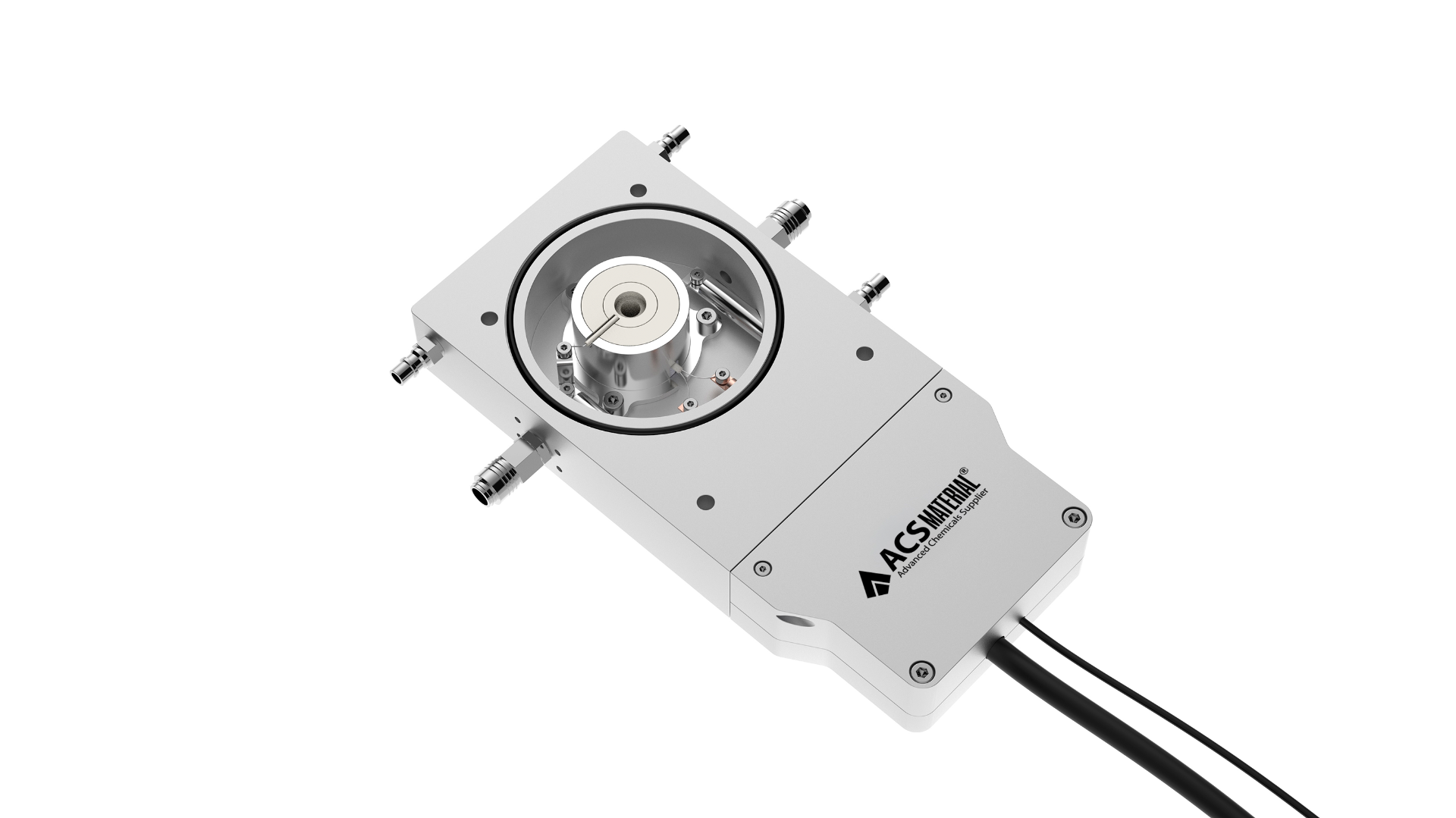

- Rotating window keeps the view clearThe AH1500-RG's off-center rotating glass viewing window helps maintain clear visibility during testing; the JGS2 glass is also hand-removable for cleaning or replacement.

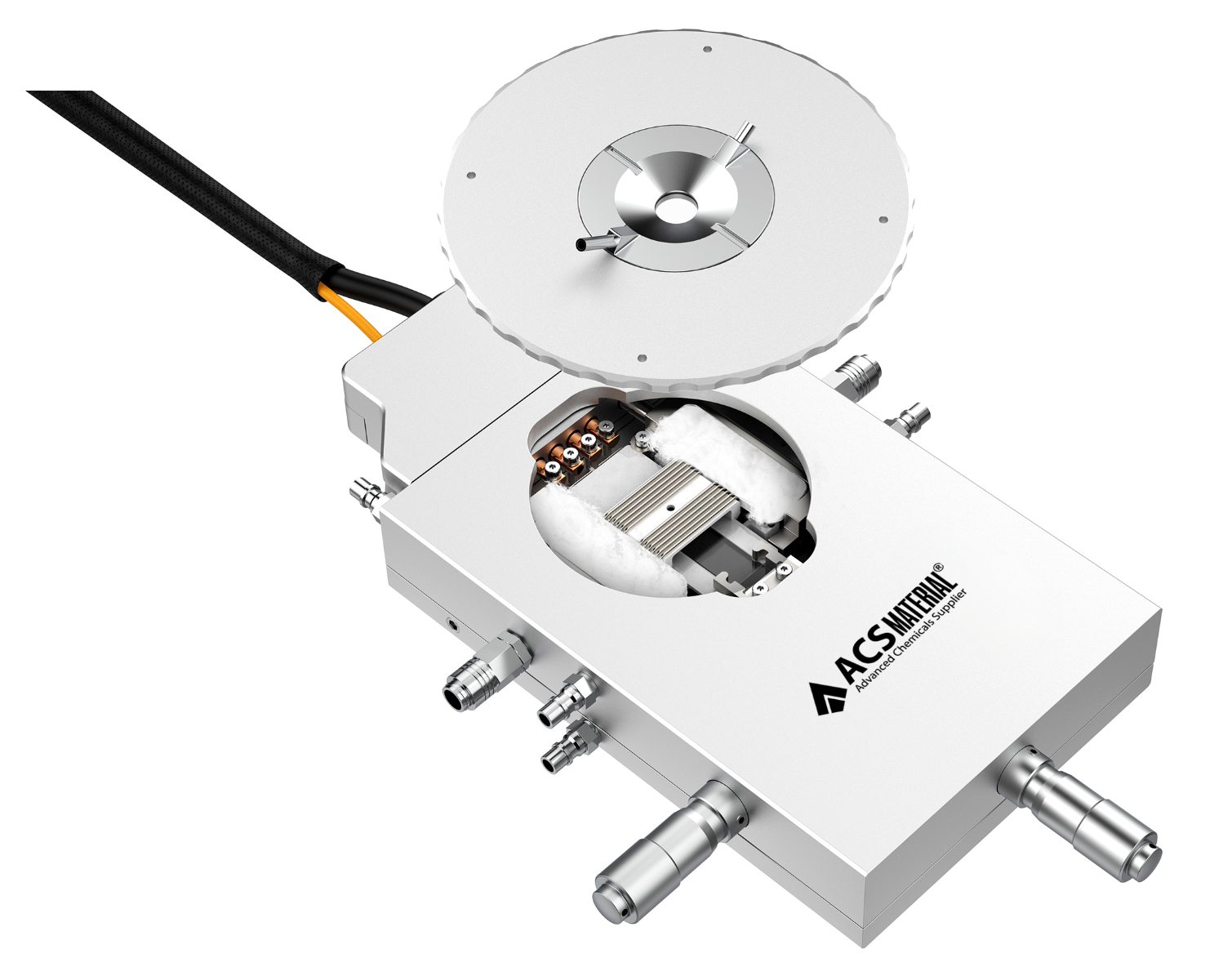

- X/Y sample travel on the XYOn the AH1400-RG-XY the sample is movable: ±6 mm (X) / ±5 mm (Y) travel with 0.01 mm positioning accuracy.
- ±0.1 °C · up to 150 °C·min⁻¹The controller and software support fixed-point holds, ramp-rate control, and multi-segment programmable profiles; Max heating 150 °C/min with a controllable cooling rate.
- Transmission or reflectionAH1500-RG offers a transmission path (φ5 mm light hole, φ10 × 1 mm bottom window); AH1400-RG-XY works in reflection. JGS2 quartz windows, 220–2500 nm.
- Software, SDK & quote-ready orderingHost-computer software handles temperature setting and data acquisition; LabVIEW VIs / C# SDK support customized programming. Request pricing via this page or the Stage Selector.
Product specifications
| Parameter | AH1500-RG | AH1400-RG-XY |
|---|---|---|
| SKU # | EIAH15RG | EIAH14RY |
| Heating Method | Resistive heating | |
| Temperature Range | RT ~ 1500 °C | RT ~ 1400 °C |
| Temperature Stability | ±0.1 °C | |
| Temperature Control Rate | Max heating 150 °C/min · cooling rate controllable | |
| Sample Stage | Ceramic · φ8 × 2 mm circular groove | Ceramic · 20 × 4 × 20 mm (W × H × D) through slot |
| Optical Path | Transmission (φ5 mm light hole) | Reflective |
| Top Window | φ3 × 1.5 mm | φ3 × 2 mm |
| Bottom Window | φ10 × 1 mm | — |
| Window Material | JGS2 quartz glass (220–2500 nm), manually removable and replaceable | |
| Window-to-Stage Distance | 7.5 mm | 11.6 mm |
| Chamber Height | 4.3 mm | 4 mm |
| Sample Movement | — | X/Y ±6 mm / ±5 mm · positioning accuracy 0.01 mm |
| Chamber | Atmosphere | |
| Dimensions | 165 × 78 × 32 mm | 190 × 100 × 31.5 mm |
| Net Weight | 1.1 kg | |
Basic configuration
| Included with every stage | Qty |
|---|---|
| Main unit (AH1500-RG or AH1400-RG-XY) | 1 |
| Temperature controller | 1 |
| Water-circulation system | 1 |
| PC control software | 1 |
| Connection cables, tubing & accessories | — |
Options include adapter plates, custom water circulators, host PCs, and custom control software. Final configuration and accessories are confirmed at quotation.
High-temperature atmosphere: plan for oxidation
When operated in air or another oxidizing atmosphere, many metals and alloys can oxidize very rapidly at 1400–1500 °C. Under diffusion-controlled conditions, oxide growth is often approximated by parabolic kinetics; actual behavior depends on material composition, surface condition, temperature, atmosphere, and exposure time. Hold a sample for an hour at a working temperature and see:
Model: parabolic oxidation x² = k·t with an Arrhenius rate constant — an approximation for diffusion-controlled oxidation, not every material or temperature; the vacuum panel illustrates the model response when the oxidant supply is suppressed. AH1500-RG and AH1400-RG-XY are specified with an atmosphere chamber — confirm the intended operating atmosphere and applicable conditions at quotation; no vacuum capability is listed in their standard specifications. Curves are schematic, not performance data for a specific stage or sample.
The heating ladder · quick navigation
| Family | AH200-Mini / AH600S / AH800Sup to 800 °C | AH1000 / AH12001000 / 1200 °C | AH1500-RG / AH1400-RG-XYthis page |
|---|---|---|---|
| Best for | RT up to 200 / 600 / 800 °C · metal-staged optics | RT to 1000 / 1200 °C · planar ceramic stage | 1500 / 1400 °C resistive-heating AH stages · furnace & tunnel |
| Page | AH heating family → | AH1000 / AH1200 → | — you are here — |
Matched temperature controller & water-circulation system. Each stage ships with its temperature controller and water-circulation system — no cryogen hardware needed. The matched set is specified with your quotation.
FAQ
AH1500-RG or AH1400-RG-XY — which one?
Pick by what the experiment needs. The AH1500-RG gives the higher ceiling (1500 °C), a furnace-type stage, a transmission light path (φ5 mm light hole plus φ10 × 1 mm bottom window), and the rotating viewing window. The AH1400-RG-XY trades 100 °C of ceiling for a tunnel-type stage with X/Y sample travel (±6 / ±5 mm at 0.01 mm accuracy) in reflection. Geometry differs too: window-to-stage distance is 7.5 vs 11.6 mm.
What does the rotating viewing window do?
The AH1500-RG's top window glass is mounted off-center and can rotate, which helps keep the field of view clear during testing at ultra-high temperature. The JGS2 glass is also manually removable and replaceable for cleaning.
Will my sample oxidize at 1400–1500 °C?
If the stage is operated in air, many metals and alloys can oxidize very rapidly at these temperatures — the rate depends on composition, surface condition, temperature, atmosphere, and exposure time, and the simulator above gives a schematic comparison rather than a material-specific prediction. Some oxides, ceramics, refractories, and minerals may be more suitable, depending on phase stability, atmosphere compatibility, and exposure time. No vacuum capability is listed in the standard specifications for AH1500-RG or AH1400-RG-XY — for oxidation-sensitive work, confirm the intended operating atmosphere at quotation.
Not this hot — or cooling too?
For 1000–1200 °C work, the AH1000 / AH1200 pair covers it on a planar ceramic stage; below that, the AH200–AH800 heating family. These are heating-only stages — for sub-ambient points, the LN₂ family (−190 °C) is the right tool.
How do I order?
AH1500-RG / AH1400-RG-XY are configured to your optics and quoted individually. Use the quote request on this page or the Stage Selector, tell us your microscope or spectrometer and target temperatures, and our engineers confirm the configuration and reply with pricing and lead time.
