  • Plasma Cleaning Explained: How Plasma Removes Nanoscale Contamination

    Jul 18, 2026 | ACS MATERIAL LLC

    Every surface in your lab is dirty. Not visibly — molecularly: within minutes of exposure to ordinary air, any solid grows a film of adventitious carbon, a few nanometers of adsorbed hydrocarbons, water, and process residue that no wipe or rinse fully removes. For most of life this film is harmless. But the moment a process depends on the true surface — bonding, coating, imaging, deposition, electrical contact — those invisible nanometers become the failure mode. Plasma cleaning removes them without solvents, abrasion, or heat damage: reactive species and ions take the contamination apart molecule by molecule and the fragments are simply pumped or blown away. This guide explains the two mechanisms that do the work — chemical ashing and physical sputtering — why their combination beats either alone, when low pressure beats atmospheric pressure, and how to pick hardware that matches your parts.

    In one paragraph: plasma cleaning works through two distinct channels. In oxygen-containing plasmas, atomic oxygen and other radicals oxidize organic contamination into volatile CO2 and H2O — chemical ashing: uniform, material-gentle, selective for organics. In inert-gas plasmas, argon ions arriving with directed energy knock contaminant atoms off ballistically — physical sputtering: indiscriminate, slower on thick organics, but effective on residues chemistry cannot volatilize. Mixed Ar/O2 plasmas combine ion impact with radical chemistry and clean faster than either mechanism alone — the same ion-assisted synergy that underpins semiconductor processing. Low-pressure chambers give the most uniform, well-controlled cleaning, including three-dimensional parts; atmospheric systems — DBD cells and plasma jets — clean without any vacuum at all, locally or in-line. The result in every format: the contamination is gone and the true surface is exposed. Whether that surface is then wettable and bond-ready depends on the substrate — and on whether the plasma also activated its chemistry, a sibling process this guide keeps distinct.

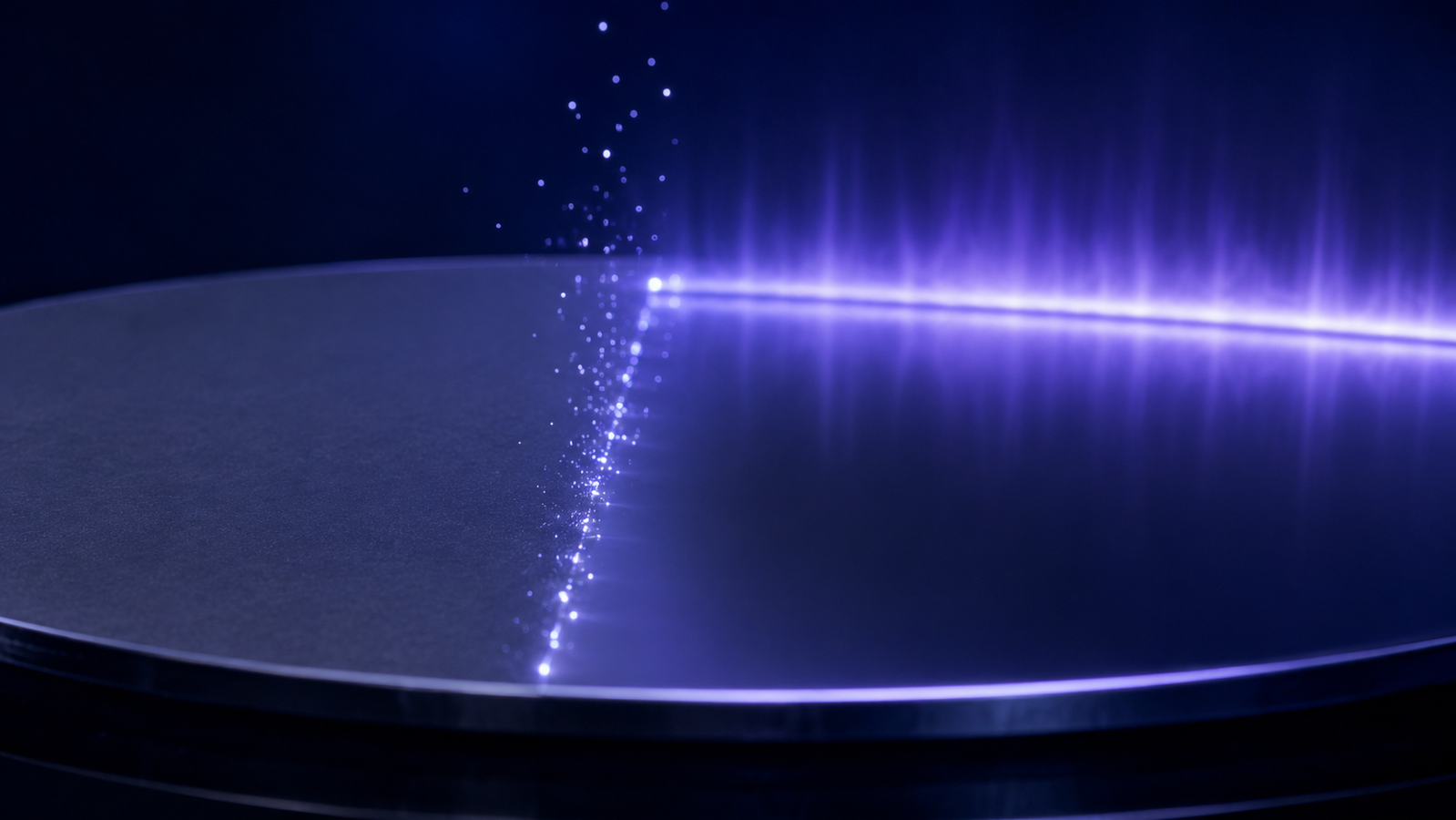

    Violet cold plasma removing a thin hydrocarbon contamination film from a substrate surface, volatile fragments lifting away to reveal a clean surface
    Contamination leaving as molecules: plasma cleaning at the nanoscale. Schematic, not to scale.

    1.  Why "clean" is never clean

    Run XPS on any surface that has seen room air and the carbon peak appears — on gold, on silicon, on ceramic, on freshly cleaved anything. That adventitious layer is thermodynamics at work: ambient hydrocarbons adsorb onto every high-energy surface within minutes, and fingerprints, machining oils, mold release, and packaging outgassing add their own residues on top. Solvent cleaning removes the gross contamination but leaves — and sometimes deposits — a final molecular film; it also creates waste streams and attacks sensitive materials. The persistence of exactly this thin-organic-film problem, and low-pressure plasma's fitness for removing it, is what established plasma as a precision-cleaning process across microelectronics, circuit-board manufacture, and surface preparation for painting and bonding.1

    Why do a few nanometers matter? Because the processes that fail are all interface processes. An adhesive bonds to the contamination, not the substrate — a weak boundary layer that peels at a fraction of the joint's potential, the classic failure mode of adhesion science.2 A deposited film nucleates on hydrocarbons and delaminates. A wire bond or electrical contact sees an insulating film exactly where it needs metal. An electron microscope cracks the hydrocarbons under the beam into carbon deposits on the very feature being imaged. In each case the fix is the same: remove the last nanometers immediately before the critical step, with a method that touches nothing else. That is the job description plasma cleaning was hired for.3

    2.  The cleaning lab

    The simulator below puts a hydrocarbon film on a substrate and lets you take it apart three ways. Watch how each chemistry removes material — O2 thins the film everywhere at once and the fragments float away; Ar chips at it randomly, one impact at a time; the mixture does both — and watch the cleanliness meter as you trade power against time.

    3.  Chemical ashing: oxygen does the work

    Strike a discharge in oxygen — or plain air — and the plasma becomes a radical factory: electron impact dissociates O2 into atomic oxygen, alongside ozone, excited metastables, and OH wherever moisture is present.4 These species attack C–H and C–C bonds on contact, abstracting hydrogen and oxidizing carbon stepwise until the contamination has been converted into small volatile molecules — CO, CO2, H2O, and other oxygenated fragments, in proportions set by the plasma and the contaminant — that leave the surface and are pumped or carried away. The film does not go somewhere; it becomes gas. This is chemical ashing, the workhorse mechanism behind photoresist stripping and organic decontamination.1,3

    Its character follows from the chemistry. It is uniform: neutral radicals arrive from all directions, so removal proceeds layer by layer everywhere at once — including into recesses that line-of-sight processes miss. It is selective: oxygen radicals volatilize organics while leaving many metals, glasses, and ceramics comparatively unscathed — though oxygen plasma can thicken or alter metal oxide layers, change surface hydroxylation, and aggressively etch polymers, so compatibility is qualified on the actual substrate. And it is gentle: in a cold discharge the gas stays cool — the electrons carry the temperature, not the gas — so heat-sensitive parts tolerate the process; that two-temperature separation is the defining physics of every non-thermal discharge in this series.5 In atmospheric barrier discharges the same oxidative chemistry runs at line pressure, which is what makes in-line DBD cleaning of webs and panels possible.6

    4.  Sputtering & synergy: when ions join in

    Argon is chemically inert as a feed gas — and that is its value: with no reactive chemistry supplied, physical effects from ions, fast neutrals, metastables, and photons carry the process (though residual oxygen and moisture in any real system still add a chemical undercurrent). In an argon discharge the headline cleaning agents are the ions themselves: accelerated across the sheath, they arrive at the surface with directed kinetic energy and transfer momentum to whatever they hit, knocking atoms and molecular fragments loose ballistically. This is physical sputtering. It is slower than ashing for thick organic films and it is indiscriminate — enough energy for long enough will erode the substrate too — but it removes what chemistry cannot volatilize: inorganic residues, oxide films, and stubborn baked-on contamination. The ion energy scale is set by the sheath physics of the discharge, which is why substrate bias and pressure are the control knobs of sputter cleaning — and why the classic energetic-Ar+ picture applies most directly to low-pressure, sheath-controlled or biased plasmas. At atmospheric pressure, frequent collisions bleed off ion energy before the surface, and argon cleaning there leans instead on metastables, photons, fast neutrals, and local heating.7,8

    The deep result of low-temperature plasma science is that the two mechanisms are not merely additive. Ion bombardment breaks bonds, creates reactive sites, and clears reaction products; radicals then convert the damaged material to volatiles far faster than either channel manages alone — ion-assisted chemistry, the synergy quantified in the classic beam experiments that Lieberman and Lichtenberg's standard text builds the modern picture on, and the operating principle of the entire semiconductor etch industry.8,9 For cleaning, the practical translation: an Ar/O2 mixture can combine physical activation with oxidative removal — the sim's third tab — but the optimum ratio, and whether the mixture actually beats pure O2, is process-specific and found by qualification, not assumption.

    5.  Cleaning vs activation: siblings, not synonyms

    Because the same hardware runs both, the two processes blur together in casual usage — and keeping them distinct is worth one clear paragraph. Plasma cleaning removes contamination; plasma activation changes the surface chemistry itself. On glass, metals, and other intrinsically high-energy substrates, removing the organic film alone restores wettability — cleaning is the whole job. On an intrinsically low-energy polymer, a perfectly cleaned surface is still a low-energy surface: it only becomes wettable and bond-ready if the plasma also grafts polar groups — which oxygen chemistry usually does at the same time, which is exactly why the two get conflated. The distinction decides your endpoint: cleaning is verified by residue removal, activation by contact angle and adhesion. The activation half of the story — grafting, surface energy, and the aging clock — lives in the surface activation guide.

     Plasma cleaningPlasma activation
    Primary goalRemove contaminationChange surface chemistry
    Typical endpointResidual carbon / residue removalContact angle / surface energy / adhesion
    Common gasesO2, air, Ar, H2 mixturesAir, O2, N2, NH3, noble-gas mixes
    Main riskSubstrate oxidation or ion damageOvertreatment and hydrophobic recovery
    Occur together?OftenOften

    6.  Low pressure vs atmospheric

    The classic plasma cleaner is a low-pressure chamber: pump to a fraction of a millibar, admit the process gas, and sustain a glow that fills the vessel.10 Low pressure buys three things — long radical lifetimes and diffusion lengths, so the glow wraps three-dimensional parts and batches far more conformally than any line-of-sight jet — though deep recesses, narrow pores, fixtures, and chamber loading still demand validation; well-defined ion energies for controlled sputter assist; and a closed, contamination-free environment with clean process-gas chemistry, monitored with the mature diagnostics of RF discharge physics.8,11 The cost is the vacuum system itself and the pump-down time per batch. This is the format of record for critical cleaning — pre-bond, pre-deposition, pre-analysis — and the territory of the CTP-2000K plasma supply paired with a suitable low-pressure chamber.

    Atmospheric-pressure cleaning trades some of that control for zero vacuum. A benchtop DBD cell cleans flat samples and films in seconds between the barriers — and the reactor geometry (planar, coaxial, surface-discharge) sets what shapes fit.12,13 An atmospheric plasma jet cleans locally and in-line: aim the plume, scan the part, no chamber at all — the format of choice for spot cleaning before bonding or repair, with the jet literature mapping how plume species reach the surface.14,15,16 The honest rule: choose low pressure when uniformity, 3-D coverage, or defined ion energy governs; choose atmospheric when throughput, part size, or in-line integration governs.

    7.  Process control & endpoints

    Cleaning is a dose process: rate multiplied by time, with power, pressure, and gas ratio setting the rate. On barrier-type systems the honest power number is the per-cycle energy from a Lissajous measurement rather than the generator dial — the standard method since Manley — and on pulsed supplies duty cycle becomes a fine dose control.17,18,19 Verification closes the loop at two levels: at the line, a water-contact-angle or dyne-ink check — a fast screen, though wettability is not synonymous with cleanliness — and in the lab, XPS carbon percentage before and after, the strongest single probe of residual surface carbon, even if no one measurement is a universal endpoint. Optical emission from the discharge and gas-temperature diagnostics add process insight when the recipe is being developed.20,21

    Two cautions keep recipes honest. Endpoint, then stop: once the organics are gone, continued exposure only accumulates ion damage or unwanted oxidation on the substrate — more is not cleaner. Cleanliness is perishable: adventitious carbon starts re-adsorbing the moment the part meets room air, so plasma cleaning belongs immediately upstream of the critical step, not the day before. (If the goal is activation rather than removal, section 5 draws the line — and the sibling guide covers the aging clock in full.)

    8.  Choosing the hardware

    Match the format to the part and the workflow. For critical, uniform, batch cleaning — including 3-D parts — the CTP-2000K supply with a low-pressure chamber is the reference solution. For fast benchtop cleaning of flat samples and films at atmospheric pressure, the DBD experiment device driven by a CTP-2000K supply cleans in seconds with full parameter control. For local and in-line cleaning of parts that will not fit any chamber, the plasma jet generator brings the plasma to the contamination.10

    The same removal chemistry extends into neighboring territories — sterilization and bio-decontamination, medical device preparation, food-contact surface treatment — each with its own literature, standards, and purpose-built instruments.22,23,24,25 For completeness: ACS Material systems are laboratory and industrial research equipment for surface preparation and materials work; they are not presented here as medical or sterilization devices. Where cleaning science is heading — better endpoint metrology, atmospheric in-line integration, damage-free recipes for ever-thinner device layers — is charted in the community roadmaps.26 Tell us your contamination, substrate, and throughput, and we will spec the format, gas, and recipe window.

    Knowledge hub

    Cleaning hardware and related reading:

    FAQ

    How long does plasma cleaning take?

    Seconds to a few minutes for the adventitious layer and light residues; longer for heavy oils or baked-on films. Time scales with film thickness and inversely with power and reactive-gas fraction — qualify once with XPS or contact angle, then run to the recipe.

    Which gas should I use — O₂, Ar, or a mixture?

    O2 (or air) for organic films: fastest, selective, substrate-gentle. Ar when chemistry must be avoided or the residue is inorganic. Ar/O2 when you want the fastest thorough clean — ion assist plus oxidation. Hydrogen-containing mixtures serve special cases such as oxide reduction on metals.

    Will plasma cleaning damage my substrate?

    Oxygen ashing barely touches most metals, glasses, and ceramics; polymers, by design, are consumed by the same chemistry — on polymer parts, cleaning and surface activation are the same brief exposure. Sputter-heavy recipes can roughen any substrate if overrun. The rule: reach endpoint, then stop.

    Is plasma cleaning the same as UV/ozone cleaning?

    They share the oxidative goal, but UV/ozone relies on photochemistry and ozone alone — slower, line-of-sight, no ion assist. Plasma adds ion bombardment, far higher radical fluxes, gas flexibility, and speed; UV/ozone wins mainly on equipment simplicity for undemanding jobs.

    Does a cleaned surface stay clean?

    No — adventitious carbon begins re-adsorbing on contact with ambient air, and wettability decays over hours to days. Clean immediately before the critical step, or store parts in clean, dry, low-organic environments and re-verify before use.

    Can plasma remove inorganic contamination — salts, oxides, particles?

    Chemistry-based ashing cannot volatilize most inorganics; sputtering can erode thin inorganic films and oxides, and hydrogen chemistries can reduce some oxides, but particles and thick mineral residues need mechanical or wet methods first. Plasma is the finishing step, not the degreaser for gross soil.

    References

    1Petasch, W.; Kegel, B.; Schmid, H.; Lendenmann, K.; Keller, H. U. Low-pressure plasma cleaning: a process for precision cleaning applications. Surf. Coat. Technol. 1997, 97, 176–181. DOI: 10.1016/S0257-8972(97)00143-6.
    2Liston, E. M.; Martinu, L.; Wertheimer, M. R. Plasma surface modification of polymers for improved adhesion: a critical review. J. Adhes. Sci. Technol. 1993, 7, 1091–1127. DOI: 10.1163/156856193X00600.
    3Chu, P. K.; Chen, J. Y.; Wang, L. P.; Huang, N. Plasma-surface modification of biomaterials. Mater. Sci. Eng. R 2002, 36, 143–206. DOI: 10.1016/S0927-796X(02)00004-9.
    4Fridman, A. Plasma Chemistry. Cambridge University Press 2008. DOI: 10.1017/CBO9780511546075.
    5Fridman, A.; Chirokov, A.; Gutsol, A. Non-thermal atmospheric pressure discharges. J. Phys. D: Appl. Phys. 2005, 38, R1–R24. DOI: 10.1088/0022-3727/38/2/R01.
    6Kogelschatz, U. Dielectric-barrier discharges: their history, discharge physics, and industrial applications. Plasma Chem. Plasma Process. 2003, 23, 1–46. DOI: 10.1023/A:1022470901385.
    7Raizer, Yu. P. Gas Discharge Physics. Springer 1991. DOI: 10.1007/978-3-642-61247-3.
    8Lieberman, M. A.; Lichtenberg, A. J. Principles of Plasma Discharges and Materials Processing, 2nd ed. Wiley-Interscience 2005. DOI: 10.1002/0471724254.
    9Samukawa, S.; et al. The 2012 Plasma Roadmap. J. Phys. D: Appl. Phys. 2012, 45, 253001. DOI: 10.1088/0022-3727/45/25/253001.
    10Conrads, H.; Schmidt, M. Plasma generation and plasma sources. Plasma Sources Sci. Technol. 2000, 9, 441–454. DOI: 10.1088/0963-0252/9/4/301.
    11Godyak, V. A.; Demidov, V. I. Probe measurements of electron-energy distributions in plasmas: what can we measure and how can we achieve reliable results? J. Phys. D: Appl. Phys. 2011, 44, 233001. DOI: 10.1088/0022-3727/44/23/233001.
    12Brandenburg, R. Dielectric barrier discharges: progress on plasma sources and on the understanding of regimes and single filaments. Plasma Sources Sci. Technol. 2017, 26, 053001. DOI: 10.1088/1361-6595/aa6426.
    13Gibalov, V. I.; Pietsch, G. J. Dynamics of dielectric barrier discharges in different arrangements. Plasma Sources Sci. Technol. 2012, 21, 024010. DOI: 10.1088/0963-0252/21/2/024010.
    14Schütze, A.; Jeong, J. Y.; Babayan, S. E.; et al. The atmospheric-pressure plasma jet: a review and comparison to other plasma sources. IEEE Trans. Plasma Sci. 1998, 26, 1685–1694. DOI: 10.1109/27.747887.
    15Winter, J.; Brandenburg, R.; Weltmann, K.-D. Atmospheric pressure plasma jets: an overview of devices and new directions. Plasma Sources Sci. Technol. 2015, 24, 064001. DOI: 10.1088/0963-0252/24/6/064001.
    16Lu, X.; Naidis, G. V.; Laroussi, M.; et al. Reactive species in non-equilibrium atmospheric-pressure plasmas: generation, transport, and biological effects. Phys. Rep. 2016, 630, 1–84. DOI: 10.1016/j.physrep.2016.03.003.
    17Manley, T. C. The electric characteristics of the ozonator discharge. Trans. Electrochem. Soc. 1943, 84, 83–96. DOI: 10.1149/1.3071556.
    18Pipa, A. V.; Brandenburg, R. The equivalent circuit approach for the electrical diagnostics of dielectric barrier discharges: the classical Manley model and beyond. Atoms 2019, 7, 14. DOI: 10.3390/atoms7010014.
    19Walsh, J. L.; Shi, J. J.; Kong, M. G. Contrasting characteristics of pulsed and sinusoidal cold atmospheric plasma jets. Appl. Phys. Lett. 2006, 88, 171501. DOI: 10.1063/1.2198100.
    20Akatsuka, H.; Tanaka, Y. Discussion on electron temperature of gas-discharge plasma with non-Maxwellian EEDF based on entropy and statistical physics. Entropy 2023, 25, 276. DOI: 10.3390/e25020276.
    21Bruggeman, P. J.; Sadeghi, N.; Schram, D. C.; Linss, V. Gas temperature determination from rotational lines in non-equilibrium plasmas: a review. Plasma Sources Sci. Technol. 2014, 23, 023001. DOI: 10.1088/0963-0252/23/2/023001.
    22Graves, D. B. The emerging role of reactive oxygen and nitrogen species in redox biology and some implications for plasma applications to medicine and biology. J. Phys. D: Appl. Phys. 2012, 45, 263001. DOI: 10.1088/0022-3727/45/26/263001.
    23Weltmann, K.-D.; von Woedtke, T. Plasma medicine—current state of research and medical application. Plasma Phys. Controlled Fusion 2017, 59, 014031. DOI: 10.1088/0741-3335/59/1/014031.
    24Laroussi, M. Cold plasma in medicine and healthcare: the new frontier in low temperature plasma applications. Front. Phys. 2020, 8, 74. DOI: 10.3389/fphy.2020.00074.
    25Bourke, P.; Ziuzina, D.; Boehm, D.; et al. The potential of cold plasma for safe and sustainable food production. Trends Biotechnol. 2018, 36, 615–626. DOI: 10.1016/j.tibtech.2017.11.001.
    26Adamovich, I.; et al. The 2022 Plasma Roadmap: low temperature plasma science and technology. J. Phys. D: Appl. Phys. 2022, 55, 373001. DOI: 10.1088/1361-6463/ac5e1c.
