Purified Single-Walled Carbon Nanotubes

As low as $306.00 $0.00
In stock
SKU# CSP1

Purified SWNTs

Product Detail

CAS-No.: 308068-56-6

1. Preparation Method

Chemical Vapor Deposition (CVD) Method

2. Characterizations

Purity:

>90%

Color:

Black

Outer Diameter

1-2 nm

Inner Diameter

0.8-1.6 nm

Length:

1-3 μm

5-30 μm

SSA:

>380m2/g

Tap density:

0.14g/cm3

Apparent density:

~2.1g/cm3

EC:

>100 S/cm

 TEM Image of ACS Material Purified SWCNTs (Length = 5-30 μm)

TEM Image of ACS Material Purified SWCNTs (Length = 5-30 μm)

 HRTEM Image of ACS Material Purified SWCNTs (Length = 5-30 μm)

HRTEM Image of ACS Material Purified SWCNTs (Length = 5-30 μm)

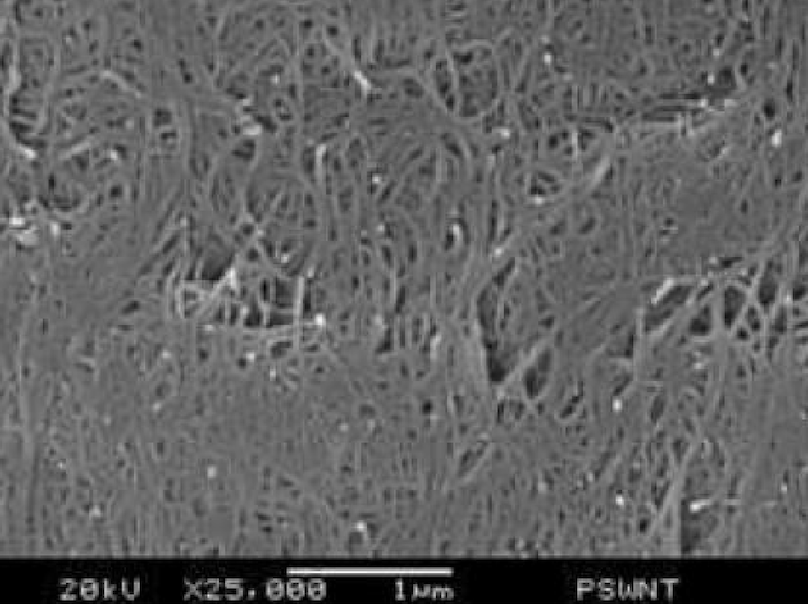

 SEM Image of ACS Material Purified SWCNTs (Length = 1-3 μm)

SEM Image of ACS Material Purified SWCNTs (Length = 1-3 μm)

 XPS Spectrum of ACS Material Purified SWCNTs (Length = 5-30 μm)

XPS Spectrum of ACS Material Purified SWCNTs (Length = 5-30 μm)

 Raman Spectrum of ACS Material Purified SWCNTs (Length = 5-30 μm)

Raman Spectrum of ACS Material Purified SWCNTs (Length = 5-30 μm)

 TG Analysis of ACS Material Purified SWCNTs (Length = 5-30 μm)

TG Analysis of ACS Material Purified SWCNTs (Length = 1-3 μm)

3. Application Fields

Catalysts, additives in polymers, nanoelectrodes, drug delivery, sensors, electromagnetic-wave absorption and shielding, electron field emitters for cathode ray lighting elements, flat panel display, gas-discharge tubes in telecom networks, energy conversion, lithium-battery anodes, hydrogen storage, supercapacitors, nanotube composites (by filling or coating), nanoprobes for STM, AFM, and EFM tips, nanolithography, reinforcements in composites, etc.

Disclaimer: ACS Material LLC believes that the information on our website is accurate and represents the best and most current information available to us. ACS Material makes no representations or warranties either express or implied, regarding the suitability of the material for any purpose or the accuracy of the information listed here. Accordingly, ACS Material will not be responsible for damages resulting from use of or reliance upon this information.
