Covalent Organic Framework-TpPa-1 (COF-TpPa-1)

In stock

SKU# MC2

Qty

Product Detail

ACS Material Covalent Organic Framework-TpPa-1 (COF-TpPa-1) is a covalent organic framework supplied as a powder crystal: a two-dimensional planar material with one-dimensional channels, synthesized at room temperature and ambient atmosphere. It has a BET surface area of ~1360 m²/g and a pore size of 1.5–1.8 nm (depending on the R-group, the pore size varies slightly), and is insoluble in water and common organic solvents.

Key specifications at a glance

Material classCovalent organic framework (COF)

Structure2D planar material, 1D channels

BET surface area~1360 m²/g

Pore size1.5–1.8 nm

Stability (Tg)300–540 °C

Package100 mg

Product information

Parameter	Value
Product name	Covalent Organic Framework-TpPa-1 (COF-TpPa-1)
Material class	Covalent organic framework (COF)
CAS No.	1414350-37-0
Preparation method	Synthesized at room temperature and ambient atmosphere

Characterizations

Characterizations	COF-TpPa-1
Form	Powder crystal; a two-dimensional planar material with one-dimensional channels
Solubility	Insoluble in water or common organic solvents (N,N-dimethylformamide, tetrahydrofuran, dimethyl sulfoxide, acetone, trichloromethane)
Stability (Tg)	300–540 °C
BET surface area	~1360 m²/g
Pore size	1.5–1.8 nm (depending on the R-group, the pore size varies slightly)
R-group	–CH₃ / –NO₂ / –H

Ordering information

Product	Type	Package	Product No.
COF-TpPa-1	Type A	100 mg	MC2A00N1

Typical data

Typical SEM image of ACS Material COF-TpPa-1 — **Left:** typical SEM image of ACS Material COF-TpPa-1; **Right:** PXRD pattern of as-synthesized ACS Material COF-TpPa-1 (blue) compared with the eclipsed (black) and staggered (red) stacking models.

PXRD pattern of ACS Material COF-TpPa-1 — **Left:** typical SEM image of ACS Material COF-TpPa-1; **Right:** PXRD pattern of as-synthesized ACS Material COF-TpPa-1 (blue) compared with the eclipsed (black) and staggered (red) stacking models.

FT-IR spectra of ACS Material COF-TpPa-1 — ACS Material COF-TpPa-1: **Left:** FT-IR spectra; **Right:** solid-state NMR spectrum.

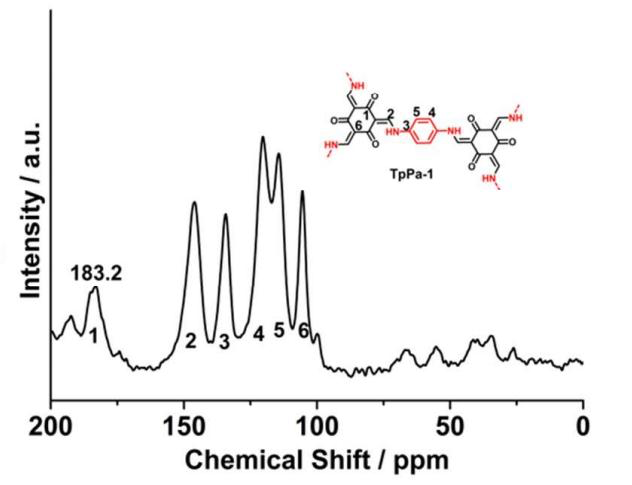

Solid-state NMR spectrum of ACS Material COF-TpPa-1 — ACS Material COF-TpPa-1: **Left:** FT-IR spectra; **Right:** solid-state NMR spectrum.

N2 adsorption and desorption isotherms of ACS Material COF-TpPa-1 — **Left:** N₂ adsorption (filled symbols) and desorption (empty symbols) isotherms of ACS Material COF-TpPa-1; **Right:** TGA data of activated ACS Material COF-TpPa-1 under N₂ atmosphere.

**Left:** N₂ adsorption (filled symbols) and desorption (empty symbols) isotherms of ACS Material COF-TpPa-1; **Right:** TGA data of activated ACS Material COF-TpPa-1 under N₂ atmosphere.

Application fields

Metal coordination catalysis.
Recognition of metal ions.
Bio-detection.
Chiral separation.

FAQ

What is the BET surface area and pore size of COF-TpPa-1?

The BET surface area is ~1360 m²/g and the pore size is 1.5–1.8 nm; depending on the R-group (–CH₃, –NO₂ or –H), the pore size varies slightly.

How is COF-TpPa-1 made?

It is synthesized at room temperature and ambient atmosphere.

Is COF-TpPa-1 soluble?

No. It is insoluble in water and common organic solvents (N,N-dimethylformamide, tetrahydrofuran, dimethyl sulfoxide, acetone, trichloromethane).

Which package size is available?

100 mg, Type A (MC2A00N1).

Where can I find the TDS and SDS?

The Technical Data Sheet (TDS) and Safety Data Sheet (SDS) for this product are available under the price on this page.
