Industrial Thin Layer Graphene Nanoplatelets

As low as $175.00 $0.00
In stock
SKU# GNNP0

Graphene Nanoplatelets, Black/Grey Powder

Loading...

Product Detail

ACS Material Industrial Thin Layer Graphene Nanoplatelets are a production-scale family of few-layer graphene platelets supplied in three grades — Type A, B, and C — each tuned for a different balance of thickness, lateral size, and electrical conductivity. All three are black/grey powders with >99% carbon, produced for conductive and mechanical reinforcement in batteries, composites, coatings, and electronics at industrial volumes.

Thin-layer graphene nanoplatelets are stacks of just a few graphene sheets — thin enough to expose a large fraction of their carbon at the surface, yet far more robust and economical than single-layer graphene. Across the three grades, thickness runs from about 1 to 6 nm and lateral platelet size from roughly 1 to 10 µm, letting you match aspect ratio, conductivity, and packing density to your process. Industrial quantities are available; contact ACS Material for pricing and lead time.

Compare the three grades

Type A, B, and C differ mainly in platelet thickness, lateral size, and conductivity. Use the interactive comparison below to see how the key parameters stack up — tap a grade to highlight it and read where it fits. Exact ranges are in the specifications table that follows.

Specifications

ParameterType AType BType C
AppearanceBlack/grey powderBlack/grey powderBlack/grey powder
Diameter (lateral size)1–5 µm1–6 µm1–10 µm
Thickness1–6 nm1–4 nm2–3 nm
Tap density0.06–0.1 g/mL0.05–0.07 g/mL0.04–0.06 g/mL
Apparent density0.04–0.07 g/mL0.03–0.05 g/mL0.03–0.05 g/mL
Electrical conductivity800–1100 S/cm800–1100 S/cm800–1100 S/cm
Carbon content>99%>99%>99%
Water content<2 wt%<2 wt%<2 wt%
Residual impurities<1 wt%<1 wt%<1 wt%
Particle-size distribution (D50)~26.03 µm~16.01 µm~9 µm
Specific surface area (BET)~29.8 m²/g——
Preparation methodPhysical liquid-phase exfoliation——

The particle-size distribution (D50) is measured by laser diffraction on the dry powder and reflects loosely held agglomerates of platelets, not the size of an individual sheet (the lateral size of a single platelet is given by the Diameter row). Agglomerates can partially break down during compounding and dispersion, depending on shear, formulation, and surface treatment. SSA and preparation method are characterized for Type A; Type B and C belong to the same industrial thin-layer family. Values are typical and may vary lot to lot — consult the TDS for the specification of a given lot.

Microscopy and Raman

TEM image of ACS Material industrial thin layer graphene nanoplatelets Type A, showing thin few-layer platelets
Typical TEM image of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type A).
TEM image of ACS Material industrial thin layer graphene nanoplatelets Type B, showing thin few-layer platelets
Typical TEM image of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type B).

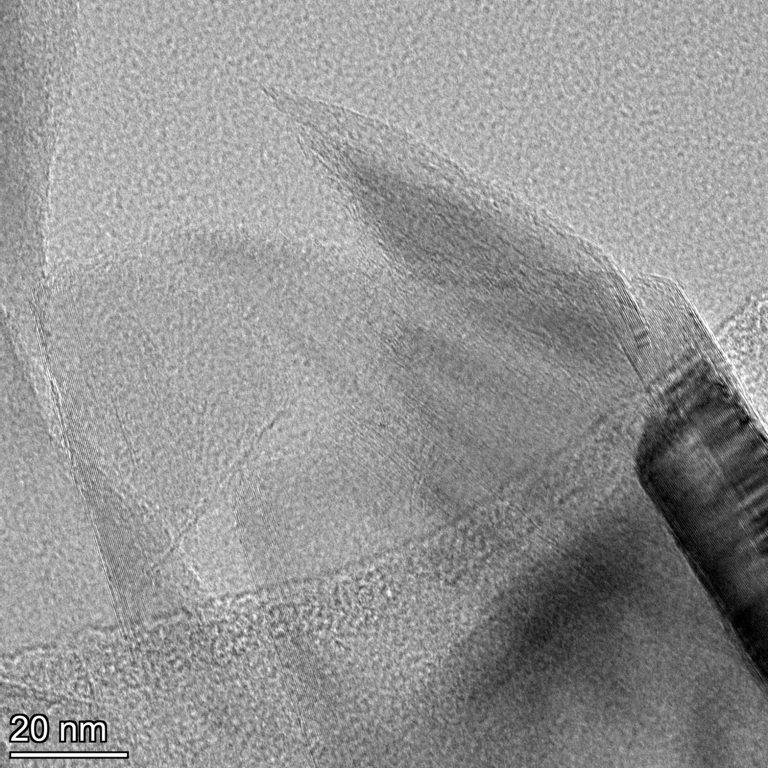

TEM image of ACS Material industrial thin layer graphene nanoplatelets Type C, showing thin few-layer platelets with large lateral size
Typical TEM image of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type C).
Raman spectrum of ACS Material industrial thin layer graphene nanoplatelets Type A, showing D, G and 2D bands
Raman spectrum of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type A).
Raman spectrum of ACS Material industrial thin layer graphene nanoplatelets Type B, showing D, G and 2D bands
Raman spectrum of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type B).
Raman spectrum of ACS Material industrial thin layer graphene nanoplatelets Type C, showing D, G and 2D bands
Raman spectrum of ACS Material Industrial Thin Layer Graphene Nanoplatelets (Type C).

Application fields

  • New-energy batteries — conductive additive for electrodes
  • Antistatic & conductive composites and coating modifiers
  • Thermal management — heat dissipation, thermally conductive composites
  • Mechanical reinforcement — improved strength and stiffness
  • Electronics & basic research — graphene transistors, electronic chips, antenna materials
  • Aerospace and other lightweight high-performance materials

Choice of grade depends on the target property: all three grades offer high conductivity (800–1100 S/cm); Type C has the largest lateral size and lowest D50 for network formation, while the grades differ mainly in thickness, lateral size, and powder density. Graphene nanoplatelets are typically dispersed into the host matrix with a coupling agent; the optimal loading and modifier depend on your formulation.

Related ACS Material products

Graphene Nanoplatelets (2–10 nm)

Lab-grade multi-layer nanoplatelets in defined thickness grades.

Graphene Nanoplatelets (1–5 nm)

Intermediate few-layer grade with high specific surface area.

Graphene Nanoplatelets (1–2 nm)

The thinnest few-layer grade for maximum surface area.

All Graphene Nanoplatelets

Browse the full nanoplatelet range and the wider ACS Material graphene series.

Frequently asked questions

What is the difference between Type A, B, and C?
All three are industrial thin-layer graphene nanoplatelets but differ in platelet geometry and conductivity. Type A: 1–6 nm thick, 1–5 µm wide, 800–1100 S/cm, with a characterized SSA (~29.8 m²/g). Type B: 1–4 nm, 1–6 µm, 800–1100 S/cm. Type C: 2–3 nm, up to 1–10 µm, 800–1100 S/cm, with the largest lateral size and lowest D50.
How many graphene layers do these platelets have?
Graphene layers are spaced about 0.34 nm apart, so 1–6 nm corresponds to roughly 3–18 layers across the three grades — the few-layer to thin multi-layer regime.
Why is the measured D50 larger than the platelet diameter?
The diameter values are the lateral size of an individual platelet. The D50 comes from laser-diffraction analysis of the dry powder, which measures loosely bound agglomerates of many platelets; these break apart during compounding and dispersion.
What is the electrical conductivity of these grades?
All three grades reach 800–1100 S/cm. They differ mainly in platelet thickness, lateral size, and powder density rather than conductivity.
Are industrial quantities available?
Yes — this is a production-scale product. Contact ACS Material for bulk pricing and lead time.

Research citations of ACS Material products

Selected peer-reviewed research using ACS Material graphene nanoplatelets or related graphene/graphite nanoplatelet materials, prioritizing higher-impact journals. A full citation list is available on request.

1Wang, X.; et al. Three-dimensional strutted graphene grown by substrate-free sugar blowing for high-power-density supercapacitors. Nat. Commun. 2013, 4, 2905. https://doi.org/10.1038/ncomms3905
2Karimi, S.; Ghasemi, I.; Abbassi-Sourki, F. A study on the crystallization kinetics of PLLA in the presence of graphene oxide and PEG-grafted graphene oxide. Composites Part B: Eng. 2019, 158, 302–310. https://doi.org/10.1016/j.compositesb.2018.10.004
3Negro, E.; et al. Toward Pt-free anion-exchange membrane fuel cells: Fe–Sn carbon nitride–graphene core–shell electrocatalysts for the oxygen reduction reaction. Chem. Mater. 2018, 30 (8), 2651–2659. https://doi.org/10.1021/acs.chemmater.7b05323
4Yoo, E.; Zhou, H. Carbon cathodes in rechargeable lithium-oxygen batteries based on double-lithium-salt electrolytes. ChemSusChem 2016, 9 (11), 1249–1254. https://doi.org/10.1002/cssc.201600177
5Yehia, H. M.; Nouh, F.; El-Kady, O. Effect of graphene nano-sheets content and sintering time on the microstructure, coefficient of thermal expansion, and mechanical properties of (Cu/WC–TiC-Co) nano-composites. J. Alloys Compd. 2018, 764, 36–43. https://doi.org/10.1016/j.jallcom.2018.06.040
6Nieto, A.; et al. Graphene reinforced metal and ceramic matrix composites: a review. Int. Mater. Rev. 2016, 62 (5), 241–302. https://doi.org/10.1080/09506608.2016.1219481
7Zhang, G.; et al. Facile synthesis of graphene nanoplate-supported porous Pt–Cu alloys with high electrocatalytic properties for methanol oxidation. J. Mater. Chem. A 2016, 4 (9), 3316–3323. https://doi.org/10.1039/c5ta09937d
8Zhang, G.; et al. Small-sized and highly dispersed Pt nanoparticles on graphite nanoplatelets as an effective catalyst for methanol oxidation. Nanoscale 2015, 7 (22), 10170–10177. https://doi.org/10.1039/c5nr01882j
9Alam, F.; et al. Electrical, mechanical and thermal properties of graphene nanoplatelets reinforced UHMWPE nanocomposites. Mater. Sci. Eng. B 2019, 241, 82–91. https://doi.org/10.1016/j.mseb.2019.02.011
10Gupta, T. K.; et al. Self-sensing and mechanical performance of CNT/GNP/UHMWPE biocompatible nanocomposites. J. Mater. Sci. 2018, 53 (11), 7939–7952. https://doi.org/10.1007/s10853-018-2072-3
11Chen, J.; Han, J. A combination of graphene and graphene nanoplatelets: an effective way to improve thermal conductivity for polymers. Results Phys. 2019, 15, 102803. https://doi.org/10.1016/j.rinp.2019.102803
12Xu, P.; et al. Load transfer and mechanical properties of chemically reduced graphene reinforcements in polymer composites. Nanotechnology 2012, 23 (50), 505713. https://doi.org/10.1088/0957-4484/23/50/505713
13Li, X.; et al. Forced assembly by multilayer coextrusion to create oriented graphene reinforced polymer nanocomposites. Polymer 2014, 55 (1), 248–257. https://doi.org/10.1016/j.polymer.2013.11.025
14Li, M.; et al. Fabrication of graphene nanoplatelets-supported SiOx-disordered carbon composite and its application in lithium-ion batteries. J. Power Sources 2015, 293, 976–982. https://doi.org/10.1016/j.jpowsour.2015.06.019
15Dai, S.; et al. Biothiol-mediated synthesis of Pt nanoparticles on graphene nanoplates and their application in methanol electrooxidation. J. Mater. Sci. 2018, 53 (1), 423–434. https://doi.org/10.1007/s10853-017-1508-5
16Rashed, A. E.; El-Moneim, A. A. Two steps synthesis approach of MnO2/graphene nanoplates/graphite composite electrode for supercapacitor application. Mater. Today Energy 2017, 3, 24–31. https://doi.org/10.1016/j.mtener.2017.02.004
17Xia, G.; et al. Highly uniform platinum nanoparticles supported on graphite nanoplatelets as a catalyst for proton exchange membrane fuel cells. Int. J. Hydrogen Energy 2014, 39 (28). https://doi.org/10.1016/j.ijhydene.2013.08.033
18Zhang, X.; et al. Preparation and characterization of Pt nanoparticles supported on modified graphite nanoplatelet using solution blending method. Int. J. Hydrogen Energy 2013, 38 (21), 8909–8913. https://doi.org/10.1016/j.ijhydene.2013.05.038
19Köckritz, T.; et al. Integration of carbon allotropes into polydimethylsiloxane to control the electrical conductivity. Int. J. Adhes. Adhes. 2018. https://doi.org/10.1016/j.ijadhadh.2017.12.001
20Wehnert, F.; et al. Design of multifunctional adhesives by the use of carbon nanoparticles. J. Adhes. Sci. Technol. 2015, 29 (17), 1849–1859. https://doi.org/10.1080/01694243.2015.1014536
21Strankowski, M.; et al. Morphology, mechanical and thermal properties of thermoplastic polyurethane containing reduced graphene oxide and graphene nanoplatelets. Materials 2018, 11 (1), 82. https://doi.org/10.3390/ma11010082
22Piszczyk, Ł.; et al. Elastic polyurethane foams containing graphene nanoplatelets. Adv. Polym. Technol. 2017. https://doi.org/10.1002/adv.21819
23Kumar, P.; et al. Strength of Mg–3%Al alloy in presence of graphene nanoplatelets as reinforcement. Mater. Sci. Technol. 2018. https://doi.org/10.1080/02670836.2018.1424380
24Luan, X.; Wang, Y. Thermal annealing and graphene modification of exfoliated hydrogen titanate nanosheets for enhanced lithium-ion intercalation properties. J. Mater. Sci. Technol. 2014, 30 (9), 839–846. https://doi.org/10.1016/j.jmst.2014.07.003
25Filippidou, M. K.; et al. A flexible strain sensor made of graphene nanoplatelets/polydimethylsiloxane nanocomposite. Microelectron. Eng. 2015, 142, 7–11. https://doi.org/10.1016/j.mee.2015.06.007
26Butmee, P.; et al. A direct and sensitive electrochemical sensing platform based on ionic liquid functionalized graphene nanoplatelets for the detection of bisphenol A. J. Electroanal. Chem. 2019, 833, 370–379. https://doi.org/10.1016/j.jelechem.2018.12.018
27Konecka, K.; et al. Development and first application of the edge plane pyrolytic graphite electrode modified with graphene nanoplatelets for highly sensitive voltammetric determination of oxolinic acid. J. Electroanal. Chem. 2018, 826, 76–83. https://doi.org/10.1016/j.jelechem.2018.08.024
28Boonkaew, S.; et al. An origami paper-based electrochemical immunoassay for the C-reactive protein using a screen-printed carbon electrode modified with graphene and gold nanoparticles. Microchim. Acta 2019, 186 (3), 153. https://doi.org/10.1007/s00604-019-3245-8
29Zrinski, I.; et al. Evaluation of phenolic antioxidant capacity in beverages based on laccase immobilized on screen-printed carbon electrode modified with graphene nanoplatelets and gold nanoparticles. Microchem. J. 2020, 152, 104282. https://doi.org/10.1016/j.microc.2019.104282
30El-Kady, O.; Yehia, H. M.; Nouh, F. Preparation and characterization of Cu/(WC-TiC-Co)/graphene nano-composites as a suitable material for heat sink by powder metallurgy method. Int. J. Refract. Met. Hard Mater. 2019, 79, 108–114. https://doi.org/10.1016/j.ijrmhm.2018.11.007
31Swiderska-Mocek, A.; Rudnicka, E. Lithium–sulphur battery with activated carbon cloth-sulphur cathode and ionic liquid as electrolyte. J. Power Sources 2015, 273, 162–167. https://doi.org/10.1016/j.jpowsour.2014.09.020
32Negro, E.; et al. Graphene-supported Au-Ni carbon nitride electrocatalysts for the ORR in alkaline environment. ECS Trans. 2016, 72 (29), 1–14. https://doi.org/10.1149/07229.0001ecst
