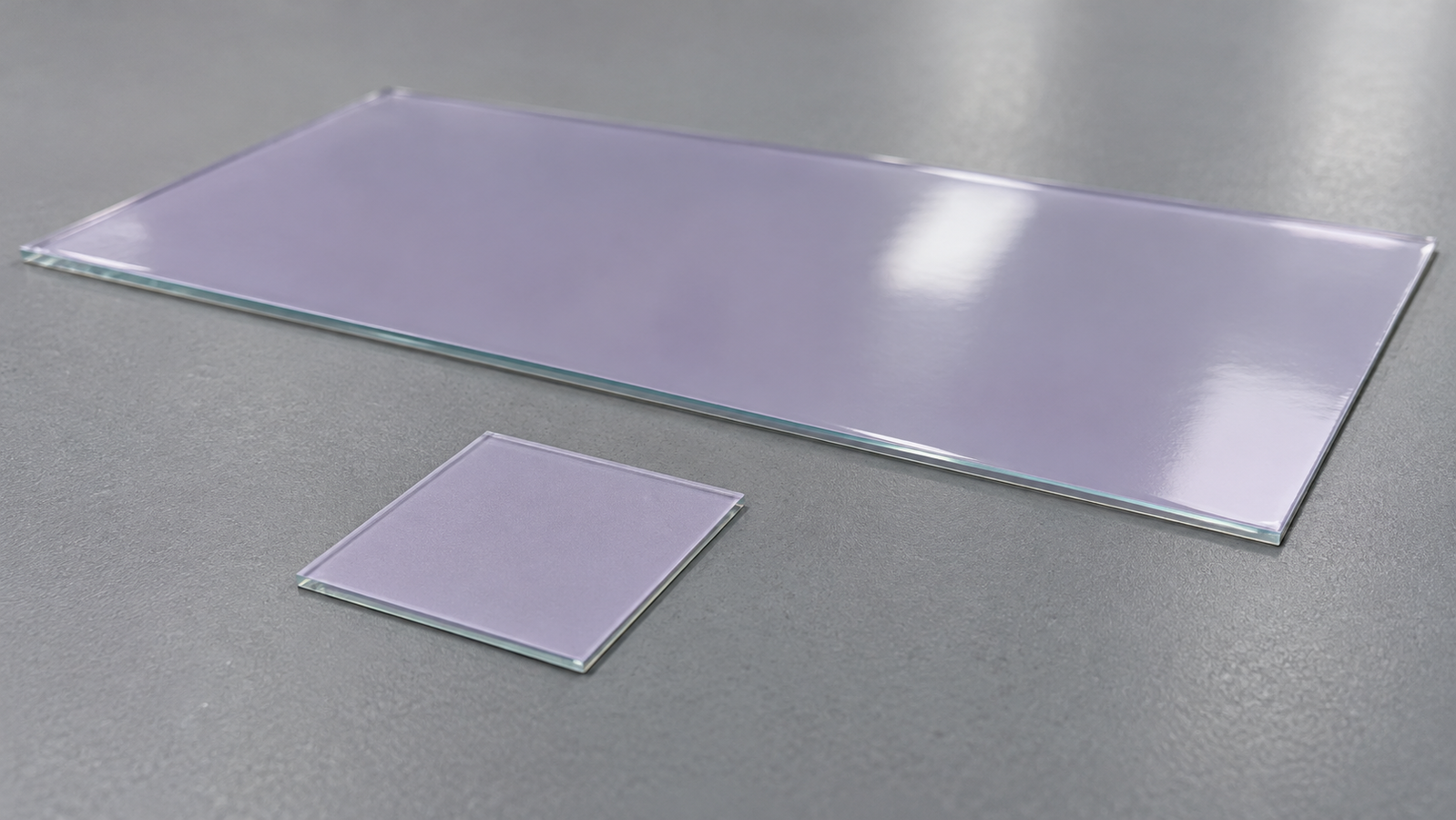

Most thin-film inks are developed on a spin coater, and many of them later need to be coated over larger areas by slot-die or blade coating. The recipe rarely transfers directly. The chemistry may be the same, but the way the wet film forms and dries is not: spin coating thins the film by rotation and dries it under strong forced convection, while blade and slot-die coating can leave a thicker wet film that dries more slowly without active drying. This guide explains what actually changes, why antisolvent steps do not transfer, how to translate a target thickness, how much ink each method uses, and a step-by-step way to move an ink across.
In one paragraph: in spin coating, the film thins by centrifugal outflow and evaporation that the rotation itself speeds up, so the thickness follows the spin speed, roughly h ∝ ω−1/2 [3][4]. In slot-die and blade coating, the dry thickness is roughly the wet thickness times the solids volume fraction, and the wet film is set by flow rate, gap or speed. Drying often changes most: a thicker wet film without active drying can reach supersaturation later and more slowly, changing nucleation and crystal growth [5][6]. Antisolvent dripping, timed to seconds on a spin coater [7][8], has no direct equivalent on a moving coater; gas quenching, heated substrates and ink additives take its place [9][10][11]. Plan the transfer as a new drying process, not as a copy of the spin recipe.
1. The short answer
The question of spin coating vs slot die coating is usually not which one is better, but what changes when an ink developed on the first must work on the second. The table summarises the differences that matter for the transfer.
| Aspect | Spin coating | Slot-die coating | Blade coating |
|---|---|---|---|
| What sets thickness | Spin speed, viscosity, evaporation rate | Flow rate, width and speed (pre-metered) | Gap and ink flow, or speed in meniscus mode |
| Typical wet film before drying | Thins continuously during spinning | Set by the pump; a few to tens of micrometres | Set by gap or speed; similar range |
| Drying environment | Strong forced convection over the spinning disc | Still air unless a gas knife or heating is added | Still air unless a gas knife or heating is added |
| Time to supersaturation | Seconds, and similar across the substrate | Often longer without active drying; set by gas flow and temperature | Often longer without active drying; set by gas flow and temperature |
| Antisolvent drip | Common for perovskites | No direct equivalent | No direct equivalent |
| Substrate size | Limited by the chuck and uniformity on large wafers | Set by the stage and die width | Set by the stage and blade length |
General comparison, after reviews of scalable coating methods [1][2][12]. Specific inks and set-ups vary.
The rest of this guide expands each row. The underlying physics of the individual methods is covered in the spin coating guide, in Slot-Die Coating Explained: Pre-Metered Thickness and the Coating Window and in Doctor Blade Coating: Blade Gap vs Wet Film Thickness. For how the methods compare more broadly, see the pillar guide to solution-processed thin films, with its interactive coating method selector.
2. How each method sets thickness
Spin coating. Liquid on a rotating substrate flows outward under centrifugal force while viscosity resists. For a Newtonian liquid without evaporation, the film thins uniformly over time, as shown by Emslie, Bonner and Peck [3]. Meyerhofer added evaporation, which eventually stops the thinning and fixes the solids, and found that the final thickness scales roughly as the inverse square root of spin speed, h ∝ ω−1/2, for a constant ink [4]. Because the evaporation rate is itself raised by the rotation, speed changes both flow and drying at once.
Slot-die coating. A pump delivers a flow rate Q through a die of width W onto a substrate moving at speed U. Within the coating window, the wet film is hwet = Q/(W·U), whatever the viscosity [13][14]. The dry film is roughly φ·hwet, where φ is the volume fraction of material left after drying.
Blade coating. With a narrow gap, the wet film is about half the gap for a simple liquid, adjusted for pressure flow and rheology. With a gap much larger than the film, the blade drags a meniscus and the thickness depends on speed and evaporation, with an evaporative regime at low speed and a drag-out regime at high speed [15].
The consequence for transfer is that the spin speed has no counterpart. A spin recipe fixes the dry thickness through rotation; in slot-die and blade coating, the dry thickness follows directly from the wet thickness and the ink’s solids content. The same ink can therefore give a very different thickness, and the ink concentration becomes a primary design variable rather than something chosen once.
3. Drying kinetics: the real change
For crystallising inks such as perovskite precursors, film quality depends strongly on how supersaturation develops. As solvent evaporates, the solute concentration can exceed its solubility and drive nucleation. Rapid, uniform supersaturation can promote dense nucleation; slow drying can leave isolated crystals and gaps, although outcomes depend on ink chemistry and drying conditions [6][5].
The spin coater provides fast, uniform drying almost by accident. The rotating disc drags air across the film, which thins the vapour boundary layer above it and raises the evaporation rate, and the film is already thin, so there is little solvent to remove. Both effects compress the passage through supersaturation into seconds, and they act similarly across the substrate.
A blade or slot-die coater does neither on its own. The wet film is typically thicker, so there is more solvent to evaporate, and without a gas flow the air above the film is still, so evaporation is limited by diffusion through a thick vapour layer. Without active drying, supersaturation therefore tends to arrive later and more slowly. Fong and Li report that blade-coated wet films took longer to dry than spin-coated ones and treat drying kinetics as a crucial parameter when transferring perovskite processing from spin coating to meniscus blade coating [5], and in situ studies of drying show that the drying rate can be measured, modelled and controlled with gas flow [6].
This is why a spin recipe’s solvent system often needs to change. A solvent that evaporates slowly is forgiving on a spin coater, because rotation keeps the film thinning while it dries. On a stationary substrate, the same solvent can leave a wet film that stays wet long enough to dewet, flow at the edges or crystallise slowly. Reviews of scalable perovskite deposition discuss solvent selection, additives, gas quenching and substrate heating as the main levers for this problem [1][2].
4. Antisolvent steps and their replacements
Many high-quality spin-coated perovskite films rely on an antisolvent step: a solvent in which the perovskite is insoluble, such as toluene or chlorobenzene, is dropped onto the spinning film at a chosen moment, which forces rapid supersaturation and dense nucleation [7][8]. The timing matters to within seconds, and the spinning disc spreads the antisolvent evenly within a fraction of a second.
On a moving slot-die or blade coater, there is no equivalent single moment. Different parts of the film are coated at different times, and dripping onto a stationary film does not spread evenly. Bath immersion is possible in principle, but it adds a step and a large volume of solvent. In practice, the antisolvent role is usually taken over by methods that act on the whole film as it passes:
| Replacement | How it speeds supersaturation | Notes |
|---|---|---|
| Gas quenching (gas knife) | A flow of dry gas over the wet film raises the evaporation rate | Gas-assisted drying was reported early as an alternative to antisolvent dripping [9]; gas quenching has been discussed as a route to scalable deposition [10] |
| Heated substrate | Higher temperature raises the solvent vapour pressure | Shifts crystallisation; can be combined with gas flow |
| Ink additives | Change how the ink wets, flows and dries | Surfactant additives that control ink drying enabled high-speed blade coating in one report [11] |
| Solvent system | Faster-evaporating or more volatile solvent mixtures | Changes solubility and wetting; re-check the ink |
| Vacuum quenching | Lowering pressure speeds evaporation | A separate step after coating; listed as an alternative route to supersaturation in a process-transfer review [5] |
Overview of approaches from the cited literature. Effectiveness depends on the ink, solvent and conditions used by each group; none of these is a drop-in replacement without optimisation.
Of these, gas quenching is the most direct analogue of what the spin coater does, because it restores forced convection over the film. Its set-up, including knife angle, height and flow, is covered in Air-Knife and Gas Quenching for Blade- and Slot-Die-Coated Films. The spin-coating side of the antisolvent step, including its timing, is covered in Perovskite Film Fabrication: Spin Coating, Antisolvent Timing and Annealing.
5. Reformulating the ink
A spin ink is optimised for a process that removes most of the liquid by rotation. A slot-die or blade ink must form a stable wet film, stay put on a stationary substrate and dry in a controlled way. The main properties to revisit are:
| Property | Why it matters after transfer | What to check |
|---|---|---|
| Solids concentration | Sets dry thickness through φ·hwet; no spin speed to compensate | Calculate the required φ from target and achievable wet film (section 6) |
| Solvent volatility | Sets the drying time on a stationary film | Time the film from wet to dry with and without gas flow |
| Wetting | A stationary wet film can dewet or retract from edges | Contact angle on the actual substrate; substrate cleaning and activation |
| Viscosity and rheology | Affect the coating window in slot-die and the gap ratio in blade coating | Viscosity at the relevant shear rate |
| Surface tension gradients | Evaporation at edges creates flows that thicken edges or form cells | Look for coffee-ring edges or cell patterns after drying |
| Stability | Slot-die inks sit in tubing and syringes for longer | Ink age, filtration, settling or precipitation over the run time |
Checklist based on the general literature on coating and scalable deposition [13][1]. Not every property needs to change for every ink.
Two practical points. First, change one thing at a time where possible: a new solvent changes solubility, wetting and drying together, which makes it hard to see which change helped. Second, keep a spin-coated reference: coating the reformulated ink on the spin coater confirms that the chemistry still gives a good film before the slot-die or blade process is tuned.
6. Translating a target thickness
Start from the dry thickness the spin process gives and keep it as the target. For slot-die and blade coating, the relation is the same:
φ is the volume fraction of the ink that remains as dense film. With porosity p, hdry ≈ φ·hwet/(1 − p), so φneeded = (1 − p)·hdry/hwet. For slot-die coating, hwet = Q/(W·U); for blade coating with a narrow gap, hwet ≈ g/2 as a first estimate.
| Target dry film | Wet film 5 µm | Wet film 10 µm | Wet film 20 µm |
|---|---|---|---|
| 100 nm | φ = 0.02 | φ = 0.01 | φ = 0.005 |
| 300 nm | φ = 0.06 | φ = 0.03 | φ = 0.015 |
| 500 nm | φ = 0.10 | φ = 0.05 | φ = 0.025 |
| 1 µm | φ = 0.20 | φ = 0.10 | φ = 0.05 |
Calculated as φ = hdry/hwet for a dense film. Illustrative arithmetic only; the achievable wet film depends on the coating window, gap and ink.
The table shows the trade-off. A thin wet film needs a concentrated ink, but very thin wet films are hard to coat stably: in slot-die coating they approach the low-flow limit of the coating window, and gap-controlled blade coating may require small gaps. A thicker wet film is easier to coat but takes longer to dry, which is exactly the drying problem of section 3. Many transfers therefore end up somewhere in the middle, with a moderately concentrated ink, a wet film of several micrometres and active drying.
For the same dry-thickness target, an ink that cannot be concentrated further needs a thicker wet film within the coating window. Meniscus-guided blade coating, where thickness is set by speed and evaporation rather than by a narrow gap, is often used for thin films from dilute inks [15]. A wire-bar is another quick option for first tests; see Wire-Bar (Mayer Rod) Coating: Wire Diameter and Wet Film Thickness.
7. Ink use and material utilisation
One reason to move away from spin coating is ink use. Material utilisation, the share of the solids dispensed that ends up in the film, can be written as:
hdry: dry thickness; A: coated area; φ: solids volume fraction; V: volume of ink dispensed, including any priming or dead volume.
| Case (illustrative) | Area | Ink dispensed | Film volume of ink | η |
|---|---|---|---|---|
| Spin coating, 25 × 25 mm substrate | 6.25 cm2 | 50 µL | about 2 µL | about 4% |
| Blade coating, 100 × 100 mm | 100 cm2 | 50 µL | about 33 µL | about 67% |
| Slot-die, 100 × 150 mm, single coating | 150 cm2 | 50 µL + 500 µL dead volume | about 50 µL | about 9% |
| Slot-die, 100 mm × 2 m, continuous | 2,000 cm2 | 667 µL + 500 µL dead volume | about 667 µL | about 57% |
Assumed: dry film 500 nm, φ = 0.15 (wet film about 3.3 µm in the coated cases), dead volume for tubing, die and priming 500 µL. Film volume of ink = hdry·A/φ. Illustrative arithmetic only; real spin losses and dead volumes depend on dispense method and hardware. The 500 µL dead volume is an assumption, not an SD200 specification, and the 2 m case stands for a longer or roll-to-roll coater, not for any Levon™ instrument in section 10.
The numbers illustrate a point that is easy to miss. Spin coating flings most of the dispensed ink off the substrate, so its utilisation is low. Blade coating can use ink efficiently on small samples. Slot-die utilisation improves as useful deposited ink volume grows relative to unrecovered priming and dead volume; these losses can dominate a short laboratory run. Ink-use differences between dispense methods on the spin coater are discussed in Static vs Dynamic Dispense in Spin Coating: Volume, Coverage and Material Waste.
8. A step-by-step transfer plan
A practical sequence for moving an ink from a spin coater to a blade or slot-die coater:
- Record the spin baseline. Dry thickness, spin speed and time, any antisolvent timing, annealing, and a quality measure such as coverage, roughness or device result. This is the target.
- Measure the ink. Solids volume fraction (φ ≈ mass of final solid per volume of ink divided by the solid density), viscosity at relevant shear rates, and contact angle on the substrate you will use.
- Choose the method. Blade coating for quick tests with little ink; slot-die when pre-metered thickness and longer coatings matter.
- Translate the thickness. Pick an achievable wet film and calculate the required φ (section 6). Adjust concentration if needed.
- Design the drying. Decide how the film will reach supersaturation quickly: gas knife, heated substrate, solvent change or additive. Start with one lever.
- Coat a series. Vary one drying parameter in steps while keeping the coating fixed. Inspect films for coverage, crystallinity and uniformity.
- Compare with the baseline. Use the same measures as for the spin film. Expect the best transferred film to need a different anneal from the spin film.
- Re-check on the spin coater. If the ink was reformulated, coat it on the spin coater to separate chemistry effects from process effects.
Keep the substrate, cleaning and annealing the same as in the spin baseline at first. Changing those alongside the coating method multiplies the number of variables.
9. Common failure modes
| Symptom after transfer | Likely cause | What to try |
|---|---|---|
| Sparse, needle-like or island crystals with gaps | Slow passage through supersaturation | Add gas quenching or heating; reduce wet thickness |
| Film pulls back from edges or breaks into droplets | Poor wetting on a stationary substrate | Improve cleaning or activation; adjust solvent or additive |
| Thick edges, thin centre | Faster evaporation at edges drives outward flow | More uniform gas flow; faster overall drying |
| Thickness drifts along the coating | Drying varies along the stroke, or flow or pool changes | Check gas flow uniformity, pump stability, liquid pool |
| Film much thicker or thinner than expected | Wrong φ or wet film estimate | Measure φ; calibrate wet film against dry thickness |
| Good films on small plates, poor on large | Drying time varies across the plate | Gas knife or uniform heating across the full width |
General diagnostic guide. Causes overlap; change one parameter at a time to confirm.
The first row is a common problem for perovskite inks and reflects the drying difference of section 3. The coating itself may be perfectly uniform as a wet film, while the dry film is not. Coating defects that arise from the coating flow rather than drying, such as ribbing or streaks, are a separate category [16].
10. Levon™ instruments along the path
The table quotes the Levon™ AC200 spin coater, PF200-H and PF400 film applicator and SD200 slot-die coater product pages. “Not stated” means the page does not give the value, not that the feature is absent.
| Specification | AC200 series | PF200-H / PF400 | SD200 |
|---|---|---|---|
| Method | Servo-driven programmable spin coating | Film applicator: adjustable film scraper or wire rod (PF200-H also a four-sided coater) | Slot-die coating with integrated injection-pump control |
| Substrate | Fragments to 8-inch wafers (model-specific limits) | PF200-H: 380 × 210 mm vacuum panel; PF400: 540 × 345 mm vacuum panel | 200 × 200 mm compatible substrate area |
| Speed | AC200-S-PP and AC200-SE: 20–10,000 rpm; 20–50,000 rpm/s (SE values no load) | PF200-H: 1–50 mm/s; PF400: 1–300 mm/s | Y-axis 0.002–50 mm/s; stroke 0–355 mm |
| Ink delivery | AC200-S-PP, SE and PE: integrated four-channel automatic dispensing ports | Not stated | Injection-pump control: 0–10 mL capacity; 0–1000 µL/s output |
| Heating | Not stated | PF200-H: RT to 200 °C; PF400-H: RT to 200 °C | Heated platform not stated |
| Gas flow over the film | Not stated | Air knife modules: PF200-H 80–200 mm knife lengths, angle −45° to 45°, height 10–35 mm; PF400 150–320 mm | Not stated |
| Glovebox | Can be recessed into a glovebox to reduce the operating height | Not stated | Not stated |
Specifications as published on the Levon™ AC200, PF200-H, PF400 and SD200 product pages on 22 October 2026. AC200-PE and AC200-SE-PLUS have different speed limits; see the AC200 page. Gas speed and gas supply for the air knife are not stated. Configurations are confirmed at quotation.
How this connects to the guide: the spin coater provides the baseline of section 8, the film applicator gives quick blade or rod tests with an optional air knife and heated panel for the drying levers of sections 3 and 4, and the slot-die coater adds pre-metered thickness for the translation of section 6.
